JY-QFP-5.00 Totally Enclosed Lifeboat & Rescue Boat Operation and Maintenance Manual

Description

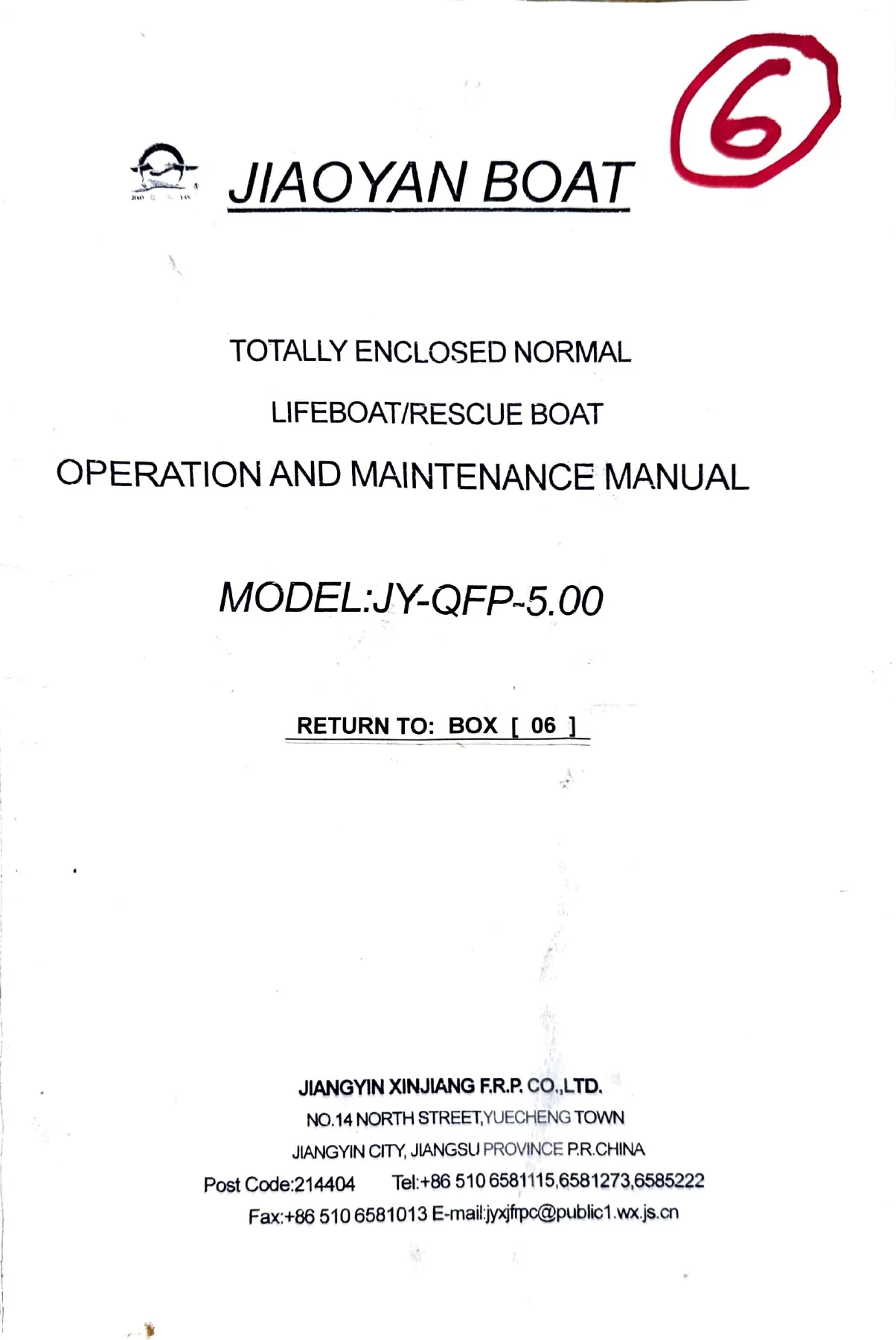

JY-QFP-5.00 Totally Enclosed Lifeboat & Rescue Boat Manual

This operation and maintenance manual covers the JY-QFP-5.00 totally enclosed normal lifeboat and rescue boat manufactured by Jiangyin Xinjiang F.R.P. Co., Ltd. It is a complete shipboard reference that combines launching and recovery procedures, the JX-1 on-load/off-load hook release system, the 380J-3 marine diesel engine set, the SCG025 reversing gearbox, electrical diagrams, fittings operation and a full maintenance schedule in one document. Every crew member responsible for a totally enclosed lifeboat or rescue boat needs the procedures, safety interlocks and inspection intervals collected here.

File Details

• Manual type: Operation and Maintenance Manual
• Equipment: Totally enclosed normal lifeboat / rescue boat
• Model: JY-QFP-5.00 (JYQFP5-00)
• Manufacturer: Jiangyin Xinjiang F.R.P. Co., Ltd., Jiangyin City, Jiangsu Province, P.R. China
• Engine covered: 380J-3 marine diesel engine set
• Gearbox covered: SCG025 boat reversing gearbox
• Hook system covered: JX-1 centrally operated simultaneous hook release
• Language: English
• File format: PDF
• Page count: 160 pages
• Contents sections: JA, JB, JE, JF, JG, JH, JI, JK, JL as tabbed in the index

Chapters Covered

• Main Operation Points
  • Boat launching
  • Boat handling in a seaway
  • Emergency release out of water
  • Return to parent ship
  • Stowing the boat
  • Davit load limits
  • Embarkation
  • Console
  • Lifeboat engine operation instruction for Type 380J-3
  • Lifting and transportation
  • Life-saving signals
• JX-1 Hook Operation and Maintenance Manual
  • General information and SOLAS compliance
  • JX-1 system diagram
  • Working principle of hook release
  • Hook release instructions
  • Centrally operated simultaneous hook release gear
  • Release when afloat and emergency release
  • Resetting the hooks — operating principle
  • Release system maintenance (afloat checks, lubrication points, wear limits)
  • Central release mechanism adjustments

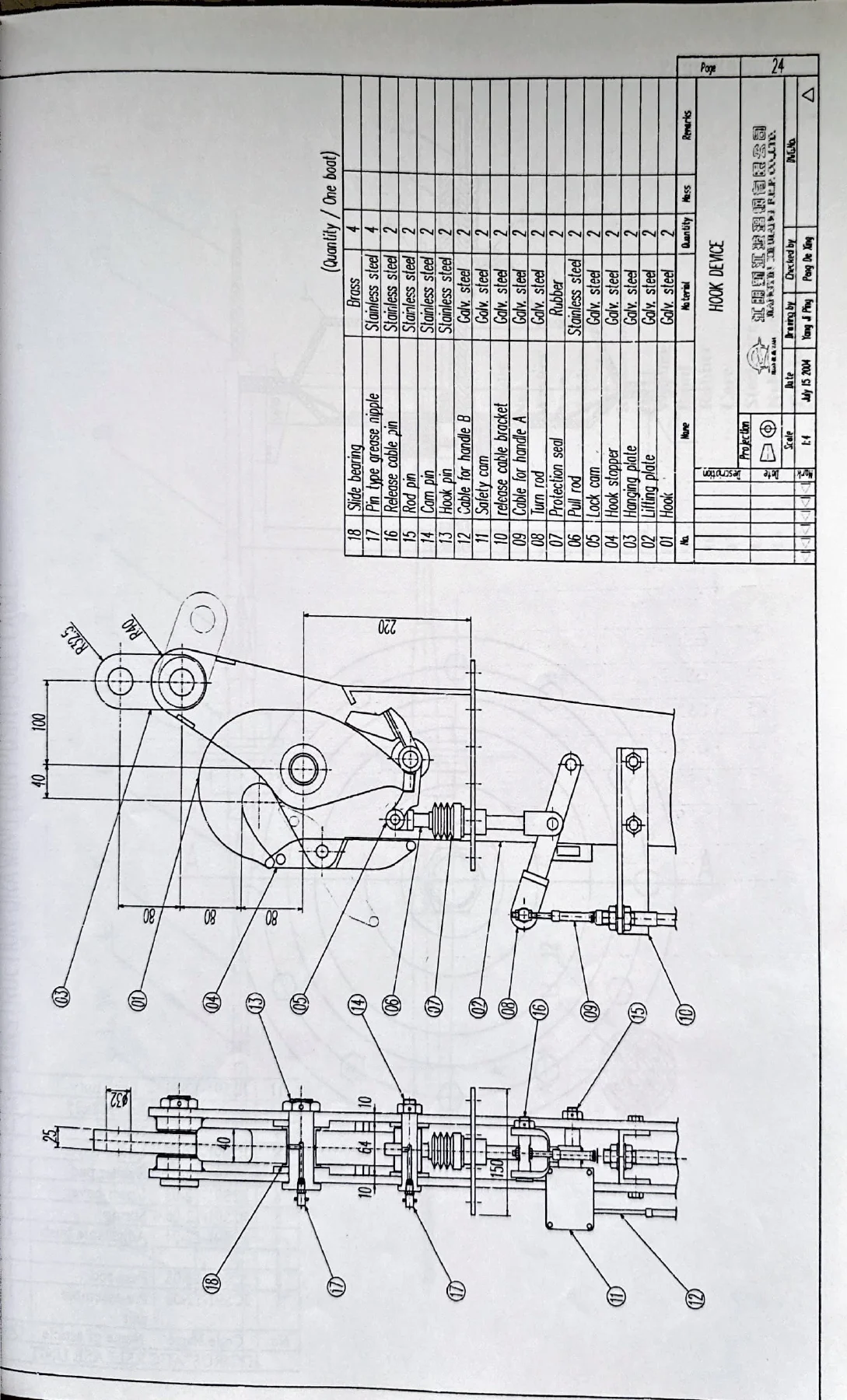

  • Control device drawing (MJ900-00W Rev. A)
  • Maintenance records for wear of hook bearing
• Electric Diagram
• 380J-3 Marine Diesel Engine Set Operation Manual
  • General precautions and introduction
  • Engine set overall dimensions and description
  • General engine data
  • Main structure: fuel system, lubrication system, cooling system, electric system, gearbox
  • Electrical diagrams and instrument panel
  • Starting precautions and checks before starting
  • Operation, starting by spring starter, stopping
  • Routine maintenance periods
  • Lubrication oil and gearbox oil specifications
  • Main spanner torque settings
  • Cylinder head bolt tightening sequence
  • Oil level checks, oil changes, alternator belt tension
  • Priming the fuel system, draining coolant, fuel filter change
  • Idling speed and valve clearance adjustment
  • Troubleshooting: difficult starting, insufficient output, black smoke, low oil pressure, knocking, overheating, overspeed
• SCG025 Boat Reversing Gearbox Service Manual
  • Brief description and technical data

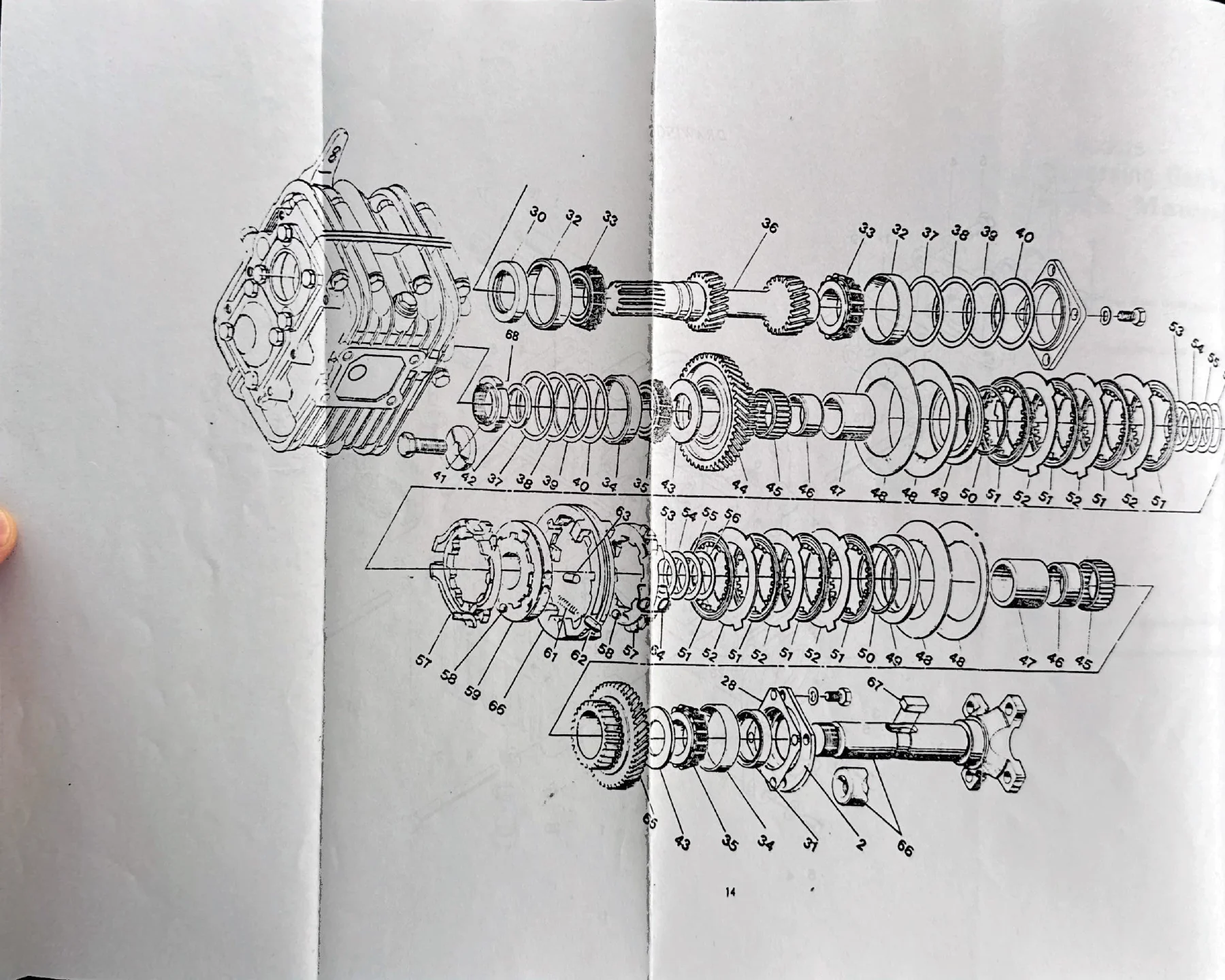

  • Gear casing, gear sets, multiple-disc clutch
  • Shaft bearings, shaft seals, lubrication
  • Installation and connection to engine and propeller
  • Operation, operating temperature, lay-up periods
  • Maintenance: transmission oil, oil quantity, oil level checks, oil change
  • Troubleshooting: delay of gear engagement, failure to move into gear, loss of top speed, oil leakage
• 380J-3 Marine Diesel Engine Set Parts Catalogue
• Fittings Operation
  • Painter release
  • Fixing method of radar transponder (SART)
  • Emergency steering gear
  • Hand bilge pump
• Maintenance
  • Maintenance schedule
  • Electrical system & batteries
  • Loose equipment
  • Bilge pumping system
  • Repair of G.R.P. boat

This manual is written for the people who actually operate and maintain the boat: the coxswain, the launching crew and the ship’s maintenance staff. It explains how the davit-launched boat leaves the ship under normal and emergency conditions, how the JX-1 hook release works and how to reset it correctly, and how the engine, gearbox and electrical system are kept ready. The maintenance section lists inspection points from the general boat area through the engine, batteries, hatches and bilge pump, and the GRP repair section explains gelcoat restoration while directing structural repairs ashore.

What You Can Do With This Manual

• Run a complete pre-launch check: davit winch control, battery position, fuel and coolant levels, stop cocks, hook release interlock
• Carry out a normal off-load release, an emergency on-load release, and the correct reset procedure for both hooks
• Operate and maintain the 380J-3 engine set, including starting, stopping, priming, oil changes, belt tension, valve clearance and torque settings
• Service the SCG025 reversing gearbox and diagnose gear engagement faults, loss of top speed and oil leaks
• Maintain the JX-1 hook release system, check wear limits and adjust cables at the central release mechanism
• Work through the maintenance schedule for batteries, hatches, bilge pump, loose equipment and emergency steering
• Read and act on the life-saving signals tables for landing, shore life-saving apparatus and aircraft search and rescue

Why This Manual Matters

Lifeboat systems are safety-critical. The hook release system is designed to release at any time, afloat or not, and the manual states plainly that correct resetting and maintenance are essential. The davit winches cannot recover a boat with more than the designated number of crew on board, and the manual sets out the exact checks and interlock positions that keep the crew safe. The engine and gearbox instructions carry the correct fluid grades, capacities, torque values and adjustment limits so that a 380J-3 or SCG025 unit is not damaged by guesswork. Everything a coxswain or maintenance technician needs to keep a JY-QFP-5.00 lifeboat in a ready-for-use condition is contained in this one document.
