Kawasaki 80ZIV Wheel Loader Cummins 6CT8.3 Engine Shop Manual – PDF
$14.95
Kawasaki 80ZIV Wheel Loader(Troubleshooting)Cummins 6CT8.3 Engine Shop Manual – PDF DOWNLOAD
PN AAA-S80C2U01-954
Description
Kawasaki 80ZIV Wheel Loader(Troubleshooting)Cummins 6CT8.3 Engine Shop Manual – PDF DOWNLOAD
FILE DETAILS:
Kawasaki 80ZIV Wheel Loader(Troubleshooting)Cummins 6CT8.3 Engine Shop Manual – PDF DOWNLOAD
PN AAA-S80C2U01-954
Language : English
Pages : 42
Downloadable : Yes
File Type : PDF

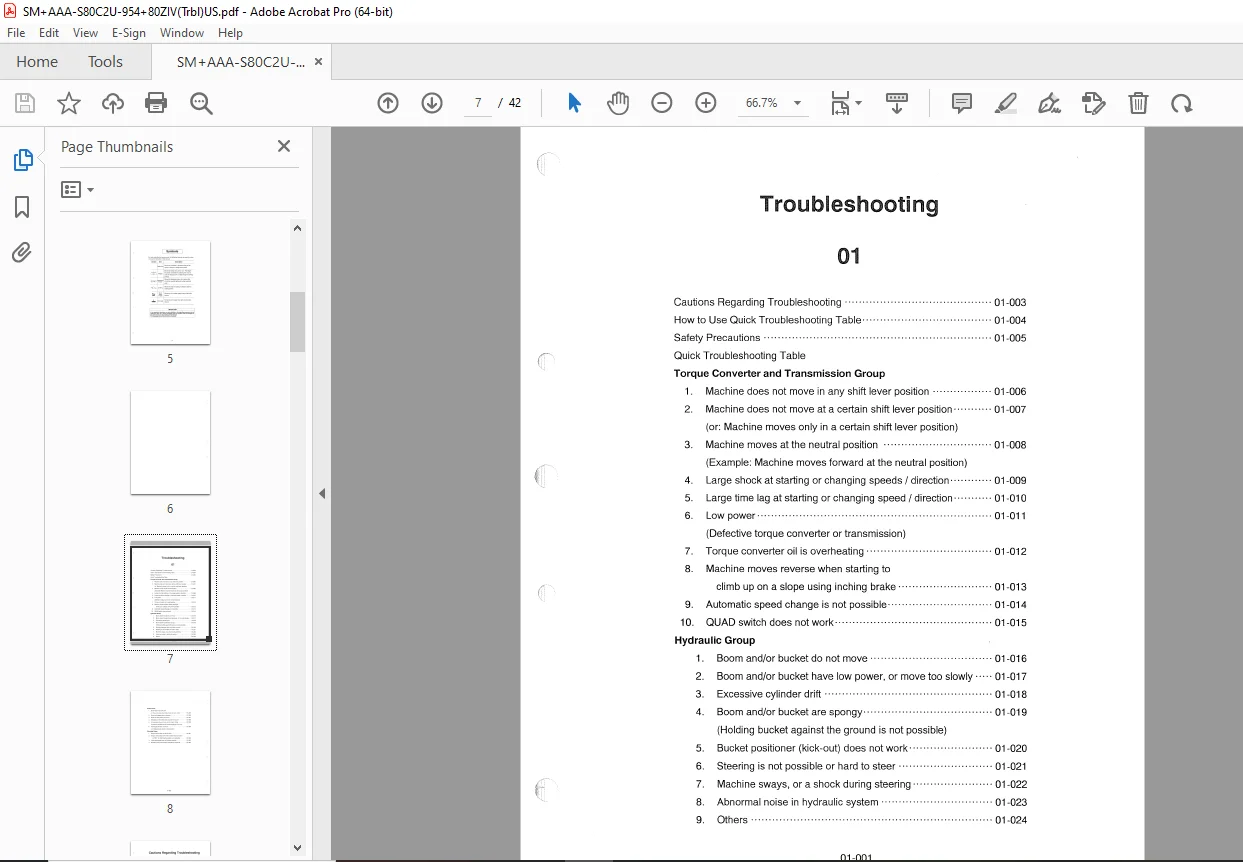

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kawasaki 80ZIV Wheel Loader(Troubleshooting)Cummins 6CT8.3 Engine Shop Manual – PDF DOWNLOAD
PN AAA-S80C2U01-954
Troubleshooting
01
Cautions Regarding Troubleshooting
How to Use Quick Troubleshooting Table- Safety Precautions
Quick Troubleshooting Table
Torque Converter and Transmission Group
1. Machine does not move in any shift lever position
2. Machine does not move at a certain shift lever position (or: Machine moves only in a certain shift lever position)
3. Machine moves at the neutral position
(Example: Machine moves forward at the neutral position)
4. Large shock at starting or changing speeds / direction.
5. Large time lag at starting or changing speed / direction
6.Low power.
(Defective torque converter or transmission)
7. Torque converter oll is overheating-
8. Machine moves reverse when starting to climb up on a slope using inching brake
9. Automatic speed change is not possible.
10. QUAD switch does not work
Hydraulic Group
1. Boom and/or bucket do not move
01-016
2. Boom and/or bucket have low power, or move too slowly 01-017
3. Excessive cylinder drift
Boom and/or bucket are spongy
01-019
(Holding bucket against the ground is not possible)
5. Bucket positioner (kick-out) does not work–
01-020
6. Steering is not possible or hard to steer
01-021
7. Machine sways, or a shock during steering
01-022
8. Abnormal noise in hydraulic system
DESCRIPTION:
Kawasaki 80ZIV Wheel Loader(Troubleshooting)Cummins 6CT8.3 Engine Shop Manual – PDF DOWNLOAD
PN AAA-S80C2U01-954
Safety Precautions:
The most important point in providing repair service is safety. To ensure safety, observe the general cautions described below.
This manual is intended for properly trained and equipped service technicians.
●Carefully read this manual to thoroughly understand the operation method before you operate or repair the machine.
Be sure to wear appropriate clothes and protectors, such as safety boots, hard hat and goggles.
●Place the machine on a level and solid ground, and place chocks against the wheels to prevent movement.
●Remove the cable from the battery before starting the service work, and attach a “DO NOT OPERATE!” tag to the steering wheel.
Be sure to release the internal pressure before you remove a pipe, such as the hydraulic oil, air, or engine coolant pipe.
Be sure to apply the articulation stopper before starting work.
●While supporting the bottom of the chassis using a jack, be sure to support the chassis using the blocks.
When the boom or bucket is raised or when a unit is lifted by a crane, be sure to place a stand or adequate cribbing under the unit to prevent unexpected dropping.
●Do not start to work in an enclosed area if adequate ventilation is not provided.
To remove a heavy unit (20kg (40 lbs) or more), be sure to use a crane or other lifting tool.
Just after stopping operation, be careful not to directly touch a hot component. You may get burned.
Contact tire manufacturer’s local dealer for tire servicing and changing.
Always store the tools in good condition, and use them properly.
Keep the work area clean. Clean up spills immediately.
Avoid the use of flammable solvents and cleaners.
●When working outdoors keep work areas, ladders, steps, decks and work platforms clear of snow, ice, and mud.
Use safe work platforms to reach higher areas of the machine.
