Kawasaki Kl650 2009 Workshop Service Repair Manual – PDF Download

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

Dive deep into the mechanics of your motorcycle with this comprehensive Service Manual, specifically designed for the Kawasaki KL650 series, including models KL650E8, KL650E9, KL650EA, KL650EB, and KL650EC, along with their AU (Australia) and CAL (California) variants. Spanning an impressive 479 pages, this digital manual is your ultimate guide to understanding, maintaining, and repairing your machine to factory standards. 🛠️

This manual is meticulously structured to provide clear, step-by-step instructions, detailed diagrams, and crucial specifications. Whether you’re performing routine periodic maintenance, tackling complex fuel system overhauls, ensuring your engine lubrication is optimal, or troubleshooting electrical issues, this guide has you covered.

Key Sections & Procedures Include:

• Periodic Maintenance (Chapter 2): Covers essential upkeep such as drive chain lubrication, slack inspection (Standard: 35-45mm), and wear inspection (20-link length standards like 317.5-318.2mm, service limits varying by model). Includes procedures for wheel alignment, brake fluid leak inspection, brake pad wear (service limit 1mm), suspension operation checks, steering play adjustment, and chassis parts lubrication. 📋
• Fuel System (Chapter 3): Detailed exploded views, specifications (e.g., Idle Speed: 1300 ±100 rpm, Main Jet #145), and procedures for throttle grip and cable adjustment, choke cable service, carburetor maintenance (idle speed adjustment, pilot screw adjustment, float height), air cleaner service, and fuel tank removal/inspection. Specific details for AU and CAL model evaporative emission control systems are included.
• Engine Lubrication System (Chapter 7): Features an engine oil flow chart, exploded views with torque specifications (e.g., Engine Oil Drain Bolt: 29 N·m). Covers oil level inspection, oil and filter changes (Recommended Oil: API SG-SM with JASO MA/MA1/MA2, SAE 10W-40; Capacity: 2.0L when filter removed), oil screen cleaning, oil pressure relief valve inspection, and oil pump removal/disassembly. ⚙️
• Electrical System (Chapter 16): Extensive coverage of lighting system checks (headlight aiming, bulb replacement), turn signal relay inspection, radiator fan system diagnostics, meter and gauge unit service, switch inspections (including sidestand and engine stop switch), and fuse replacement. Includes circuit diagrams for various systems like the starter circuit, lighting, and fan. ⚡
• Appendix (Chapter 17): Crucial for reassembly, this section provides detailed diagrams for cable, wire, and hose routing, ensuring all components are correctly positioned for safe and optimal operation. Also includes a troubleshooting guide.

Technical Information & Specifications:

Throughout the manual, you’ll find precise technical data, including torque values for nearly every fastener (e.g., Rear Axle Nut: 98 N·m, Oil Filter Cap Bolts: 8.8 N·m, Spark Plugs: 14 N·m), service limits for wearable parts, recommended lubricants and fluids (e.g., DOT4 brake fluid), and capacities. Special tool numbers are often provided (e.g., Jack: 57001-1238, Steering Stem Nut Wrench: 57001-1100, Fuel Level Gauge: 57001-1017).

Safety First! ⚠️

The manual places a strong emphasis on safety, with numerous “WARNING” and “NOTICE” callouts to prevent personal injury or damage to your motorcycle. These cover hazards like flammable gasoline, hot coolant, brake fluid handling, and the importance of correct torque and component installation.

This service manual is an indispensable resource for professional technicians and experienced DIY mechanics aiming to maintain their Kawasaki KL650 in peak condition. Its depth of information, clear instructions, and comprehensive coverage make it a vital tool for any serious owner.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

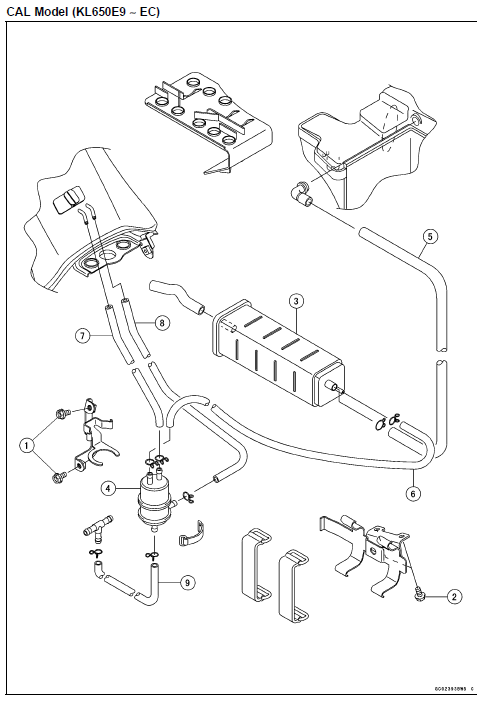

• Equipment Models Covered: Kawasaki KL650E8, KL650E9, KL650EA, KL650EB, KL650EC. Includes specific information for AU (Australian) and CAL (Californian) model variations where applicable (e.g., evaporative emission control system for CAL models, pilot screw adjustments for AU models).
• Engine Specifications:
  • Oil Type: API SG, SH, SJ, SL or SM with JASO MA, MA1 or MA2
  • Oil Viscosity: SAE 10W-40
  • Oil Capacity: 1.9 L (filter not removed), 2.0 L (filter removed), 2.1 L (engine completely dry)
  • Spark Plug: NGK DPR8EA-9 or ND X24EPR-U9 (Torque: 14 N·m)
  • Idle Speed: 1300 ±100 r/min (rpm)
• Electrical System:
  • Battery: 12V 14Ah
  • Fuses: Main Fuse 20A, Headlight Fuse 15A, Fan Fuse 15A
  • Detailed circuit diagrams for starting, lighting, fan, and indicator systems.
• Transmission and Drivetrain:
  • Drive Chain Standard Slack: 35 ∼ 45 mm (1.4 ∼ 1.8 in.)
  • Drive Chain 20-link Length (Standard): 317.5 ∼ 318.2 mm (12.50 ∼ 12.53 in.)
  • Service Limits for 20-link Length: KL650E8∼EA: 323 mm (12.7 in.); KL650EB∼EC: 319 mm (12.56 in.)
  • Standard Chain Types: ENUMA EK525SR-O2 (KL650E8∼EA), DAIDO DID520VP2 (KL650EB∼EC), 106 Links
• Brake System:
  • Recommended Brake Fluid: DOT4
  • Pad Lining Thickness Service Limit: 1 mm (0.04 in.)
  • Torque for Banjo Bolts: 25 N·m
• Special Tools & Equipment Requirements: The manual frequently lists specific Kawasaki special tool part numbers for various procedures, such as:
  • Jack: 57001-1238
  • Steering Stem Nut Wrench: 57001-1100
  • Fuel Level Gauge: 57001-1017
  • Pilot Screw Adjuster, B: 57001-1240
  • Oil Pressure Gauge, 10 kgf/cm²: 57001-164
  • Spark Plug Wrench, Hex 18: 57001-1024
  • Inside Circlip Pliers: 57001-143

📋 MANUAL SECTIONS & PROCEDURES

• Service Procedures and Maintenance Schedules: Detailed periodic checks and replacements for drive chain, brakes, suspension, steering, engine oil, oil filter, coolant, spark plugs, air cleaner element, fuel hoses, and general chassis lubrication.
• Repair Instructions and Troubleshooting Guides: Step-by-step instructions for disassembling, inspecting, and reassembling major components like brake master cylinders, calipers, carburetors, and oil pumps. Troubleshooting steps are provided for electrical systems and operational issues.
• Parts Identification and Replacement Procedures: Exploded views in sections like Fuel System and Engine Lubrication aid in parts identification. Detailed replacement procedures for items like brake pads, seals, O-rings, hoses, and electrical components.
• Assembly and Disassembly Instructions: Comprehensive guides for removing and installing components, often with specific torque values and warnings about critical steps (e.g., oil filter installation orientation).
• Adjustment and Calibration Procedures: Instructions for adjusting drive chain slack, wheel alignment, steering play, headlight aiming, brake light switch timing, idle speed, and carburetor pilot screw settings.
• Safety Procedures and Precautions: Numerous “WARNING” and “NOTICE” sections highlight critical safety information and steps to avoid component damage. This includes handling flammable fluids, working with hot engine parts, and correct tool usage.
• Cable, Wire, and Hose Routing: A dedicated appendix section with clear diagrams to ensure correct routing of all cables, wires, and hoses after service or repair.

❌ WHAT’S NOT INCLUDED

• A physical, printed version of the manual (this is a digital PDF download).
• Direct, real-time technical support or consultation from the manual provider.
• Warranty coverage or guarantees for repairs performed using this manual.

📊 COMPREHENSIVE RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

📋 SEO Schema for Google:

💬 Customer Questions & Answers:

Q: What specific models and years does this manual cover?
A: This service manual covers the Kawasaki KL650 series, specifically models KL650E8, KL650E9, KL650EA, KL650EB, and KL650EC. It also includes information for Australian (AU) and Californian (CAL) variants where applicable.

Q: What types of maintenance and repair procedures are included?
A: It includes a wide range of procedures: periodic maintenance (chain, brakes, fluid changes), fuel system (carburetor, cables), engine lubrication (oil pump, screen), electrical system troubleshooting (lights, switches, starter), suspension/steering adjustments, and component disassembly/assembly with detailed specifications.

Q: Is this manual suitable for DIY mechanics or is it for professionals only?
A: It’s ideal for professional technicians. Experienced DIY mechanics with good mechanical skills and the right tools will also find it very useful. It’s quite technical, so not recommended for beginners.

Q: What format is this manual in and how do I access it?
A: The manual is in a digital PDF format. You’ll get immediate download access after purchase, and you can use it on any device that supports PDF files. Access is permanent.

Q: Are there special tools or diagnostic equipment requirements?
A: Yes, for some procedures, specific Kawasaki special tools are listed (e.g., steering stem wrench 57001-1100, fuel level gauge 57001-1017). A good set of general motorcycle tools and a torque wrench are essential.

Q: Does this manual include wiring diagrams and hydraulic schematics?
A: Yes, it includes electrical wiring diagrams for various systems like lighting, starter, and radiator fan. It also has detailed cable, wire, and hose routing diagrams. Brake system lines are covered, though not in traditional complex hydraulic schematic format for this type of motorcycle.

Q: Is the manual language technical or user-friendly?
A: The language is technical and precise, as expected from an OEM-level service manual. It’s clear for those with mechanical knowledge but may be challenging for novices.

Q: Can I print this manual or use it offline?
A: Yes, being a PDF, you can print any pages you need or the entire manual. You can also save it to your device for offline use anytime, anywhere.

🛠️ PROFESSIONAL ASSESSMENT & USABILITY

• Overall Quality Rating: ⭐⭐⭐⭐⭐ (Excellent. OEM-level comprehensive content, accuracy, and detail.)
• Content Classification: Motorcycle Service Manual for Kawasaki KL650 series.
• Language & Accessibility: Technical and specific, using industry-standard terminology. Highly accessible for trained technicians and experienced mechanics. Searchable PDF format enhances usability.
• Professional Recommendation: Highly recommended as an essential resource for any workshop or individual regularly servicing or repairing Kawasaki KL650E8-EC motorcycles.
• Technical Depth: Extremely high, covering everything from basic maintenance to complex system overhauls with precise specifications and procedures.
• Page Count & Scope: 479 pages of in-depth technical information, diagrams, and instructions.
• File Quality & Format: High-resolution digital PDF, with text extraction enabling clear readability of text and diagrams.
• Update Status: Content is specific to the KL650E8, KL650E9, KL650EA, KL650EB, and KL650EC model range.

🎯 IDEAL USE CASES & APPLICATIONS

• Professional Service Shop Operations: Provides factory-approved procedures and specifications for all repairs and maintenance on covered KL650 models.
• Motorcycle Maintenance Planning: Enables owners and technicians to follow scheduled maintenance accurately, prolonging motorcycle life and performance.
• Troubleshooting and Diagnostic Procedures: Offers systematic approaches and circuit diagrams to diagnose and resolve mechanical and electrical issues effectively.
• Parts Identification and Ordering: Exploded views and detailed descriptions assist in identifying correct parts for replacement.
• Training and Skill Development: An excellent learning tool for apprentice technicians or experienced mechanics new to the KL650 platform.
• Major Overhauls and Rebuilds: Contains all necessary information for engine, carburetor, brake, and suspension system overhauls.
• Pre-Purchase or Pre-Ride Inspections: A valuable reference for detailed inspections and ensuring safety compliance.

📋 Original Product Description:

DESCRIPTION:

Kawasaki Kl650 2009 Workshop Service Repair manual is designed primarily for use by trained mechanics in a properly equipped shop. However, it contains enough detail and basic information to make it useful to the owner who desires to perform his own basic maintenance and repair work. A basic knowledge of mechanics, the proper use of tools, and workshop procedures must be understood in order to carry out maintenance and repair satisfactorily. Whenever the owner has insufficient experience or doubts his ability to do the work, all adjustments, maintenance, and repair should be carried out only by qualified mechanics.

IMAGES:

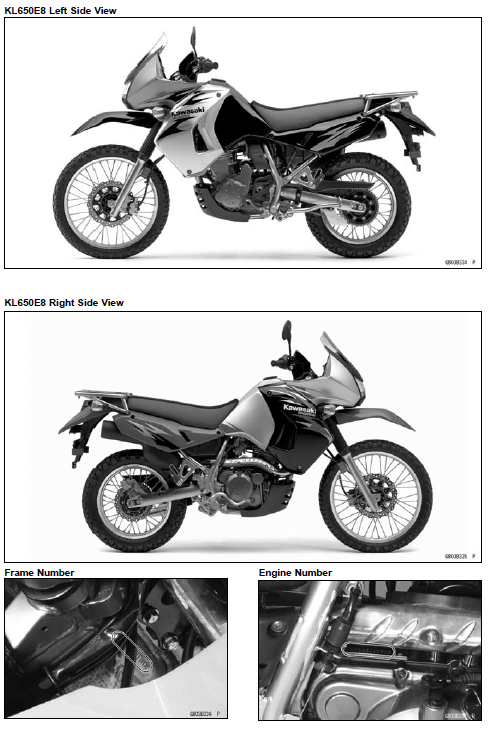

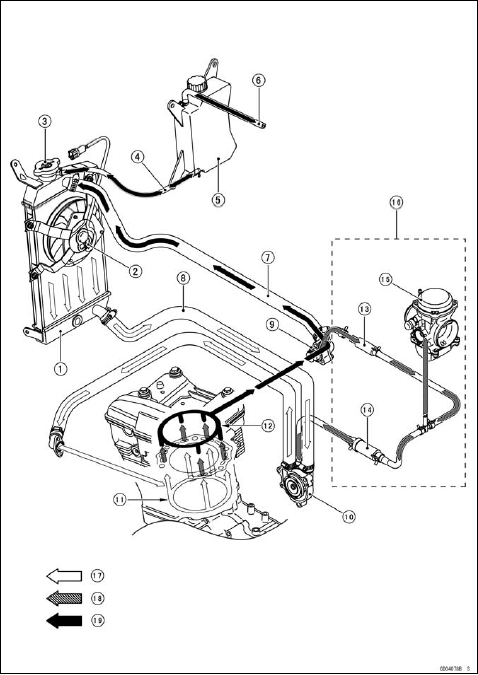

TABLE OF CONTENTS:

General Information 1 j Periodic Maintenance 2 j Fuel System 3 j Cooling System 4 j Engine Top End 5 j Clutch 6 j Engine Lubrication System 7 j Engine Removal/Installation 8 j Crankshaft/Transmission 9 j Wheels/Tires 10 j Final Drive 11 j Brakes 12 j Suspension 13 j Steering 14 j Frame 15 j Electrical System 16 j Appendix 17 j
