Kohler Command CH18 CH20 CH22 CH25 CH730-750 Engine Service Manual PDF Guide

Description

Kohler Command CH18 CH20 CH22 CH25 CH730-750 Engine Service Manual PDF DOWNLOAD

DESCRIPTION

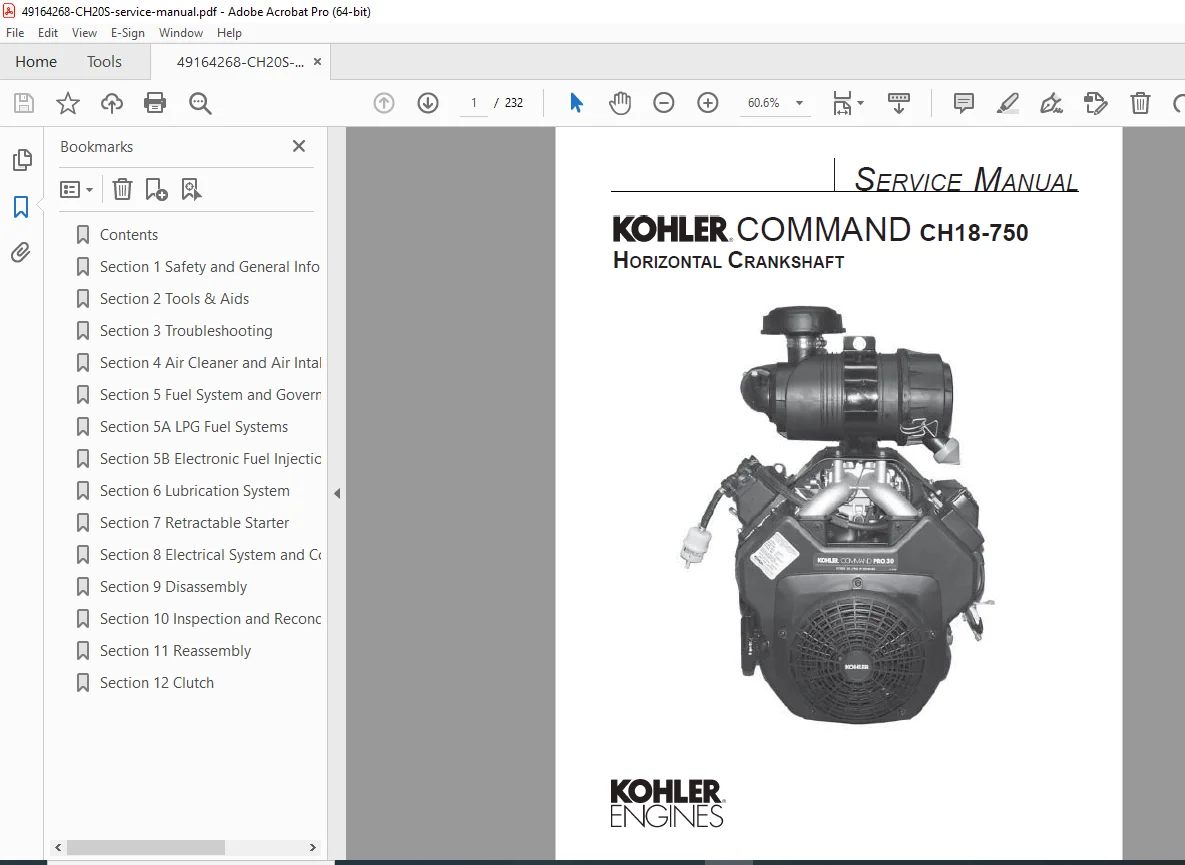

Kohler Command CH18-750 Engine Service Manual – Official Factory Technical Documentation

This is the complete official Kohler factory service manual for the Command series horizontal crankshaft engines, covering models CH18 through CH750 (18-30 horsepower). With 232 comprehensive pages of technical information, this manual is the authoritative reference for professional small engine mechanics, outdoor power equipment technicians, and authorized Kohler service centers performing maintenance, repair, and overhaul on these commercial-grade engines.

📋 FILE DETAILS

• Manual Name: Kohler Command CH18-750 Service Manual
• Manual Code: TP-2428-C
• Engine Models Covered:
  • CH18 – 13.4 kW (18 HP) @ 3600 RPM
  • CH20 – 14.9 kW (20 HP) @ 3600 RPM
  • CH22 – 16.4 kW (22 HP) @ 3600 RPM
  • CH23 – 17.2 kW (23 HP) @ 3600 RPM
  • CH25 – 18.6 kW (25 HP) @ 3600 RPM
  • CH26 – 19.4 kW (26 HP) @ 3600 RPM
  • CH730 – 18.6 kW (25 HP) @ 3600 RPM
  • CH740 – 20.1 kW (27 HP) @ 3600 RPM
  • CH745 – 20.9 kW (28 HP) @ 3600 RPM
  • CH750 – 22.3 kW (30 HP) @ 3600 RPM
• Format: PDF (Digital Download)
• Pages: 232 pages
• PDF Quality: Excellent – Factory original high-resolution scan
• Language: English
• Edition: March 2006
• Publisher: Kohler Engines

🔧 ENGINE SPECIFICATIONS COVERED

CH18, CH20, CH22 (624 cc):

• Bore: 77 mm (3.03 in)
• Stroke: 67 mm (2.64 in)
• Displacement: 624 cc (38 cu. in.)
• Compression Ratio: 8.5:1
• Dry Weight: 41 kg (90 lb)

CH22/23 (674 cc):

• Bore: 80 mm (3.15 in)
• Stroke: 67 mm (2.64 in)
• Displacement: 674 cc (41 cu. in.)
• Compression Ratio: 8.5:1
• Dry Weight: 41 kg (90 lb)

CH25, CH26, CH730-745 (725 cc):

• Bore: 83 mm (3.27 in)
• Stroke: 67 mm (2.64 in)
• Displacement: 725 cc (44 cu. in.)
• Compression Ratio: 9.0:1
• Dry Weight: 43 kg (94 lb)

CH750 (755 cc):

• Bore: 83 mm (3.27 in)
• Stroke: 69 mm (2.7 in)
• Displacement: 755 cc (46 cu. in.)
• Compression Ratio: 9.4:1
• Dry Weight: 48 kg (105 lb)

General Specifications:

• Oil Capacity (with filter): 1.6-1.8 L (1.7-1.9 U.S. qt.)
• Maximum Operating Angle: 25° (all directions at full oil level)
• Peak Torque Range: 43.6-64.4 N·m (32.2-47.5 ft. lb.) depending on model
• Configuration: Horizontal crankshaft, overhead valve (OHV)
• Cooling: Air-cooled
