Komatsu D375A-5 Bulldozer Parts Book Manual S/N 18001 and Up

Description

Komatsu D375A-5 Bulldozer Parts Book Manual S/N 18001 and Up

This is the full illustrated parts book for the Komatsu D375A-5 crawler dozer built from machine serial number 18001 onward, prepared around the SA6D170E-3A-7 engine from engine serial number 310043 up. Across 650 pages it walks the machine group by group, pairing a drawing of each assembly with the part numbers, part names, quantities and serial-number applicability that belong to it. If you have ever had a D375A-5 down while someone guessed at a bushing size or a bolt length, this is the document that removes the guesswork.

File Details

• Manual type: Parts book / illustrated parts catalogue
• Brand: Komatsu
• Model: D375A-5
• Machine serial coverage: S/N 18001-UP
• Engine covered: SA6D170E-3A-7, S/N 310043-UP
• Language: English
• Page count: 650 pages
• File format: PDF

How the Pages Are Laid Out

Every parts page in this D375A-5 parts book follows the same two-panel arrangement. The left side carries the exploded or assembled drawing with numbered balloons pointing at each component. The right side carries the matching table: Item, Part No., Part Name, Qty and Serial No. The serial column is the one that matters most on a machine of this age, because a great many D375A-5 assemblies changed partway through the 18001-up run, and the table prints both the superseded number and its cut-off range directly underneath the current one.

Each page also carries a reference code such as B0100-01A0 or F2200-01A0 together with a six-digit page number like 030010 or 150010. Those codes are what let you jump between a group index and the drawing you actually want, and they are what a parts counter will ask you for when you call an order in.

Chapters Covered

The book is divided into fifteen lettered groups. Below is what each one holds:

IMAGES PREVIEW

• B0 Engine Related Parts – engine mount, muffler and drain tube, heat shield for muffler, alternator harness including the heavy duty harness version, damper, air conditioner piping, heater piping and the additional heater piping introduced at #18087-
• C0 Cooling System – radiator piping with and without oil pan heater, oil cooler piping, fan belts covering standard, high speed fan, the 10% up belt from #18575-, reversible fan belt and the EU belt, oil cooler and oil line, hydraulic oil cooler piping including the cushion dozer variant
• D0 Fuel Tank and Related Parts – fuel tank with and without quick charge, the quick charge plus heavy duty harness combination, fuel piping, cushion dozer fuel piping, fuel line with cooler bypass valve and the fuel quick charge receiver
• E0 Electrical System – battery, and the fender wiring family in all its permutations: plain L.H. wiring, shoe slip control, dust indicator, VHMS, VHMS kit, the combined shoe slip control and dust indicator harness, the Saudi version, and VHMS download wiring
• F0 Power Train and Final Drive – universal joint; power train broken into ten sheets covering hose, brake linkage, tank, gauge and suction line, strainer and power line pump, delivery line and filter, return piping, concentrated piping and power train mount; torque converter in three sheets including input and drive case and the rear housing with scavenging pump; power take off; torque converter valve and charging pump; transmission in eight sheets covering bare unit, housing, carrier, case, transfer and input and output; transmission valve; final drive sprocket hub, case and gear and carrier for both hands including reinforced 7 track roller versions; power line mount; brake rod control; power line wiring
• H0 Hydraulic System – hydraulic pump with its delivery and suction lines, blade lift line split at #18013-, blade tilt line for tilt dozer and for dual tilt pitch dozer, ripper line, ripper valve and piping in two sheets, pin puller line for multi ripper and giant ripper, and P.P.C. valve line for both blade configurations

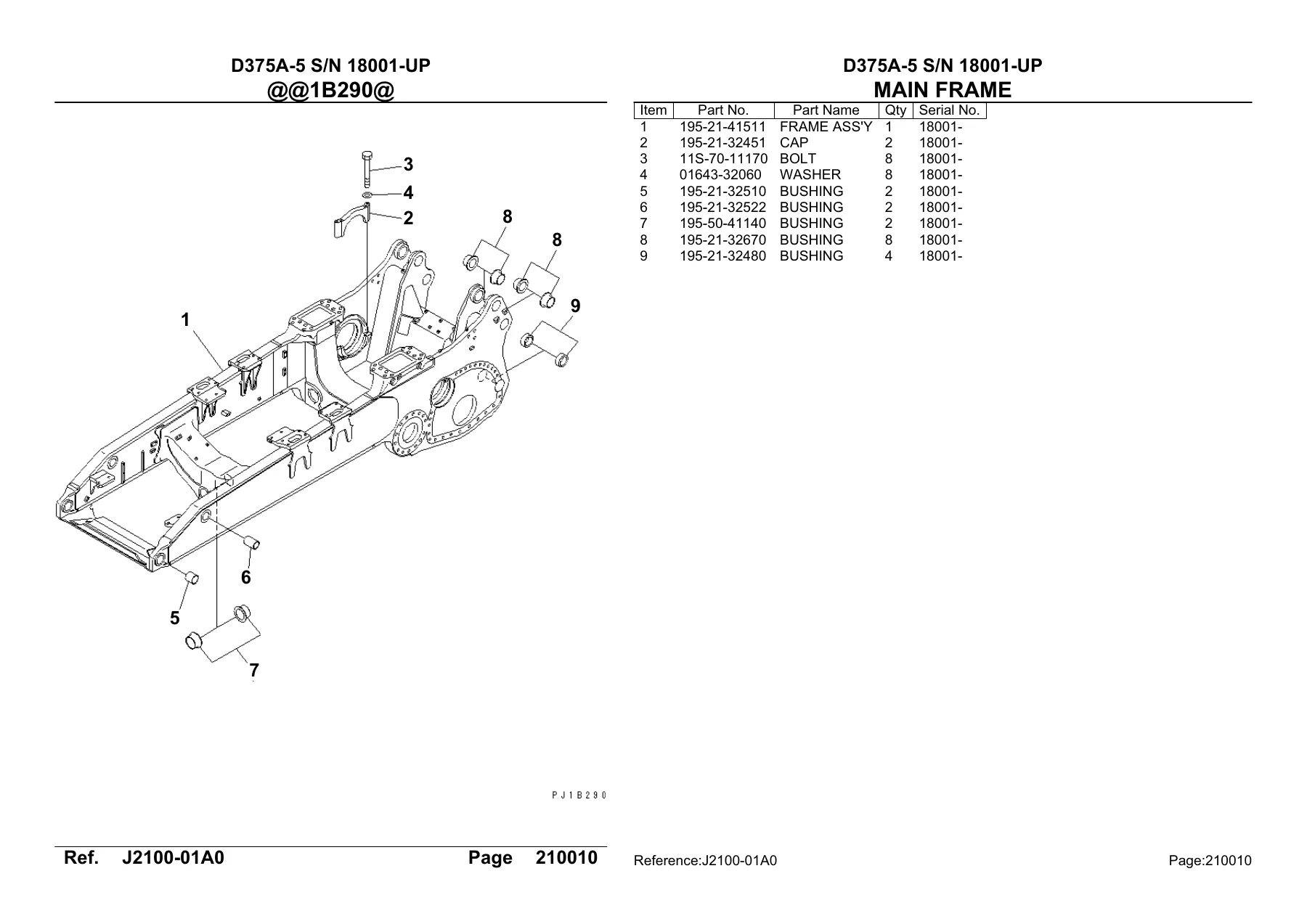

• J0 Main Frame and Related Parts – main frame, cushion dozer main frame, equalizer bar and pivot shaft including the dual tilt pitch dozer shaft
• K0 Operator’s Compartment and Control System – the largest group in the book. Operator’s seats in fabric and leather, with and without head rest, high back and air suspension tilt types; seat belts including the KAB belt; cab body, the high strength 40PSI glass cab from #18102-, doors and locks, wiper and window sash; floor frame with and without cab; arm rests; dashboard in its many wiring, heater, air conditioner and MSHA-spec forms; air conditioner and heater units; blade and ripper control levers and knobs; washer tank; VHMS controller box and the ORBCOMM version; plus first aid box, thermos bottle and lunch box mounting
• M0 Guard – radiator and radiator guard, grill and masks including grid, perforated and landfill types, reversible fan, fan drive and fan guard, noise suppression specification covers for EU, lift cylinder support, fuel cooler, engine side covers, pre cleaner hood and ducting, condenser and bracket, air compressor tank receiver, battery relay and starting harness, fusible links split at #18364-, fender related sheets, rear cover, ROPS mount and under guard

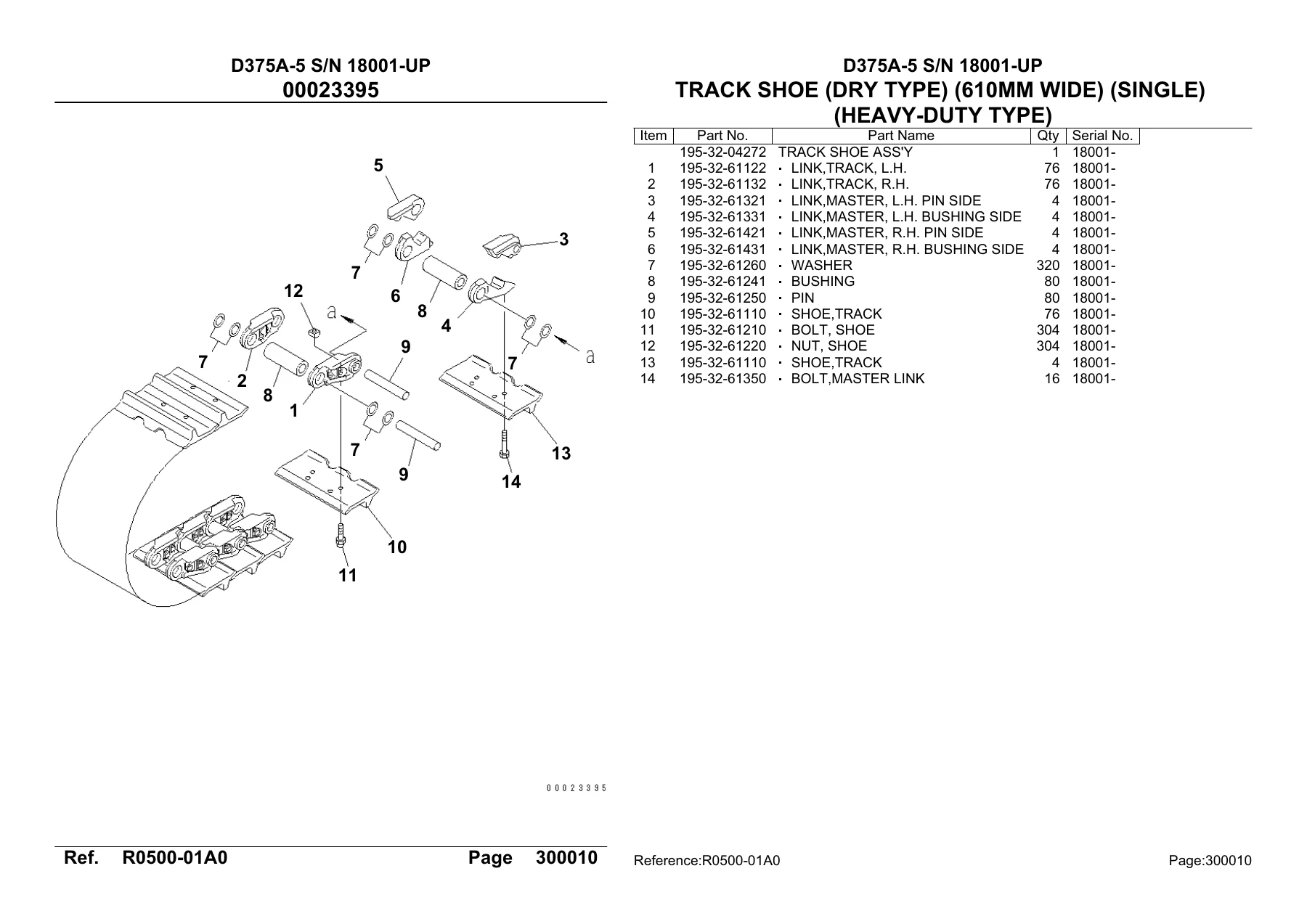

• R0 Under Carriage – track shoes in dry and lubricated types at 610mm, 710mm and 810mm width, single grouser, heavy-duty, wedge ring and large hole variants; track frames left and right with full roller guard, cold weather (A) specification and dual tilt semi-U versions; cartridge pins; track frame guards; single and double track rollers including labyrinth ring types; front idlers and recoil spring covers

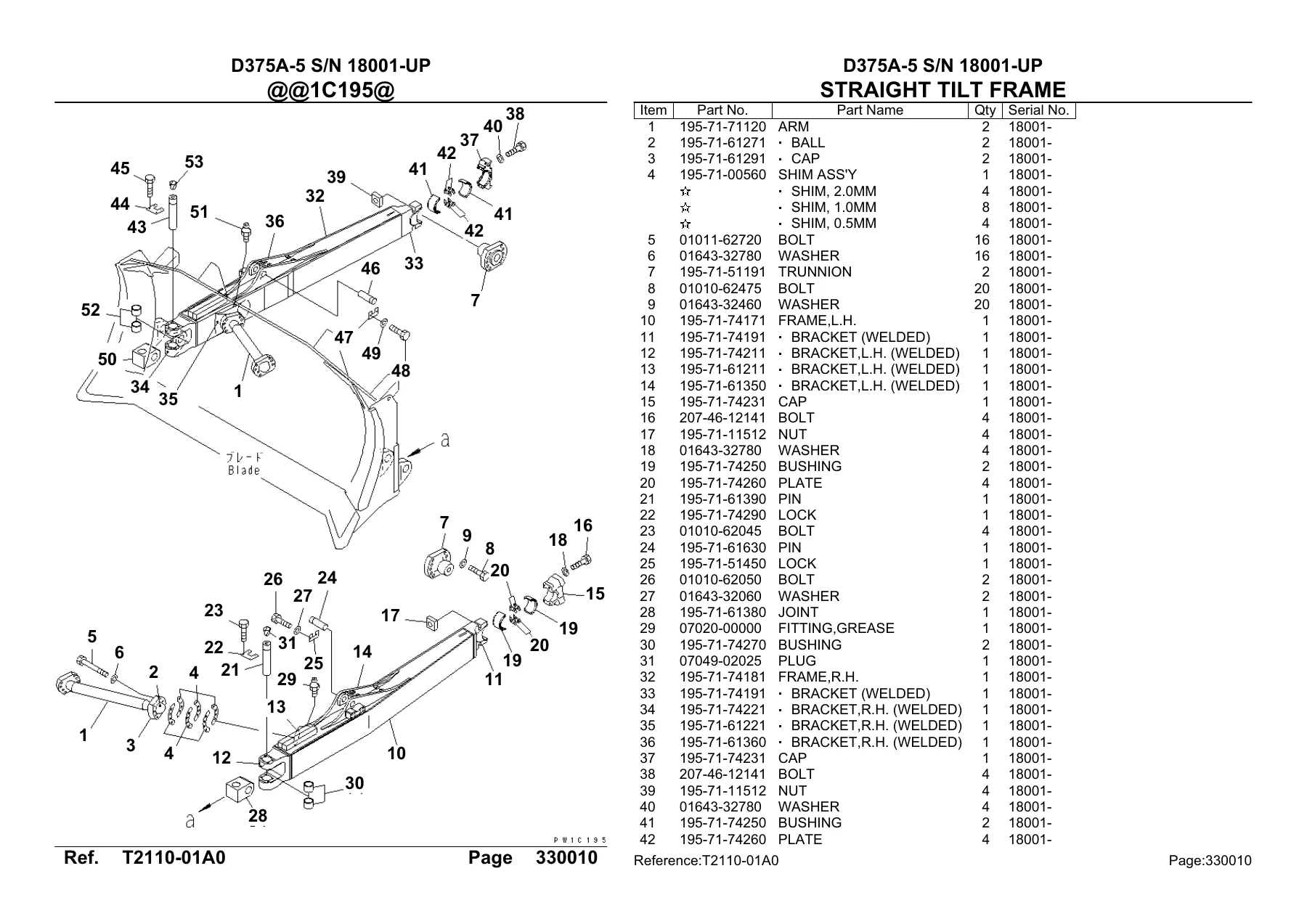

• T0 Work Equipment – straight tilt frame and its reinforced version, cushion dozer frame, blade tilt piping, tilt semi-U and full-U blades split at #18629- with reinforced and pusher plate variants, cushion dozer blade, spill guards, coal tilt blade, blade lift and tilt cylinders with brace, ripper beam and arm for multi ripper and giant ripper including long shank and heavy duty shank, pin puller cylinder and piping, ripper tilt cylinder, ripper arm pin, ripper points, ripper cylinder piping for variable and rigid types, ripper point light, drawbar split at #18013-, counterweight and drawbar, large counterweight
• U0 Marks and Plates – decal and plate sets by market language, covering English, USA, French, Indonesian, Russian, Arabic, Spanish, German, Chinese, Italian and Portuguese combinations, EU specification sets, without-cab sets, battery and centre of gravity plates, R.O.P.S. and seat belt plates, and the blade and ripper plates from #18719-
• V0 Accessory – spare parts sets including noise suppression, water separator and additional filter specifications, cap and overall, tool set and inspection lamp
• W0 Miscellaneous – vandalism protection and coolant and oil pan heater for cold weather (A) specification, and hang pins for shipping
• Y0 Service Kit and Component Parts – torque converter and transmission service kits with their full O-ring and gasket contents, shoe bolt and nut kit, supply track link in dry and lubricated forms, rubber antenna, steering ECMV, parking brake valve, prevent steep brake valve, scavenging pump, seats, work equipment and power line hydraulic pumps, blade lift and tilt cylinders, ripper lift and tilt cylinders split at #18152-, pin puller cylinder, one-, two- and three-spool control valves, P.P.C. valves and condenser assemblies split at #18066-

Taken together, those fifteen groups give a technician something a service manual alone cannot: the exact identity of every replaceable item on the machine, in the correct quantity, tied to the correct serial band. The 632 illustrated parts pages are where the real value sits, and the group indexes at the front of each section are what get you to them quickly.

Serial Number Breaks You Will Meet

One of the more useful things about the Komatsu D375A-5 parts book for S/N 18001 and up is how openly it handles running changes. Rather than quietly listing only the latest part, the tables stack the alternatives with their serial windows. The muffler, for example, appears in four successive versions across 18001-18009, 18010-18018, 18019-18402 and 18403 onward. Blade lift line splits at 18013. Cab glass changes at 18102. Ripper lift and tilt cylinders change at 18152. Semi-U and full-U blades change at 18629. Blade and ripper identification plates begin at 18719. Fusible links change at 18364. Condenser assemblies change at 18066.

Knowing your machine number before you open the book is therefore the first step, and once you have it, the tables do the rest of the work for you.

Optional and Regional Configurations

The D375A-5 was sold in a long list of build combinations, and this parts book carries them all rather than assuming a single standard machine. Cushion dozer, tilt dozer and dual tilt pitch dozer front ends are covered separately. Multi ripper and giant ripper rear ends each get their own beam, arm, cylinder and piping sheets. Cold weather (A) specification appears through the undercarriage, the power train tank and the coolant and oil pan heater. Noise suppression specification for EU shows up in the guard and accessory groups. Saudi, MSHA, KA, EC, Japan and EU market variants appear where the hardware genuinely differs. VHMS and the VHMS kit run through the electrical, floor and dashboard sheets. If your machine has shoe slip control, a dust indicator, an air conditioner, an additional heater or a heavy duty harness, there is a separate illustration for it.

Order the Right Part the First Time

With the Komatsu D375A-5 bulldozer parts book manual for S/N 18001 and up in front of you, you can build an accurate parts list for a final drive rebuild, a transmission or torque converter overhaul, an undercarriage change, a blade or ripper repair, a cab or dashboard repair, a cooling system refresh or a hydraulic line replacement without a single phone call spent describing a component you cannot name. You can check quantities before you order, so a job does not stop for four washers. You can confirm whether the part your supplier is quoting actually applies to your serial number, which is where most costly mistakes on a machine this old are made. And when a component has been superseded, you can see the older number too, which is often the difference between finding the piece on a used or aftermarket shelf and giving up on it.

Wrong part numbers cost money twice over: once at the counter and once in downtime while the correct piece is chased. A parts book tied to the exact model and serial range removes that risk in a way that generic cross-reference sites cannot. This one covers a 650-page scope on a single machine family, so whatever you are pulling apart on a D375A-5, the answer is already printed somewhere in it.

Delivery is immediate. Complete the payment and the PDF is available to download straight away, with no shipping wait and no delivery charge. Keep it on a laptop in the office, a tablet in the workshop or a phone at the machine, and print any page or section you want to carry out to the job in the dirt.
