Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual SEN00203-02

Description

Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual

The Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual (Form No. SEN00203-02) is the complete, factory-level technical service publication designed for heavy equipment mechanics, field service technicians, and repair facilities responsible for maintaining and overhauling Komatsu GALEO D475A-5E0 and D475ASD-5E0 crawler tractors. Covering machines from serial number 30001 and up, this comprehensive shop manual provides detailed technical descriptions, system schematics, testing procedures, disassembly instructions, and diagnostic failure code isolation for all mechanical, electrical, and hydraulic assemblies. Built around the powerful Tier 3 ecot3 Komatsu SAA12V140E-3 engine, this manual delivers the precise engineering specifications and factory procedures required to keep these ultra-class mining and bulk earthmoving bulldozers operating at peak productivity.

File Details

• Manual Type: Factory Shop Manual
• Brand: Komatsu
• Machine Models: D475A-5E0, D475ASD-5E0
• Applicable Serial Numbers: D475A-5E0 Serial 30001 and up, D475ASD-5E0 Serial 30001 and up
• Engine Model: Komatsu SAA12V140E-3 (12-cylinder V-type, common rail CRI direct injection, turbocharged and aftercooled)
• Language: English
• File Format: PDF
• Publication / Form Number: SEN00203-02 (Binder / Complete Set comprising sub-forms SEN00204-02 through SEN02339-00)
• Publication Edition / Date: Revised Edition 02-2007

Chapters Covered

• 00 Index and Foreword: Composition of shop manual (SEN00205-02), Table of contents, Foreword and general information (SEN00206-01), Safety notices, How to read the shop manual, Explanation of terms for maintenance standards, Handling electric equipment and hydraulic components, How to read electric wire codes, Precautions when carrying out operations, Method of disassembling and connecting push-pull type couplers, Standard tightening torque tables, Metric to English conversion tables

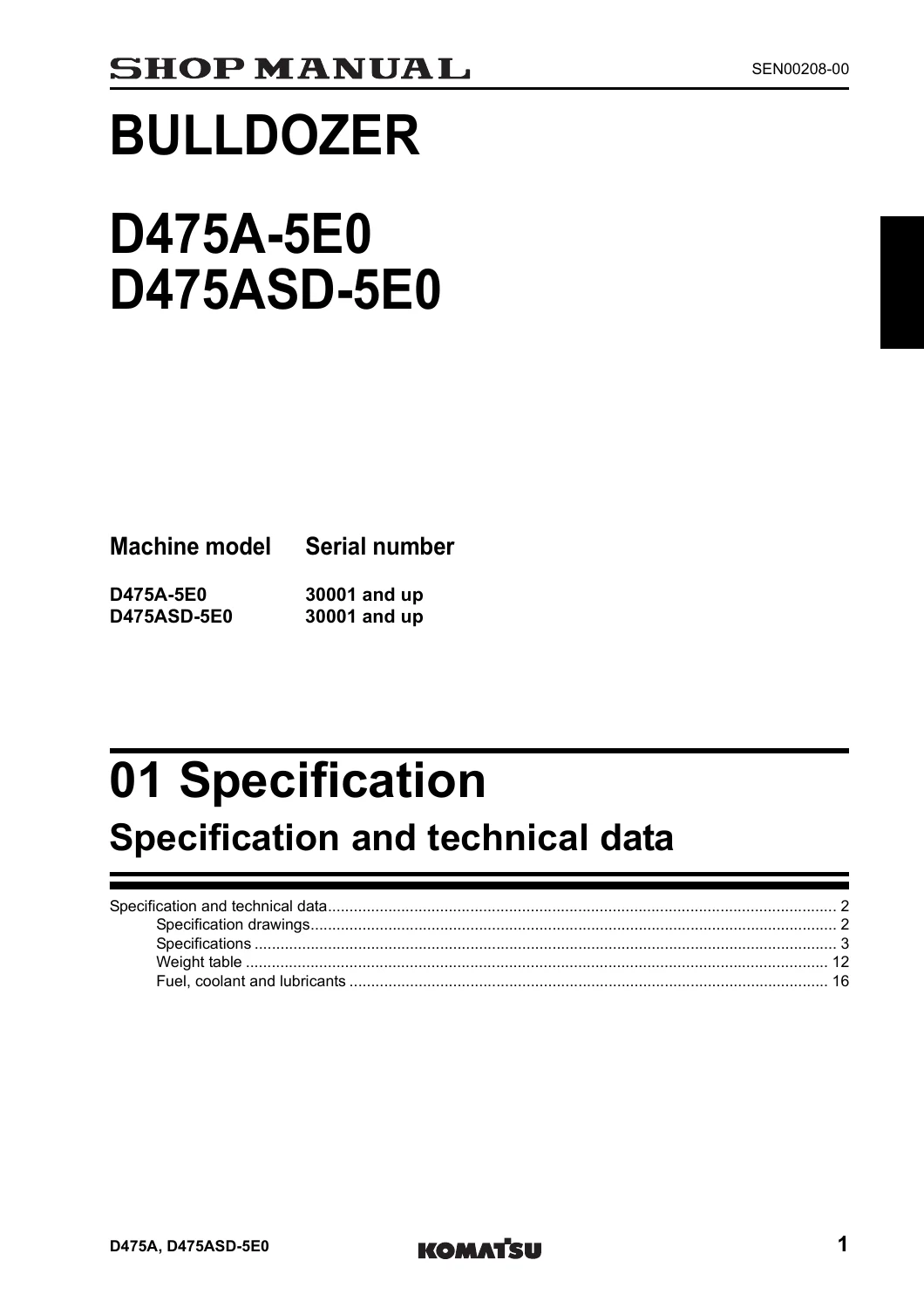

• 01 Specification: Specification and technical data (SEN00208-00), Specification drawings (AW233420), Semi-U tiltdozer, Full-U tiltdozer, and Superdozer specifications, Component weight tables for handling and transportation, Fuel, coolant, and lubricant recommendations and refilling capacities

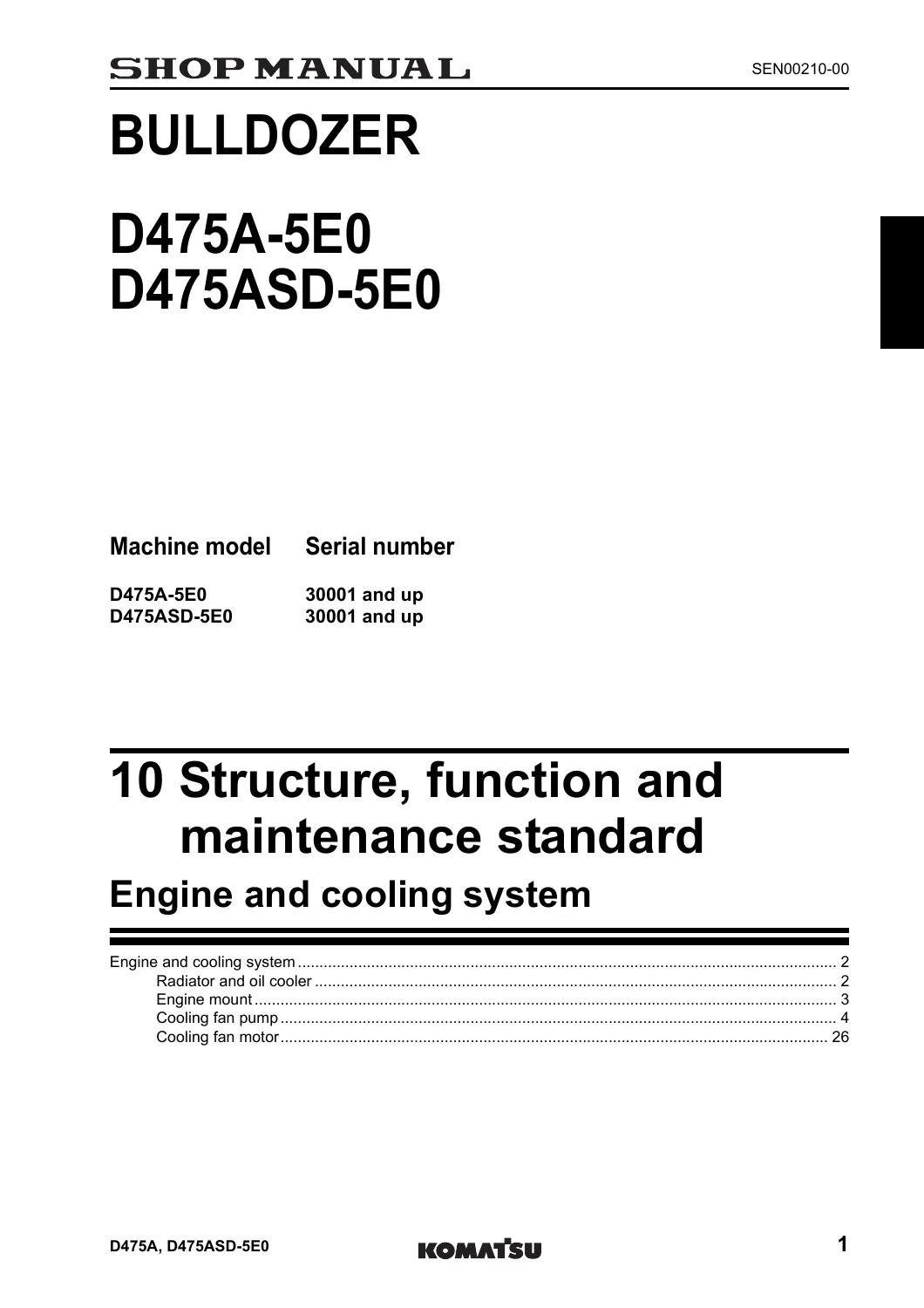

• 10 Structure, Function and Maintenance Standard: Engine and cooling system (SEN00210-00), Radiator, sub-radiator, oil cooler, and engine mounts, Cooling fan pump (LPV90+30) and fan motor (LMF180), Power train Part 1 (SEN00211-00) including damper, universal joint, torque converter with lockup and stator clutch, PTO idler drive, and TORQFLOW planetary transmission, Power train Part 2 (SEN00212-00) covering transmission control valve, transmission clutch ECMV, priority valve, lubricating oil relief valve, steering and brake control, final drive double reduction gearing, sprocket profile, steering unit, steering control valve, and sudden stop prevention valve, Undercarriage and frame (SEN00213-00) detailing track frame, recoil spring assembly, front idlers, single and double flange track rollers, carrier rollers, K-shape track roller bogie mounts, track shoes, main frame, equalizer bar, and suspension, Hydraulic system Part 1 (SEN00214-00) including work equipment hydraulic arrangement, PPC piping, work equipment pump (HPV125+125 variable swash plate), blade and ripper PPC valves, and PCCS lever, Hydraulic system Part 2 (SEN00215-00) detailing 6-spool control valve, CLSS circuit, unload valve, pressure compensation valves, blade lift and tilt valves, merge-divider valve, and self pressure reducing valve, Hydraulic system Part 3 (SEN00216-00) covering hydraulic tank, accumulator, work equipment cylinders, piston valves, quick drop valve, dual tilt and Superdozer blade control knobs, and pin puller circuits, Work equipment (SEN00217-00) covering cylinder stays, Semi-U, Full-U, and Superdozer blades, and multi-shank and giant ripper equipment, Cab and its attachments (SEN00218-00) covering cab mounts, ROPS structure, and air conditioning system, Electrical system (SEN00219-00) covering CRI engine control, deceleration potentiometers, EMMS monitor panel, machine sensors, mode selection, steering electronic controls, VHMS controller, and ORBCOMM communication system
• 20 Standard Value Table: Standard service value table (SEN01816-00), Standard value table for engine, Standard service value table for chassis and hydraulic systems
• 30 Testing and Adjusting: Testing and adjusting Part 1 (SEN01817-00) engine diagnostic tools, measuring engine speed, boost pressure, exhaust temperature, exhaust smoke color, valve clearance adjustment, compression pressure testing, blow-by measurement, fuel pressure testing, air bleeding, and belt tension adjustments, Testing and adjusting Part 2 (SEN01818-00) power train oil pressure checks, transmission speed sensor adjustments, brake performance testing, PCCS console adjustment, emergency escape procedures, sprocket wear inspection, track tension adjustment, work equipment pressure testing, cylinder drift checks, and fan circuit oil pressure measurement, Testing and adjusting Part 3 (SEN01819-00) special functions of the EMMS monitor panel, Testing and adjusting Part 4 (SEN01820-00) controller replacement initialization, diode inspections, VHMS controller initialization, and Pm Clinic service procedures
• 40 Troubleshooting: Failure code table and fuse locations (SEN01821-00), General troubleshooting sequences, connector pin numbering, and T-adapter box usage (SEN01822-00), Troubleshooting by failure code Parts 1 through 8 (SEN01823-00 through SEN01830-00) covering transmission dual engagement (1500L0), ECMV pressure switch faults, clutch slip, engine sensor errors (CA/CB series), controller communication errors (CAN and S-NET), and solenoid circuits, Troubleshooting of electrical system (E-mode) (SEN01831-00), Troubleshooting of hydraulic and mechanical system (H-mode) (SEN01832-00), Troubleshooting of engine (S-mode) (SEN01833-00) addressing starting issues, low output, abnormal smoke, overheating, and oil dilution
• 50 Disassembly and Assembly: General information and special tools (SEN02013-00), Engine and cooling system removal and installation (SEN02014-00), Engine SAA12V140E-3 component overhaul (SEN02338-00) covering fuel supply pump, cylinder heads, injectors, and front/rear crank seals, Power train Part 1 and Part 2 disassembly and assembly (SEN02015-00, SEN02016-00) covering damper, torque converter, PTO, TORQFLOW transmission, steering clutch, brake, and final drive, Undercarriage and frame overhaul (SEN02017-00, SEN02018-00) covering track frames, idlers, recoil springs, rollers, bogies, track shoes, pivot shafts, and equalizer bars, Hydraulic component overhaul (SEN02019-00) covering main pumps, control valves, and hydraulic cylinders, Work equipment and cab removal (SEN02020-00, SEN02021-00), Electrical controller replacement and air conditioner unit overhaul (SEN02339-00)
• 90 Diagrams and Drawings: Hydraulic diagrams and drawings (SEN00225-00) including power train hydraulic circuits and work equipment CLSS schematics (Sheets 1 to 3), Electrical diagrams and drawings (SEN00226-01) with full chassis wiring diagrams (Sheets 1 to 13), cab interior harness diagrams, and connector arrangement tables

Together, these organized sections equip the service technician with an exhaustive, step-by-step engineering reference. Rather than relying on guesswork, mechanics can trace circuits directly from terminal to terminal, verify hydraulic pressures against factory relief limits, set exact gear backlash on final drives, and rebuild subassemblies to strict Komatsu tolerances.

Engine and Cooling System Architecture

The Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual provides complete technical coverage for the Komatsu SAA12V140E-3 diesel engine. This 30.48-liter, 12-cylinder V-type engine features direct injection, twin turbochargers with air-to-air aftercooling, and an advanced CRI high-pressure common rail fuel system. Rated at 664 kW (890 HP) on the D475A-5E0 and 677 kW (908 HP) on the D475ASD-5E0 at 2,000 rpm, the engine develops a maximum torque of 3,825 Nm at 1,400 rpm. The manual details critical engine disassembly and assembly operations, including removal and installation of the complete engine assembly, fuel supply pump replacement, cylinder head removal, injector replacement, and front and rear crankshaft seal replacement. Detailed testing procedures cover cylinder compression, crankcase blow-by pressure, fuel rail leak-off measurements, and electronic decelerator pedal calibration.

IMAGES PREVIEW

The hydraulic-driven cooling fan system utilizes a dedicated variable swash plate axial piston pump (LPV90+30) and an LMF180 fixed swash plate axial piston motor with an integrated safety-suction valve. The shop manual explains the electronic proportional control (EPC) circuit regulating fan speed in response to engine coolant, power train oil, and hydraulic oil temperatures. Technicians are provided with complete functional diagrams and cross-sections illustrating the servo piston operation, safety valve cracking pressures (0.07 MPa), and bidirectional rotation solenoids used to reverse fan rotation for radiator core cleaning.

TORQFLOW Transmission and Power Train Mechanics

Power delivery in both the Komatsu D475A-5E0 and Komatsu D475ASD-5E0 begins at the engine flywheel, transferring through a rubber-element torsional vibration damper and universal joint to the power train unit. The torque converter is a 3-element, single-stage, single-phase design incorporating an automatic lockup clutch and an independent stator clutch. The manual outlines the conditions for direct-drive lockup (output shaft speed minimum 1,360 rpm and transmission pressure minimum 1.91 MPa) and torque converter unlock (maximum 1,330 rpm or pressure below 1.47 MPa). Detailed diagrams show how disengaging the stator clutch during lockup eliminates oil churning resistance, significantly lowering fuel consumption.

The planetary TORQFLOW transmission provides 3 forward and 3 reverse speeds utilizing multiple-disc clutches controlled via Electronic Control Modulation Valves (ECMV). Each ECMV incorporates a proportional solenoid and a fill switch that detects clutch oil fill completion to optimize shift modulation. The manual specifies clutch pack assembly thicknesses (72.6 mm for forward and reverse clutches, 61.4 mm for 1st clutch, 39.0 mm for 2nd clutch, and 50.2 mm for 3rd clutch) along with repair limits and spring tensions. Additional technical coverage includes the priority valve (set pressure 1.56 MPa), transmission lubricating oil relief valve (set pressure 0.26 MPa), scavenging pump (tandem gear BAR 63+320), and power train lubrication pump (BAL 160+160+112).

Steering, Braking, and Final Drive Reduction

Steering and deceleration on the Komatsu D475A-5E0, D475ASD-5E0 are managed through the Palm Command Control System (PCCS) lever and electronic controllers communicating directly with the steering control valve. The steering assembly utilizes spring-actuated, hydraulically released wet multiple-disc clutches and brakes. The manual details proportional solenoid control during partial lever deflection for gradual turns and full deflection for sharp pivot turns. It also includes full testing procedures and repair limits for steering clutch discs (standard thickness 5.4 mm, repair limit 4.5 mm) and brake discs (standard thickness 5.4 mm, repair limit 4.3 mm), bevel gear backlash (0.30 to 0.40 mm), and bearing preload rotating torque (9.8 to 11.8 Nm).

The final drive assemblies feature a double-reduction mechanism consisting of a first-stage spur gear and a second-stage planetary gear system, delivering massive torque to the drive sprockets. Complete overhaul instructions provide backlash tolerances between the No. 1 pinion and No. 1 gear (0.26 to 0.96 mm), sun gear to planetary pinions (0.25 to 0.70 mm), and planetary pinions to the stationary ring gear (0.26 to 0.83 mm). Detailed guidance covers floating seal installation, floating seal guard clearance (3.1 to 4.7 mm), and sprocket tooth profile wear limits (tooth tip repair limit 470 mm from standard 486 mm; tooth root thickness repair limit 26.5 mm from standard 32.5 mm).

Undercarriage Engineering and K-Bogie Suspension

Designed to absorb severe ground shock while maximizing traction, the undercarriage of the D475A-5E0 and D475ASD-5E0 features an oscillating equalizer bar suspension and K-shape track roller bogie assemblies. The shop manual provides complete service standards for the 8 track rollers per side arranged in an S-D-D-D-D-D-D-S (single and double flange) layout, front idlers (outside tread diameter standard 990 mm, repair limit 959 mm), and carrier rollers. Bogie mounting clearances, rubber pad free heights, and cartridge pin press-fitting forces (294.2 to 490.3 kN) are specified in full.

For track maintenance, the manual details the massive recoil spring assembly with an installed length of 1,425 mm and installation load of 725.7 kN (74,000 kg). Track shoe service procedures include track tension adjustment via grease cylinder, master link assembly, regular link press-fitting jig dimensions, link pitch wear limits (standard 317.8 mm, repair limit 320.8 mm), and shoe bolt tightening torque (785 Nm plus 180-degree angle turn for regular links; 980 Nm plus 180-degree angle turn for master links) across standard 710 mm single grouser shoes for the D475A-5E0 and 810 mm shoes for the D475ASD-5E0 Superdozer.

CLSS Work Equipment Hydraulics and Blade Systems

The work equipment hydraulic system operates on Komatsu Closed-Center Load Sensing System (CLSS) architecture powered by a tandem variable-displacement swash plate piston pump (HPV125+125) delivering 542 l/min at a relief setting of 27.5 MPa (280 kg/cm²). The manual provides extensive schematics and functional cross-sections for the 6-spool main control valve, unload valve, pressure compensation valves, LS shuttle valves, self-pressure reducing valve, and merge-divider valve.

Specific sections detail the mechanical and hydraulic differences between the standard tiltdozer and the Superdozer configurations:

• D475A-5E0 Semi-U and Full-U Tiltdozers: Feature brace-type blade support with right-hand tilt cylinder (250 mm bore, 293 mm stroke), dual-tilt cylinder option, variable pitch solenoids, and giant ripper with hydraulic pin puller cylinder.
• D475ASD-5E0 Superdozer (Pitchdozer): Utilizes cylinder-type blade support with twin pitch cylinders (250 mm bore, 660 mm stroke) delivering variable cutting edge angles from 42 to 67 degrees, massive 45.0 m³ blade capacity, and rear counterweight configuration.

Technicians will find complete disassembly, seal replacement, piston nut torques, and bench-testing procedures for blade lift cylinders (180 mm bore, 1,925 mm stroke), tilt cylinders, and giant ripper lift and tilt cylinders.

Diagnostic Failure Codes and Electrical Troubleshooting

Modern electrical fault isolation is made straightforward through the troubleshooting sections of the Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual. It provides diagnostic flowcharts, terminal pinout voltages, and connector breakout instructions using standard T-adapter boxes across all failure codes:

• Transmission and Power Train Codes: Including 1500L0 (dual clutch engagement), 15SAL1/15SALH (forward clutch pressure switch faults), 15SBL1/15SBLH (reverse clutch), 15SEL1/15SELH (1st clutch), 1800MW (power train clutch slip), and DAQ0KT (transmission controller error).
• Steering and Brake Codes: Covering 2201L1/2201LH (right clutch ECMV), 2202L1/2202LH (left clutch ECMV), 2301L1/2301LH (right brake ECMV), 2302L1/2302LH (left brake ECMV), 2300NR (brake thermal load overheating), and DB30KT (steering controller fault).
• Engine Electronic Control Codes: Covering dual-bank CRI controllers including CA111/CB111 (left/right controller internal faults), CA115/CB115 (Ne and backup speed sensors), CA449/CB449 (common rail extreme high pressure), CA559/CB559 (fuel supply pump pressure feed loss), and injector harness faults (CA322-CA332, CB1548-CB1622).
• VHMS and Monitoring Codes: Detailing Vehicle Health Monitoring System fault displays, CAN-bus communication faults (DAFRKR, DB2RKR, dB3RKR, dbBRKR), sensor supply voltages, and exhaust temperature thermocouple diagnostics.
• Symptom-Based Diagnostics: Dedicated troubleshooting tables for E-mode (engine starting and preheating failures), H-mode (sluggish work equipment, steering overrun, lack of drawbar pull, torque converter failure to lock up), and S-mode (engine hunting, excessive black/blue exhaust smoke, coolant-in-oil contamination, and abnormal vibrations).

Shop Maintenance Standards and Assembly Torques

To ensure repairs comply with original factory build quality, this manual incorporates dedicated maintenance standard tables detailing new-part standard dimensions, manufacturing tolerances, allowable clearances, and discard/repair limits for every wear item. It provides standard metric bolt torque tables (classes 7T, 8.8, 10.9), split flange sleeve nut torques, O-ring boss plug torques, and taper-thread fitting tables. Detailed instructions explain critical shop safety procedures, crane hoisting weight limits, wire rope selection (safety coefficient 6), push-pull coupler connection methods, and essential air-bleeding sequences required when commissioning reinstalled hydraulic cylinders and pumps.

The Professional Repair Advantage

Having access to the complete Komatsu D475A-5E0, D475ASD-5E0 Bulldozer Shop Manual empowers equipment owners, fleet managers, and mining technicians to perform everything from routine preventative maintenance clinics to complete powertrain and engine overhauls with total confidence. Utilizing factory-specified clearances, torque angles, and diagnostic workflows prevents costly component failures, eliminates trial-and-error troubleshooting, and maximizes the working availability of your capital equipment. Delivered as an instant digital PDF download with no physical shipping delay, this manual is fully printable, easily searchable, and ready for immediate deployment on shop workstations, field service laptops, and ruggedized jobsite tablets.
