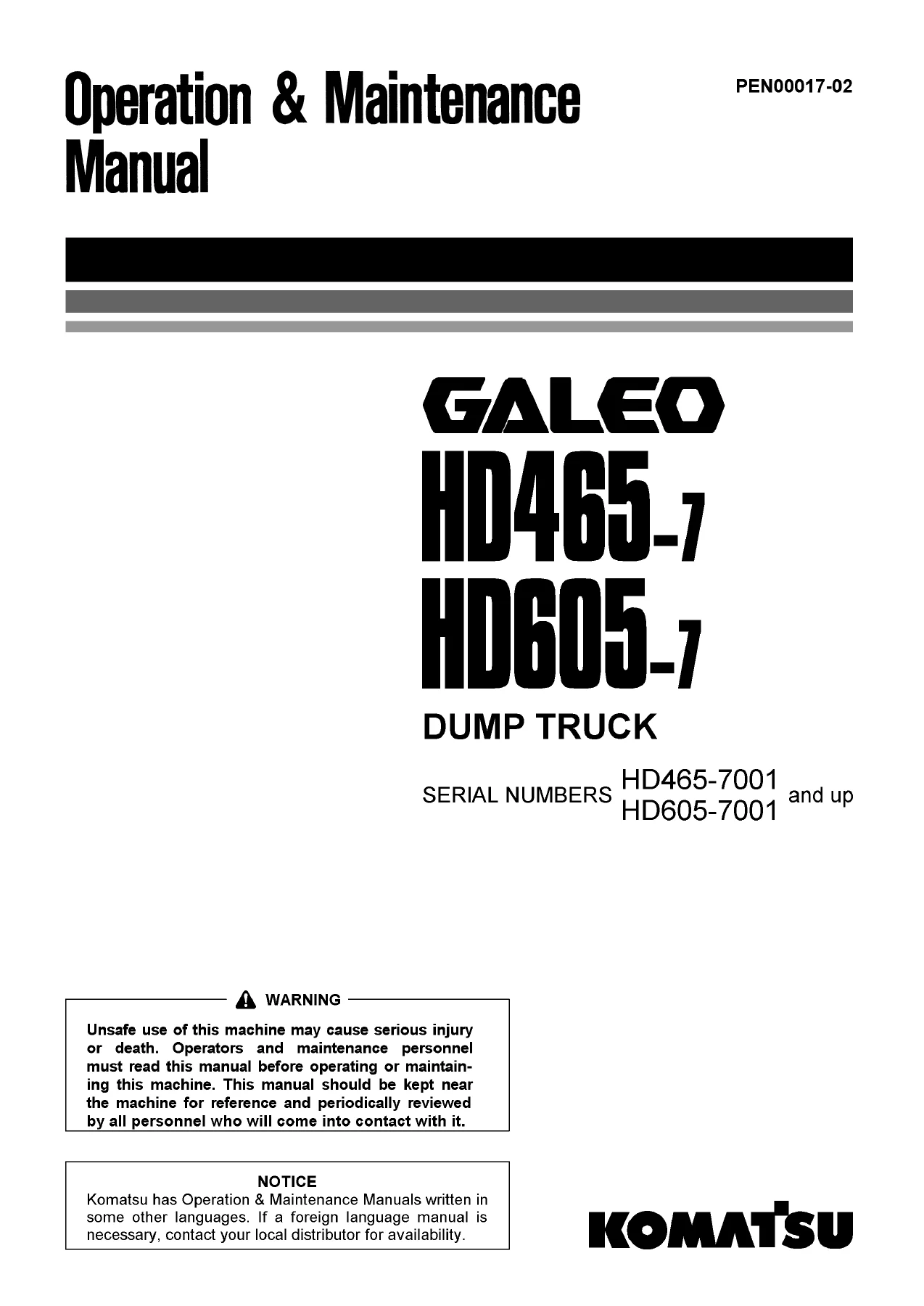

This Komatsu HD465-7 HD605-7 GALEO Dump Truck Operation and Maintenance Manual is the combined operator and service publication for the GALEO rigid frame haul trucks, covering serial numbers HD465-7001 and up and HD605-7001 and up. Published under form number PEN00017-02, it brings together the operating instructions, safety guidance, scheduled maintenance procedures, service data, and technical specifications that Komatsu issued with the machine. Everything is written for the two trucks side by side, so wherever the HD465-7 and HD605-7 differ — payload, body capacity, tire pressure, brake performance — both figures appear in the same tables.

File Details

• Manual type: Operation and Maintenance Manual
• Brand: Komatsu
• Models covered: HD465-7, HD605-7 (GALEO dump truck)
• Serial numbers: HD465-7001 and up, HD605-7001 and up
• Engine: Komatsu SAA6D170E-3 diesel
• Document number: PEN00017-02
• Publication date: 03-05 (2005)
• Language: English
• Format: PDF, 362 pages

Chapters Covered

• Foreword and safety information — signal words, safety labels, label locations

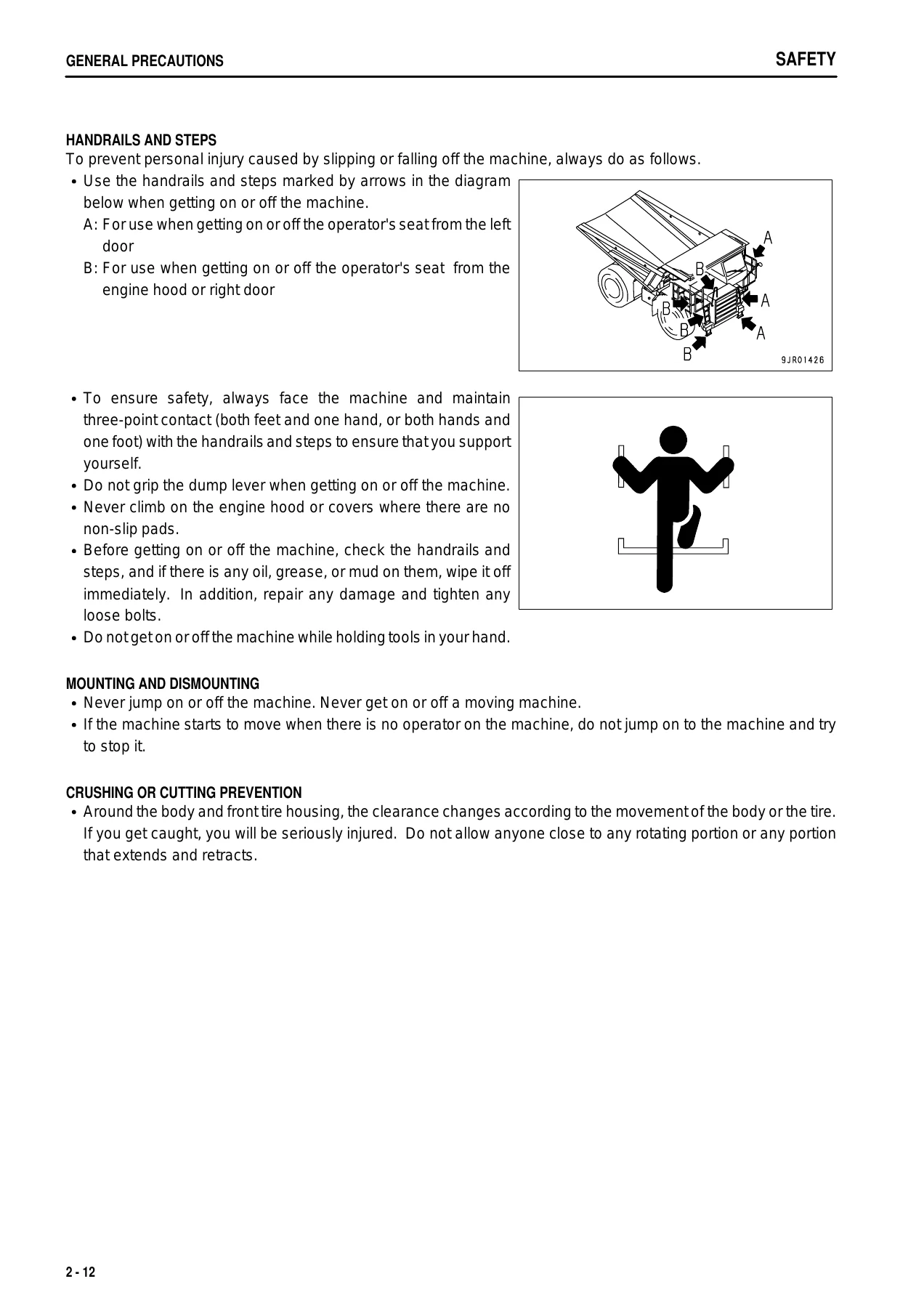

• General precautions — safety rules, clothing and PPE, fire extinguisher and first aid, ROPS, attachments and options, worksite safety, high-voltage cables, exhaust gas ventilation, asbestos dust
• Precautions during operation — starting engine, cold areas, checks before starting, forward and reverse travel, slopes, dump body, parking, transportation, loading and unloading, battery, booster cables, towing
• Precautions for maintenance — warning tags, tidy work place, two-worker rule, proper tools, suspension cylinder and accumulator handling, working under the machine, hammer use, repair welding, high-pressure oil and hoses, waste materials, air conditioner, compressed air, safety-critical parts
• Precautions with tires — handling, storing, selection and inspection

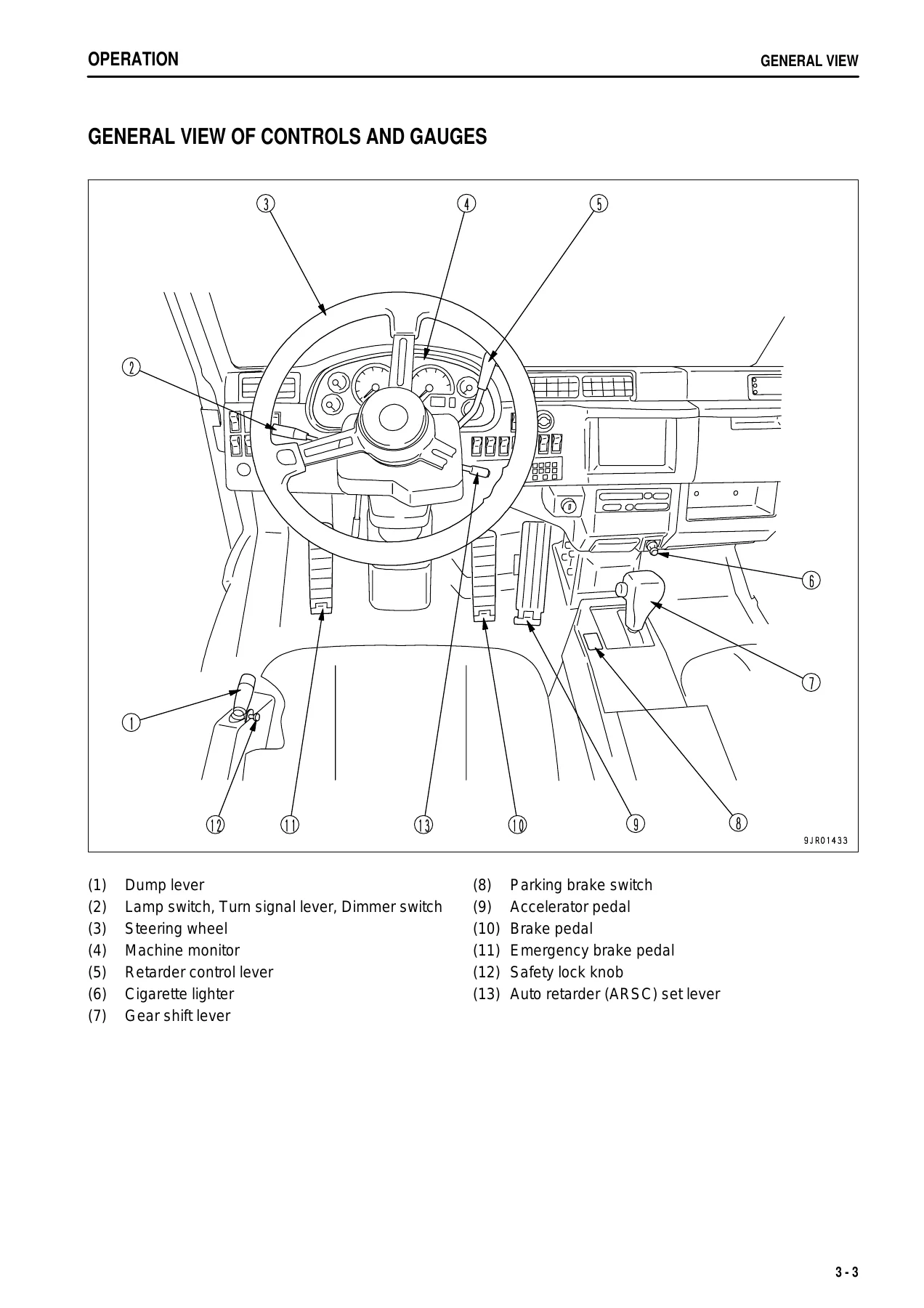

• Operation — general view of the machine, general view of controls and gauges, explanation of components
• Machine monitor — character display, caution items, emergency stop items, meter display, central warning lamp, service meter, odometer, reverse travel odometer, action codes, filter and oil replacement display, other functions, reset procedures, telephone number input, language selection
• Switches — starting switch, lamp switch, turn signal, dimmer, monitor bulb check, hazard, night lighting dimmer, power mode selector, emergency steering, parking brake, AISS LOW, front brake cut-off, auto retarder (ARSC), fog / side / yellow rotating lamp switches, power windows, monitor mode selectors, cigarette lighter, horn, wiper and washer, room lamp
• Control levers and pedals — brake pedal, accelerator, gear shift lever, dump lever, retarder control lever, safety lock knob, emergency brake pedal, ARSC set lever
• Transmission controller and retarder controller
• Safety pin, dust indicator, fuses (five fuse boxes with capacities and circuit names)
• Car radio and cassette stereo — operation, presets, automatic memory, clock adjustment
• Air conditioner — control panel, cooling, dehumidifying, heating, defroster, ventilation, maintenance
• Check before starting engine — walk-around check, coolant level, dust indicator, engine oil level, transmission oil level, steering and hoist oil tank level, fuel system water drain, fuel level, wheel hub nuts, central warning lamp and monitor check, braking effect, emergency brake capacity, emergency steering, backup alarm, electric wiring, tire inflation pressure
• Operation — normal starting, cold weather starting, automatic warming-up, breaking-in, warming-up operation, stopping engine, checks after stopping, moving off forward and reverse, normal and emergency stopping, shifting gear, shifting up and down, down shift inhibit, skip shift, overrun prevention, traveling downhill
• ARSC (Automatic Retard Speed Control) — components, speed setting, fine adjustment, cancel, recommended set speed, brake performance graphs for 450 m, 600 m, 900 m, 1,500 m and continuous downhill distances
• Steering the machine, loading operations, dump operations, precautions for operation, parking machine, checks after completion of work, locking
• Handling tires — T.Km.P.H. rating, long distance travel precautions, determining and maintaining the travel road
• Transportation — precautions, steps, securing the machine, method of lifting
• Cold weather operation — fuel and lubricants, coolant, battery, radiator curtain, after cold weather
• Long-term storage
• Troubleshooting — after running out of fuel, towing, discharged battery, charging, booster cable starting, other trouble (electrical, chassis, engine)
• Maintenance guides — outline of service, handling oil / fuel / coolant, KOWA oil analysis, storing oil and fuel, filters, electric system, wear parts list, recommended fuel, coolant and lubricant, ambient temperature selection, standard tightening torques, torque list for bolts and nuts, taper seal and face seal torque tables
• Periodic replacement of safety critical parts
• Maintenance schedule chart — initial 250 hours, initial 2000 hours, when required, check before starting, every 250 / 500 / 1000 / 2000 / 4000 hours
• Service procedures — air cleaner clean and replace, cooling system clean, window washer fluid, air conditioner filter, refrigerant level, dump body check, electric intake air heater, suspension cylinder length and oil level, bleeding air from rear brake / front brake / parking brake, radiator and aftercooler fins, output shaft coupling play, tire selection and inspection, tire inflation
• Every 250 hours — differential case oil, final drive case oil, lubrication points, drive shaft, battery electrolyte, alternator belt, air conditioner compressor belt, breathers, frame check, foot brake capacity, retarder brake capacity, parking brake capacity, automatic suspension
• Every 500 hours — engine oil and filter, fuel filter cartridge, fuel tank strainer, transmission oil filter, front disc brake pads, fan belt
• Every 1000 hours — corrosion resistor, transmission case oil and strainer, transmission and rear brake cooling oil filter, brake oil filter, lubrication, rear brake disc wear, turbocharger
• Every 2000 hours — steering and hoist oil tank filter, hydraulic tank strainer, final drive oil, differential oil, breathers, alternator and starting motor, valve clearance, turbocharger, accumulator gas pressure
• Every 4000 hours — steering and hoist oil tank oil, drive shaft lubrication, water pump, fan and tension pulleys, vibration damper
• Specifications — weights, payload, body capacity, dumping speed, engine output and torque, dimensions, travel speeds
• Attachments and options — selecting dump body, tachograph (TCO20-90W), air suspension seat, VHMS, ASR, payload meter (VHMS built-in type), payload meter II (card type), battery isolator, auto-greasing system, ABS
• Index

For the technician, this is far more than an operator booklet. It documents both trucks end to end: the SAA6D170E-3 engine, the seven-speed automatic transmission with torque converter lockup, the retarder and ARSC speed control, the brake system with front and rear discs and slack adjusters, the steering and hoist hydraulics, the suspension cylinders, the electrical system with five fuse boxes, and the electronic controllers sitting behind the machine monitor and payload meter. The maintenance chapter is built as a schedule chart with numbered service points, and each procedure is spelled out step by step with torque values, fluid capacities, wear limits, and safety instructions. Diagnostic content includes action codes (E01, E02, E03), failure code reading on the character display, and the ASR and ABS error code tables.

What This Manual Enables

Because both models share a chassis family but differ in payload, body size, tire pressure, and brake performance, having the combined Komatsu HD465-7 HD605-7 operation and maintenance manual means one reference covers both serial-number runs. Jobs this document supports include:

• Daily and pre-start walk-around checks with correct fluid levels and inspection points
• Operating the machine, dump body, retarder, ARSC, and emergency brake systems correctly
• Reading and interpreting machine monitor warnings, action codes, and failure codes
• Performing every scheduled service at 250, 500, 1000, 2000, and 4000 hours
• Bleeding air from the front, rear, and parking brake circuits after repair
• Checking brake capacity for the foot, retarder, parking, and emergency brakes
• Selecting the correct maximum downhill speed and gear from the retarder brake performance graphs
• Setting up the payload meter, calibrating it, and reading its stored cycle data
• Servicing the auto-greasing system and setting grease intervals
• Understanding ABS and ASR behaviour and troubleshooting their codes
• Lifting, blocking, and transporting the machine safely

Why Correct Procedures and Specifications Matter on a GALEO Haul Truck

Off-highway haul trucks work under load and gradient conditions that punish any shortcut. Wrong tire pressure on the HD465-7 or HD605-7 will damage the rim. Wrong downhill gear selection with the retarder will overheat the brake oil. Wrong bolt torque on a wheel hub nut or brake filter housing can fail the part. The Komatsu HD465-7 HD605-7 service and maintenance manual gives the numbers and the sequences — brake capacity test speeds, torque values for drain plugs and filter housings, oil and coolant capacities, wear limits on disc pads and brake discs, and the mixing ratio for antifreeze — so the work is done to the specification Komatsu published, not to a guess.
