Komatsu HD465-7R Dump Truck Operation & Maintenance Manual – Serial 16132 and Up

Description

The Komatsu HD465-7R Dump Truck Operation & Maintenance Manual is the complete reference for operating, servicing, and maintaining the HD465-7R off-highway dump truck, covering serial numbers 16132 and up in the -40°C specification. Published under document number PEN00648-00, this 427-page manual delivers the full scope of safety, operation, maintenance, and technical specification information that operators, technicians, and fleet managers need for this machine.

File Details

• Manual Type: Operation & Maintenance Manual
• Brand: Komatsu
• Model: HD465-7R Dump Truck
• Document Number: PEN00648-00
• Serial Numbers: 16132 and up
• Specification: -40°C SPEC
• Publication Date: 04-13
• Language: English
• Page Count: 427 pages
• File Format: PDF

Chapters Covered

• Safety — Safety labels, general precautions, fire prevention, protective structures, handling of tires, suspension cylinders, and high-pressure systems
• Intended Use and Machine Overview — Machine directions, visibility standards, product identification plates
• Explanation of Components — Machine monitor, switches, control levers, pedals, operator’s cab, air conditioner, additional heater, fuses, radio, tachograph
• Operation — Checks before starting, engine starting, moving forward and reverse, gear shifting, traveling downhill, ARSC operation, steering, loading, dump operations, parking, checks after work
• Cold Weather Operation — Low temperature precautions, coolant, battery care, external power source electric heater, radiator curtain
• Long-Term Storage — Before, during, and after storage procedures
• Troubleshooting — After running out of fuel, transmission trouble, emergency dump body lowering, towing, battery discharge, fire action, electrical and chassis troubleshooting
• Maintenance — Guides, standard tightening torques, periodic replacement of safety-critical parts, maintenance schedule chart, service procedures for every 250, 500, 1000, 2000, 4000, 8000, and 15000 hours
• Specifications — Engine output, weights, dimensions, travel speeds
• Attachments and Options — Tachograph, air suspension seat, ASR, ABS, rear view monitor, payload meter, KOMTRAX Plus

This manual goes well beyond a simple operator’s guide. It is structured as a complete service and maintenance reference, covering the Komatsu SAA6D170E-5 diesel engine, the transmission and drivetrain, hydraulic systems, brake systems, suspension, and electrical systems. The maintenance schedule is laid out hour-by-hour, so you know exactly what to inspect, clean, replace, or adjust at every interval from the initial 250-hour service through to the 15,000-hour service. The troubleshooting section provides symptom-based guidance for electrical and chassis problems, including detailed cause-and-remedy tables.

Detailed service procedures in this HD465-7R manual include changing engine oil and filters, replacing fuel prefilter and main filter cartridges, servicing the transmission case and strainer, replacing brake oil filter elements, bleeding air from the fuel and brake circuits, checking and adjusting fan belts and compressor drive belts, inspecting brake pads and discs, checking suspension cylinder lengths, recovering oil from floating seals, and much more. Each procedure includes safety warnings, tightening torques, and step-by-step instructions.

What This Manual Enables

Whether you are an operator running daily checks, a maintenance technician performing scheduled service, or a fleet manager planning downtime, this HD465-7R dump truck manual gives you the information needed to carry out the job correctly. You get the complete maintenance schedule chart, all capacity and refill figures, standard tightening torques for metric bolts and hydraulic hoses, and the periodic replacement intervals for safety-critical parts like fuel hoses, brake piping, high-pressure steering and hoist hoses, accumulators, and seat belts.

The operation section covers the full range of machine controls including the ARSC (Automatic Retarder Speed Control) system, which is essential for safe downhill travel with this class of dump truck. The manual explains how to set travel speed limits, use the retarder control lever, and understand brake performance curves for various downhill distances and grades.

The maintenance section breaks down every service interval with clear procedures. The 250-hour service covers differential and final drive oil checks, lubrication points, drive shaft inspection, battery electrolyte levels, breather cleaning, frame checks, brake capacity tests, and automatic suspension checks. The 500-hour service includes engine oil and filter changes, fuel filter replacements, transmission valve oil filter element replacement, front disc brake pad wear checks, and fan belt inspection. The 1000-hour service adds transmission case oil changes, brake control oil tank changes, brake oil filter replacement, rear brake disc wear checks, and floating seal oil recovery. The 2000-hour service covers steering and hoist oil tank filter replacement, hydraulic tank strainer cleaning, final drive and differential case oil changes, and wheel bearing checks. Higher intervals cover drive shaft lubrication, starting motor inspection, water pump checks, and high-pressure piping clamp inspection.

Safety and Emergency Coverage

Safety is addressed throughout this Komatsu HD465-7R Operation & Maintenance Manual, from the general precautions that apply before any work begins through to specific warnings for high-voltage cables, high-pressure oil and fuel, hot coolant, battery handling, and tire inflation. The emergency procedures section covers what to do if a fire occurs, how to lower the dump body if the engine cannot be started, how to tow the machine, and how to jump-start using booster cables.

The manual also includes complete safety label locations and reproduction of all warning decals used on the machine, so you can verify that labels are present, legible, and correctly positioned.

Why This Manual Matters

The Komatsu HD465-7R is a 98-tonne class rigid dump truck with a 55,000 kg payload capacity, powered by a Komatsu SAA6D170E-5 diesel engine rated at 533 kW (715 HP). Operating and maintaining a machine of this size requires precise procedures and correct specifications. Using the wrong torque value, the wrong oil, or the wrong maintenance interval can lead to component failure, downtime, or unsafe conditions.

This HD465-7R Operation & Maintenance Manual gives you the exact information needed to carry out maintenance correctly the first time. Every specification, torque value, and procedure comes directly from the manufacturer’s documentation for serial numbers 16132 and up in the -40°C specification. Whether you are performing a routine 500-hour service or troubleshooting a transmission fault, having the complete manual on hand means you can work confidently and efficiently.

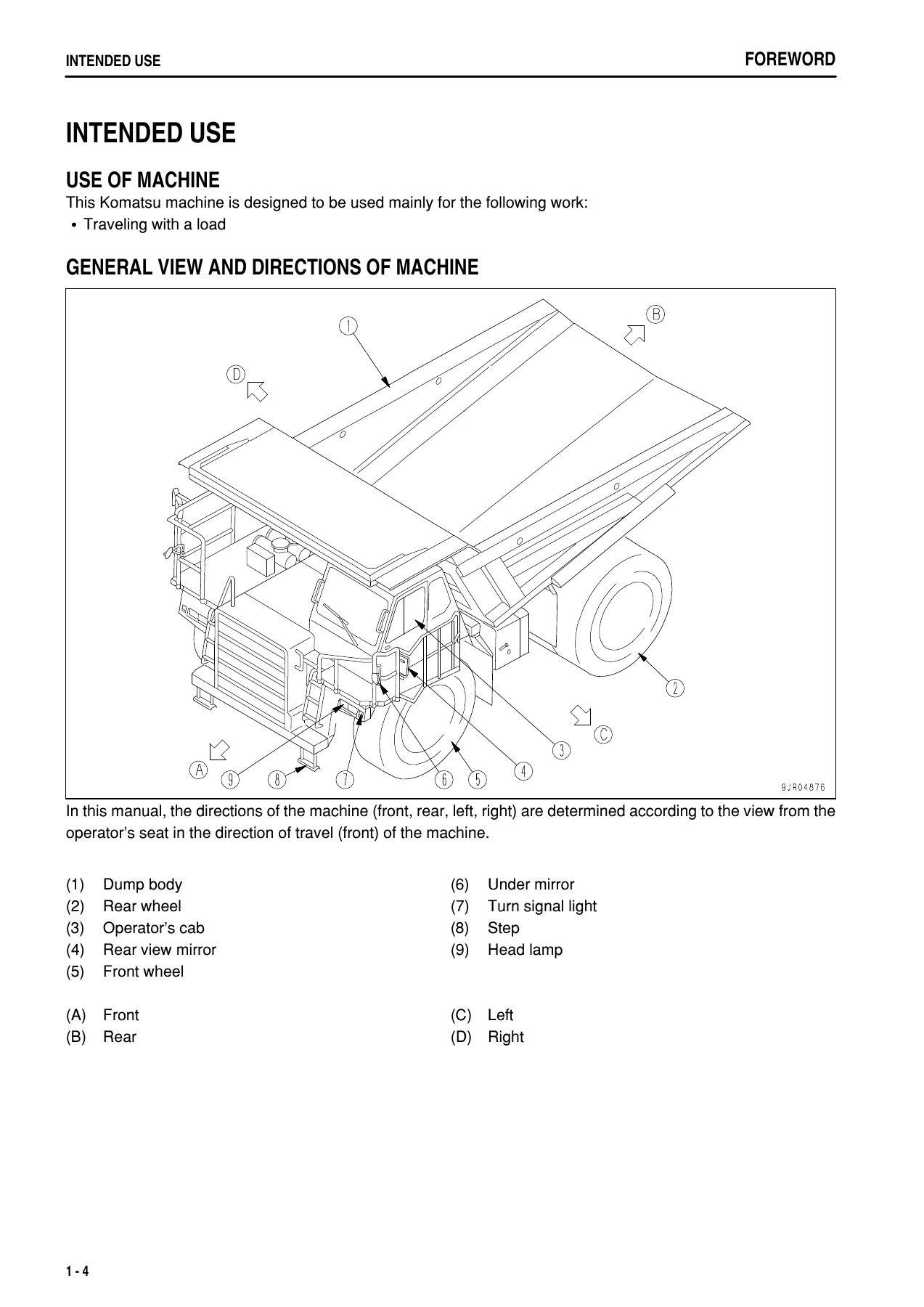

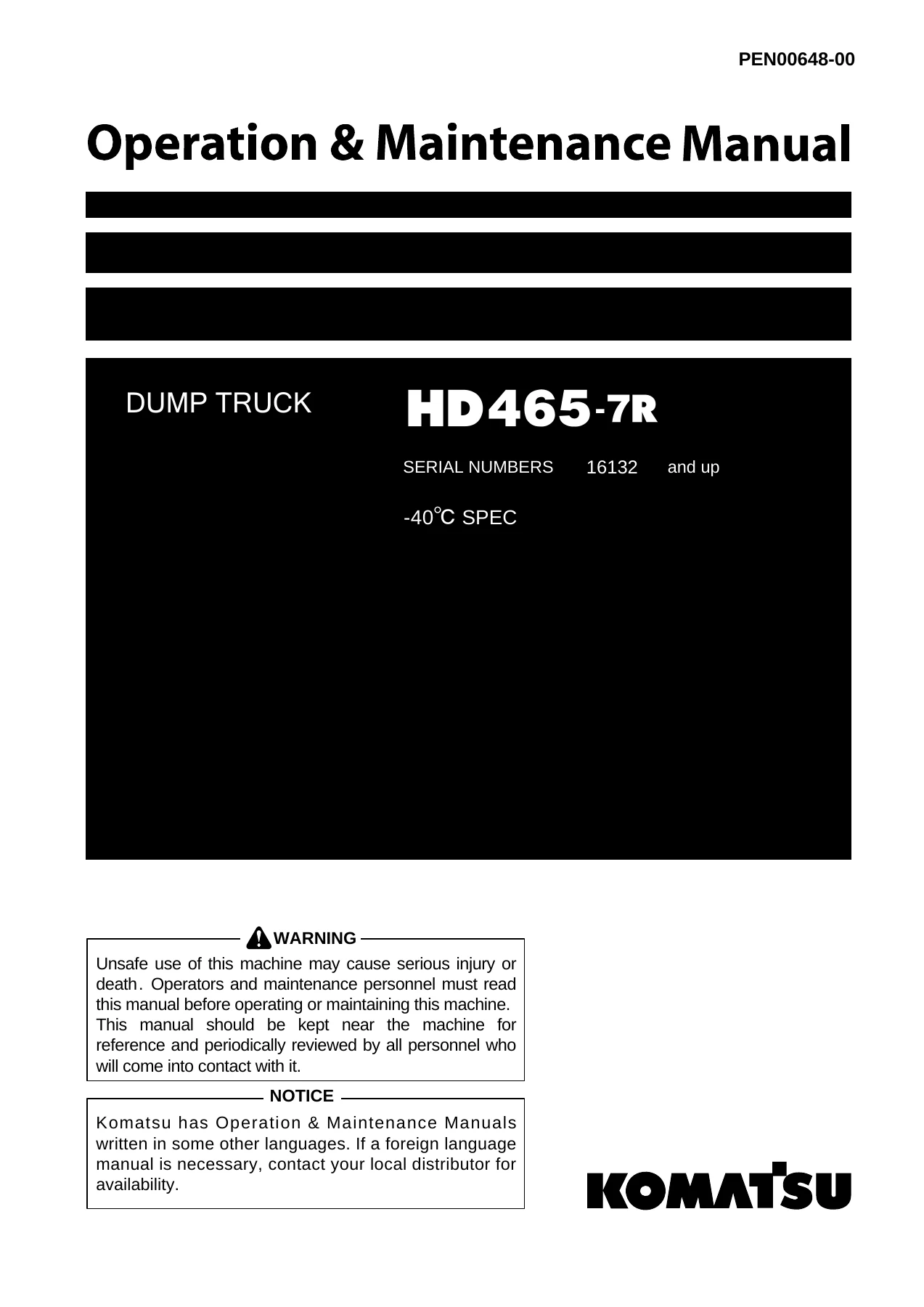

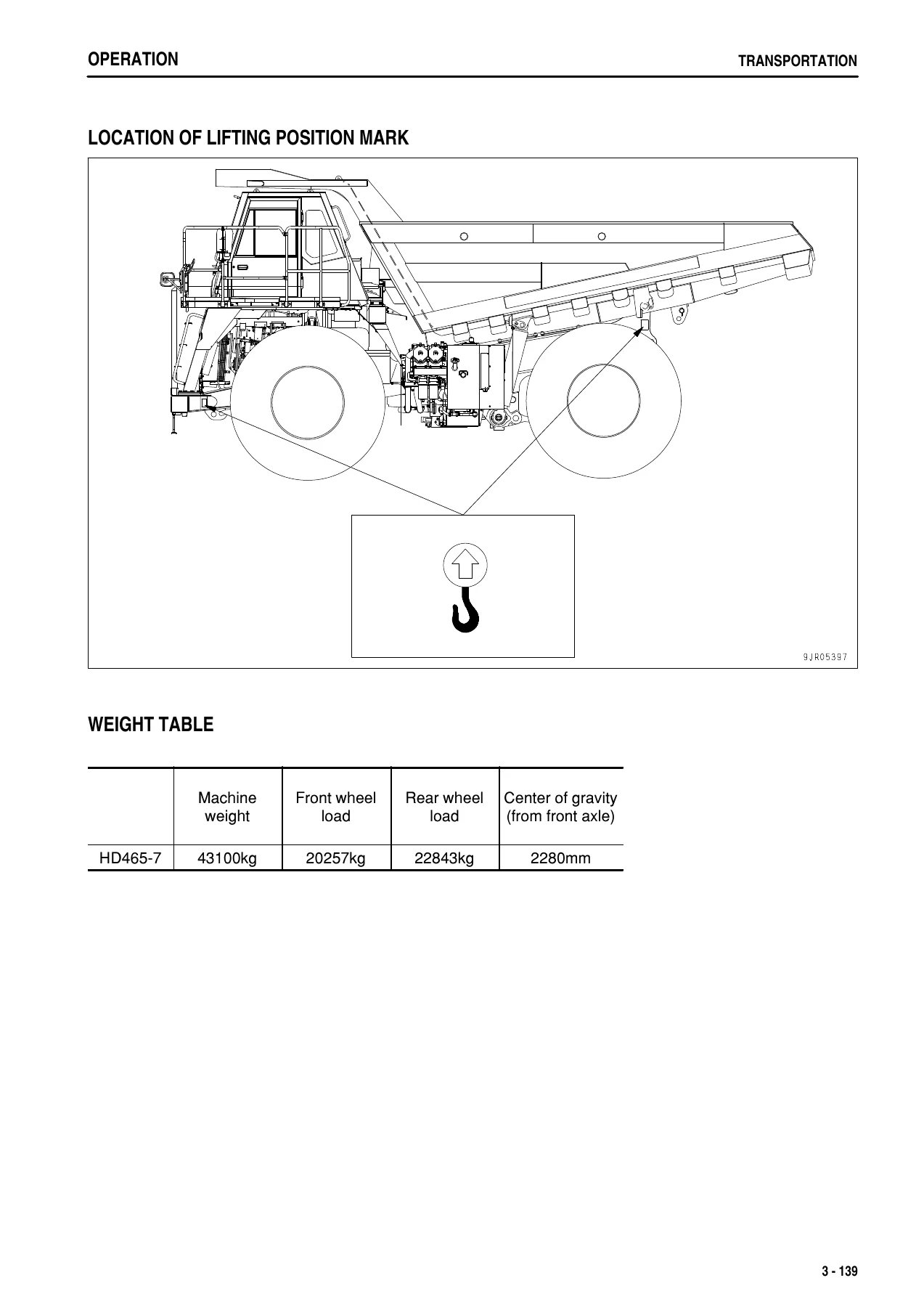

IMAGES PREVIEW

The manual is delivered as an instant PDF download. There is no shipping wait and no physical book to track. You can access it on any device — laptop, tablet, or smartphone — and print the pages you need for the workshop. Keep it near the machine for daily reference, or use it as a training resource for new operators and technicians.
