Komatsu HD465-7R Dump Truck Parts Book LEPBH467R6 – Serial J20116 and Up

Description

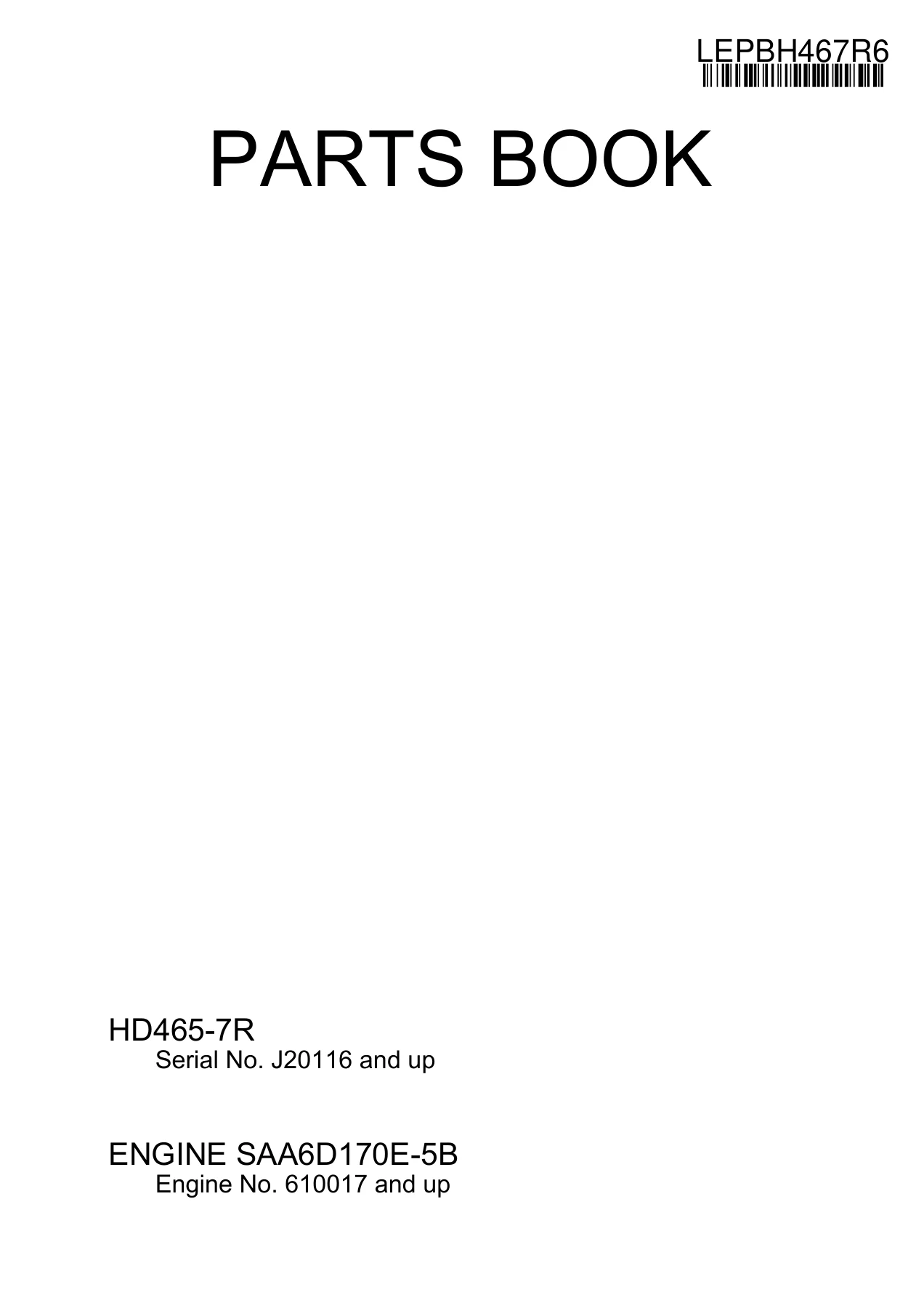

Komatsu HD465-7R Dump Truck Parts Book LEPBH467R6

This is the Komatsu HD465-7R Dump Truck Parts Book LEPBH467R6, the illustrated parts catalog used to identify, order, and replace components on HD465-7R haul trucks from Serial No. J20116 and up. The book also covers the SAA6D170E-5B diesel engine from Engine No. 610017 and up, and every engine-related figure is keyed to that specific engine serial range. Within the Komatsu HD465-7R parts book LEPBH467R6 you get exploded component illustrations paired with indexed part numbers, descriptions, quantities, and the serial-number applicability that tells you which variation of a given part belongs on your machine.

The HD465-7R dump truck is a 65-tonne-class rigid frame hauler, and its parts catalogue reflects that scale: engine sub-assemblies, cooling system, fuel tank and lines, electrical system, torque converter and transmission, hydraulic system, main frame and supports, operator’s compartment, platform and guards, rims and tyres, dump body, hoist cylinders, exhaust, and the marking and tool sections. Each figure in the HD465-7R parts book is drawn from Komatsu’s own parts data, so the numbers, quantities, and serial breaks you see here match what the dealer parts counter looks up.

File Details

• Manual type: Illustrated Parts Book / Parts Catalog
• Brand: Komatsu
• Model: HD465-7R Dump Truck
• Engine: SAA6D170E-5B (Engine No. 610017 and up)
• Serial range: J20116 and up
• Document number: LEPBH467R6
• Language: English
• Pages: Approximately 799
• Format: PDF (instant download)

Chapters Covered

The Komatsu HD465-7R parts book LEPBH467R6 is divided into the same major groupings Komatsu uses for the HD465-7R haul truck, with dozens of exploded figures inside each group:

IMAGES PREVIEW

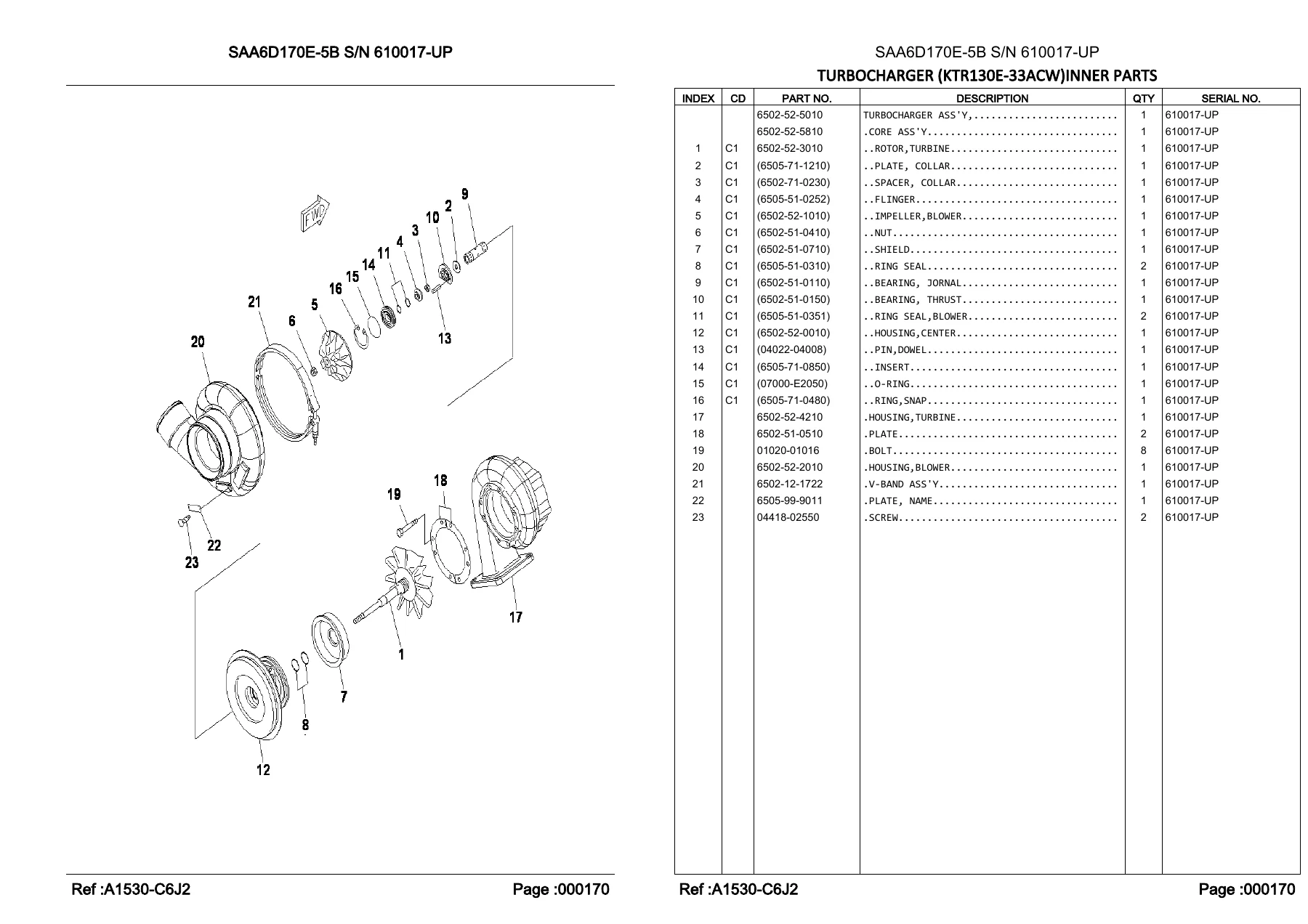

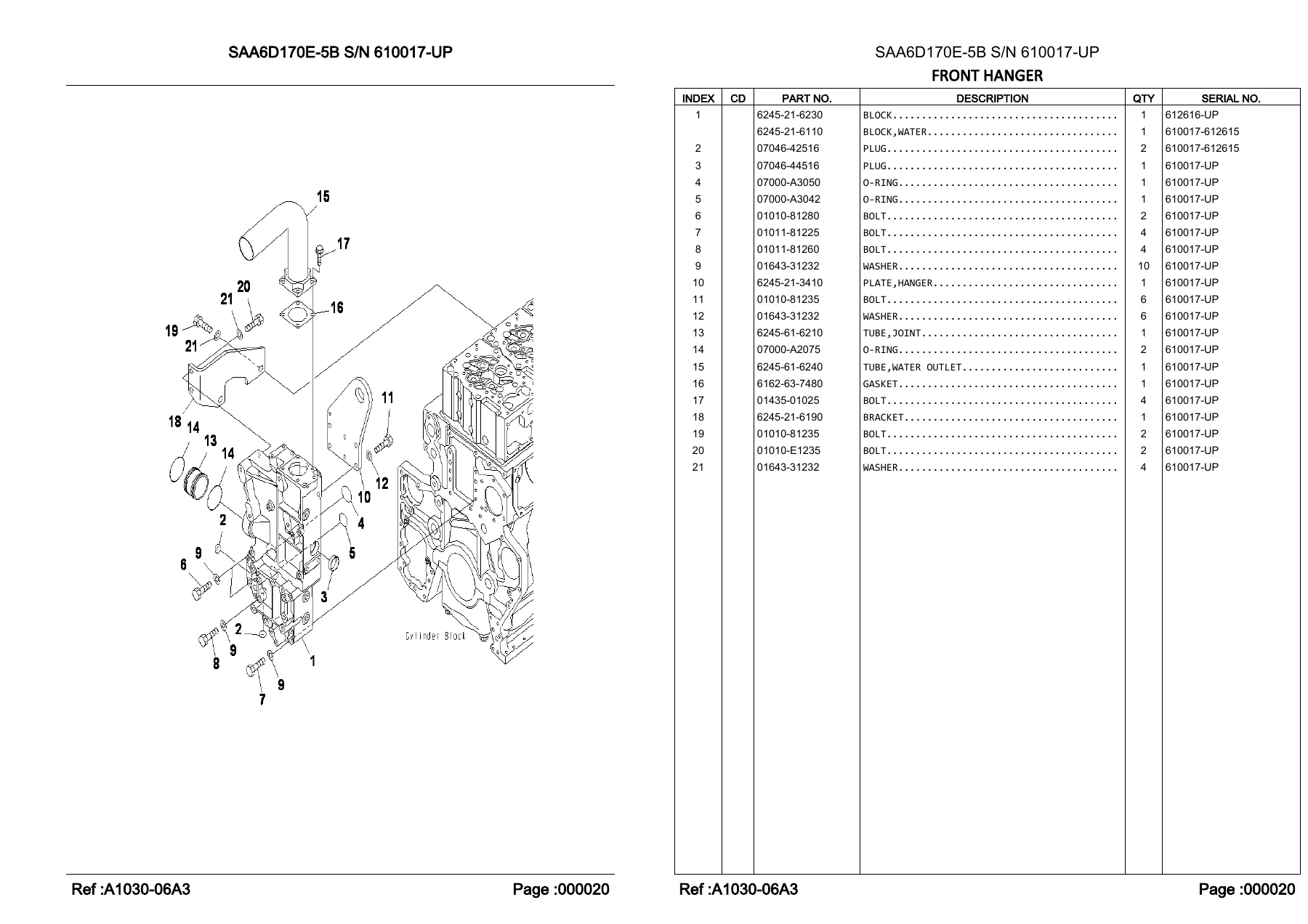

• Engine Related Parts — exhaust tube mounting, thermostat housing, cylinder block, cylinder block accessories (including VHMS and Orbcomm variations), front cover, idler gear, camfollower cover, oil filler, oil pan and suction tube, flywheel housing, flywheel, engine mounting, crankshaft, vibration damper, piston and connecting rod, crank pulley, camshaft, rocker arm housing, rocker lever, camfollower and push rod, oil pump, oil cooler and mounting, fuel injection system, fuel injection pump bracket and drive, fuel filters, fuel priming pump, fuel pre-filter, additional fuel filter, fuel injector, fuel return, fuel controller, cable support / engine wiring harness, water pump, cooling fan, fan pulley, fan drive, tension pulley, fan belt, water line plug, corrosion resistor water piping, corrosion resistor, alternator (90A and 60A), alternator drive, starting motor (7.5 kW), electrical wiring, name plate and warning decal, oil filter, sticker, water separator
• Cooling System — radiator inner parts, radiator mounting parts, radiator buffer, coolant line, coolant piping, brake oil cooler, cooling piping (radiator to engine)
• Fuel Tank and Related Parts — fuel tank with fuel quick coupler, drain valve and cover, strainer, mounting parts, fuel tank quick charge less, fuel line, water separator line
• Electrical System — battery and cable, battery mounting parts, battery box, battery switch, emergency steering relay, circuit breaker, rear hood, main harness, cab harness, sensor and harness mounting parts, starter cable, harness and mounting parts (L.H and R.H), mud cover, rear lamp and back-up buzzer, side lamp, payload meter lamp (platform and cab), ABS/ASR electrical system
• Torque Converter and Transmission — front propeller shaft, rear propeller shaft, torque flow assy, transmission mounting parts, hydraulic pump, hydraulic piping (steering and hoist pump line, retarder cooling pump line, torque converter and transmission pump line, brake pump line, nipple, transmission piping, breather line, pump to demand valve line, brake cooling piping), front propeller shaft guard, transmission related parts, torque converter (bare unit, input shaft and drive case, rear housing and P.T.O), torque converter valve, transmission housings (1st/2nd/reverse, 3rd/high, 4th/low, carrier), transmission control valve, transmission oil tank, transmission sensor, lubrication valve, docking unit, ECMV assy
• Rear Axle — rear differential, rear wheel brake (R.H and L.H), final drive (R.H and L.H), rear axle support, rear axle housing, rear brake piping (standard and ABS/ASR), rear axle support (F3820), brake cooling piping / rear brake tube, lubricating tube
• Front Axle — front axle assy (L.H and R.H), front brake assy (L.H and R.H), knuckle and arm lever, front suspension (L.H and R.H, for payload meter), suspension pressure sensor, brake oil piping, mounting pin, front brake piping, front axle piping, hub, front brake oil piping (with ABS)
• Hydraulic System — parts for less automatic suspension, hydraulic tank (vandalism protection, tank/ASR, return filter, demand valve and hoist valve, emergency steering line, emergency steering motor, hoist and brake cooling line, steering and hoist line, transmission filter line, transmission oil filler, EPC valve to hoist valve, hydraulic tank to EPC valve, harness), transmission oil filter and sensor, parking brake line, emergency body down valve, sub tank, sub tank mounting parts, accumulator piping, accumulator assy (parking brake line), hydraulic tank mounting parts, accumulator mounting parts, auto suspension less plug, breather line, hoist cylinder related parts, steering oil cooler related parts, pump to demand valve, suction line, emergency steering flow switch (manual type and auto type), transmission piping (breather line, connecting hose, breather line clip), steering cylinder (L.H and R.H), steering piping protection, cross over relief valve (standard and ASR), hydraulic piping (hoist cylinder line, hoist control valve line, check valve, demand valve to steering valve, steering cylinder line, steering oil cooler line), brake cooling piping
• Brake System — brake piping (brake valve and emergency brake valve to block, anti-skid brake system / ABS, block to front brake shuttle valve, block to front brake shuttle valve without front brake cut, accumulator cut and parking brake line, anti-skid brake system / ABS piping, clamp, clip, parking brake pump line), brake piping main harness, front line, rear shuttle valve, shuttle valve optional, parking brake tube, rear support piping, rear cross piping bracket, brake control valve
• Main Frame and Related Parts — main frame, main frame related parts, main frame (EGR less), rear support, rear support (support optional), rear support (cab mounting parts), rear support (exhaust piping), rear support related parts, rear support (platform mounting), front support (support L.H and R.H), front support (steering valve mounting parts, inner parts, steering piping), front support (cab mounting parts), front support (beacon wiring harness, wiring harness R.H), front support (step, L.H and R.H), front support stay, engine oil filter and related parts, engine oil filter (inner parts), positioner, air intake, exhaust piping, engine earth, transmission control, steering link (lever, front lubrication piping, tie rod, knuckle and tie rod with ASR, lubrication piping), ASR chassis, emergency steering control cable, rear lubrication piping, tire stopper
• Operator’s Compartment and Control System — operator’s cab, L.H door window glass and related parts, L.H door lock, L.H door accessory parts, R.H door / window glass and related parts, R.H door lock, R.H door accessory parts, door related parts, glass, antenna cable, antenna Orbcomm, wiper, sheet cab inside, accessory, accessory (sun visor single type), roof pad and cover (payload meter), marks and plates, payload meter 2 controller, window washer tank, filter box (for air conditioner), floor related parts, accelerator pedal, brake valve and secondary brake valve, air conditioner piping, dashboard, air duct, radio and cassette AM/FM, radio AM/FM, instrument panel, instrument panel (ABS) (payload meter), cap, main monitor, steering column, column switch and steering wheel, monitor decal, operator’s seat (fabric seat, inner parts), dump control lever and related parts, console box, transmission lever, console box (12V DC less), rear cover (payload meter), rear cover anti-skid brake system (ABS), auxiliary seat, fuse box and relay, brake and transmission controller, car harness, tachograph, engine pre-lubrication system less, air conditioner unit (inner parts), floor mate, cab step mounting parts, cab step related parts, cab (controller)
• Platform and Related Parts — platform mounting parts, platform related parts (mud guard, heat shield, platform, coolant line, coolant reserve tank with vandalism protection, anti slip rubber), platform group (clamp), platform sub assy (air cleaner, inner parts), platform related parts (cab step, side mirror L.H and R.H, toe guard L.H and R.H, under mirror L.H and R.H, platform R.H, handrail and mud guard, rear suspension, rubber antenna related parts, payload meter lamp stairway)
• Guard — radiator (cover, guard, anti slip rubber, without radiator shutter), hood (for sand protection, anti slip rubber, line, front support stay), fire protection (with exhaust box, without exhaust box), fender (mud guard, with side lamp), fender related parts, engine under guard, transmission under guard
• Rim and Tire — rim and tire front/rear in a range of sizes (24.0-R35 E3 GP, 24.0-R35 E4 CR, 24.0-R35 E4 FBEL150, 24.0-R35 E4 XDTA4, 24.0-R35-42 E4, 24.0-R35 E4 GP, 24-35-36PR E3 GP BS), rim (front wheel and rear wheel for WIL rim), rear suspension pressure sensor, tire and rim mounting parts
• Body — body sub assy, body (auto lubrication, 300 mm spill guard, platform guard, related parts), body accessory and parts, hoist cylinder (L.H and R.H), exhaust box
• Mark and Plates — marks and plates (English, Indonesian, French), caution plates (for Komtrax or VHMS), marks and plates (engine cover), anti slip rubber, lubrication point
• Tool — spare parts, general tools, card reader (PLM), cap and overall, memory card (PLM), payload meter soft
• Miscellaneous — air conditioner related parts, cap lock (vandalism protection), cap lock, fire extinguisher (English, French, Indonesian), rear propeller shaft guard, sand protection (sandy and dusty spec), parts for sandy and dusty terrain arrangement, auto lubrication (4 point lubrication, front and rear), lubrication piping (front and rear), ASR chassis (ASR valve, hydraulic piping, rear piping, electrical system, angle sensor, rear bracket), ABS chassis (rear piping, wiring harness), ABS and ASR chassis, valve cover, clip, vehicle health monitoring system (electrical wiring, with Orbcomm), ABS, ASR chassis (valve, hydraulic piping, rear piping, wiring harness, angle sensor, ABS front valve, ABS front valve cover, hose)
• Services Kit — service kit, hydraulic pump (inner parts, emergency steering), hoist cylinder (inner parts), steering cylinder (inner parts), accumulator (gas capacity 4.0L and 3.5L), cross over relief valve, check valve, demand valve, hoist valve, hydraulic pump (1/3, 2/3, 3/3), electric lever, accel pedal, brake control valve

What this gives a technician is a complete parts identification layer over the whole HD465-7R machine. Rather than guessing a part number or measuring a component in the hope of matching it visually, the parts book lets you look up the exact figure, the index number, the part number, the quantity required, and the serial-number window that applies. On a machine as heavily serial-dependent as the HD465-7R, that last point matters — several of the figures carry multiple part options covering different production ranges, and the parts book LEPBH467R6 makes those breaks explicit so you order the right variant the first time.

Who This Komatsu HD465-7R Parts Book Is For

This parts book is written for the people who maintain, rebuild, and support the HD465-7R in the field: fleet maintenance planners building parts lists, mechanics identifying what to replace on a haul truck, rebuilders sourcing sub-components, and parts personnel cross-checking a number before it goes on an order. It is not a service manual and does not contain repair procedures, torque sequences, or diagnostic steps — it is the parts identification reference that sits alongside those documents. Because it covers the SAA6D170E-5B engine from Engine No. 610017 and up as its own major section, engine rebuilders get the full internal parts breakdown — piston and connecting rod, crankshaft, camshaft, cylinder block accessories, fuel injection and common rail, oil pump, oil cooler, water pump — without needing a separate engine parts book.

Why Having the Right Komatsu HD465-7R Parts Book Matters

A dump truck that is down for a wrong part costs far more than the part itself. Ordering by description alone, or by an old number that has been superseded, produces a component that does not fit or does not match the serial break, and the truck stays parked through the return and re-order cycle. The HD465-7R parts book LEPBH467R6 removes that risk: every figure is tied to the model and serial range printed on the cover, so the part number you pull is the part number that belongs on your machine. The same goes for quantities and for the small hardware — bolts, washers, O-rings, clips, shims — that are easy to leave off an order and expensive to source locally at short notice. Having the complete parts book on hand also makes it practical to build a stocked spares list before a planned rebuild, rather than discovering the gaps mid-job.

Instant PDF Delivery

The Komatsu HD465-7R Dump Truck Parts Book LEPBH467R6 is delivered as an instant-download PDF. There is no printed volume to wait for and no shipping cost — checkout completes and the file is available immediately. It opens on any device that reads PDFs, from a workshop tablet to a desktop PC, and it can be printed page-by-page when you want a hard copy of a specific figure on the bench. Keep it on the service truck, share it with the parts desk, or archive it with the rest of the fleet documentation — once it is downloaded it is yours to use as often as you need on the HD465-7R machines in your care.

Whether you are replacing a single sensor, rebuilding a SAA6D170E-5B engine, or planning a full component-level overhaul of an HD465-7R from Serial J20116 and up, this parts book gives you the illustrated, serial-correct parts data to do it without guesswork.
