Komatsu HM400-1 Shop Manual 1001-Up – Articulated Dump Truck Service & Repair Guide

Description

Komatsu HM400-1 Shop Manual – Complete Workshop Service & Repair Guide

The Komatsu HM400-1 Shop Manual is the complete workshop repair guide for the HM400-1 articulated dump truck, covering serial numbers 1001 and up including the HM400-1 E-SPEC variant. This 1096-page manual provides the structure and function explanations, maintenance standards, testing and adjusting procedures, disassembly and assembly instructions, and hydraulic and electrical circuit diagrams needed to service, diagnose and repair the HM400-1.

This is a Komatsu shop manual (document number SEBM023012) covering the HM400-1 and HM400-1 E-SPEC. The HM400-1 mounts the SAA6D140E-3 engine; for detailed engine specifications and overhaul procedures, reference the 140-3 Series Engine Shop Manual. This manual covers engine removal and installation, fuel supply pump, injector nozzles, cylinder head, and engine testing and adjustment in the chassis context.

File Details

• Manual Type: Shop Manual (Service / Repair)
• Brand: Komatsu
• Model: HM400-1 Articulated Dump Truck
• Variant Covered: HM400-1 E-SPEC
• Serial Numbers: 1001 and up
• Engine: SAA6D140E-3
• Language: English
• Page Count: 1096
• File Format: PDF
• Document Number: SEBM023012

Chapters Covered

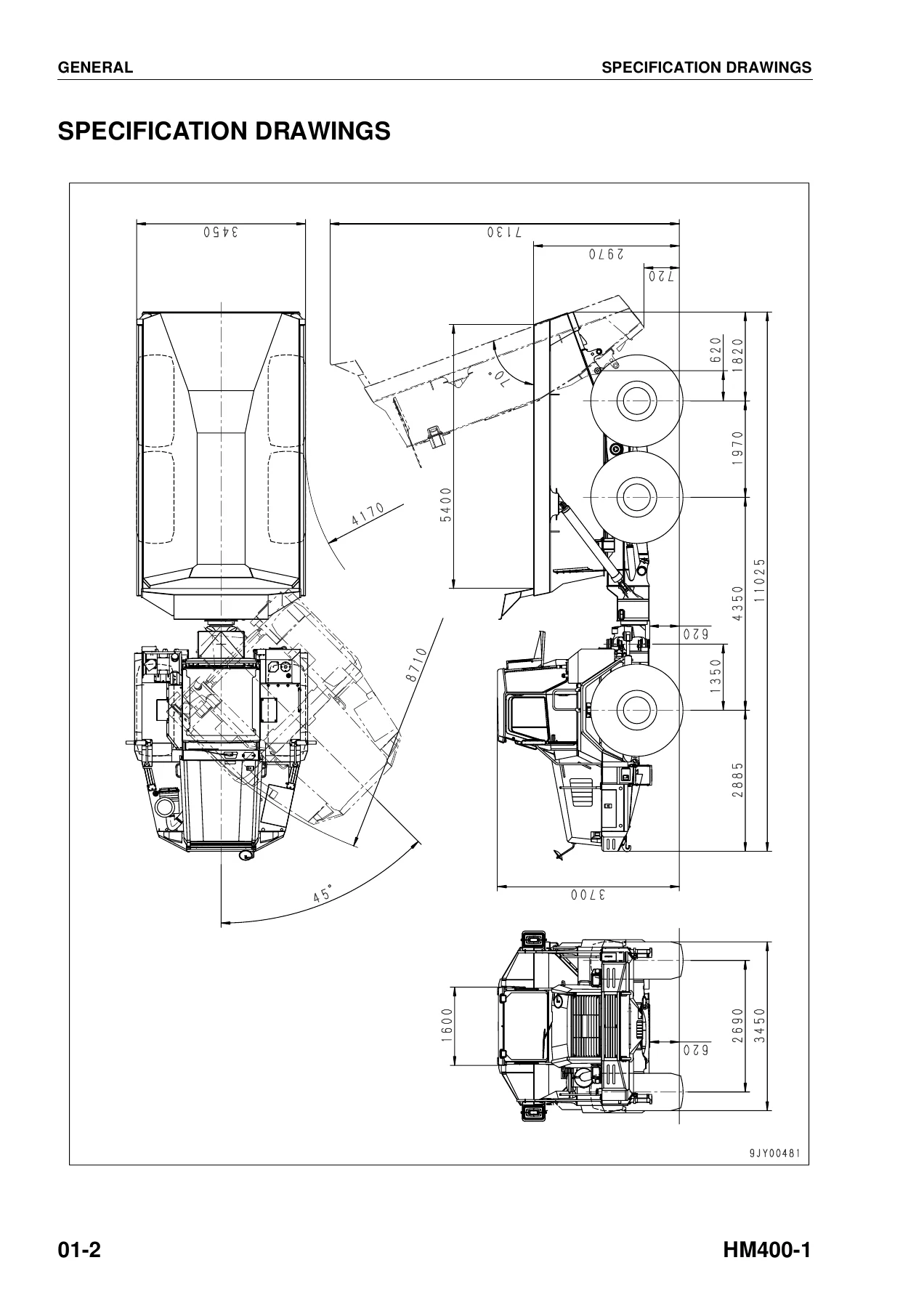

• 01 General – Specification drawings, specifications, weight table, fuel, coolant and lubricants

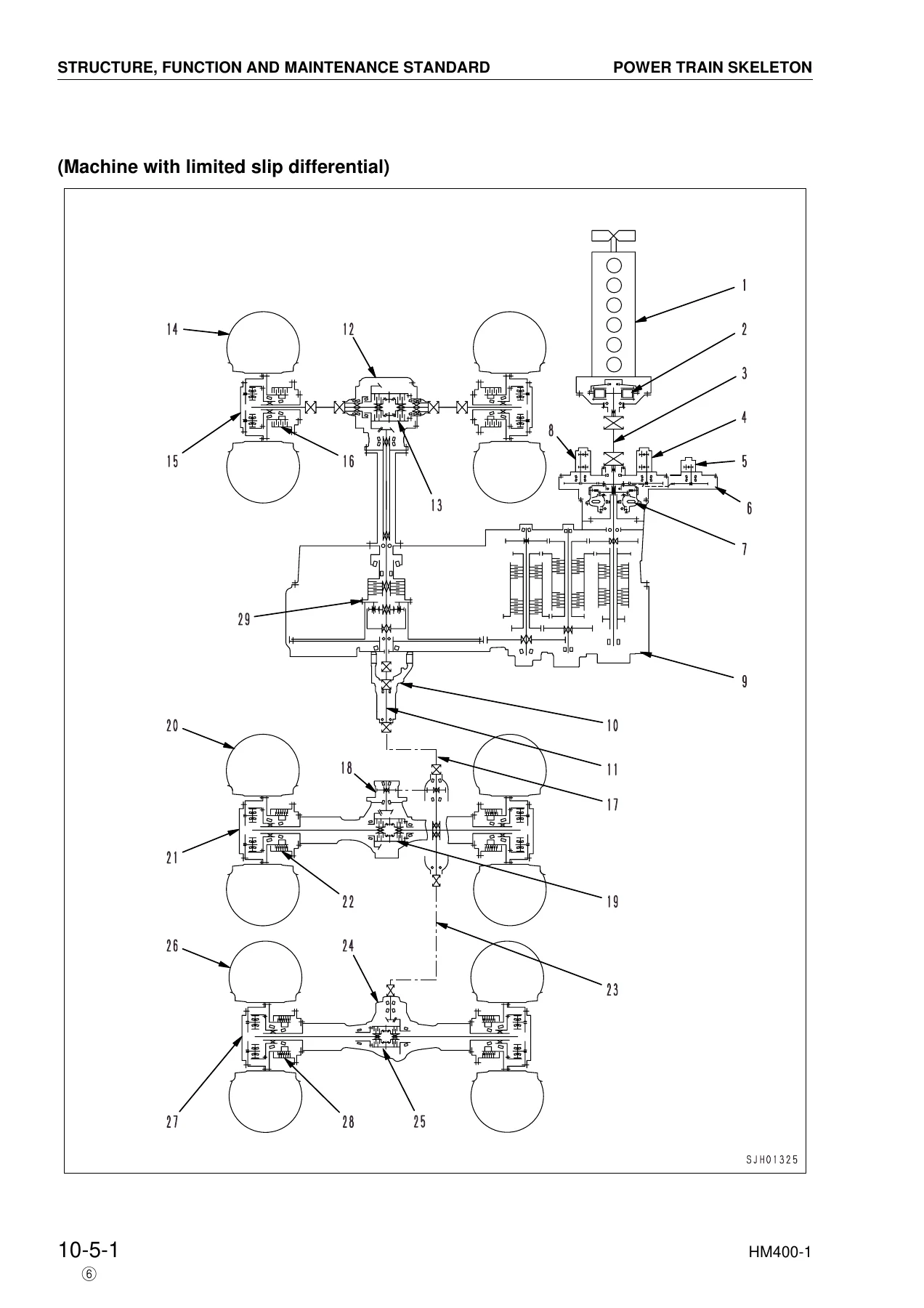

• 10 Structure, Function and Maintenance Standard – Engine, output shaft, torque converter, transmission, differentials (standard, limited slip and differential lock), final drives and brakes, steering system, hydraulic system, electrical system and sensors, machine monitor system, retarder control system, PLM-HM payload meter
• 20 Testing and Adjusting – Standard value tables (engine, chassis, electrical parts), engine testing and adjusting, power train oil pressure measurement, brake oil pressure testing and adjustment, brake performance testing, steering circuit pressure testing, suspension cylinder servicing, dump circuit pressure testing, machine monitor adjustment, special functions of the machine monitor, transmission controller adjustment, troubleshooting (ENG, TM, BK, MON, H and S modes)
• 30 Disassembly and Assembly – Engine assembly removal and installation, cylinder head assembly, nozzle tip replacement, radiator assembly, output shaft assembly, transmission and front differential assembly, torque converter assembly, transmission assembly, front/center/rear differential assembly, front/center/rear final drive and brake assembly, center and rear axle assembly, front and rear suspension cylinder, equalizer bar, wheels, hitch frame assembly, steering valve, flow amplifier valve, hoist valve, steering cylinder, hoist cylinder, body assembly, operator’s seat assembly
• 90 Others – Power train hydraulic circuit diagram, differential lock hydraulic circuit diagram, air conditioner electrical circuit diagram, electrical circuit diagrams (inside cab, outside cab, payload meter)

The manual is organized to support every stage of work on the HM400-1: understanding how each system functions, checking it against maintenance standards, measuring and adjusting it with the correct procedures and values, and then carrying out component removal, overhaul and reinstallation with the specified torque values and tool references. The Testing and Adjusting chapter includes standard value tables for the engine, chassis, and electrical parts, and troubleshooting sections are divided by controller system (ENG mode, TM mode, BK mode, MON mode, H mode and S mode), each with its own flowcharts and wiring references.

What This Manual Covers in Depth

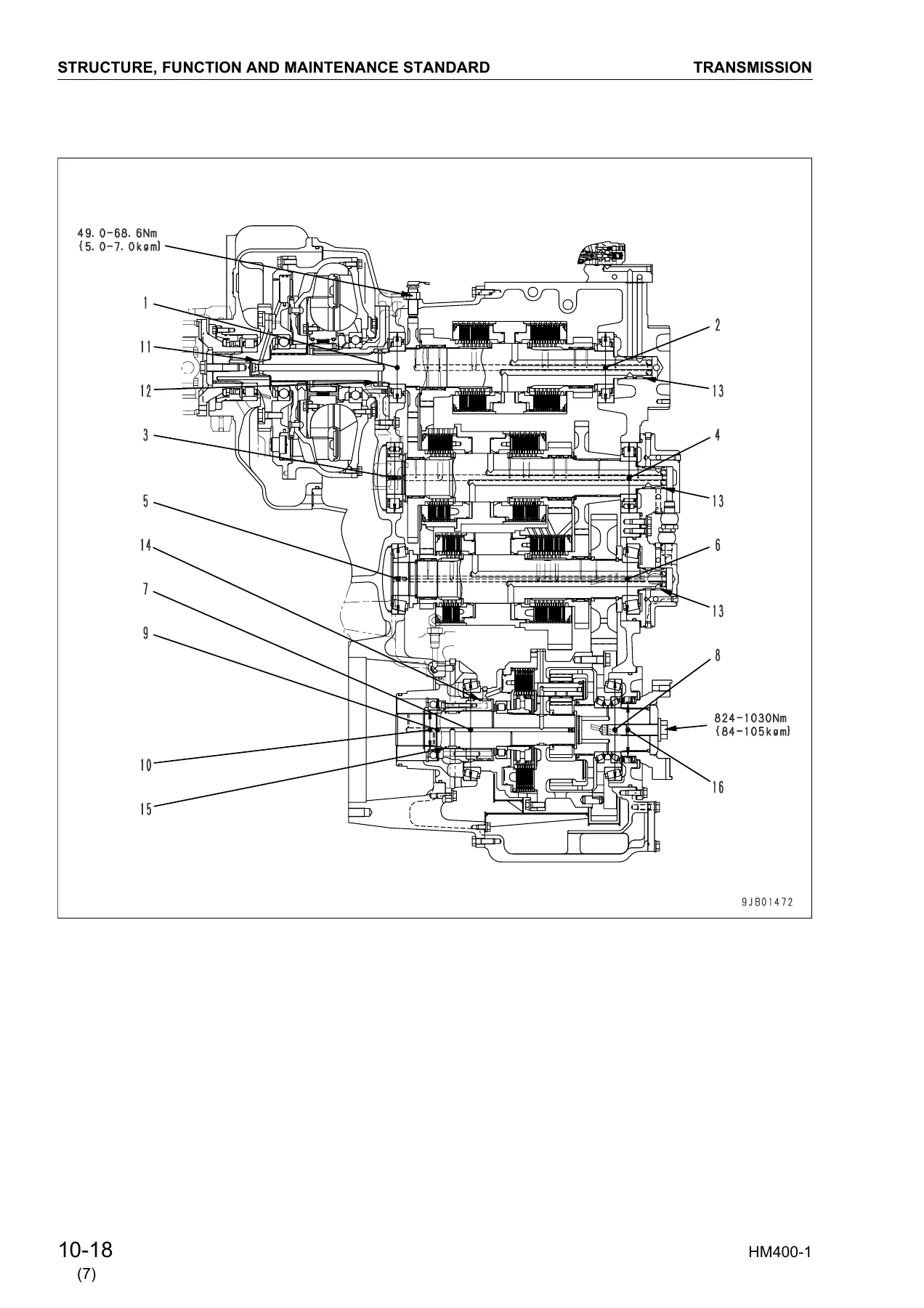

The HM400-1 shop manual covers the complete powertrain, including the SAA6D140E-3 engine as installed in the chassis, the output shaft and damper assembly, the 3-element 1-stage 2-phase torque converter with lock-up clutch, and the TORQFLOW transmission with F6 forward and R2 reverse ranges. Transmission disassembly and assembly is documented clutch by clutch, with exploded views of the FL, FH, R, 1st, 2nd, 3rd and differential lock clutches, and the ECMV valves that control them. The manual also covers the front, center and rear differentials in both limited slip differential and differential lock configurations, and the planetary final drives and wet multiple-disc brakes at each wheel station.

Brake system coverage includes the service brake valve, slack adjusters, accumulators and charge valve, wheel brakes, parking brake, retarder and exhaust brake. The testing and adjusting section gives brake oil pressure values, brake performance test procedures, and brake disc wear inspection. Steering system coverage includes the orbit-roll steering valve, flow amplifier valve, steering cylinders, and the emergency steering system. The hydraulic system covers the hoist valve, hoist cylinders, dump EPC valve, and hydraulic tank. Suspension coverage includes the front and rear hydropneumatic suspension cylinders, equalizer bar and lateral rods.

Electrical and electronic coverage includes the machine monitor system, transmission controller, engine controller and retarder/brake controller, plus the many sensors and switches used across the machine (engine speed, transmission speed, temperature, pressure, level, position and oil pressure switches). The manual includes detailed connector pin-out tables, T-adapter references, and troubleshooting flowcharts for each controller system. For the HM400-1 E-SPEC, the brake control system replaces the retarder control system, and the manual documents this variant separately.

Who This Manual Is For

This manual is written for the service technician working on the HM400-1, whether in a workshop or in the field. The testing and adjusting procedures use the specified tools and gauges, with standard values for new machines and service limit values. Troubleshooting is structured to move from symptoms to causes through flowcharts, and the disassembly and assembly sections list the special tools required for each operation together with the torque values for reassembly. It also supports maintenance planning, since the replacement intervals and inspection criteria for filters, oil and brake components are included in the testing and adjusting material.
