Komatsu WA900-8R Wheel Loader Field Assembly Manual GEN00206-00

Description

Komatsu WA900-8R Wheel Loader Field Assembly Manual

This is the complete field assembly manual for the Komatsu WA900-8R wheel loader. Because this machine is shipped from the factory in multiple units — body, undercarriage, cab, work equipment, and more — this document provides the exact procedures, equipment requirements, and safety protocols needed to assemble it into a complete working machine at the field location. It covers everything from the initial placement of the bare machine and axles through to the final bucket angle adjustments and machine check sheet.

Published by Komatsu Ltd. under form number GEN00206-00 in October 2019, this Komatsu WA900-8R Wheel Loader Field Assembly Manual is written for work supervisors, work leaders, mechanics, crane operators, and assembly personnel involved in field assembly operations. It emphasizes safety throughout, including supervision system diagrams, protective gear requirements, and specific precautions for each work process.

File Details

• Manual Type: Field Assembly Manual
• Brand: Komatsu
• Model: WA900-8R Wheel Loader
• Engine: KOMATSU SAA12V140E-7 diesel engine
• Language: English
• Page Count: 314 pages
• File Format: PDF
• Document Number: GEN00206-00
• Publication Date: October 2019
• Publisher: Komatsu Ltd.

Chapters Covered

• Foreword
• Precautions for Field Assembly
• Disposal of Removed Parts
• Assembly Procedure, Necessary Equipment, and Schedule
• Layout of Kit (Work Space Layout)

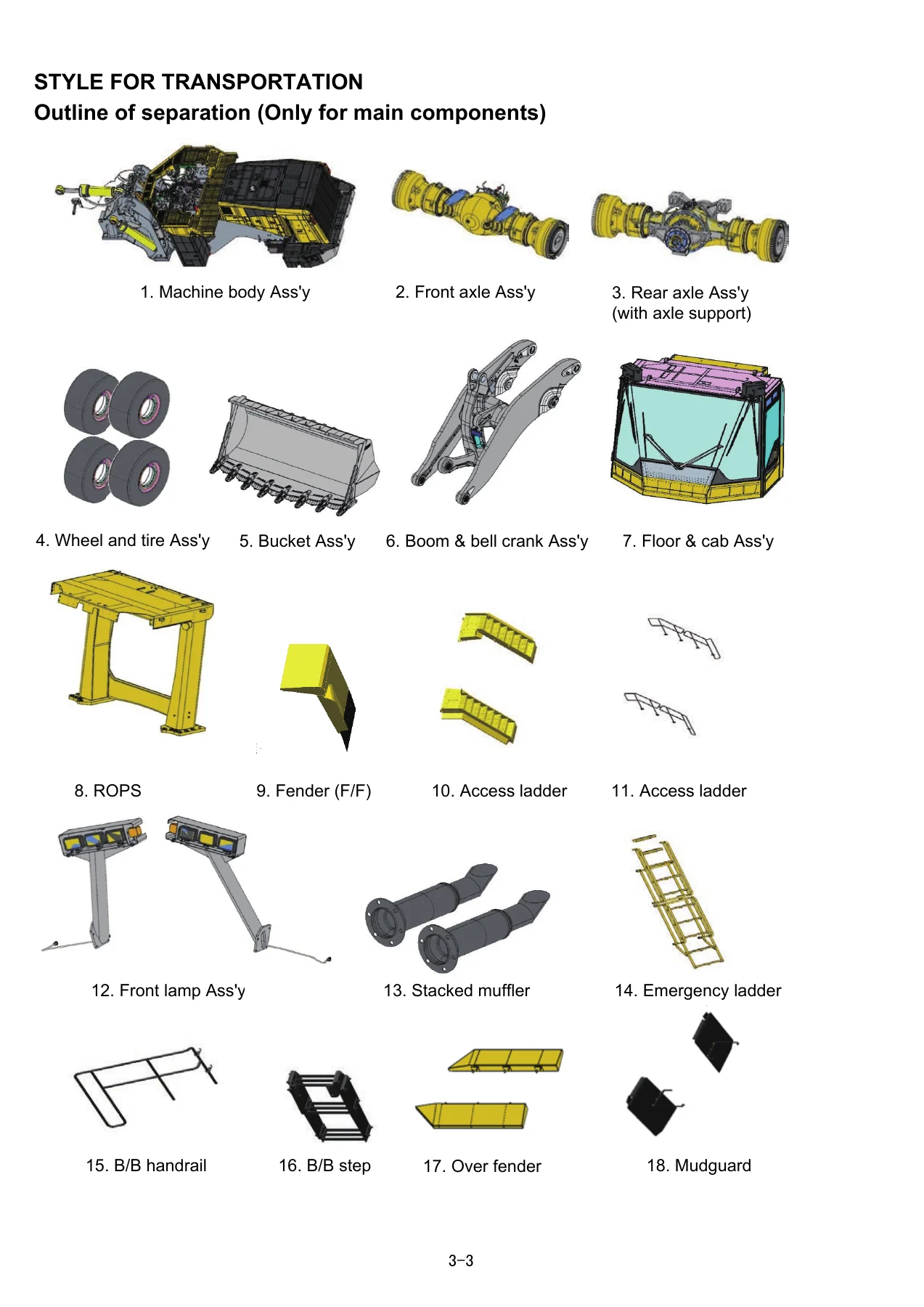

• Style for Transportation
• Specifications
• Tool List for Field Assembly
• Standard Tightening Torque Table
• Coating Materials List
• Selection of Wire Ropes Used for Assembly
• Selection of Nylon Slings Used for Assembly
• Field Assembly Procedure

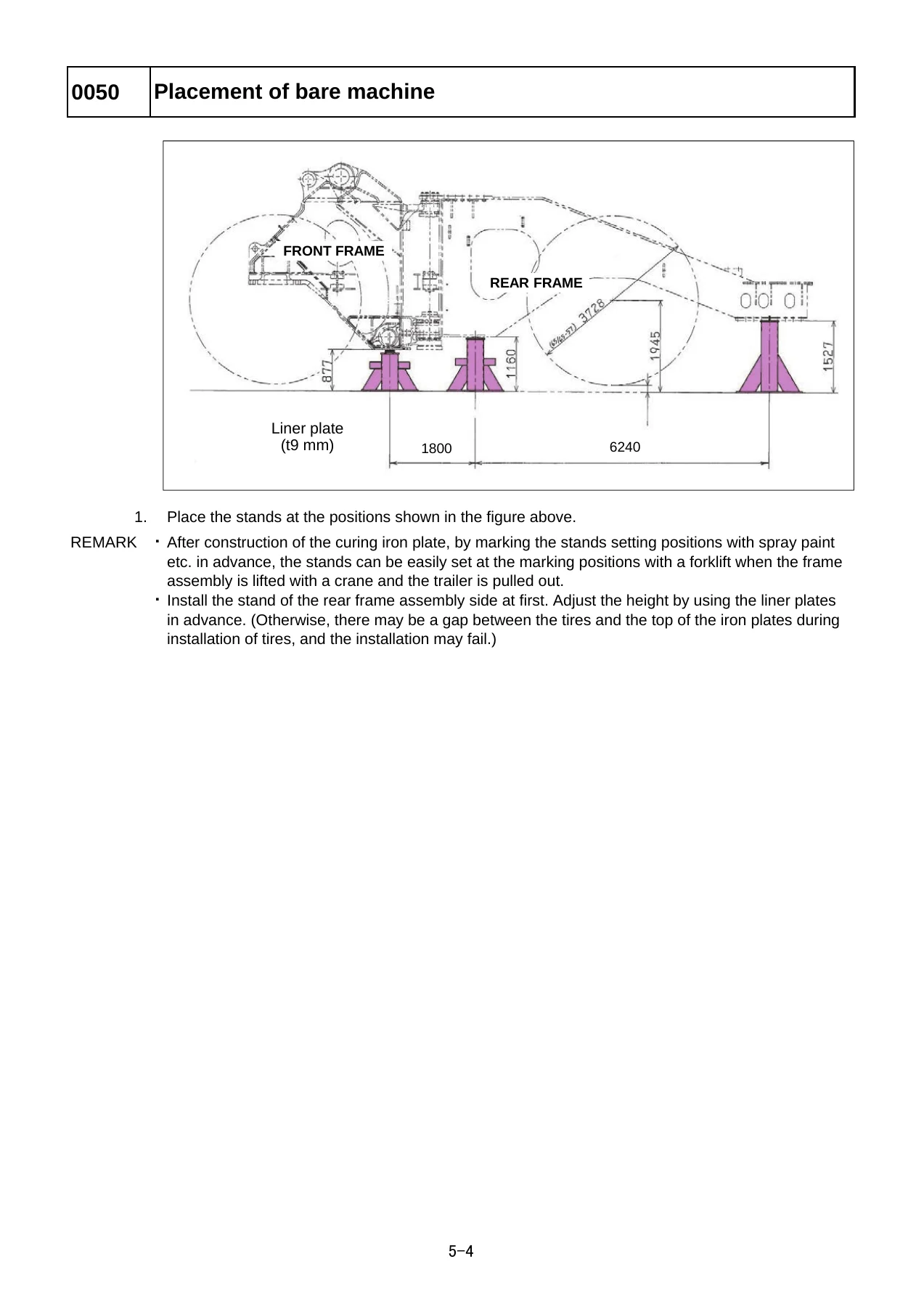

• Placement of bare machine, front axle, and rear axle
• Installation of tires and axle frames

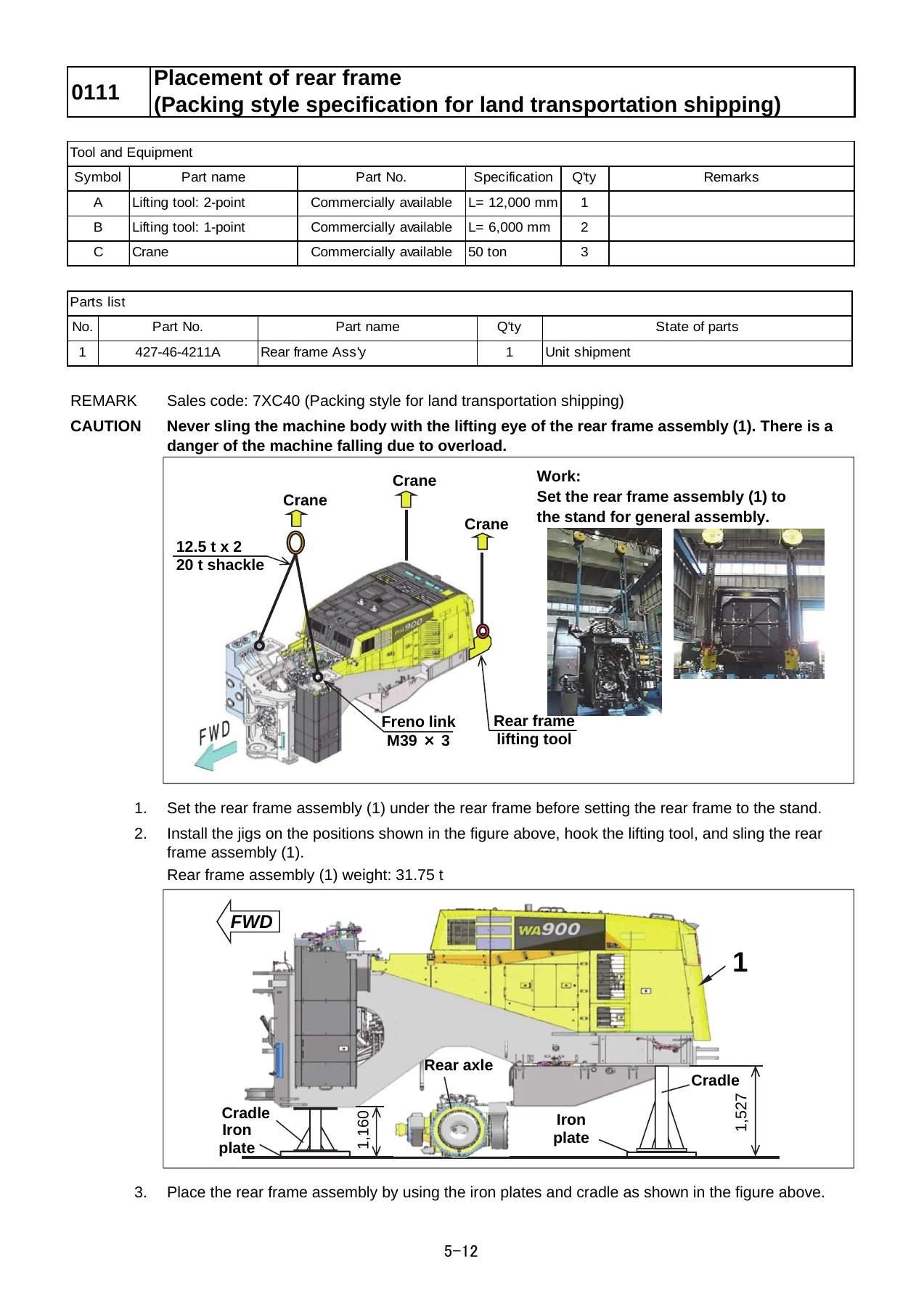

• Placement of rear frame and assembly of rear and front axles
• Connection of drive shafts, piping, and wiring
• Installation of battery box and wiring harness
• Connection of front and rear frames
• Installation of steering pins and cylinders
• Mounting of engine and related connections
• Installation of bulkhead, side doors, and side panels
• Assembly of top hood and floor support
• Installation of cab and floor assembly
• Connection and fixing of cab wiring and piping
• Installation of ROPS, antennas, and lamps
• Installation of platforms, steps, and handrails
• Installation of access ladders and covers
• Installation of power ladder (machine with power ladder)
• Installation of boom, bucket, and work equipment
• Installation of fenders, covers, and mirrors
• Installation of front and rear axles (detailed procedures)
• Installation of KomVision cameras and radar sensors
• Installation of exhaust pipe and air cleaner
• Installation of tires and counterweight
• Air bleeding of pump, brake, and hydraulic system
• Charging of air conditioner gas
• Greasing types and points
• Operation of work equipment
• Adjustment of AJSS and frame end stopper clearance
• Adjustment of bucket angle
• Machine Check Sheet for Field Assembly

This Komatsu WA900-8R Wheel Loader Field Assembly Manual is structured around the practical reality of field assembly. It begins with safety meetings and supervision system diagrams, then moves into work space layout — including steel plate covering requirements and the minimum 40m x 30m work area needed. The specifications section provides operating weight (116,400 kg), bucket capacity (13 m³), engine output (672 kW / 901 HP), overall dimensions, and travel speeds. Torque tables cover metric, unified coarse, and unified fine threads, plus O-ring boss piping joints, hose fittings, and face seal joints.

The field assembly procedures themselves are numbered step-by-step — over 200 individual procedures — each with tool and equipment lists, parts lists, coating material requirements, tightening torques, and detailed illustrations. The manual includes procedures for machines with and without power ladder, with and without KomVision, with and without heater mirror, and packing styles for land transportation shipping. A comprehensive machine check sheet at the end covers 114 inspection items with judgment criteria, ensuring the assembled machine meets Komatsu specifications before commissioning.

What This Manual Enables You to Do

With this Komatsu WA900-8R Wheel Loader Field Assembly Manual, a qualified assembly team can take the Komatsu WA900-8R from its shipping configuration to a fully operational wheel loader. You get the exact lifting points and sling configurations for each major component — the rear frame alone weighs 31.75 tonnes, the front axle 8,970 kg, the rear axle 9,000 kg, and the boom and bell crank assembly 12,881 kg. The manual specifies crane capacities (50-ton cranes are required for most lifts), nylon sling and wire rope selection tables, and the proper sequence for every connection.

The torque specifications alone are worth the investment. Critical fasteners on this machine require precise tightening — front and rear axle mounting bolts at 3,170 to 3,870 Nm (323 to 395 kgm), ROPS mounting bolts at 2,890 to 3,630 Nm (295 to 370 kgm), counterweight bolts at 2,450 to 3,040 Nm (250 to 310 kgm). Get these wrong and you risk structural failure. The manual provides target values, intermediate values, and tightening sequences including diagonal patterns and multiple-round procedures.

The assembly procedures also cover the subtle work that’s easy to get wrong: shim adjustment for the ROPS mounts, frame end stopper clearance measurement, bucket angle calibration via the monitor, AJSS neutral point adjustment, and power ladder speed and sensor plate adjustment. The check sheet ensures nothing is missed — from engine oil level and hydraulic pressure tests to travel speed verification and KomVision camera calibration.

Why Correct Procedures and Specs Matter

The WA900-8R is a 116-tonne machine with a 13 m³ bucket. Improper assembly can lead to structural failure, hydraulic leaks, electrical faults, or safety hazards that put operators and maintenance personnel at risk. This manual’s safety precautions are explicit: work supervisors must hold safety meetings before work begins, workers must wear protective gear, crane work requires a designated signal man, and entry prohibition for outsiders must be enforced. The supervision system diagram shows the chain of command — work supervisor, work leader, crane director, operator for assembly, mechanics, and interpreter for multilingual crews.

The manual also addresses the practical realities of field assembly: what to do with removed plugs, jigs, and fixtures (keep them for future transportation), how to protect the machine from sand, dirt, and rainwater during work stoppages, and how to handle hydraulic circuits carefully to prevent contamination. The assembly procedures specify when to apply which coating material — LT-1A, LT-1B, LT-2 for adhesives; LG-5 for liquid gasket; LM-P for molybdenum disulfide lubricant — and where grease should be applied to prevent galling and seizure.

IMAGES PREVIEW

Instant PDF Delivery — No Shipping, No Waiting

This Komatsu WA900-8R Wheel Loader Field Assembly Manual is delivered as an instant PDF download. Once your payment is processed, you get immediate access to the complete 314-page document — no shipping delays, no waiting for a physical book to arrive. The PDF works on any device: laptop, tablet, or smartphone. Print the pages you need for the job site, or keep the entire manual on a tablet for reference during assembly. The file includes all illustrations, diagrams, tables, and the machine check sheet exactly as published by Komatsu.

Whether you’re a Komatsu dealer, an independent heavy equipment mechanic, a mining or construction company maintaining your own fleet, or a technician preparing for a field assembly job, this manual gives you the documentation you need to do the work correctly and safely. The procedures are detailed enough to guide a team through a complete assembly — from the first crane lift to the final bucket angle adjustment.
