Komatsu Wheel Loader WA380-1 WA420-1 Operation & Maintenance Manual SN 20292, 20159 and up – PDF DOWNLOAD

Description

Komatsu Wheel Loader WA380-1 WA420-1 Operation & Maintenance Manual

FILE DETAILS:

Komatsu Wheel Loader WA380-1 WA420-1 Operation & Maintenance Manual

Model Specification: KOMATSU WA380-1, WA420-1 WHEEL LOADER
Language: English
File Format: PDF
Total Pages: 163
Requirements: Adobe PDF Reader
ZOOM IN/OUT: YES
Downloadable: YES

DESCRIPTION:

Komatsu Wheel Loader WA380-1 WA420-1 Operation & Maintenance Manual

FOREWORD:

This manual describes procedures for operation, handling, lubrication, maintenance, checking, and adjustment. It will help the operator or anyone realize peak performance through effective, economical and safe machine operation and maintenance.

• Please read this manual carefully BEFORE operating the machine.
• Please continue studying this manual until proper operation is completely reinforced into personal habit.
• This manual describes the basic techniques. Skill is performed as the operator or anyone get the correct knowledge and performance of the machine.
• Operation, inspection, and maintenance should be carefully carried out, and the safety must be given the first priority. Safety precautions are indicated with A marks and technical precautions with * marks in this manual. The safety information contained in this manual is intended only to supplement safety codes, insurance requirements, local laws. rules and regulations.
• Some photographs and illustration pictures are different from your ma- chine as technical improvement is continuously reflected on it. Revision to up-to-date manual’s content is performed in later editions.
• This operation & maintenance manual may contain attachments and optional equipment that are not available in your area. Please consult your local Komatsu distributor for those items you may require. Materials and specifications are subject to change without notice.

KOMATSU WHEEL LOADER WA380-1 WA420-1 OPERATION & MAINTENANCE MANUAL SN 20292, 20159 AND UP – PDF DOWNLOAD:

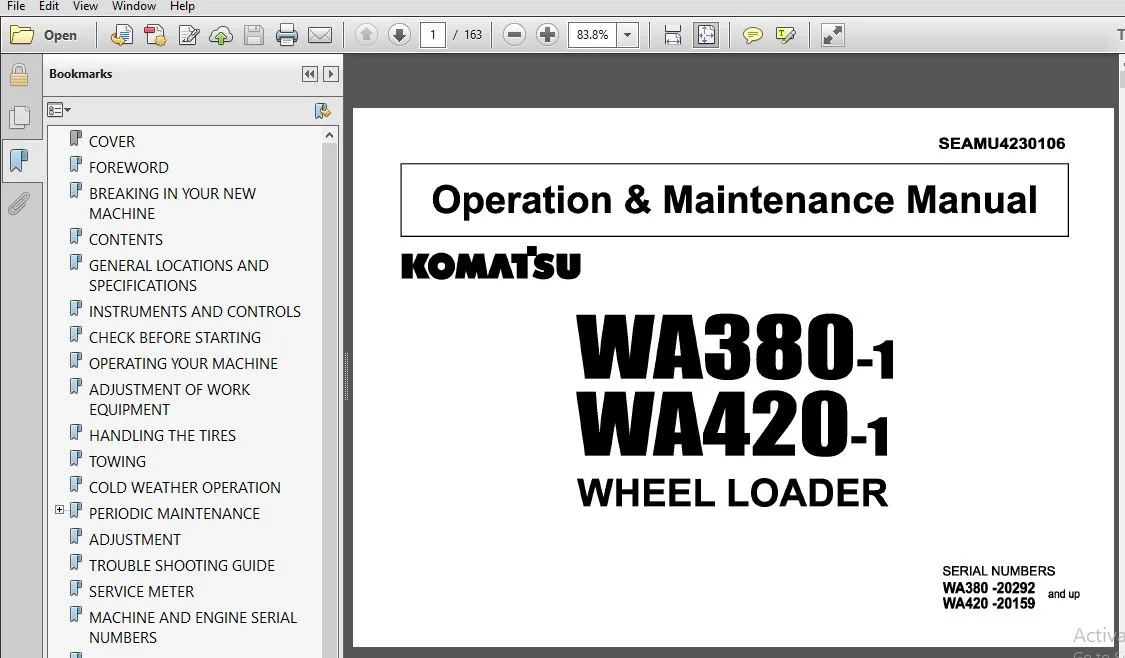

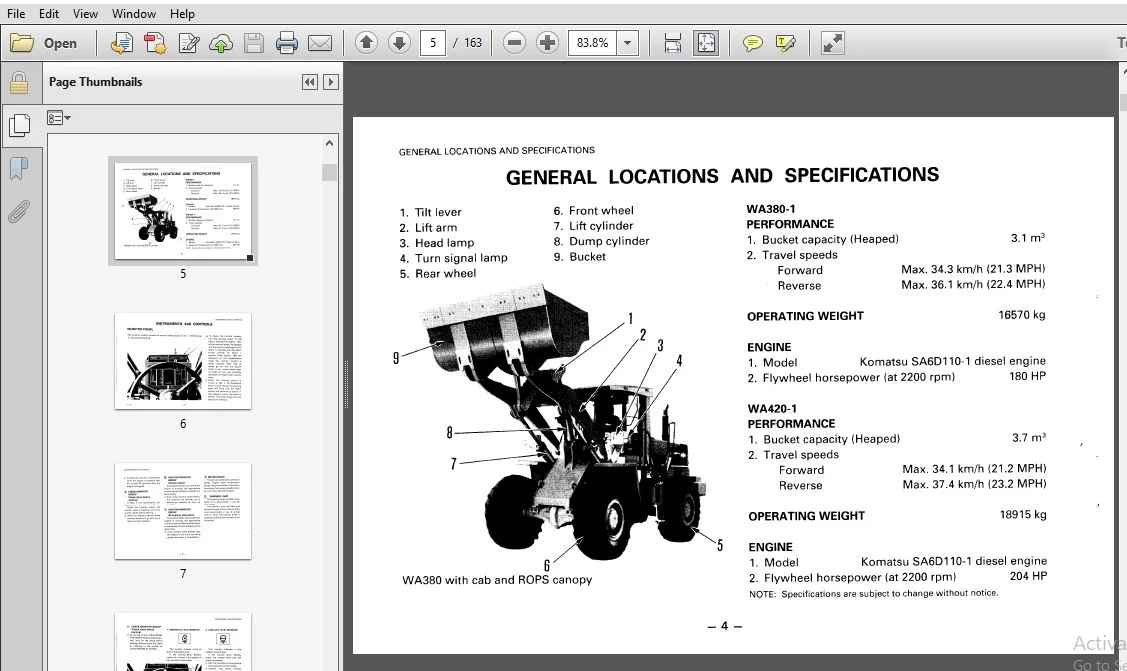

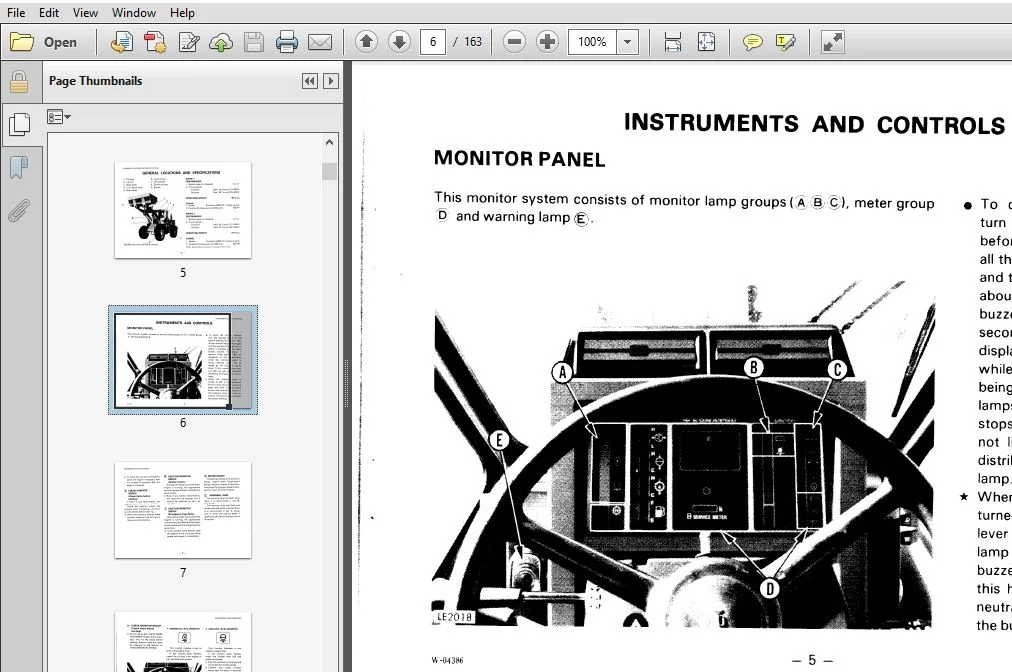

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Komatsu Wheel Loader WA380-1 WA420-1 Operation & Maintenance Manual

COVER.........................................  1
FOREWORD......................................  2
BREAKING IN YOUR NEW MACHINE..................  3
CONTENTS......................................  4
GENERAL LOCATIONS AND SPECIFICATIONS..........  5
INSTRUMENTS AND CONTROLS......................  6
CHECK BEFORE STARTING......................... 34
OPERATING YOUR MACHINE........................ 40
ADJUSTMENT OF WORK EQUIPMENT.................. 51
HANDLING THE TIRES............................ 53
TOWING........................................ 56
COLD WEATHER OPERATION........................ 58
PERIODIC MAINTENANCE.......................... 64
	BLEEDING AIR FROM CIRCUIT................. 65
	PERIODICAL REPLACEMENT OF SAFETY PARTS.... 66
	MAINTENANCE TABLE......................... 67
	OIL FILLER AND LEVEL GAUGE POSITIONS...... 70
	CHECK BEFORE STARTING..................... 71
	EVERY 50 HOURS SERVICE.................... 71
	EVERY 100 HOURS SERVICE................... 72
	EVERY 250 HOURS SERVICE................... 74
	EVERY 500 HOURS SERVICE................... 80
	EVERY 1000 HOURS SERVICE.................. 83
	EVERY 2000 HOURS SERVICE.................. 88
	EVERY 4000 HOURS SERVICE.................. 94
	WHEN REQUIRED............................. 95
ADJUSTMENT....................................109
TROUBLE SHOOTING GUIDE........................113
SERVICE METER.................................117
MACHINE AND ENGINE SERIAL NUMBERS.............118
FUEL,COOLANT AND LUBRICANTS...................119
SAFETY AND OPERATION..........................121
	CONTENTS..................................122
	SAFETY HINTS..............................123
	PRECAUTIONS FOR MAINTENANCE...............137
	BUCKET OPERATION..........................143
	OPERATING THE AIR CONDITIONER.............149
	OPERATING THE CAR HEATER..................152
	LOCKING CAP...............................154
	HANDLING OF BATTERY.......................155
	TRANSPORTATION............................158
	STORAGE...................................159
	COOLANT AND LUBRICANTS....................161
