Konica Minolta Bizhub C25 Service Manual PDF DOWNLOAD
$29.95
Download the official konica minolta bizhub c25 service manual pdf for professional repairs on your color multifunction printer. This bizhub c25 field service troubleshooting guide covers jam displays, malfunction codes, and image quality issues, while konica minolta c25 maintenance procedures detail disassembly, cleaning, and periodic replacements. Includes bizhub c25 adjustment setting manual for service mode, soft switches, and firmware upgrades. For options, the konica minolta pf-p09 lower feeder unit service outlines installation and feed roller maintenance. Essential for technicians handling bizhub c25 fax error codes guide and ensuring reliable print, scan, copy, and fax operations.
Description
Konica Minolta Bizhub C25 Service Manual – PDFΒ DOWNLOAD

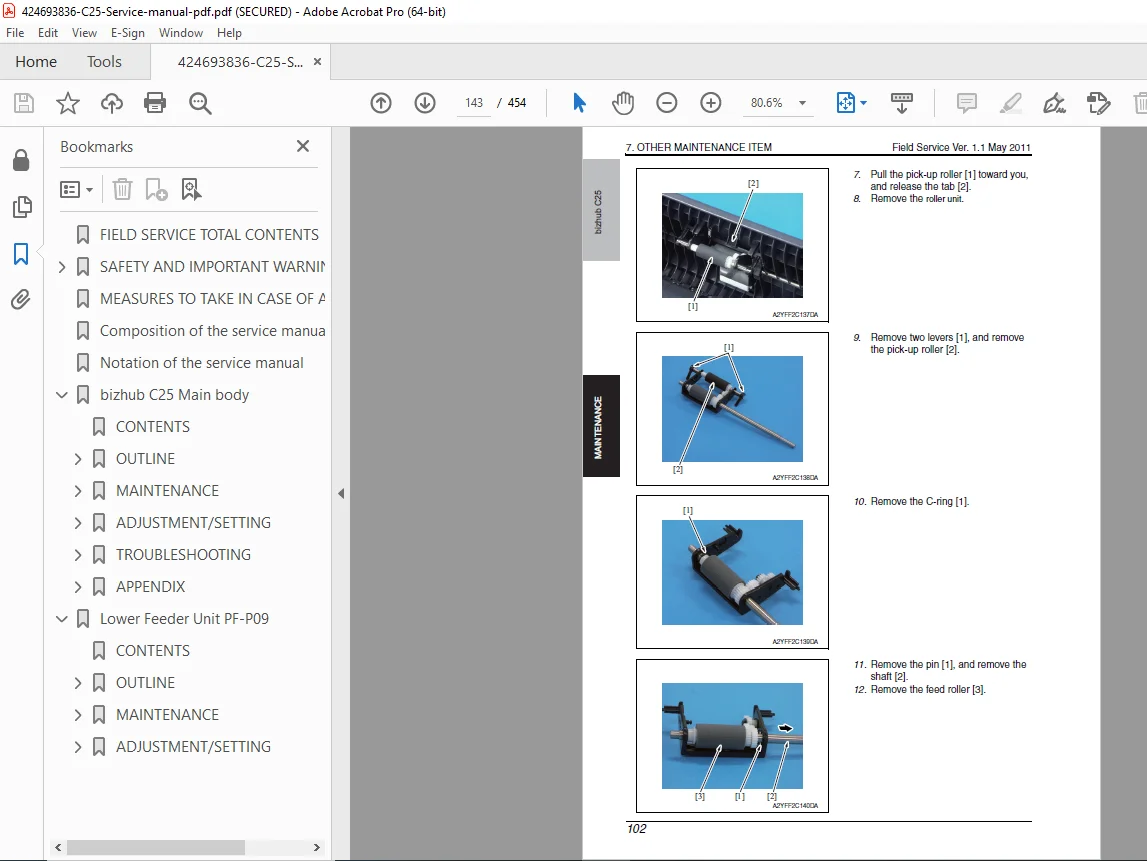

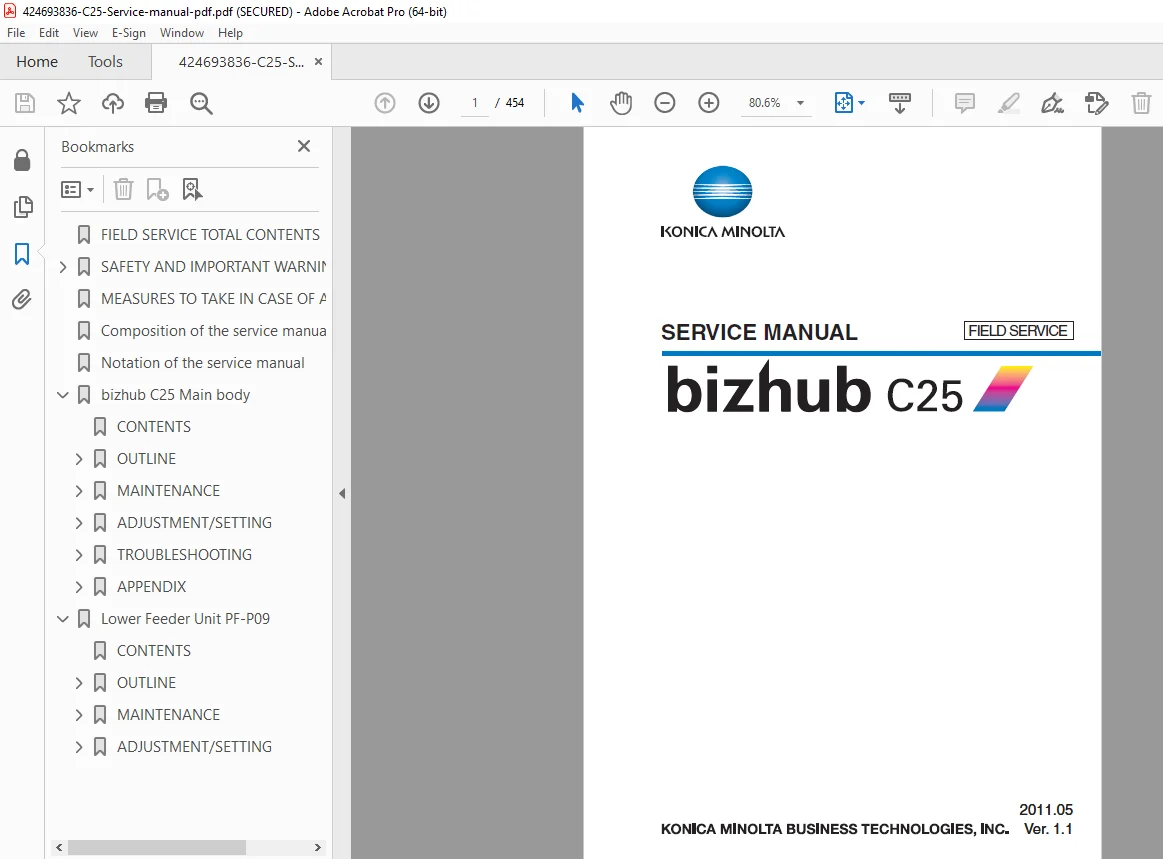

IMAGES:
Description
The konica minolta bizhub c25 service manual pdf (Ver. 1.1, 2011) is the comprehensive field service resource for the bizhub C25 all-in-one printer, copier, scanner, and fax machine, including the optional Lower Feeder Unit PF-P09. It provides detailed bizhub c25 field service troubleshooting guide for error resolution, konica minolta c25 maintenance procedures for parts replacement, and bizhub c25 adjustment setting manual for calibration and configurations to minimize downtime in office environments.
Key content includes konica minolta pf-p09 lower feeder unit service for tray3 integration and bizhub c25 fax error codes guide for communication issues. Safety warnings address laser radiation, high voltage, and consumable handling.
Table of Contents (Extracted and Categorized):
| Category | Section/Subsection | Page Number(s) |
|---|---|---|
| Safety and Important Warning Items | Indication of Warning on the Machine; Measures to Take in Case of an Accident; Safety Warnings (Modifications, Power Plug, Wiring, Ventilation, Inspection, Consumables, Laser Safety); Composition of the Service Manual; Notation of the Service Manual | S-1 to S-20 |
| Main Body (bizhub C25) | ||
| Outline | System Configuration; Product Specifications (Type, Functions, Media, Machine Specs, Environment, Print/Scan/Fax); Parts Life; Periodical Maintenance Procedure (Toner, Imaging Unit, Waste Bottle, Transfer Roller/Belt, Fuser, Feed Rollers); Service Tool (Materials, CE Tools); Firmware Upgrade (Controller, PS/PCL, Engine) | 1 to 37 |
| Maintenance | Other Maintenance Items (Disassembly Precautions, Parts List, Cleaning List, Procedures: Covers, Trays, Panels, Boards, Motors, Clutches, Sensors, Units, ADF Rollers/Pad); Cleaning Procedure (Feed Rollers, ADF, Laser Section) | 7 to 108 |
| Adjustment/Setting | How to Use; Utility (List, Starting/Exiting, Report/Status); PS/PCL Print; User Service Mode; Service Mode (Service’s Choice: TX/RX Speeds/Levels, ECM, Coding; Adjust: CIS Zoom, ADF Regist, Fuser, Transfer Power, Scan Scale, AIDC, Thick Mode; Counter: Print/Fax/Scan/Tray/Paper/Application; Display: Versions, RAM, HDD, Card; Function: Tests for Paper/ADF/Print/Scan/Sensor; Soft Switch; Report: Data/Error/Protocol/Service; Admin Registration; Factory Test: Signal/Relay; PS/PCL: Print Menu, Img Adj) | 109 to 268 |
| Troubleshooting | Jam Display (List, Sensor Layout, Solutions: Initial Checks, Tray/Misfeed Sections, ADF, Controller); Process Caution Information (Display, IDC Sensor Failure); Malfunction Code (Trouble Codes List, Solutions: Motor Malfunctions, Fan, Transfer Failures, Laser, Scanner, Engine/Interface Errors, MAC/BOOT/HDD/Compact Flash); Power Supply Trouble (Energize, Fusing Heaters); Fax Error (Send/Receive/Dial Issues, Communication Error, Code Lists/Solutions: Reception/Transmission 0001-00FF/0080-00FF, Specific Problems: VoIP, Off-Hook); Scan Error; Image Quality Problem (Identification, Solutions: Scanner/Printer Monocolor/Full Color Issues) | 269 to 421 |
| Lower Feeder Unit (PF-P09) | Outline and Specifications (Tray3 Feed Roller); Maintenance (Periodical Replacement: Tray3 Roller); Disassembly/Reassembly (Tray3 Components, Layout); Adjustment/Setting (Left Adj Tray3, Paper Feed Test, Counter); Troubleshooting (Motor Malfunction, Jam Counters) | 1, 7, 72, 143-155, 269, 289, 387 |
| Appendices and Indexes | Parts Layout Drawing (Main Body, ADF, Lower Feeder Unit); Connector Layout Drawing (Boards: PRCB, MFPB/1/2); Revision History | 383 to 392 |
This manual ensures compliance with service standards, with diagrams and parts lists for efficient repairs.
File Details:
- Manual Name: bizhub C25 Field Service Manual (Ver. 1.1)
- Models Covered: bizhub C25, Lower Feeder Unit PF-P09
- Year: 2011
- Manual PDF Quality: High-resolution, searchable text with diagrams and illustrations
- Pages: 454
