Konica Minolta QMS magicolor 6100 Series Color Laser Printer Service Manual β PDF
$24.95
Factory service manual for magicolor 6100 Series printers. Print system, optical, transport, fuser, control logic. Duplexer + LFU, operator panel, error codes, wiring, periodic maintenance. 600 dpi engine, service mode tests.
Description
Konica Minolta QMS magicolor 6100 Series Color Laser Printer Service Manual β PDF Download
Description:
scope & applicability
Service manual for the magicolor 6100 Series color laser engine, including optional Duplexer and Lower Feed Unit (LFU). Covers installation, theory of operation, service mode, adjustments, parts replacement, and full troubleshooting trees. Safety, FCC/laser notices, ozone filter requirement included.
203293088-Konica-Minolta-QMS-Maβ¦
IMAGES:
systems & operation
Print system: charging, laser exposure, development, first/second transfer, cleaning on OPC belt and transfer drum; fusing by heated rollers. 600 dpi base resolution; warm-up β€ 210 s. Monochrome up to 24 ppm A4/Letter, four-color ~6 ppm.
203293088-Konica-Minolta-QMS-Maβ¦
Optical: semiconductor laser, scanner motor (polygon), erase lamp and HV bias relationships (CBV/DBV) detailed with potential diagrams.
Paper transport: cassette pickup, registration, discharge, exit; duplex paper path with D1βD4 rollers, shutters, PT4/PT5 sensors; LFU 500-sheet capacity. Media: LetterβA3, labels, OHP, envelopes.
203293088-Konica-Minolta-QMS-Maβ¦
Control: sequence control, laser control, fusing temperature loop, I/F controller; operator panel 16Γ2 LCD with ONLINE/READY/DATA indicators and MENU/MEDIA/SELECT keys. Service Mode access and Grid/Stripe test patterns (R/G/B, YMCK).
203293088-Konica-Minolta-QMS-Maβ¦
maintenance & adjustments
Periodic maintenance: cleaning procedures (fuser oil bottle + cleaning roller change), OPC belt handling, transport path cleaning; PM cycles with step lists.
Adjustments: via panelβregistration, density checks, duplex skew; media selection from trays; alignment notes for LFU/duplexer couplers. torque specs for major fasteners referenced; not every screw listed.
Replacement: covers, PWBs, motors, clutches, switches/sensors, rollers/drums, fuser, duplexer modules, LFU assembliesβillustrated sequences w/ screws, connectors, ESD cautions.
203293088-Konica-Minolta-QMS-Maβ¦
troubleshooting

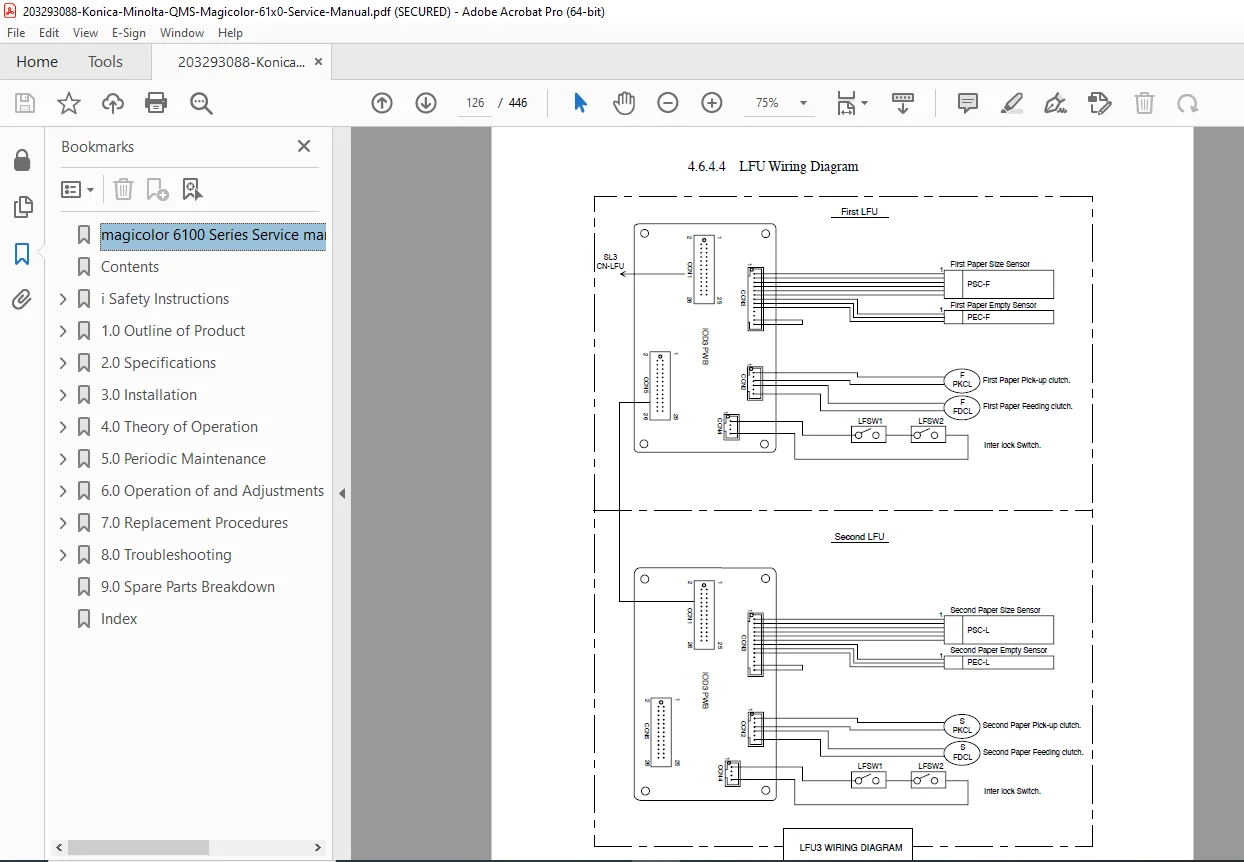

Operator Call error codes, paper transport errors, printer (non-operator) faults, imaging failures; stepwise trees tie to sensors (PT*), motors, HVPS tests. Hi-voltage bias checks for charge/dev/transfer, jam localization maps, service test prints to isolate color planes. includes wiring and block diagrams. some steps assume prior field experience; a few minor shortcuts noted.
203293088-Konica-Minolta-QMS-Maβ¦
key specs (quick)
Cassette: 250 sheets (std); Exit: face-down 250; LFU: 500 sheets.
Dimensions: 615Γ540Γ420 mm (printer); Weight ~54 kg w/ consumables.
Acoustic: standby 48 dB(A); printing up to 60 dB(A).
Duplexer requires LFU; 24 VDC from engine; total stack height and mass listed in tables.
File Details

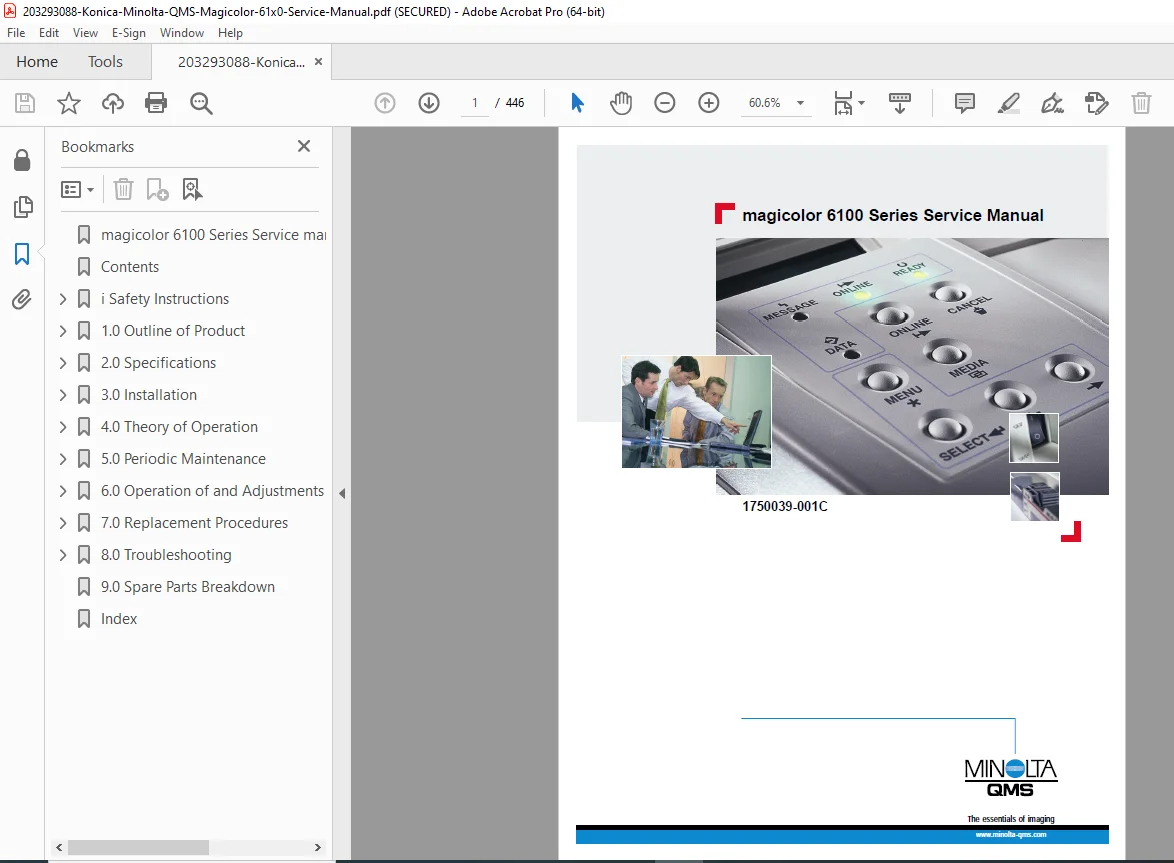

Parameter Information File Name 203293088-Konica-Minolta-QMS-Magicolor-61×0-Service-Manual.pdf Full Title magicolor 6100 Series Service Manual Part / Document No. 1750039-001C Edition / Revision Rev. 001C β June 2001 (Previous revisions 1999β2000 included 001, 001A, 001B) 203293088-Konica-Minolta-QMS-Maβ¦
Pages β 446 pages (including fold-out 11β³ Γ 17β³ schematics) Language English File Size β 21.8 MB Publisher / Author Minolta-QMS Inc., U.S.A. Printing Note Some 11β³Γ17β³ pages (schematics) should be printed separately 203293088-Konica-Minolta-QMS-Maβ¦
Product Covered magicolor 6100 Series Color Laser Printers with optional Duplexer & Lower Feed Unit (LFU) Searchable Text (OCR) Yes Compatibility Windows / macOS / iOS / Android Highlights from the Manual
Safety and FCC compliance (Class A digital device, laser & ozone warnings).
Theory of operation: electrophotographic process, optical unit, fuser, transport.
Periodic maintenance: cleaning, consumable replacement cycles.
Service mode & diagnostics: operator panel menus, test prints, and adjustment items.
Spare parts breakdowns: consumables, engine, duplexer, LFU with diagrams & part numbers
