Kubota B2400HSD Tractor Illustrated Master Parts List Manual
Description
Kubota B2400HSD Tractor Illustrated Master Parts List Manual
FILE DETAILS:
Kubota B2400HSD Tractor Illustrated Master Parts List Manual
LANGUAGE:ENGLISH
PAGES:295
DOWNLOADABLE:YES
FILE TYPE:PDF
KUBOTA B2400HSD TRACTOR ILLUSTRATED MASTER PARTS LIST MANUAL – PDF DOWNLOAD:

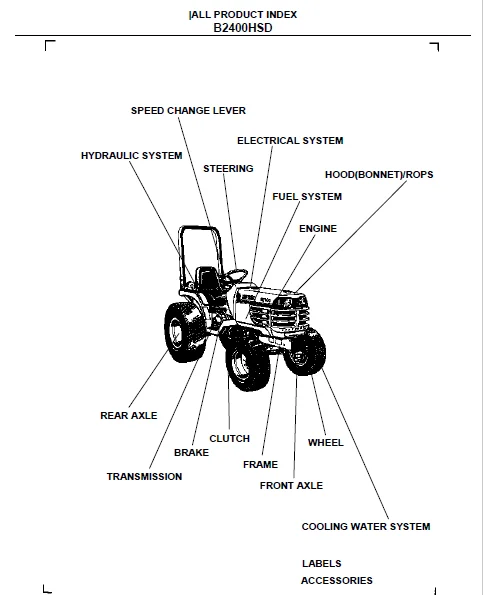

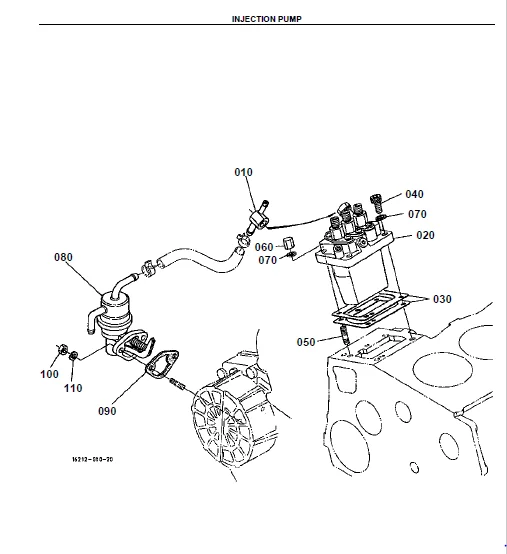

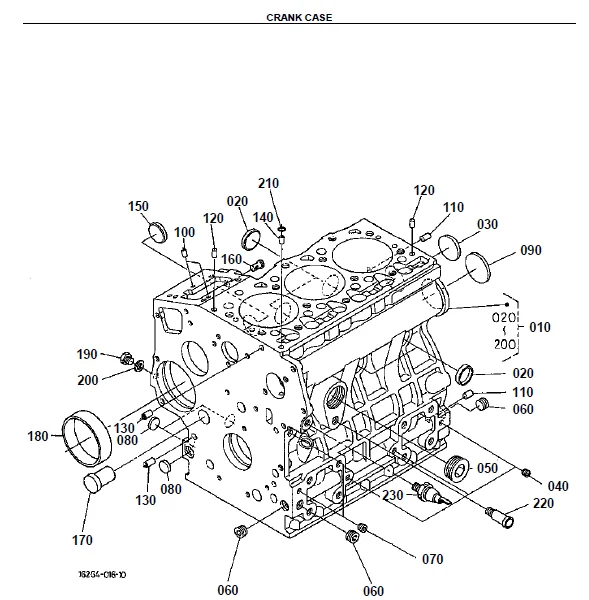

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota B2400HSD Tractor Illustrated Master Parts List Manual
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No -> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C -> Interchangeability of part shown.
<-> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new
Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]
TABLE OF CONTENTS:
Kubota B2400HSD Tractor Illustrated Master Parts List Manual
Instructions for Parts Books............. 1 |ALL PRODUCT INDEX....................... 2 CRANK CASE............................... 6 OIL PAN.................................. 8 CYLINDER HEAD............................ 11 GEAR CASE................................ 13 HEAD COVER............................... 15 MAIN BEARING CASE........................ 17 CAMSHAFT AND IDLE GEAR SHAFT............. 19 PISTON AND CRANK SHAFT................... 21 FLYWHEEL................................. 23 FUEL CAMSHAFT AND GOVERNOR SHAFT......... 25 STOP SOLENOID............................ 27 INJECTION PUMP........................... 30 INJECTION PUMP [COMPONENT PARTS]......... 32 GOVERNOR................................. 34 SPEED CONTROL PLATE...................... 37 NOZZLE HOLDER AND GLOW PLUG.............. 39 NOZZLE HOLDER [COMPONENT PARTS].......... 42 WATER FLANGE AND THERMOSTAT.............. 44 WATER PUMP............................... 47 VALVE AND ROCKER ARM..................... 49 INLET MANIFOLD........................... 52 EXHAUST MANIFOLD......................... 54 UPPER GASKET KIT......................... 56 LOWER GASKET KIT......................... 58 DYNAMO................................... 60 DYNAMO [COMPONENT PARTS]................. 62 CLUTCH................................... 64 HYDRAULIC PUMP........................... 66 HYDRAULIC PUMP [COMPONENT PARTS]......... 68 AIR CLEANER.............................. 71 AIR CLEANER.............................. 73 AIR CLEANER (DOUBLE) [OPTION]............ 75 MUFFLER.................................. 77 ACCELERATOR LEVER........................ 79 FUEL TANK................................ 81 FUEL PIPE................................ 84 FUEL FILTER [COMPONENT PARTS]............ 86 FAN...................................... 88 WATER PIPE............................... 90 RADIATOR................................. 92 ALTERNATOR [CA].......................... 94 ALTERNATOR [COMPONENT PARTS] [CA]........ 96 STARTER.................................. 98 STARTER [COMPONENT PARTS]................100 BATTERY..................................102 PANEL BOARD..............................105 PANEL BOARD [COMPONENT PARTS]............108 HEAD LIGHT...............................110 TAIL LIGHT/HAZARD LIGHT/WORKING LIGHT....112 ELECTRICAL WIRING........................114 ELECTRICAL WIRING [CA]...................116 CLUTCH ROD...............................118 CLUTCH PEDAL.............................120 CLUTCH HOUSING...........................122 FRAME....................................125 TRANSMISSION CASE........................127 DIFFERENTIAL GEAR CASE...................130 REAR AXLE CASE...........................132 CLUTCH SHAFT/PRORELLER SHAFT.............135 HST......................................137 HST [COMPONENT PARTS]....................139 2ND SHAFT/3RD SHAFT/4TH SHAFT............143 5TH SHAFT/PTO SHAFT......................146 MID PTO..................................149 REAR DIFFERENTIAL........................151 FRONT WHEEL PROPELLER SHAFT..............153 REAR AXLE................................155 BRAKE....................................157 PARKING BRAKE LEVER......................159 SPEED CHANGE LEVER.......................161 SPEED CONTROL PEDAL......................163 SPEED SET LEVER..........................167 RANGE GEAR SHIFT LEVER...................169 FRONT WHEEL DRIVE LEVER..................171 PTO GEAR SHIFT LEVER.....................173 BI-SPEED TURN LEVER......................176 POSITION CONTROL LEVER...................179 BRAKE PEDAL..............................182 DIFFERENTIAL LOCK PEDAL..................184 FRONT DIFFERENTIAL.......................186 BEVEL GEAR CASE..........................189 FRONT AXLE CASE..........................191 FRONT AXLE CASE..........................194 FRONT AXLE...............................197 FRONT AXLE...............................200 BI-SPEED TURN CLUTCH.....................203 FRONT DRIVE SHAFT........................205 BI-SPEED TURN GEAR CASE..................207 BI-SPEED TURN CASE.......................210 BI-SPEED TURN SHIFT LEVER................213 DRAG LINK................................215 TIE ROD..................................217 STEERING HANDLE..........................220 STEERING CONTROLLER......................223 STEERING CONTROLLER [COMPONENT PARTS]....226 STEERING CONTROLLER [COMPONENT PARTS]....229 HYDRAULIC OIL LINE (SUCTION).............232 FLOW DIVIDER VALVE [COMPONENT PARTS].....234 HYDRAULIC OIL LINE (STEERING)............236 HYDRAULIC OIL LINE (T/M).................239 HYDRAULIC OIL LINE (HST).................241 HYDRAULIC OIL LINE (OIL COOLER)..........243 HYDRAULIC CYLINDER CASE..................245 CONTROL VALVE............................248 CONTROL VALVE [COMPONENT PARTS]..........251 CONTROL VALVE [COMPONENT PARTS]..........253 LIFT ROD.................................255 LOWER LINK...............................257 TOP LINK.................................259 FRONT GRILLE.............................261 HOOD (BONNET)............................263 SIDE COVER...............................265 FENDER...................................267 EXTENSION FENDER.........................269 SEAT SUPPORT.............................271 SEAT.....................................273 STEP.....................................275 ROPS.....................................277 FRONT WHEEL (7-12).......................279 FRONT WHEEL (23*8.50-12).................281 FRONT WHEEL (21*8.00-10).................283 REAR WHEEL (11.2-16).....................285 REAR WHEEL (33*12.5-15)..................287 REAR WHEEL (31*15.5-15)..................289 LABEL....................................291 EXTENSION STOPPER........................293 ACCESSORIES AND SERVICE PARTS............295
