Kubota Common Rail Engine V6108 Tie3k Workshop Diagnostic Manual – PDF Download

Description

Kubota Common Rail Engine V6108 Tie3k Workshop Diagnostic Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:247
DOWNLOADABLE:YES
FILE TYPE:PDF

KUBOTA COMMON RAIL ENGINE V6108 TIE3K WORKSHOP DIAGNOSTIC MANUAL – PDF DOWNLOAD:

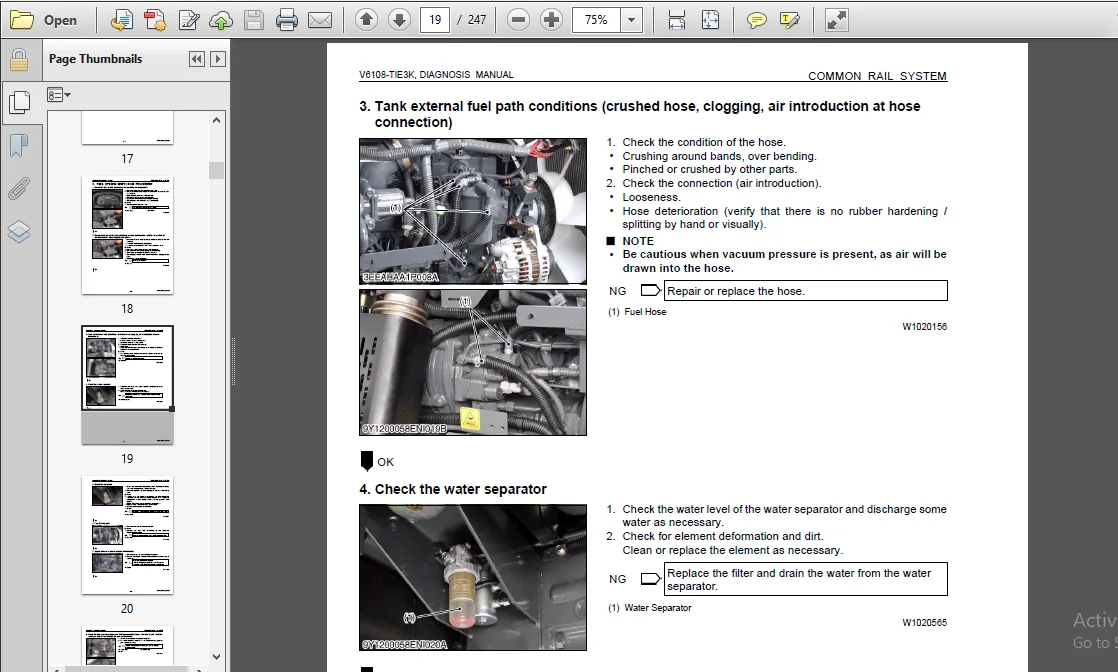

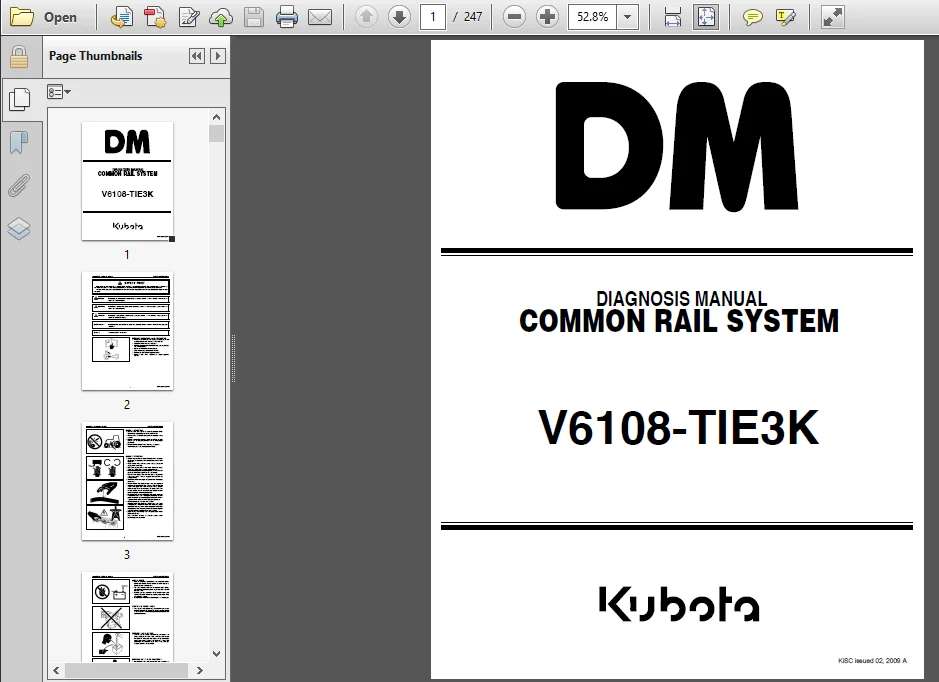

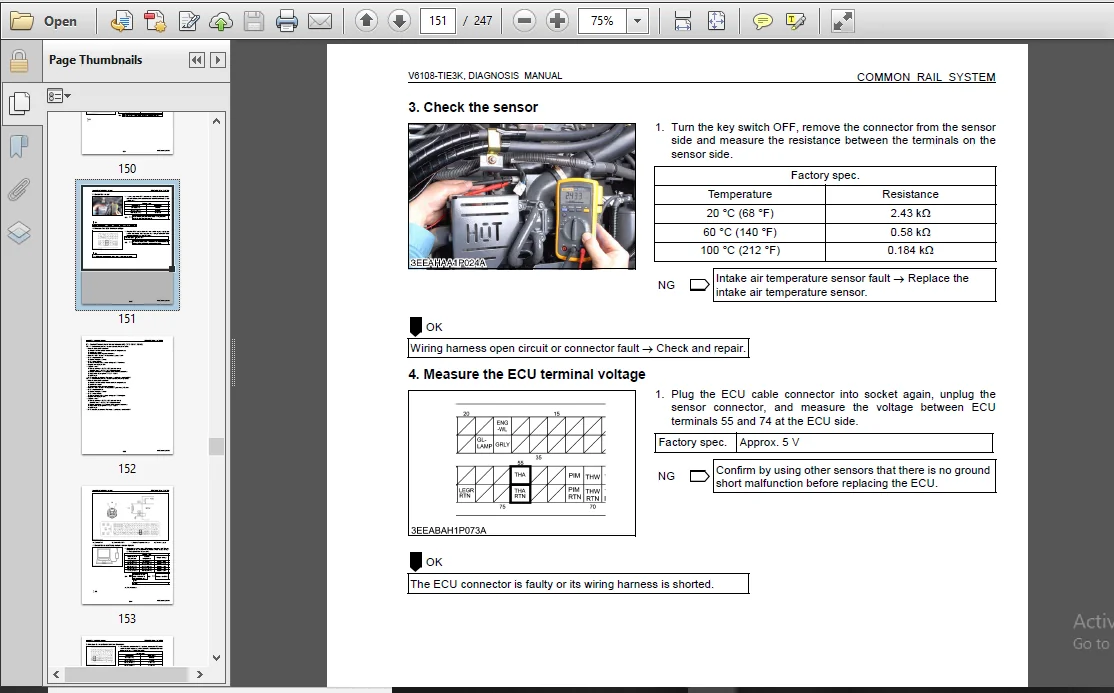

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Common Rail Engine V6108 Tie3k Workshop Diagnostic Manual
• Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued
• Wear close fitting clothing and safety equipment appropriate to the job.
• Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended.
• When servicing is performed together by two or more persons, take care to perform all work safely.
• Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands.
• Do not touch the rotating or hot parts while the engine is running.
• Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely.
• Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
• Do not open high-pressure fuel system. High-pressure fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors, or any other components between the high-pressure fuel pump and injectors on engines with high pressure common rail fuel system.
• High voltage exceeding 100 V is generated in the ECU and injector. Pay sufficient caution to electric shock when performing work activities. KiSC
