KUBOTA B5200D Parts Manual – PDF DOWNLOAD

Description

KUBOTA B5200D Parts Manual – PDF DOWNLOAD

FILE DETAILS:

KUBOTA B5200D Parts Manual – PDF DOWNLOAD

Language : English
Pages :178
Downloadable : Yes
File Type : PDF
Size:1.28 MB

TABLE OF CONTENTS:

KUBOTA B5200D Parts Manual – PDF DOWNLOAD

Instructions for Parts Books..............................  1
|ALL PRODUCT INDEX........................................  2
3-POINT LINKAGE GROUP.....................................157
ACCESSORIES AND SERVICE PARTS.............................177
AIR CLEANER GROUP.........................................139
AUX.SPEED CHANGE GROUP.................................... 83
AXLE CASE GROUP........................................... 53
BATTERY GROUP.............................................121
BEARING HOLDER GROUP...................................... 47
BRAKE GROUP............................................... 87
BRAKE ROD GROUP...........................................101
CRANKCASE GROUP...........................................  5
CYLINDER HEAD GROUP.......................................  9
CYLINDER HEAD COVER GROUP................................. 15
CAMSHAFT GROUP............................................ 21
COVER GROUP............................................... 49
CASE COVER GROUP.......................................... 51
CLUTCH ROD GROUP.......................................... 55
CLUTCH GROUP.............................................. 57
CLUTCH HOUSING/STEP GROUP.................................111
CONTROL VALVE [SECTION PARTS].............................171
CONTROL VALVE (OPTION) [SECTION PARTS]....................175
DYNAMO/STARTER GROUP...................................... 39
DECOMPRESS WIRE AND ENGINE STOP WIRE GROUP................135
DRIVE SHAFT GROUP.........................................151
DYNAMO [SECTION PARTS]....................................169
ENGINE STOP LEVER GROUP................................... 23
FLYWHEEL GROUP............................................ 29
FUEL CAMSHAFT GROUP....................................... 37
FRONT AXLE FRAME GROUP....................................113
FENDER GROUP..............................................117
FUEL TANK GROUP...........................................125
FUEL PIPE GROUP...........................................127
FUEL FILTER GROUP.........................................129
FRONT WHEEL GROUP (20.5 X 8.00-10) [B5200D-PT]............155
FLASHER LAMP GROUP........................................137
FRONT AXLE CASE GROUP.....................................141
FRONT WHEEL GEAR CASE GROUP...............................143
FRONT DIFFERENTIAL GROUP..................................147
FRONT WHEEL HUB GROUP.....................................149
FRONT WHEEL GROUP (5-12) [B5200D-P].......................153
GEAR CASE GROUP........................................... 11
GEAR PUMP [SECTION PARTS].................................163
GEAR PUMP GROUP........................................... 25
GOVERNOR GROUP............................................ 35
HYDRAULIC PIPING GROUP.................................... 89
HYDRAULIC BLOCK GROUP..................................... 91
HYDRAULIC 1 GROUP......................................... 93
HYDRAULIC 2 GROUP......................................... 95
HOOD GROUP................................................119
INLET MANIFOLD EXHAUST MANIFOLD GROUP..................... 17
INJECTION PUMP [SECTION PARTS]............................167
KNUCKLE ARM GROUP.........................................145
MAIN BEARING CASE......................................... 13
MAIN SPEED CHANGE GROUP................................... 81
MUFFLER AND MUFFLER PIPE GROUP............................123
NOZZLE HOLDER GROUP....................................... 31
NAME PLATE GROUP..........................................109
NOZZLE HOLDER [SECTION PARTS].............................165
OIL PAN GROUP.............................................  7
PEDAL GROUP...............................................103
PANEL GROUP...............................................131
PANEL SWITCH GROUP........................................133
PISTON/CRANKSHAFT GROUP................................... 27
POSITION CONTROL VALVE (OPTION)...........................159
PTO SHAFT GROUP........................................... 67
REVERSE SHAFT GROUP....................................... 69
REAR DIFFERENTIAL GROUP................................... 71
REAR AXLE GROUP........................................... 73
REAR WHEEL GROUP (7-16) [B5200E-P,B5200D-P]............... 75
REAR WHEEL GROUP (29 X 12.00-15) [B5200E-PT,B5200D-PT].... 77
ROTARY SPEED CHANGE FORK GROUP............................ 85
RELEASE LEVER GROUP.......................................105
RADIATOR GROUP............................................115
SPEED CONTROL PLATE GROUP................................. 33
SPIRAL BEVEL SHAFT GROUP.................................. 65
SPEED CHANGE FORK GROUP................................... 79
STEERING GROUP............................................ 97
SPEED CHANGE LEVER GROUP.................................. 99
SEAT GROUP................................................107
STARTER [SECTION PARTS]...................................173
TRANSMISSION CASE GROUP................................... 45
2ND SHAFT GROUP........................................... 59
3RD SHAFT GROUP........................................... 61
4TH SHAFT/5TH SHAFT GROUP................................. 63
VALVE/ROCKER ARM GROUP.................................... 19
WATER FLANGE GROUP........................................ 41
WATER PUMP GROUP.......................................... 43
WORKING LIGHT (OPTION)....................................161

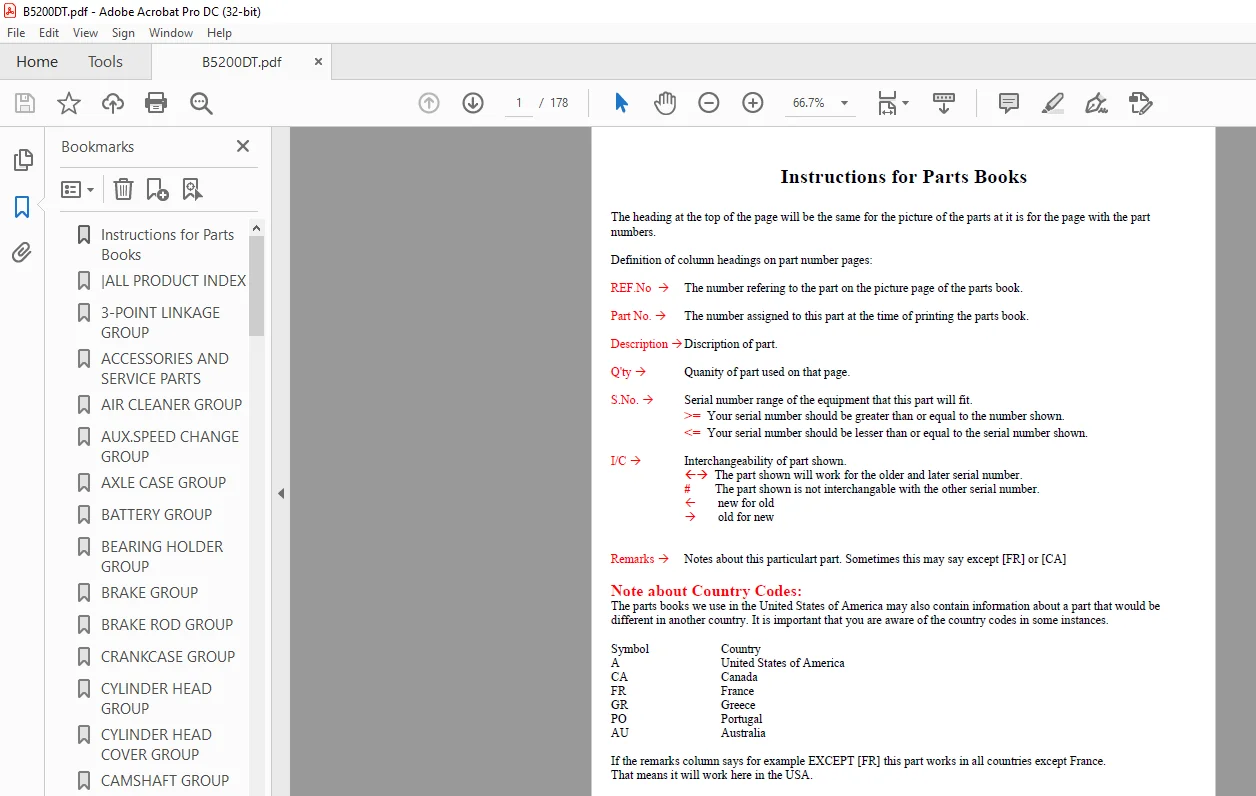

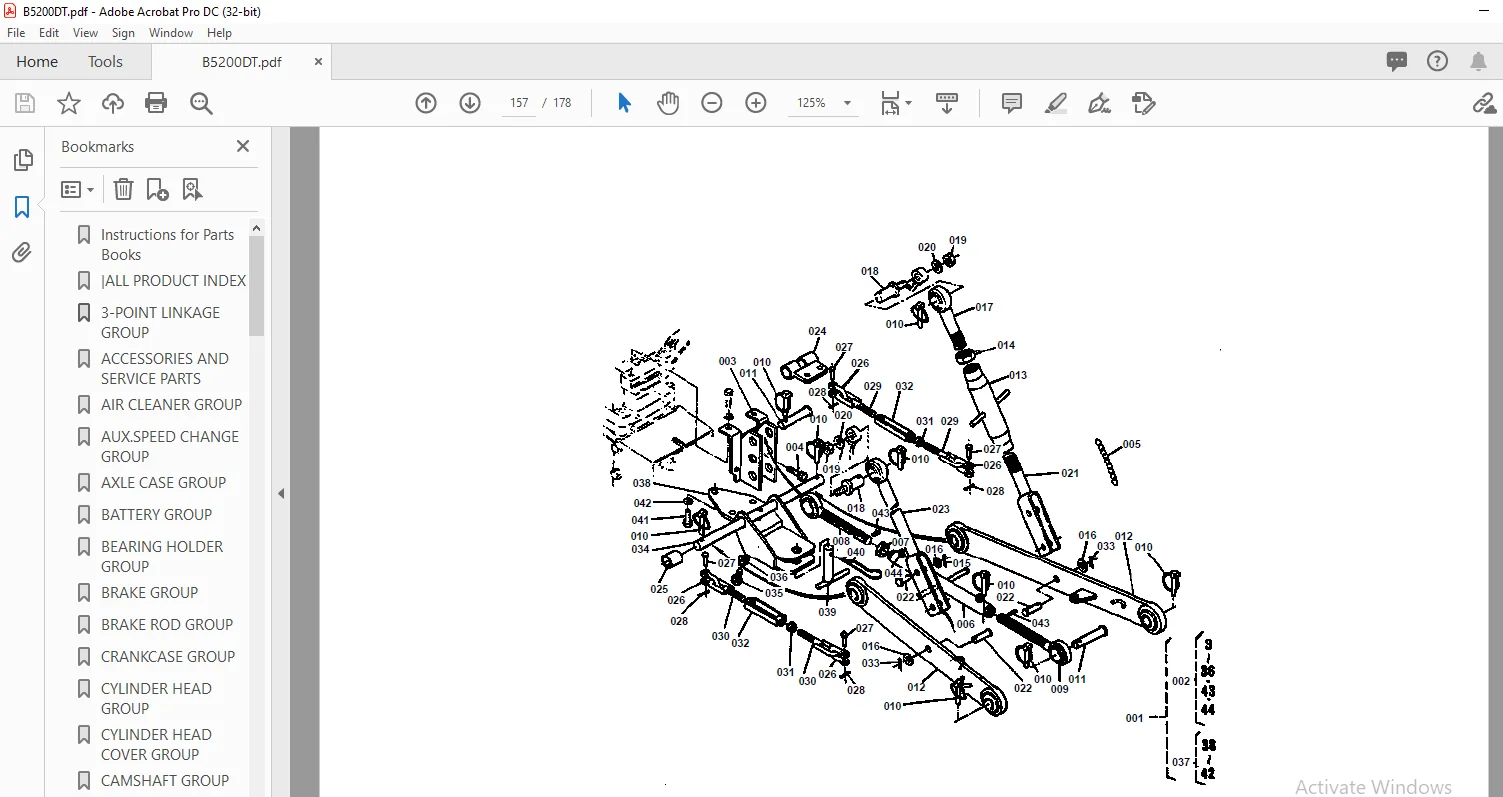

IMAGES PREVIEW OF THE MANUAL:
