Kubota F2400 Mower Illustrated Master Parts List Manual

FILE DETAILS:

Kubota F2400 Mower Illustrated Master Parts List Manual

LANGUAGE:ENGLISH
PAGES:243
DOWNLOADABLE:YES
FILE TYPE:PDF

KUBOTA F2400 MOWER ILLUSTRATED MASTER PARTS LIST MANUAL – PDF DOWNLOAD:

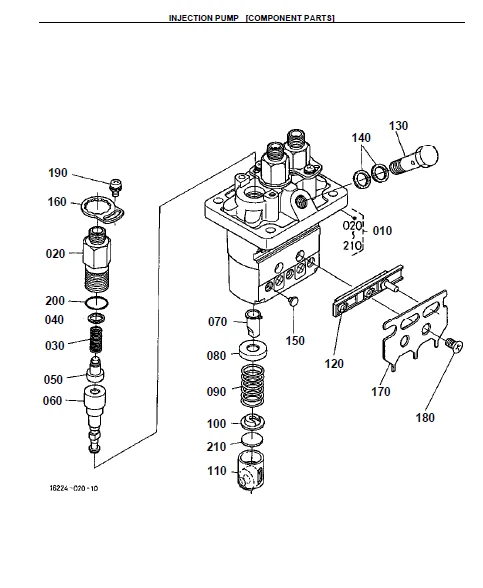

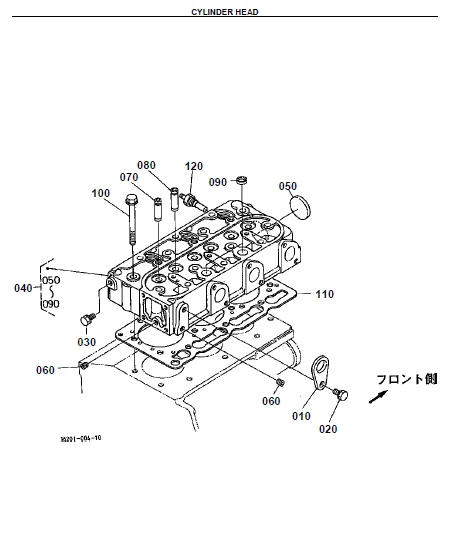

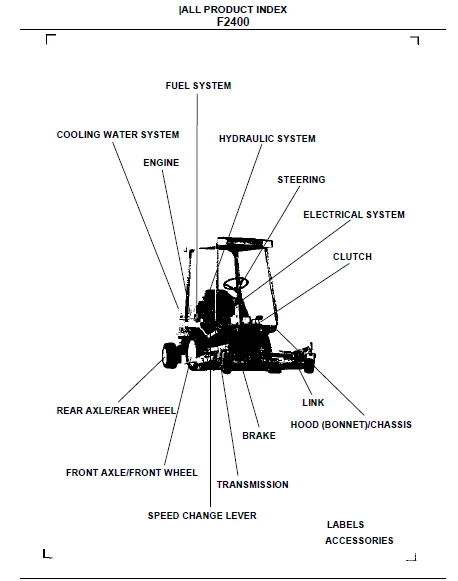

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota F2400 Mower Illustrated Master Parts List Manual

The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No. -> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<–>The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<-new for old
-> old for new
Remarks ->Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota F2400 Mower Illustrated Master Parts List Manual

Instructions for Parts Books.............  1
|ALL PRODUCT INDEX.......................  2
CRANKCASE................................  5
OIL PAN..................................  7
PISTON/CRANKSHAFT........................ 10
MAIN BEARING CASE........................ 13
FLYWHEEL................................. 15
CYLINDER HEAD............................ 17
VALVE/ROCKER ARM......................... 19
NOZZLE HOLDER............................ 21
NOZZLE HOLDER [COMPONENT PARTS].......... 23
NOZZLE HOLDER [COMPONENT PARTS].......... 25
HEAD COVER............................... 27
INLET MANIFOLD........................... 30
CAMSHAFT................................. 33
GEAR CASE................................ 35
WATER PUMP............................... 37
WATER FLANGE............................. 39
FUEL CAMSHAFT............................ 42
INJECTION PUMP........................... 44
INJECTION PUMP [COMPONENT PARTS]......... 47
INJECTION PUMP [COMPONENT PARTS]......... 49
ENGINE STOP LEVER........................ 51
SPEED CONTROL PLATE...................... 53
SPEED CONTROL PLATE...................... 55
GOVERNOR................................. 57
UPPER GASKET KIT......................... 60
LOWER GASKET KIT......................... 62
FAN...................................... 64
ALTERNATOR............................... 66
ALTERNATOR [COMPONENT PARTS]............. 68
CLUTCH................................... 70
HYDRAULIC PUMP........................... 72
HYDRAULIC PUMP [COMPONENT PARTS]......... 74
AIR CLEANER [F2400]...................... 77
MUFFLER [F2400].......................... 80
ACCELERATOR LEVER........................ 83
FUEL TANK................................ 85
FUEL PIPE [F2400]........................ 87
FUEL FILTER [F2400] [COMPONENT PARTS].... 89
RADIATOR [F2400]......................... 91
DUSTPROOF PLATE [F2400].................. 93
STARTER [F2400].......................... 95
STARTER [F2400] [COMPONENT PARTS]........ 97
ELECTRICAL SYSTEM 1...................... 99
ELECTRICAL SYSTEM 2......................102
LIGHT KIT [OPTION].......................105
PROPELLER SHAFT..........................108
DIFF.LOCK/CLUTCH ROD.....................111
CLUTCH ROD...............................114
CLUTCH HOUSING FRAME.....................117
TRANSMISSION CASE........................119
TRANSMISSION CASE COVER..................121
HST [F2400]..............................124
HST [COMPONENT PARTS]....................127
SECOND SHAFT.............................129
THIRD/FIFTH SHAFT........................131
FOURTH SHAFT.............................133
SPEED CHANGE FORK AND PTO LEVER..........135
AUX.SPEED CHANGE AND REAR DRIVE LEVER....137
SPEED CHANGE 1...........................139
SPEED CHANGE 2...........................142
SPEED CHANGE 2...........................144
SPEED CHANGE 3...........................147
SPEED CHANGE 3...........................149
DIFFERENTIAL.............................151
AXLE CASE................................154
FRONT AXLE...............................156
FRONT WHEEL (23 X 10.5-12)...............158
BRAKE....................................160
PEDAL....................................163
BRAKE ROD................................166
WHEEL HUB................................169
REAR AXLE CASE...........................171
REAR AXLE ARM............................173
DRIVE SHAFT..............................175
DIFFERENTIAL.............................177
MID CASE.................................179
UNIVERSAL JOINT..........................181
UNIVERSAL JOINT..........................183
UNIVERSAL JOINT..........................185
REAR WHEEL (16 X 6.50-8).................187
REAR AXLE FRAME [F2400]..................189
KNUCKLE ARM..............................191
STEERING.................................193
HANDRE POST..............................195
POWER STEERING...........................197
POWER STEERING [COMPONENT PARTS].........199
POWER CYLINDER [COMPONENT PARTS].........201
HYDRAULIC PIPE [F2400]...................203
OIL COOLER [F2400].......................206
CONTROL VALVE............................209
CONTROL VALVE [COMPONENT PARTS]..........211
LIFT CYLINDER [COMPONENT PARTS]..........213
CONTROL VALVE KIT [OPTION]...............215
CONTROL VALVE 2 [COMPONENT PARTS]........218
LINK.....................................220
LINK ARM.................................222
HOOD (BONNET)............................224
FENDER...................................226
FRONT FRAME..............................229
SEAT.....................................232
SEAT [COMPONENT PARTS]...................235
SEAT [COMPONENT PARTS]...................237
ROPS [A][CA].............................239
LABEL....................................241
ACCESSORIESAND SERVICE PARTS   ..........243
