Kubota K008-3 U10-3 Excavator Illustrated Parts List 97899-10072 2011 PDF

Description

Kubota K008-3 U10-3 Excavator Illustrated Parts List 97899-10072 2011 PDF

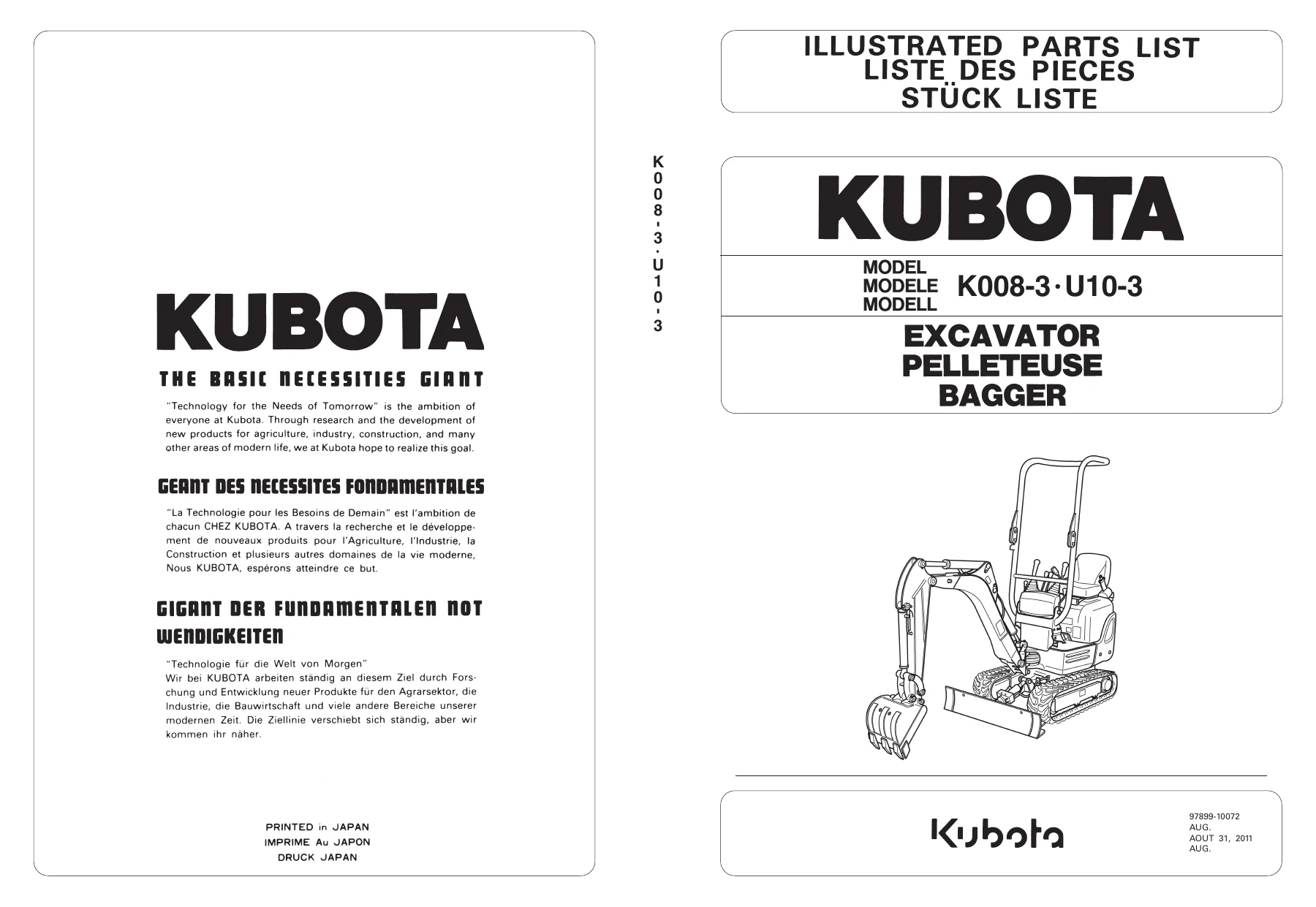

This is the complete Kubota Illustrated Parts List for the K008-3 and U10-3 excavators, published under document number 97899-10072 with a revision date of August 31, 2011. It is a trilingual parts catalog covering every major assembly on these compact machines, from the D722 diesel engine through the hydraulic system, control valves, front attachments, track frame, swivel frame, canopy, labels, and optional equipment. Every illustration is exploded with callout numbers, and each part entry gives the reference number, part number, part name, and serial number applicability where a design change occurred.

File Details

• Manual type: Illustrated Parts List (Parts Catalog)
• Brand: Kubota
• Models covered: K008-3, U10-3
• Document number: 97899-10072
• Revision date: August 31, 2011 (AUG. AOUT 31, 2011)
• Languages: English, French, German
• Page count: 287 pages
• File format: PDF

Chapters Covered

The Kubota K008-3 U10-3 Illustrated Parts List is organized by functional group, with each group containing one or more exploded views followed by a parts table. The major groups covered in this 2011 edition include:

• Engine — Crank case, oil pan, cylinder head, gear case, head cover, main bearing case, camshaft and idle gear shaft, piston and crankshaft, flywheel, fuel camshaft and governor shaft, stop solenoid, injection pump, governor, speed control plate, nozzle holder and glow plug, fan and dynamo, starter, water flange and thermostat, water pump, radiator, water pipe, valve and rocker arm, inlet manifold, exhaust manifold, air cleaner, muffler, upper and lower gasket kits
• Fuel System — Accelerator lever, fuel piping, fuel filter, fuel tank, fuel pump, fuel lines
• Electrical System — Battery, timer and horn, switch and meter, light, electrical wiring, fuse box, wire harness
• Pump/Motor System — Pump housing, gear pump, hydraulic pump, drive motor, swivel motor and component parts, rotary joint, oil tank

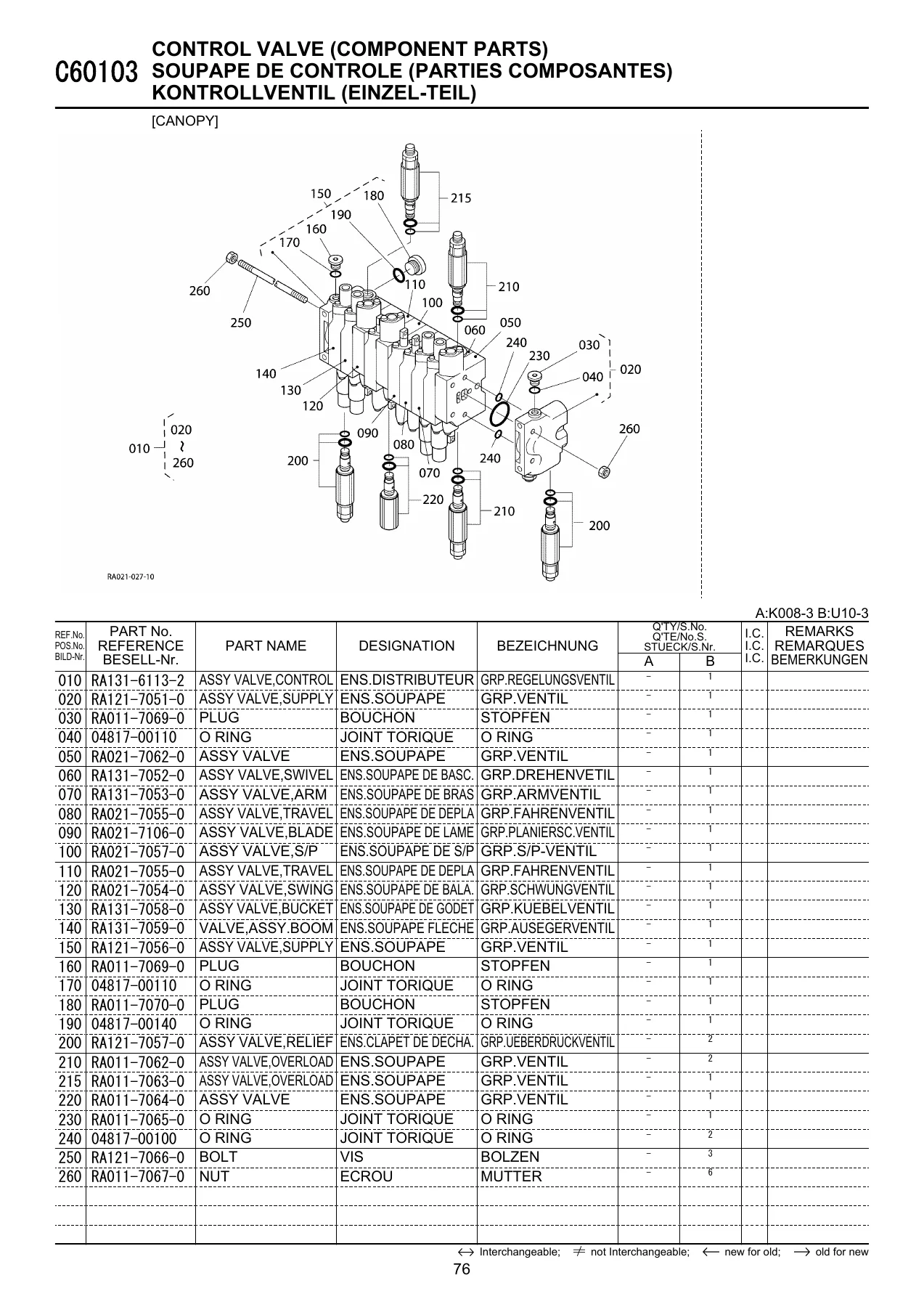

• Control Valve — Control valve assemblies, spool sections for travel, swivel, arm, boom, bucket, blade, S/P, unload valve, change valve, super change valve, relief valve, manifold
• Control Lever — Control lever frame, control lever (LH), control lever (RH), pilot valve, travel control lever, swing control pedal, boom/bucket control lever, safety lock lever, blade control lever, S/P control lever
• Hydraulic System — Oil piping for suction, return, control, travel, swing, boom, arm, bucket, blade, track, S/P
• Cylinder — Boom cylinder, arm cylinder, bucket cylinder, blade cylinder, swing cylinder, track cylinder (LH and RH), with component parts for each
• Front Attachments — Swing bracket, boom, arm, bucket link, bucket, blade, bucket options
• Track Frame — Truck frame, idler, track roller
• Swivel Frame — Swivel frame, swivel gear case, swivel bearing, step
• Cover (Front) — Front cover, bonnet, sponge, weight, seat, canopy, labels
• Accessories — Tools, grease squeezer, filter wrench, operator’s manual, parts list
• Options — Kit plug-in coupler, Kit SP 2-way, Kit Cat-Rental

In practice, this Kubota K008-3 U10-3 parts list works as a single lookup source for the entire machine. A mechanic or parts counter can open any group, match the exploded illustration callout to the table row, and pull the exact part number needed for a given serial number range. Because the same publication covers both the K008-3 and the U10-3, it also documents where the two sister models share components and where they diverge — which is essential when ordering parts for a mixed fleet or a machine whose serial number falls near a design change breakpoint.

What This Parts List Covers in Detail

The engine section of this Kubota K008-3 U10-3 Illustrated Parts List is one of the deepest parts of the book. It breaks the D722 engine down into its individual assemblies — crank case, oil pan, cylinder head, gear case, head cover, main bearing case, camshaft and idle gear shaft, piston and crankshaft, flywheel, fuel camshaft and governor shaft, stop solenoid, injection pump, governor, speed control plate, nozzle holder and glow plug, fan and dynamo, starter, water flange and thermostat, water pump, radiator, water pipe, valve and rocker arm, inlet manifold, exhaust manifold, air cleaner, and muffler. Gasket kits are listed separately as upper and lower sets, so a full engine reseal can be planned in one pass. The parts tables carry serial number breakpoints that separate early and late production, meaning a buyer can confirm the correct piston, bearing, or gasket before placing an order.

On the hydraulic side, the Kubota K008-3 U10-3 parts list dedicates full sections to the pump/motor system, control valve, control lever, hydraulic piping, and cylinders. The control valve group is particularly detailed, with individual spool sections for travel, swivel, arm, boom, bucket, blade, and S/P circuits, plus unload valve, change valve, super change valve, relief valve, and manifold components. Each cylinder — boom, arm, bucket, blade, swing, and track — has its own exploded view with seal kits, rods, tubes, pistons, and end caps listed separately. The hydraulic piping group covers suction, return, control, travel, swing, boom, arm, bucket, blade, track, and S/P lines with hoses, pipes, joints, and O-rings.

The undercarriage and upper structure sections round out the coverage. The track frame group lists the truck frame, idler, and track roller assemblies with bearings, seals, collars, and shafts. The swivel frame group covers the swivel frame, swivel gear case, swivel bearing, and step. The cover group includes front cover, bonnet, sponge, weight, seat, canopy, and labels. Accessories and options are listed at the end, including the kit plug-in coupler, kit SP 2-way, and kit Cat-Rental.

How to Use This Illustrated Parts List

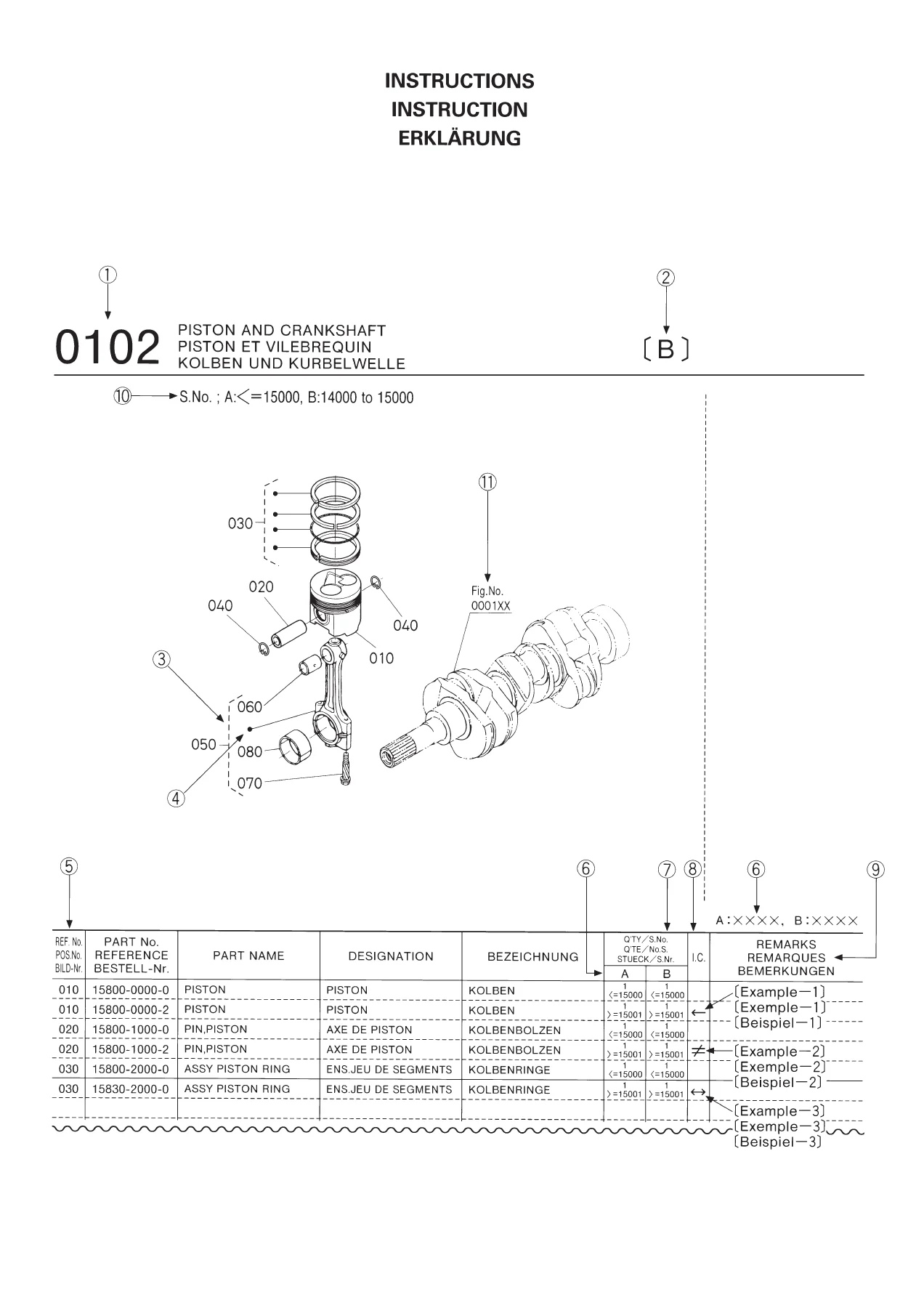

The Kubota K008-3 U10-3 Illustrated Parts List 97899-10072 is built around a simple lookup flow. Each group opens with an exploded illustration where every serviceable part is tagged with a reference number. The parts table that follows lists those reference numbers in order, together with the part number, part name, and any serial number qualifier. To find a part, locate it on the illustration, note the reference number, then read across the matching row in the table. Where a design change occurred, the table shows the serial number range that applies to each part number, so the correct variant can be selected for the machine in question. Interchangeability notes are also included where a newer part can replace an older one, or where old and new parts are not interchangeable.

The three-language format — English, French, and German — means the same table row can be read in any of the three languages, which is useful for international parts sourcing or for technicians who work across language boundaries. The part number itself is the constant, so even if the description is in a language the reader does not use, the number can be matched directly.

Who This Parts List Is For

This Kubota K008-3 U10-3 Illustrated Parts List is aimed at anyone who needs to identify and order parts for these compact excavators: equipment owners doing their own maintenance, independent repair shops, dealership parts departments, and fleet managers responsible for keeping K008-3 and U10-3 machines running. It is also useful for rebuilders and restorers who need to confirm which part number belongs to a specific serial number range before committing to a repair. Because it is a parts catalog rather than a service manual, it does not include repair procedures or torque specifications — its job is to make sure the right part is identified and ordered.

For a machine as widely used as the Kubota K008-3 and U10-3, having the correct parts list on hand removes the guesswork from ordering. A part number that is off by one digit or one serial break can mean a return, a delay, or a component that does not fit. This document eliminates that risk by tying every part to its illustration, its name, and its serial number applicability.

Get the Correct Part the First Time

With the Kubota K008-3 U10-3 Excavator Illustrated Parts List 97899-10072 2011 PDF, you can identify engine components, hydraulic valves, cylinders, undercarriage parts, control levers, covers, labels, and optional equipment directly from the exploded views and parts tables. The manual supports parts lookup for both the K008-3 and U10-3, covers the D722 engine family, and includes serial number breakpoints so you can match parts to your specific machine. Whether you are resealing an engine, rebuilding a control valve, replacing a track roller, or ordering a new bucket, the correct part number is in this document.

Getting the part number right matters because these machines are compact and the clearances are tight — a wrong seal, bearing, or valve component can cause leaks, poor performance, or repeat repairs. This parts list gives you the reference you need to order confidently and get the machine back into service without unnecessary downtime.
