Kubota L2900F Tractor Illustrated Master Parts List Manual

FILE DETAILS:

Kubota L2900F Tractor Illustrated Master Parts List Manual

LANGUAGE:ENGLISH
PAGES:312
DOWNLOADABLE:YES
FILE TYPE:PDF

KUBOTA L2900F TRACTOR ILLUSTRATED MASTER PARTS LIST MANUAL – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

• Kubota L2900F Tractor Illustrated Master Parts List Manual
• The Parts manual contains all the information you need to properly replace parts on your vehicle. Filled with illustrations and all part numbers. with step-by-step instruction & highly detailed exploded pictures & diagrams to show you how to complete the required job correctly & efficiently.

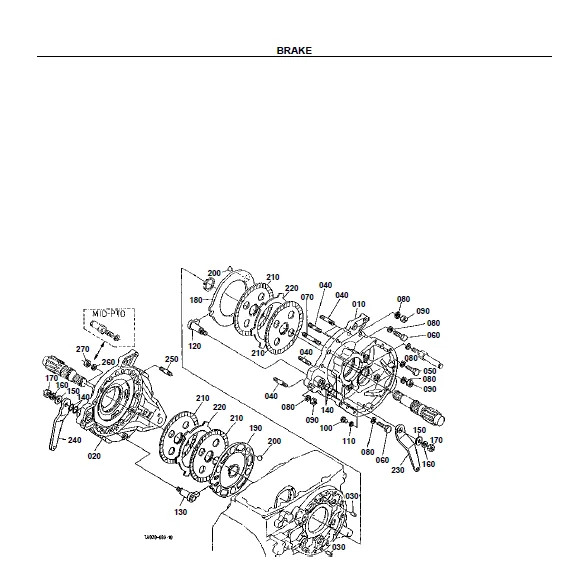

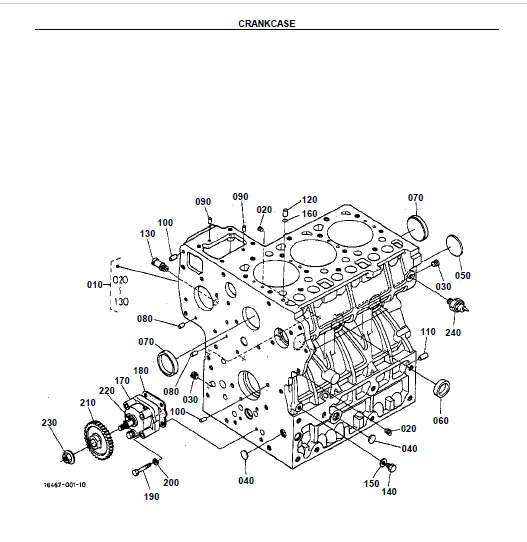

• Detailed illustrations, exploded diagrams, drawings and photos guide you through every service repair procedure. This manual can be viewed on any computer, as well as zoomed and printed. Complete download comes in PDF format which will work in Android, IOS and all PC based operating systems. The manual gets saved in your hard-drive. So it is there forever, for you to refer to it whenever you so desire.
• INSTANT DOWNLOAD MEANS THERE IS NO SHIPPING COST or WAITING FOR A CD or PAPER MANUAL TO ARRIVE IN THE MAIL. YOU WILL RECEIVE THIS MANUAL TODAY VIA INSTANT DOWNLOAD ON COMPLETION OF PAYMENT VIA OUR SECURE PAYMENT PROCESSOR.

TABLE OF CONTENTS:

Kubota L2900F Tractor Illustrated Master Parts List Manual

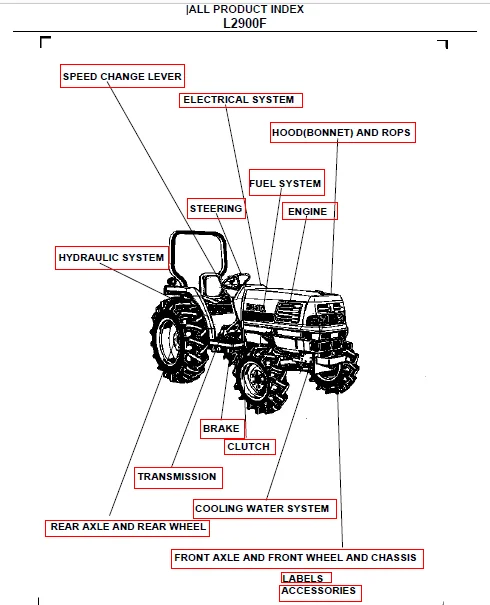

|ALL PRODUCT INDEX..............................................................  1
CRANKCASE.......................................................................  6
OIL PAN.........................................................................  8
PISTON AND CRANKSHAFT........................................................... 10
MAIN BEARING CASE............................................................... 12
FLYWHEEL [W/O IND-PTO].......................................................... 14
FLYWHEEL [WITH IND-PTO]......................................................... 17
CYLINDER HEAD................................................................... 20
VALVE AND ROCKER ARM............................................................ 22
NOZZLE HOLDER/GLOW PLUG......................................................... 25
NOZZLE HOLDER [COMPONENT PARTS]................................................. 28
CYLINDER HEAD COVER............................................................. 30
INLET MANIFOLD.................................................................. 32
CAMSHAFT........................................................................ 34
GEAR CASE....................................................................... 36
WATER PUMP...................................................................... 38
WATER FLANGE AND THERMOSTAT..................................................... 40
FUEL CAMSHAFT................................................................... 42
INJECTION PUMP.................................................................. 44
INJECTION PUMP [COMPONENT PARTS]................................................ 46
ENGINE STOP LEVER............................................................... 48
SPEED CONTROL PLATE............................................................. 50
GOVERNOR........................................................................ 52
UPPER GASKET KIT................................................................ 54
LOWER GASKET KIT................................................................ 56
AIR CLEANER..................................................................... 58
DOUBLE AIR CLEANER [OPTION]..................................................... 60
EXHAUST MANIFOLD AND MUFFLER.................................................... 62
STOP SOLENOID AND ENGINE STOP WIRE.............................................. 64
ACCELERATOR LEVER............................................................... 67
ACCELERATOR LINKAGE............................................................. 69
ACCELERATOR ROD................................................................. 71
FUEL TANK....................................................................... 73
FUEL PIPE AND FUEL FILTER....................................................... 75
FUEL FILTER [COMPONENT PARTS]................................................... 77
FAN............................................................................. 79
WATER PIPE...................................................................... 81
RADIATOR........................................................................ 83
RESERVE TANK.................................................................... 85
ALTERNATOR...................................................................... 87
ALTERNATOR [COMPONENT PARTS].................................................... 90
STARTER......................................................................... 92
STARTER [COMPONENT PARTS]....................................................... 94
BATTERY......................................................................... 96
SWITCH.......................................................................... 98
PANEL BOARD.....................................................................100
PANEL BOARD [COMPONENT PARTS]...................................................102
LIGHT...........................................................................104
ELECTRICAL WIRING...............................................................106
CLUTCH..........................................................................108
CLUTCH LEVER....................................................................110
CLUTCH PEDAL....................................................................112
CLUTCH HOUSING [MANUAL T/M TYPE]................................................114
MID CASE [MANUAL T/M TYPE] [WITH IND-PTO].......................................117
TRANSMISSION CASE...............................................................120
MAIN SHAFT [WITH IND-PTO].......................................................122
COUNTERSHAFT....................................................................124
SHUTTLE SHAFT [MANUAL T/M TYPE].................................................126
RANGE GEAR SHAFT [MANUAL T/M TYPE]..............................................128
PTO COUNTERSHAFT [WITH IND-PTO].................................................130
PTO CLUTCH [WITH IND-PTO].......................................................132
PTO SHAFT [W/O MID-PTO].........................................................134
PTO SHAFT [WITH MID-PTO]........................................................137
MID PTO [WITH MID-PTO]..........................................................140
MAIN GEAR SHIFT LEVER [MANUAL T/M TYPE].........................................142
MAIN GEAR SHIFT LEVER [MANUAL T/M TYPE].........................................144
MAIN GEAR SHIFT FORK [MANUAL T/M TYPE]..........................................145
SHUTTLE SHIFT LEVER.............................................................147
SHUTTLE SHIFT FORK [MANUAL T/M TYPE]............................................150
RANGE GEAR SHIFT LEVER [MANUAL T/M TYPE] [W/O CREEP]............................152
RANGE GEAR SHIFT LEVER/CREEP GEAR SHIFT LEVER [MANUAL T/M TYPE] [WITH CREEP]....154
RANGE GEAR SHIFT FORK AND CREEP GEAR SHIFT FORK [MANUAL T/M TYPE]...............157
MID PTO SHIFT LEVER [WITH MID-PTO]..............................................159
PTO CLUTCH CONTROL LEVER [WITH IND-PTO].........................................161
SPIRAL BEVEL PINION [W/O CREEP].................................................164
SPIRAL BEVEL PINION AND CREEP [WITH CREEP]......................................166
REAR DIFFERENTIAL...............................................................168
DEFFERENTIAL LOCK SHIFT FORK....................................................170
REAR AXLE.......................................................................172
REAR WHEEL (11.2-24)............................................................174
REAR WHEEL (12.4-24)............................................................176
REAR WHEEL (13.6-16)............................................................178
REAR WHEEL (41X14.00-20)........................................................180
REAR WHEEL (355/80-D20).........................................................182
BRAKE...........................................................................184
BRAKE PEDAL.....................................................................186
BRAKE ROD 1.....................................................................189
BRAKE ROD 2.....................................................................191
FRONT AXLE......................................................................193
KNUCKLE SHAFT...................................................................195
FRONT WHEEL (5.00-15)...........................................................197
FRONT WHEEL (23*8.50-12)........................................................199
FRONT WHEEL (25*8.50-14)........................................................201
FRONT AXLE FRAME [2WD]..........................................................203
FRONT WHEEL DRIVE SHAFT.........................................................205
STEERING LINKAGE [2WD]..........................................................207
STEERING CYLINDER...............................................................209
STEERING CYLINDER [COMPONENT PARTS].............................................212
STEERING CONTROLLER.............................................................215
STEERING HANDLE.................................................................217
HYDRAULIC OIL LINE (PS).........................................................219
REGULATOR VALVE.................................................................222
PTO HYDRAULIC OIL LINE [WITH IND-PTO] [MANUAL T/M TYPE].........................224
HYDRAULIC PUMP..................................................................226
HYDRAULIC PUMP [COMPONENT PARTS]................................................228
HYDRAULIC OIL LINE (INLET)......................................................230
HYDRAULIC OIL LINE (DELIVERY)...................................................233
HYDRAULIC OUTLET BLOCK..........................................................235
HYDRAULIC CYLINDER..............................................................237
LIFT ARM........................................................................240
CONTROL VALVE...................................................................242
CONTROL VALVE [COMPONENT PARTS].................................................245
FEED BACK LEVER.................................................................247
POSITION CONTROL LEVER..........................................................249
DRAFT AND POSITION CONTROL LEVER 1 [OPTION].....................................252
DRAFT AND POSITION CONTROL LEVER 2 [OPTION].....................................254
TOP LINK HOLDER [OPTION]........................................................256
DRAWBAR AND PTO PROTECTOR.......................................................258
SWINGING DRAWBAR AND CLEVIS DRAWBAR [OPTION]....................................261
REMOTE CONTROL VALVE LEVER 1 [OPTION]...........................................263
REMOTE CONTROL VALVE LEVER 2 [OPTION]...........................................265
REMOTE CONTROL VALVE LEVER 3 [OPTION]...........................................267
REMOTE CONTROL VALVE COUPLER 1 [OPTION].........................................269
REMOTE CONTROL VALVE COUPLER 2 [OPTION].........................................271
REMOTE CONTROL VALVE COUPLER 3 [OPTION].........................................273
3-POINT LINKAGE 1 (LOWER LINK)..................................................275
3-POINT LINKAGE 2 (LIFT ROD)....................................................277
FRONT GRILLE....................................................................279
FRONT GRILLE SUPPORT............................................................282
HOOD (BONNET)...................................................................284
SIDE COVER......................................................................287
SIDE COVER LOWER................................................................290
SHUTTER PLATE...................................................................292
PANEL FRAME.....................................................................295
FENDER..........................................................................297
FLOOR SEAT......................................................................299
SEAT............................................................................302
STEP............................................................................304
ROPS............................................................................306
LABEL 1.........................................................................308
LABEL 2.........................................................................310
ACCESSORIES AND SERVICE PARTS...................................................312
