Kubota MX5100 Tractor Workshop Manual (November 2007) – PDF Download

Description

Kubota MX5100 Tractor Workshop Manual (November 2007)

This Kubota MX5100 Tractor Workshop Manual is the factory-structured service reference covering both 2WD and 4WD versions of the MX5100. Published in November 2007 by Kubota Corporation, this workshop manual is organized into General, Mechanism, and Servicing sections, giving a technician everything needed to inspect, diagnose, and repair the MX5100 down to factory tolerances.

• Manual type: Workshop Manual (WSM)
• Brand / Model: Kubota MX5100 (2WD and 4WD)
• Language: English
• Page count: 454 pages
• File format: PDF
• Publication date: November 2007

Chapters Covered

The Kubota MX5100 Tractor Workshop Manual lays out its content across these major sections:

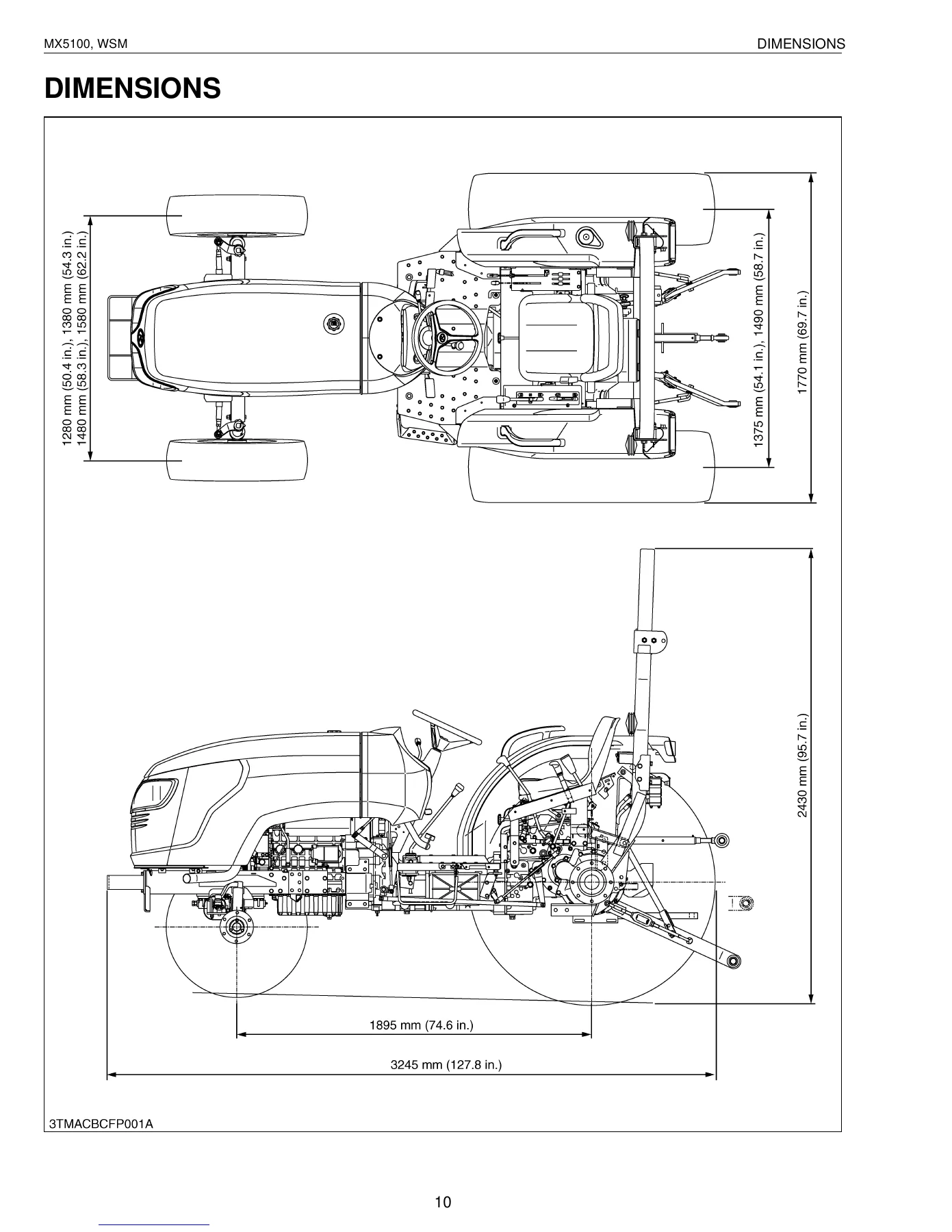

• Specifications, Travelling Speeds, and Dimensions
• General – Tractor Identification, General Precautions, Electrical Handling Precautions, Lubricants/Fuel/Coolant, Tightening Torques, Maintenance, Check and Maintenance Intervals (50 to 3000 hours and yearly), Special Tools, Tires
• Engine – Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling, Servicing of Cylinder Head and Valves, Timing Gears, Piston and Connecting Rod, Crankshaft, Cylinder, Oil Pump
• Clutch – Troubleshooting, Servicing Specifications, Disassembly and Servicing
• Transmission – Troubleshooting, Servicing Specifications, Gear Train Disassembly, Differential and Spiral Bevel Gear Adjustment
• Rear Axle – Servicing Specifications and Procedures
• Brakes – Wet Disk Brake Servicing and Adjustment
• Front Axle – 2WD and 4WD Front Axle Servicing
• Steering – Hydrostatic Power Steering Servicing
• Hydraulic System – Position/Draft Control, Pump, Lift Cylinder Servicing
• Electrical System – Wiring Diagram, Starting System, OPC (Operator Presence Control) Safety Switches

Together, this structure takes a technician from correct factory identification and routine maintenance intervals, through full engine overhaul, into the drivetrain (clutch, transmission, differential, axles), and finally the brakes, steering, hydraulics, and electrical safety-interlock systems on the MX5100.

IMAGES PREVIEW

What You Can Do With This Manual

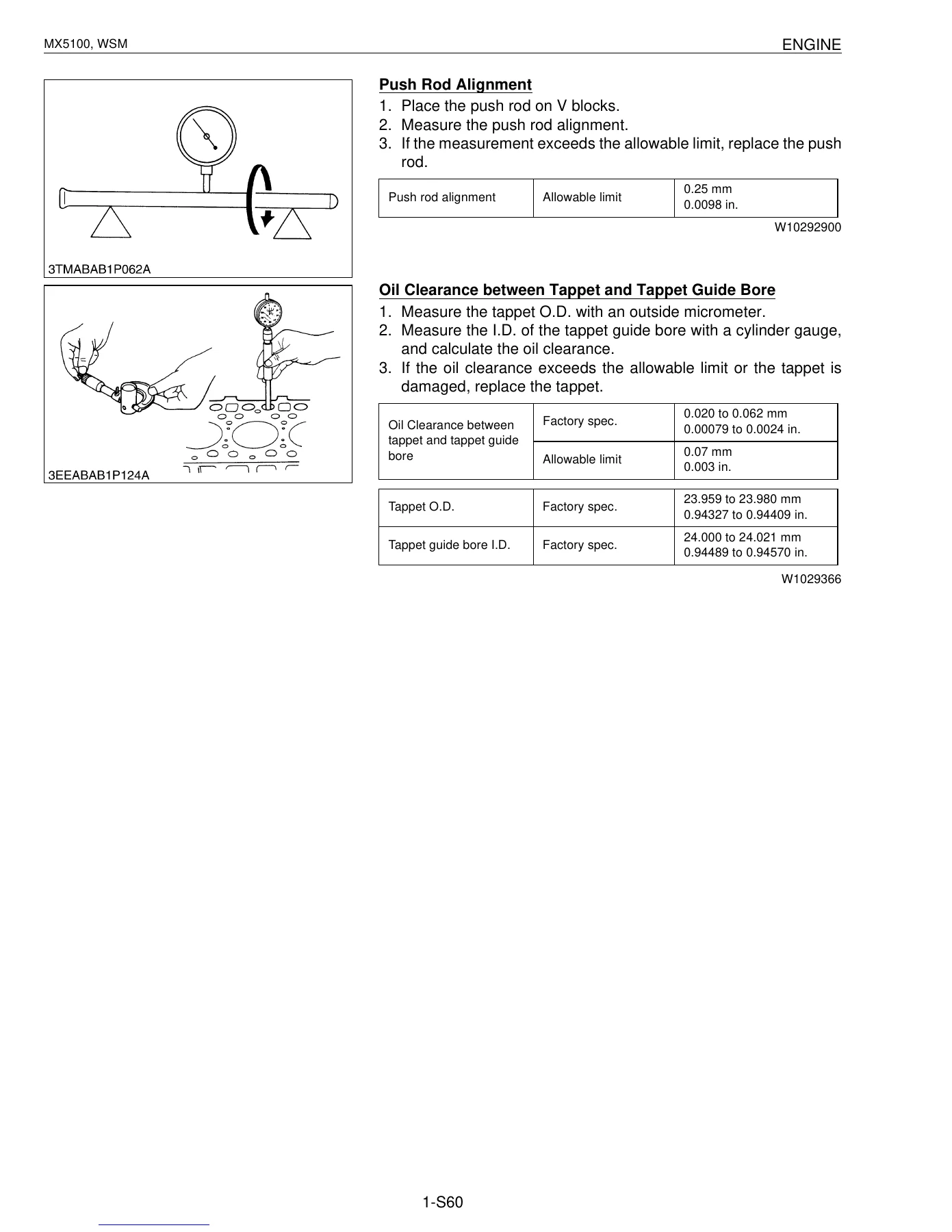

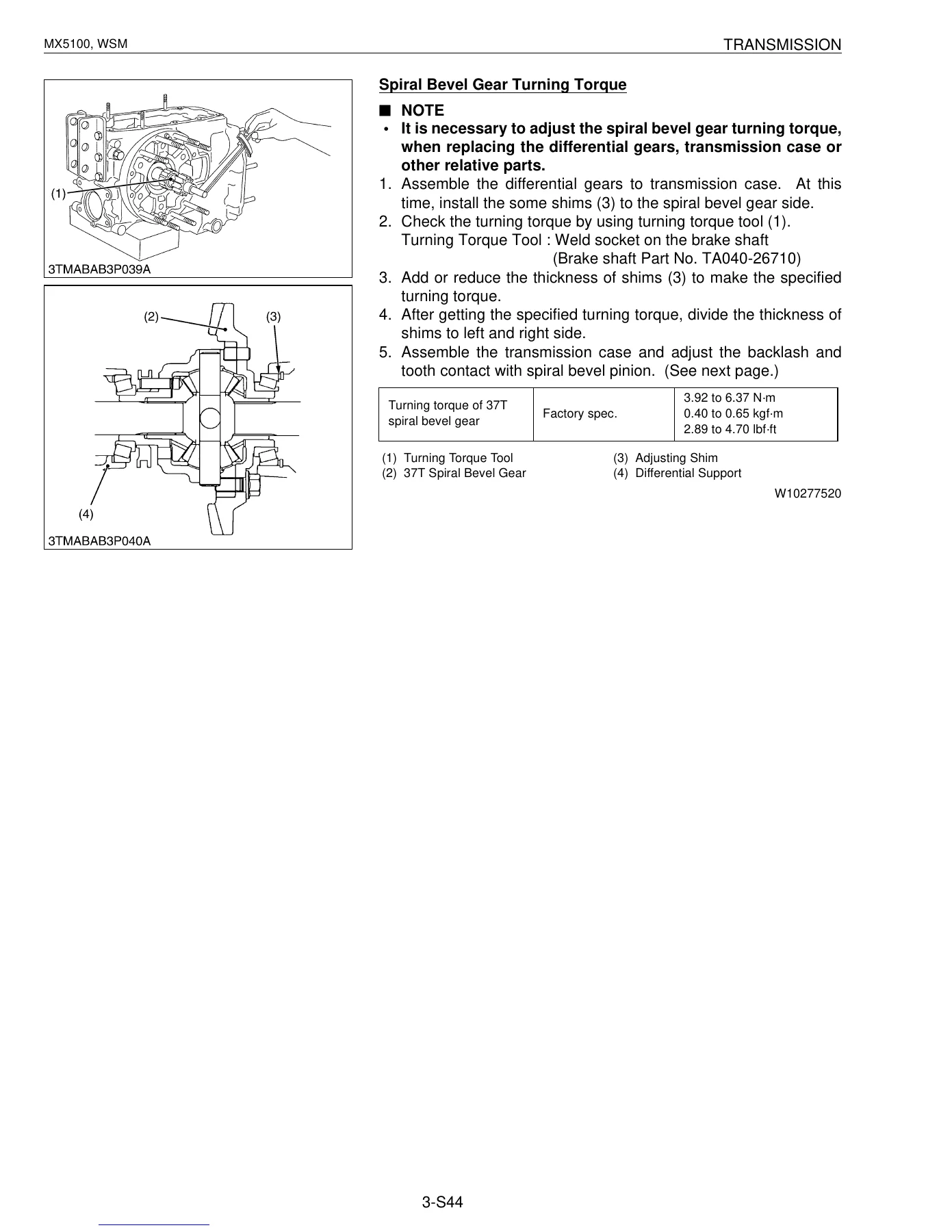

The Kubota MX5100 Tractor Workshop Manual gives you factory specifications and allowable limits for valve clearance, compression pressure, cylinder head flatness, valve guide and stem tolerances, spring free length, and more, so you can measure your engine against Kubota’s own service standards rather than guessing. It documents the transmission’s spiral bevel gear turning torque adjustment procedure, tappet-to-guide oil clearance checks, push rod alignment limits, tightening torque tables for both metric and American standard fasteners, and a full symptom-to-solution troubleshooting table that cross-references page numbers across the General, Engine, and Servicing sections.

Having the correct torque values and clearances from this Kubota MX5100 Tractor Workshop Manual matters because tightening a cylinder head, adjusting valve clearance, or setting differential backlash outside factory tolerance can lead to oil leaks, premature wear, or a repeat failure – the kind of comeback repair every shop wants to avoid.

This Kubota MX5100 Tractor Workshop Manual is delivered as an instant PDF download – no shipping, no waiting. Open it on a laptop, tablet, or phone in the shop, or print only the pages you need for the job in front of you.
