This detailed technical reference is designed for servicing the OC60-E2 and OC95-E2 air-cooled 4-cycle diesel engines. The manual is organized into General, Mechanism, and Servicing sections, guiding technicians from identification and scheduled maintenance through system construction, troubleshooting, measurement, adjustment, disassembly, reassembly, and component inspection.

File Details

• Manual type: Workshop Manual – Diesel Engine
• Brand: Kubota
• Models: OC60-E2, OC95-E2
• Language: English
• Page count: 106 pages
• File format: PDF
• Date: February 2005
• Code No.: 97897-03291

Engine and Service Coverage

This Kubota OC60-E2 and OC95-E2 workshop manual begins with specifications, performance curves, engine dimensions and PTO shaft dimensions before moving into the main service material. The specification section identifies both engines as oil-cooled 4-cycle diesel engines and provides operating data for the OC60-E2 and OC95-E2 configurations, including bore and stroke, displacement, rated output, maximum speed, minimum idling speed, fuel injection equipment, compression ratio, starting system, charging system, fuel tank capacity, lubricating oil capacity and dry weight.

The maintenance portion gives practical service intervals rather than only general descriptions. It covers daily checks, the initial 25-hour service, 100-hour, 500-hour, 800-hour and 1500-hour checks, plus annual and two-year items. Procedures include engine-oil and oil-strainer service, air-cleaner maintenance, fuel-filter work, valve-clearance inspection, nozzle injection-pressure checking and fuel-system inspections.

Chapters Covered

• Specifications
  • Engine specifications
  • Performance curves
  • Engine dimensions
  • PTO shaft dimensions

  IMAGES PREVIEW







• General
  • Engine identification and engine serial number
  • General precautions
  • E2 engine information
  • Lubricants and fuel
  • Maintenance check list
  • Daily check
  • Initial 25-hour service
  • 100-hour service
  • 500-hour service
  • 800-hour service
  • 1500-hour service
  • One-year service
  • Two-year service
  • Special tools
• Engine Mechanism
  • Engine features
  • Engine body
  • Cylinder head
  • Crankcase and cylinder liner
  • Uniaxial balancer system
  • Lubricating system
  • Oil strainer and oil pump
  • Oil pressure switch
  • Cooling system and oil cooler
  • Fuel system
  • Injection pump and delivery valve
  • Injection nozzle
  • Fuel filter
  • Governor mechanism for OC60-E2 and OC95-E2
  • Electrical system
  • Alternator and regulator
• Servicing
  • Troubleshooting
  • Servicing specifications
  • Special-use tightening torques
  • General tightening torques
  • Engine-body checking and adjusting
  • Lubricating-system checks
  • Fuel-system checks and adjustment
  • Electrical-system checks
  • Draining engine oil and fuel
  • External component removal
  • Cylinder head and valve disassembly
  • Injection pump and injection nozzle removal
  • Side-cover service
  • Piston and connecting rod service
  • Crankshaft service
  • Speed-control and governor service
  • Relief-valve service
  • Starter disassembly
  • Cylinder-head and valve servicing
  • Piston and connecting-rod inspection
  • Crankshaft and camshaft inspection
  • Oil-pump servicing
  • Starter servicing

The servicing section is especially useful because it combines procedures with factory specification and allowable-limit tables. Measurements are supplied for cylinder-head flatness, compression pressure, valve clearance, valve and guide dimensions, valve springs, rocker components, camshaft measurements, piston and ring clearances, connecting rods, crankshaft journals, cylinder liners, oil-pump clearances, fuel injection and electrical components. This lets the technician compare measured components with the limits printed in the manual instead of relying only on visual inspection.

Troubleshooting and Adjustment Information

The Kubota OC60-E2 OC95-E2 Diesel Engine Workshop Service Manual – February 2005 includes symptom-based troubleshooting for conditions such as an engine that does not start, unstable engine speed, white or blue exhaust gas, black or dark-gray exhaust gas, deficient output, excessive lubricating-oil consumption, fuel contamination of the lubricating oil, low or high oil pressure and engine overheating. Probable causes are paired with corrective actions and references to the relevant service pages.

Adjustment procedures include compression-pressure checking, cold valve-clearance measurement, top-clearance checking, engine-oil pressure testing, injection timing, pump-element fuel tightness, delivery-valve fuel tightness, injection-nozzle spray inspection and injection-pressure adjustment. Electrical checks include battery voltage and specific gravity, alternator no-load voltage, regulator output, starter and magnet-switch tests, glow-plug voltage and continuity tests.

Disassembly, Inspection and Reassembly

Illustrated procedures guide work on the cylinder head, valves, injection equipment, side cover, balancer, governor gear, oil pump, piston and connecting rod, crankshaft, speed-control and governor components, relief valve, injection nozzle and starter. The manual supplies tightening torques at key reassembly points and gives dimensional checks for wear-sensitive components.

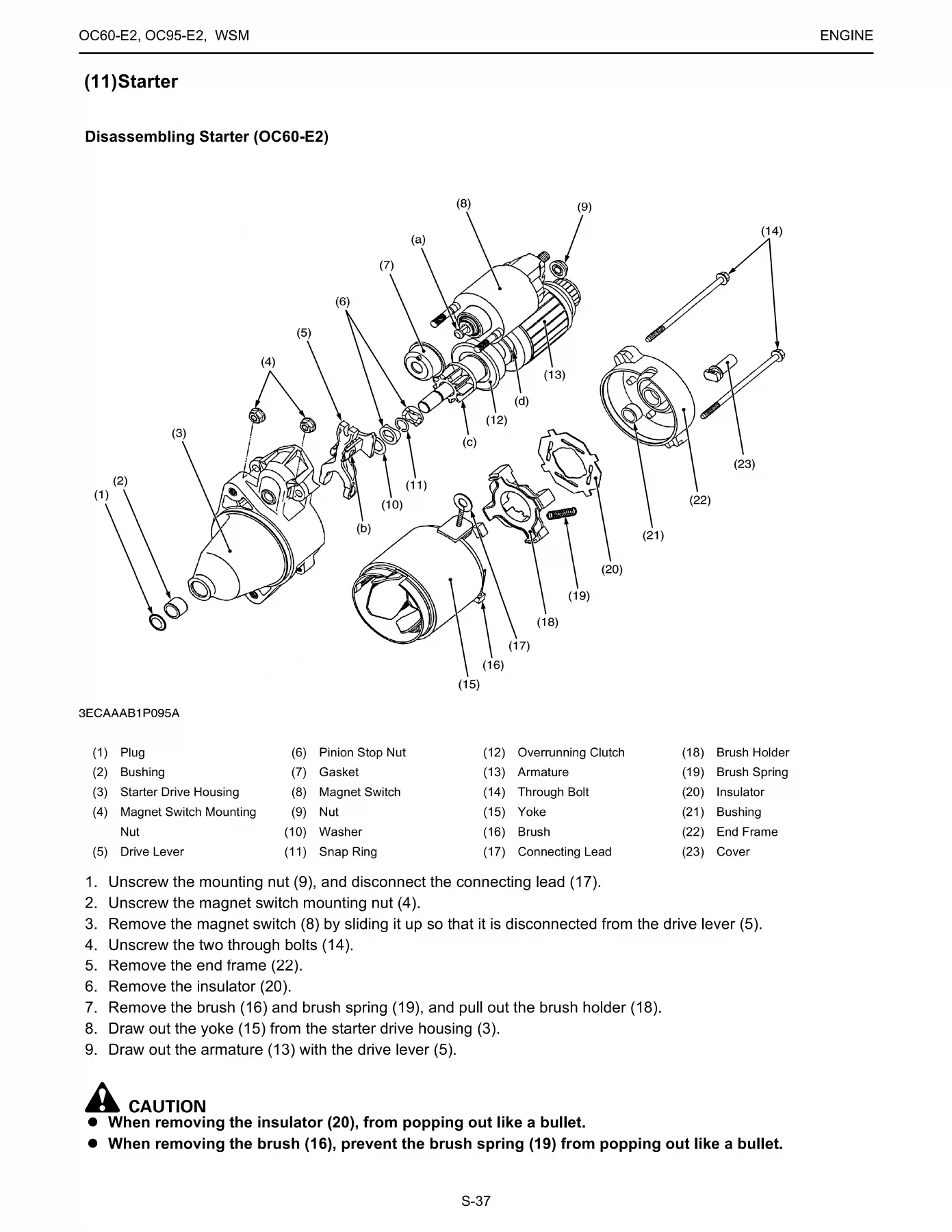

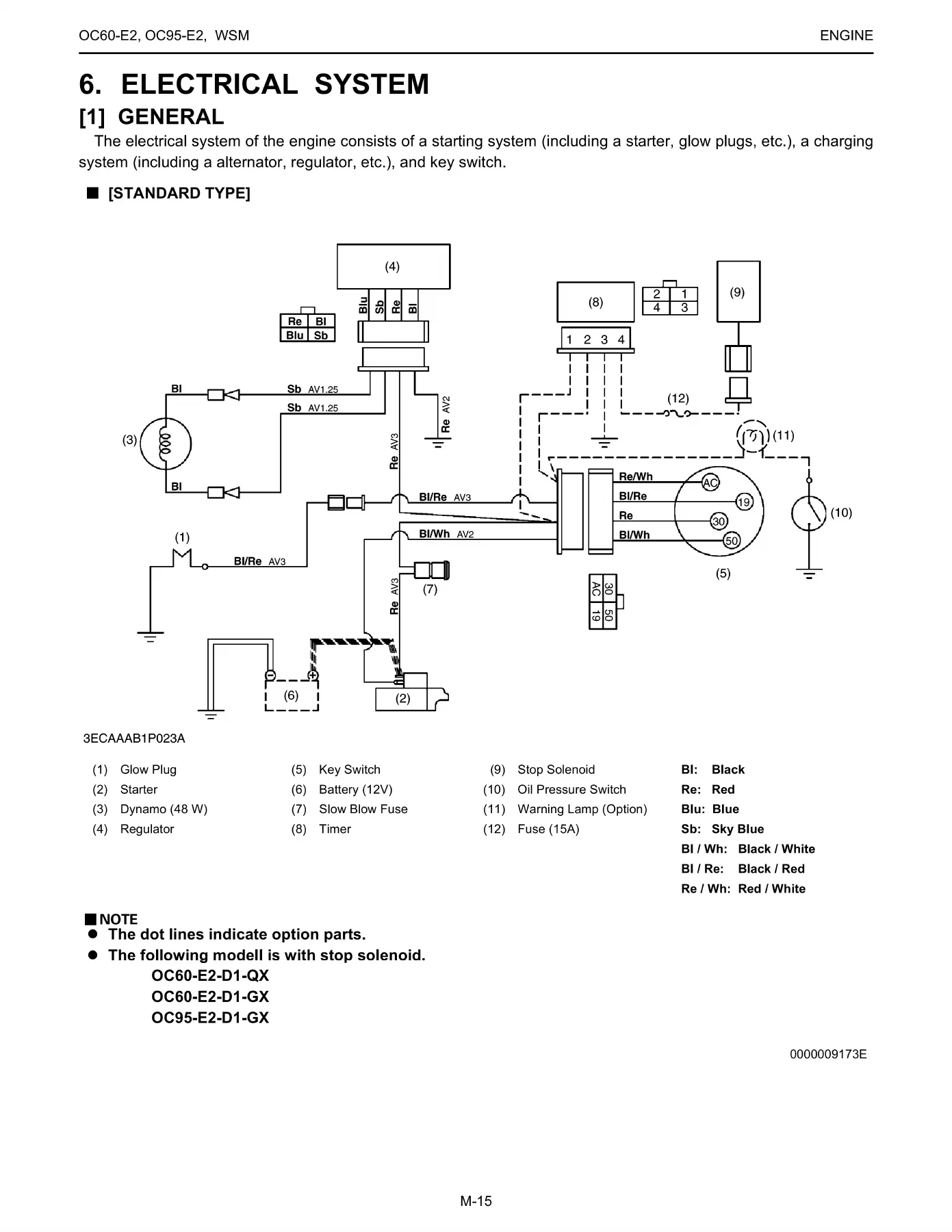

The starter section separately illustrates the OC60-E2 and OC95-E2 starter assemblies and follows with servicing information for the commutator, mica undercut, brush wear, armature coil, bearings, overrunning clutch, brush holder, field coil and magnet switch. The electrical-system section also contains wiring diagrams for standard and L-type arrangements, making the document useful for both mechanical and electrical service work.

Special Tools and Technical References

Special-tool coverage includes a special-use puller set, piston-ring compressor, connecting-rod alignment tool, nozzle tester, press gauge, diesel-engine compression tester, valve-seat cutter, oil-pressure tester and flywheel puller. The manual also provides drawings and dimensions for several installation and replacement tools used for oil seals, bearings, crankshaft work and valve guides.

Technical tables throughout the Kubota OC60-E2 OC95-E2 workshop manual include model-specific values where the two engines differ. These cover items such as engine dimensions, fuel and oil capacities, injection timing, cylinder and crankshaft dimensions, bearing clearances, piston measurements, valve components, starter dimensions and tightening torques.
