Kubota SVL75-2 Compact Track Loader Workshop Service Manual PDF Download

Description

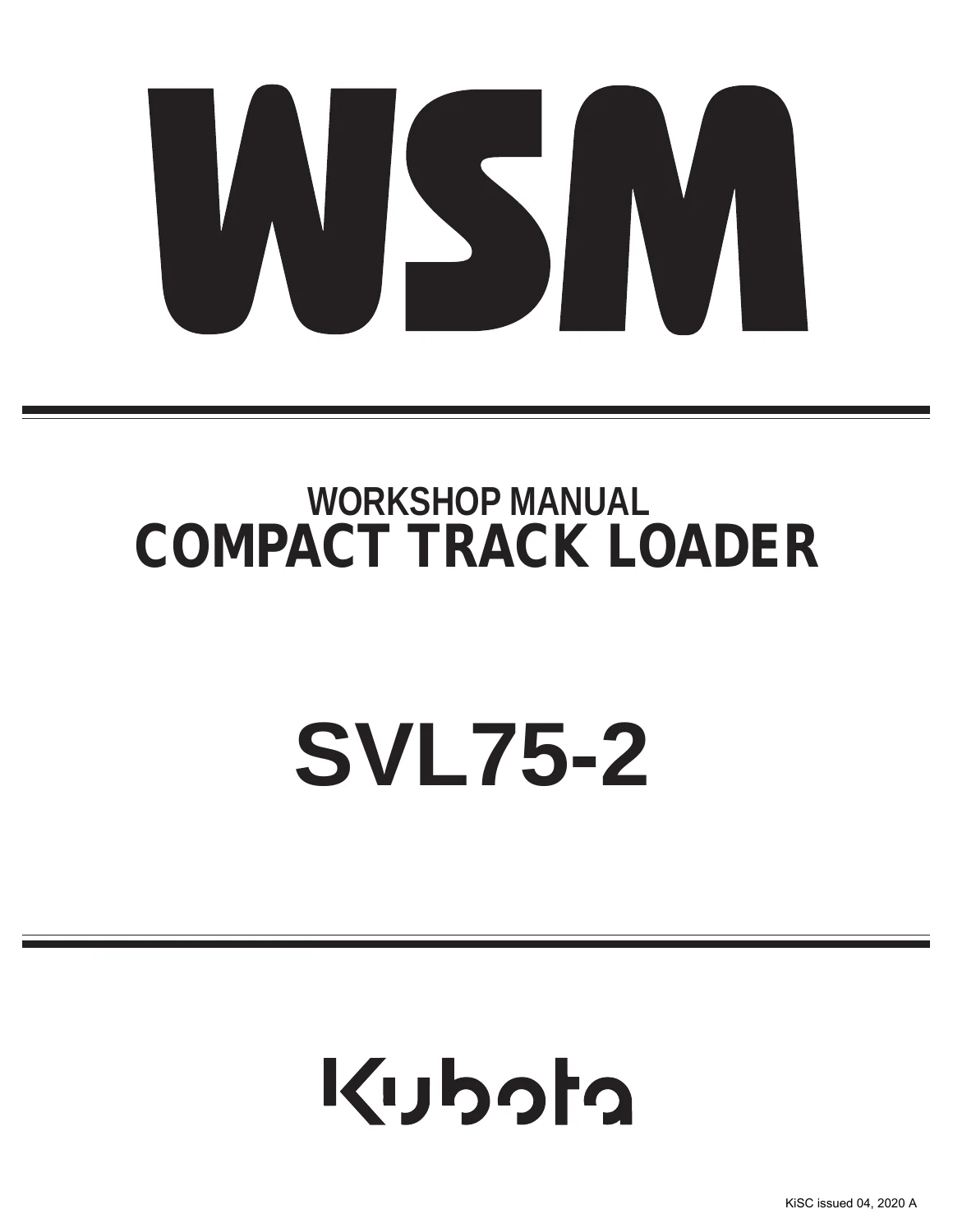

Kubota SVL75-2 Workshop Manual

This comprehensive 785-page workshop manual covers the Kubota SVL75-2 Compact Track Loader and is structured for servicing, maintenance, troubleshooting and technical repair work. It combines machine specifications with detailed engine, hydraulic, electrical, machine-body and cabin service information, including inspection data, adjustment procedures, tightening torques and system diagrams.

Model and Equipment Coverage

• Kubota SVL75-2 Compact Track Loader
• Open Cab and Closed Cab configurations
• KUBOTA V3307-CR-TE4 water-cooled 4-cylinder diesel engine
• Standard-flow hydraulic system
• Hi-flow hydraulic system coverage, including optional high-flow components
• Hydraulic quick hitch system and optional quick hitch solenoid valve

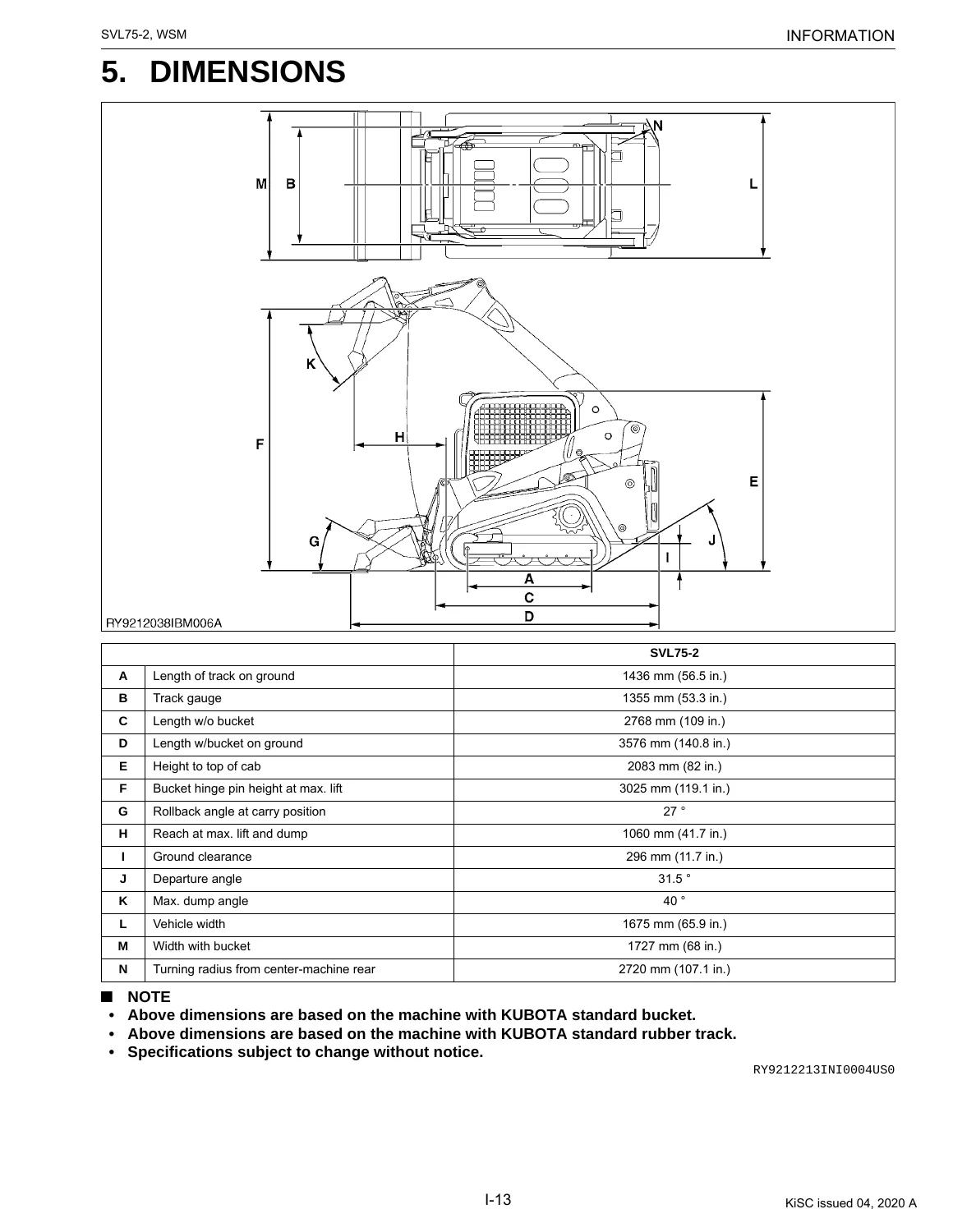

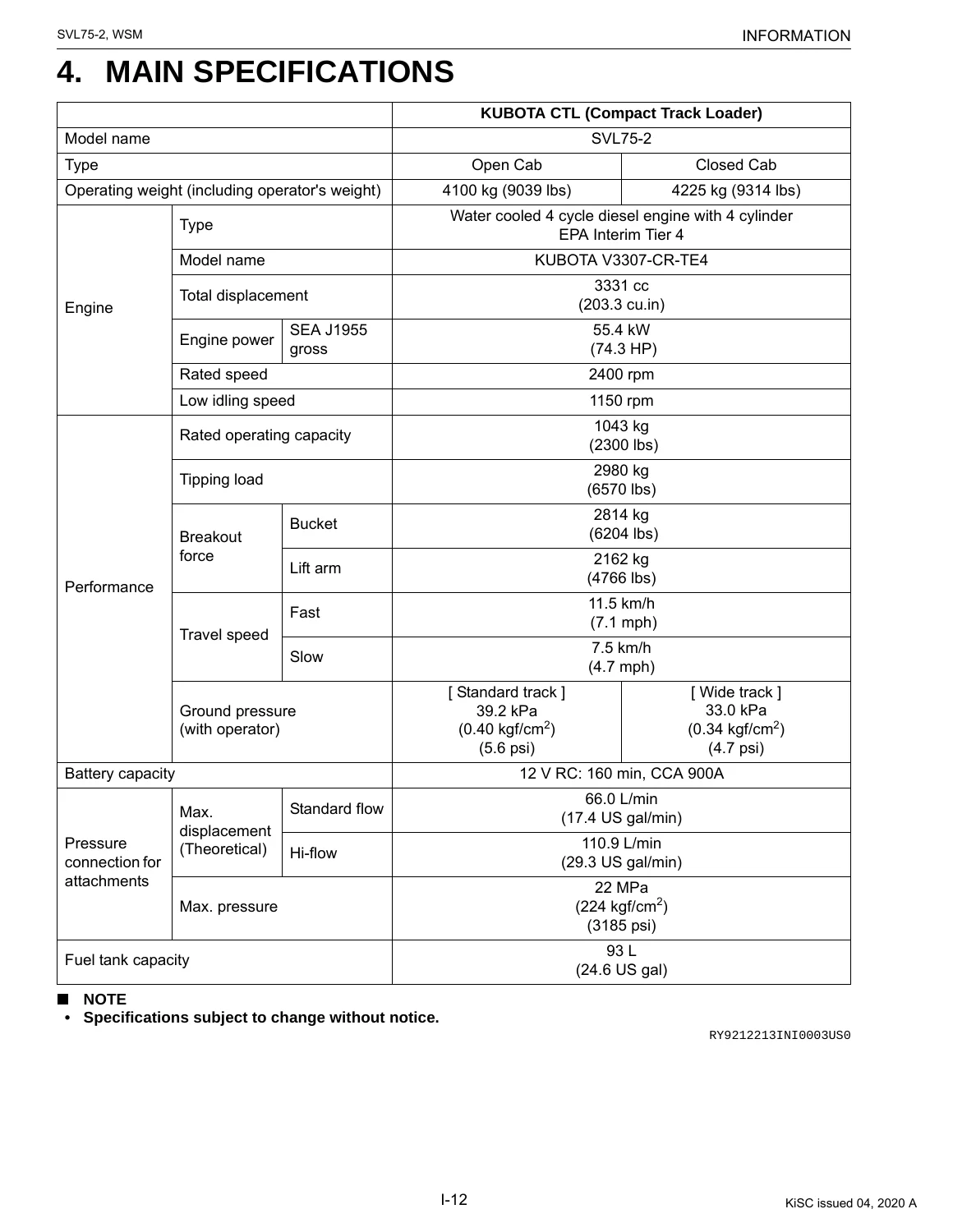

The manual identifies the SVL75-2 with a 3331 cc engine rated at 55.4 kW (74.3 HP) gross at 2400 rpm. Machine specifications include a rated operating capacity of 1043 kg (2300 lbs), tipping load of 2980 kg (6570 lbs), standard auxiliary flow of 66.0 L/min and hi-flow of 110.9 L/min.

Main Systems and Subjects Included

• Machine and engine identification
• Lubricants, fuel and coolant information
• General and special-use tightening torques
• Maintenance schedules and service intervals
• Special tools
• V3307-CR-TE4 engine specifications and performance data
• Engine body, lubrication and cooling systems
• Common Rail System (CRS), supply pump, rail and injectors
• Engine ECU, sensors and control system
• EGR and exhaust systems
• Front attachment, upper structure and track frame
• Hydraulic circuits and hydraulic device layouts
• HST pump and gear pump
• Travel and front control pilot valves
• Main control valve and travel motors
• Lift arm, bucket and hydraulic quick hitch cylinders
• Unload, auxiliary and high-flow solenoid valves
• Electrical diagnosis, wiring circuits and connector terminals
• Start-up problem troubleshooting
• Instrument panel diagnostics and service-mode settings
• Air-conditioning system, refrigerant service and wiper system

Repair, Diagnostic and Maintenance Coverage

The workshop manual goes beyond basic maintenance information with dedicated troubleshooting, servicing specifications, allowable limits, performance checks, adjustment methods, component removal and installation, inspection, disassembly and reassembly procedures. Engine sections contain service data such as compression pressure, valve clearances, oil-pressure specifications and component wear limits, while the hydraulic section provides pressure, flow and performance-check data for the SVL75-2.

Hydraulic coverage includes normal-flow and hi-flow circuit information, auxiliary flow testing, front and travel pilot pressures, relief-valve pressures, cylinder performance checks and extensive hydraulic hose information. Electrical sections provide wiring-related service information, electronic equipment layouts, connector-terminal details, start-up diagnostics, instrument-panel error-code troubleshooting and user/service-mode flow charts.

Scheduled Maintenance and Machine Service

The general section includes daily checks plus scheduled maintenance at 50, 250, 500, 1000, 1500, 2000 and 3000 service hours, along with annual and biennial servicing. Procedures also cover track adjustment, fuel-system purging, fuses and other routine service operations.

Why This Manual Is Useful

For anyone maintaining or repairing an SVL75-2, this manual brings machine specifications, service limits, troubleshooting logic, hydraulic information and component-level procedures into one detailed reference. It is particularly useful when diagnosing hydraulic or electrical faults, servicing the V3307-CR-TE4 engine, checking machine performance, performing scheduled maintenance or removing and installing major components.

Instant PDF Download

This manual is supplied as a digital PDF for instant download after payment. Keep the 785-page reference available on a computer, tablet or phone with a PDF reader whenever service information is needed.
