Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
$28.95
Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
FILE DETAILS:
Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
Language : English
Pages : 275
Downloadable : Yes
File Type : PDF

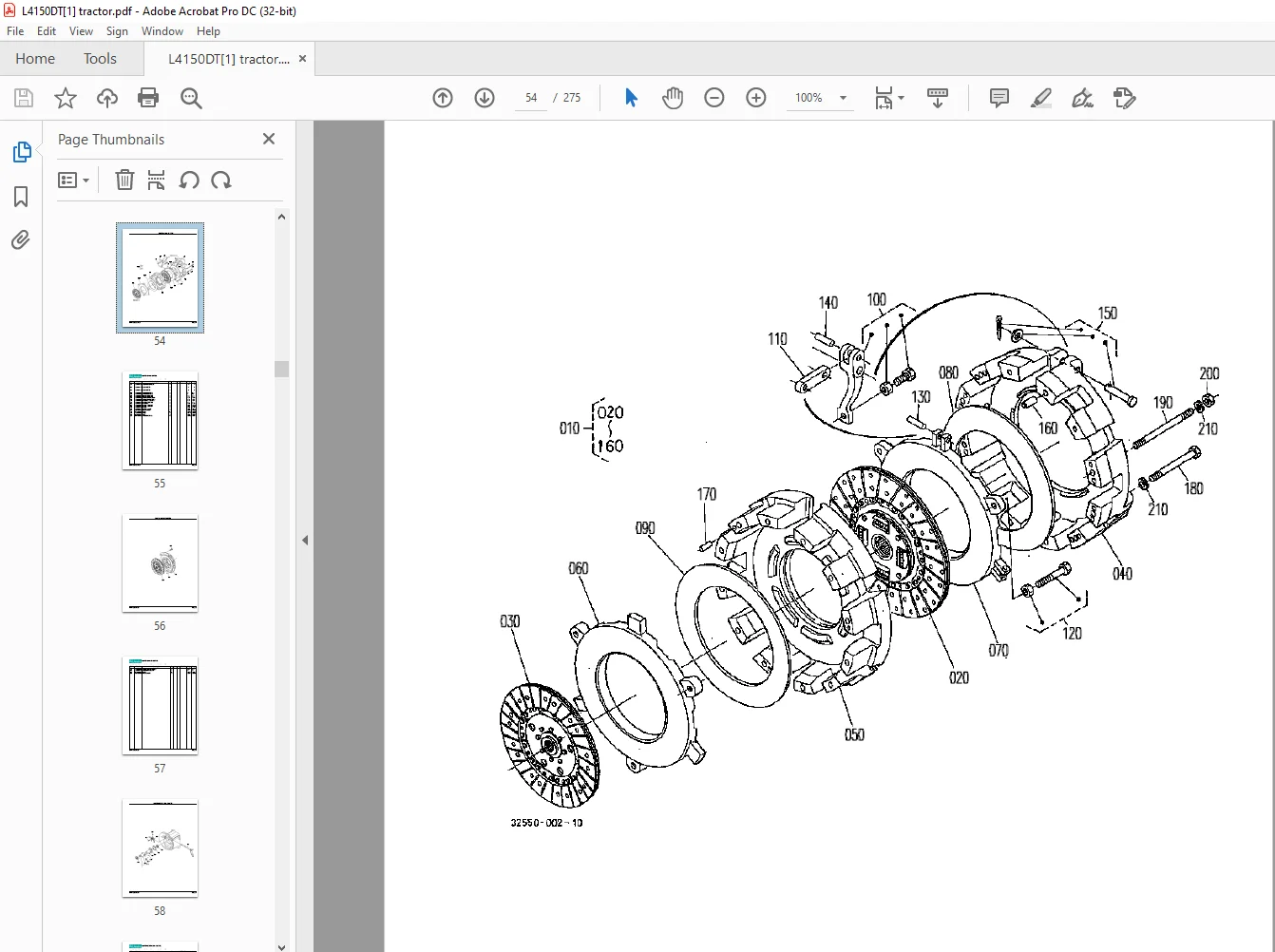

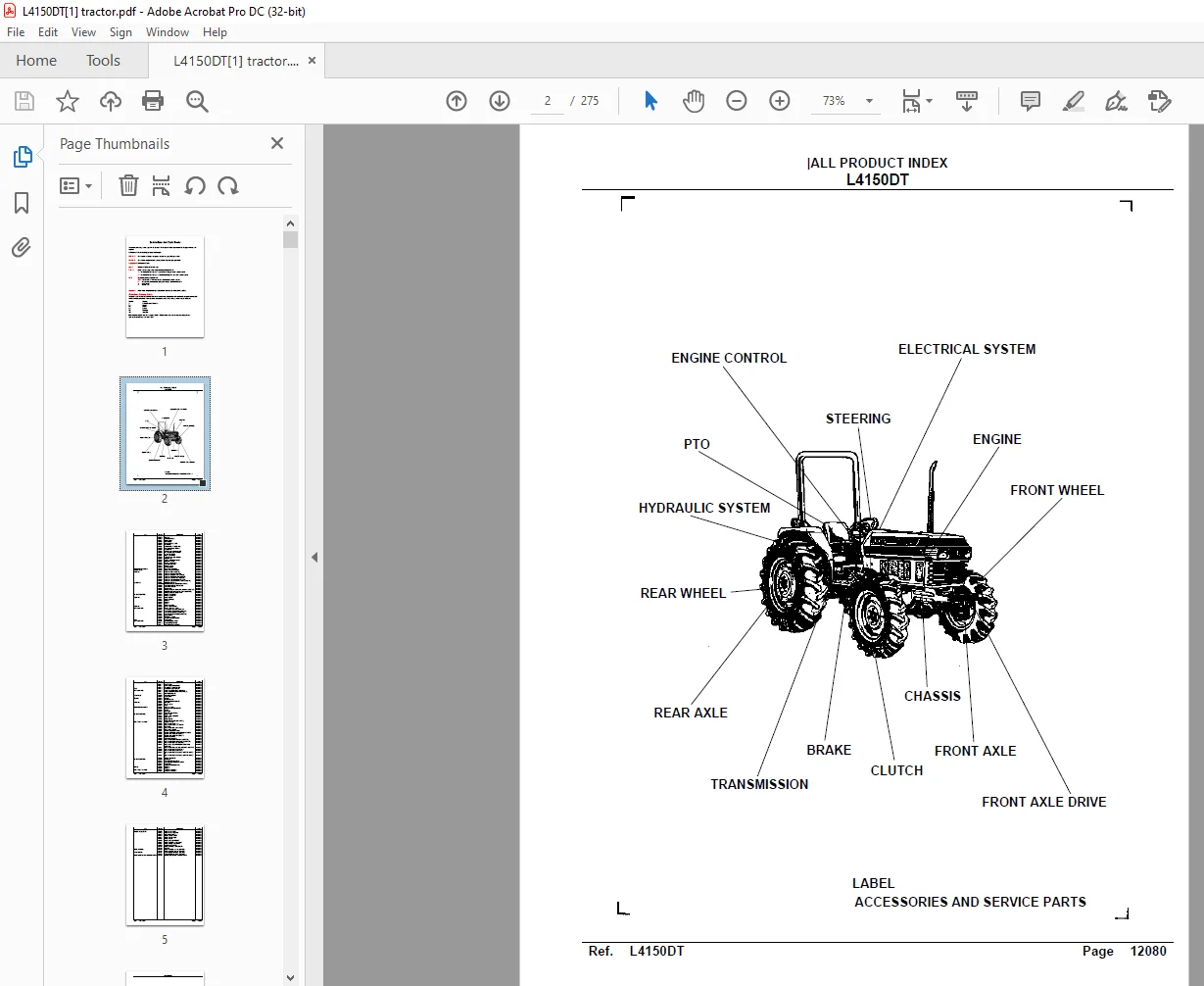

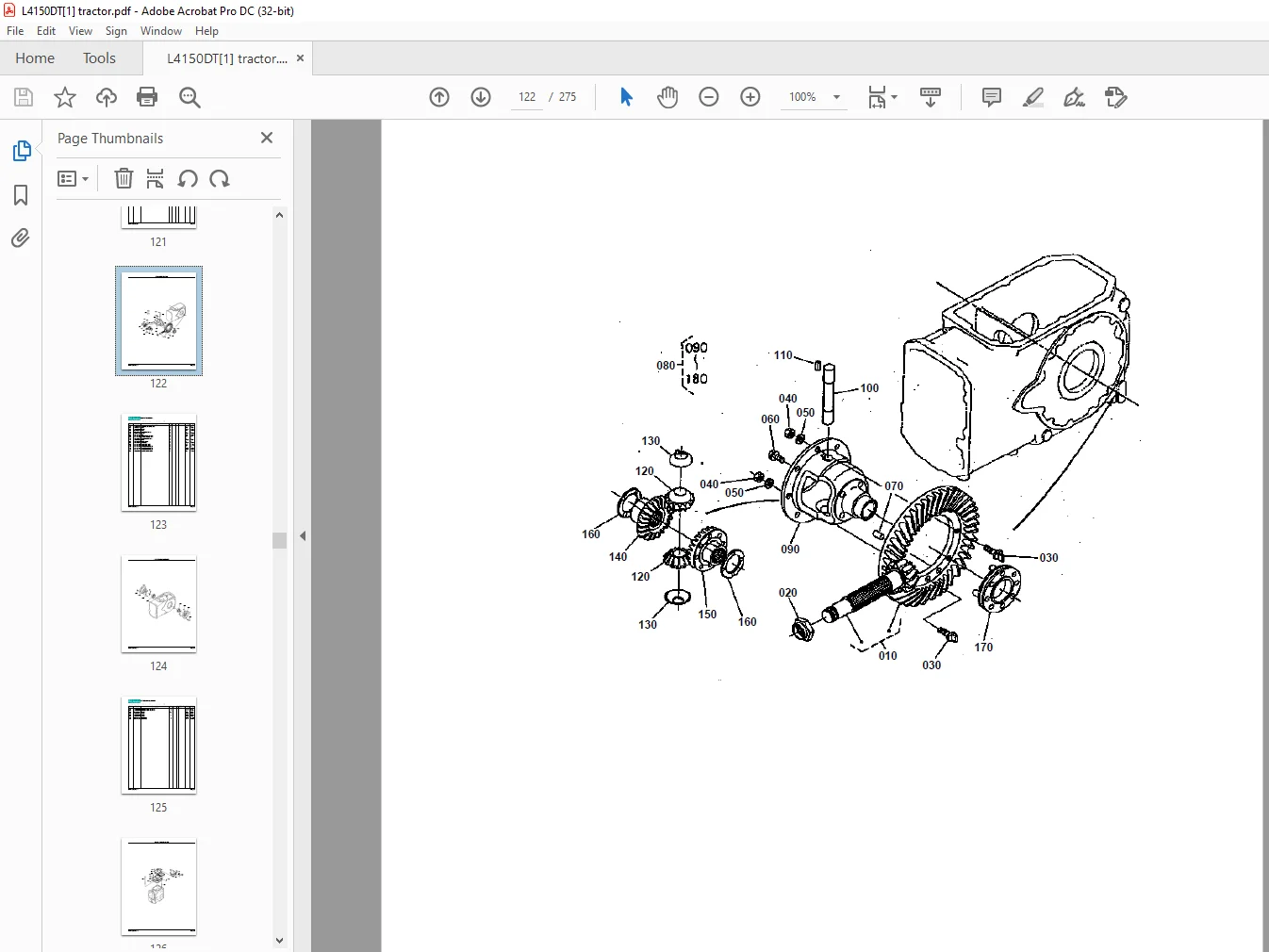

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books:
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No.-> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<- -> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new
Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]
TABLE OF CONTENTS:
Kubota Tractor L4150DT Parts Book Manual – PDF DOWNLOAD
Instructions for Parts Books.................... 1 |ALL PRODUCT INDEX.............................. 2 CRANKCASE....................................... 6 OIL PAN......................................... 8 CYLINDER HEAD................................... 10 GEAR CASE....................................... 12 OIL FILTER...................................... 14 MAIN BEARING CASE............................... 16 MANIFOLD........................................ 18 VALVE AND ROCKER ARM............................ 20 CYLINDER HEAD COVER............................. 22 CAMSHAFT........................................ 24 PISTON AND CRANKSHAFT........................... 26 FLYWHEEL AND STARTER............................ 28 INJECTION PUMP.................................. 30 FUEL CAMSHAFT................................... 32 NOZZLE AND GLOW PLUG............................ 34 GOVERNOR........................................ 36 SPEED CONTROL PLATE............................. 38 COMPENSATOR..................................... 40 IDLING APPARATUS................................ 42 DYNAMO AND FAN.................................. 44 THERMOSTAT...................................... 46 WATER PUMP...................................... 48 BATTERY SUPPORT................................. 50 FRONT AXLE BRACKET.............................. 52 CLUTCH (DUAL CLUTCH)............................ 54 CLUTCH (SINGLE CLUTCH).......................... 56 CLUTCH LEVER (DUAL CLUTCH)...................... 58 CLUTCH LEVER (SINGLE CLUTCH).................... 60 CLUTCH PEDAL (DUAL CLUTCH)...................... 62 CLUTCH PEDAL (SINGLE CLUTCH).................... 64 CLUTCH PEDAL STOPPER (DUAL CLUTCH).............. 66 POWER STEERING.................................. 68 POWER STEERING (SECTION PARTS).................. 70 STEERING WHEEL TILT LEVER....................... 72 STEERING WHEEL.................................. 74 DRAG LINK....................................... 76 POWER STEERING OIL LINE (MANUAL SHUTTLE)........ 78 POWER STEERING OIL LINE (HYD.SHUTTLE)........... 80 POWER STEERING OIL TANK......................... 82 THROTTLE LEVER.................................. 84 THROTTLE PEDAL.................................. 86 FRONT ROOF...................................... 88 FRONT GRILLE.................................... 90 HOOD 1.......................................... 92 HOOD 2.......................................... 94 SEAT............................................ 96 HOOD CUSHION.................................... 98 MAIN CLUTCH CASE................................100 MAIN S-CHANGE CASE..............................102 1 ST SHAFT (MANUAL SHUTTLE).....................104 1 ST SHAFT (HYDRAULIC SHUTTLE)..................106 2 ND SHAFT (MANUAL SHUTTLE).....................108 2 ND SHAFT (HYDRAULIC SHUTTLE)..................110 MAIN SHAFT......................................112 COUNTER SHAFT...................................114 HI-LO S-CHANGE SHAFT............................116 PTO SHAFT.......................................118 TRANSMISSION CASE...............................120 REAR DIFFERENTIAL...............................122 DIFF.BEARING SUPPORT............................124 SPEED CHANGE COVER..............................126 SHIFT FORK......................................128 MAIN GEAR SHIFT LEVER...........................130 HI-LO GEAR SHIFT LEVER..........................132 PTO GEAR SHIFT LEVER............................134 SHUTTLE SHIFT LEVER (MANUAL)....................136 SHUTTLE SHIFT LEVER (HYDRAULIC).................138 DIFF.LOCK PEDAL.................................140 PLANETARY GEAR..................................142 REAR AXLE.......................................144 BRAKE...........................................146 BRAKE PEDAL.....................................148 PARKING BRAKE LEVER.............................150 FENDER..........................................152 FLOOR SEAT......................................154 STEP............................................156 PANEL BOARD.....................................158 SWITCH AND REGURATOR............................160 LIGHT...........................................162 BATTERY.........................................164 ELECTRICAL WIRING...............................166 FUEL TANK.......................................168 FUEL TANK SUPPORT...............................170 FUEL LINE.......................................172 FUEL FILTER.....................................174 FUEL FILTER (SECTION PARTS).....................176 RELIEF VALVE....................................178 HYDRAULIC CYLINDER..............................180 HYDRAULIC CYLINDER COVER........................182 LIFT ARM........................................184 HYDRAULIC CONTROL VALVE.........................186 FEED BACK LEVER.................................188 DRAFT CONTROL VALVE.............................190 DRAFT CONTROL VALVE (SECTION PARTS).............192 DRAFT AND POSITION LEVER 1......................194 DRAFT AND POSITION LEVER 2......................196 FLEXIBLE SHAFT..................................198 TOP LINK BRACKET................................200 HYDRAULIC PUMP (MANUAL SHUTTLE).................202 HYDRAULIC PUMP (HYDRAULIC SHUTTLE)..............204 HYDRAULIC OIL LINE (SUCTION)....................206 HYDRAULIC OIL LINE (DELIVERY MANUAL SHUTTLE)....208 HYDRAULIC OIL LINE (DELIVERY HYD.SHUTTLE).......210 HYDRAULIC SHUTTLE OIL LINE......................212 HYDRAULIC SHUTTLE VALVE.........................214 HYDRAULIC SHUTTLE VALVE (SECTION PARTS 1).......216 HYDRAULIC SHUTTLE VALVE (SECTION PARTS 2).......218 SWING DRAWBAR...................................220 MUFFLER.........................................222 AIR CLEANER (DOUBLE)............................224 AIR CLEANER (SECTION PARTS).....................226 RADIATOR........................................228 ENGINE STOP SOLENOID............................230 LABEL 1.........................................232 LABEL 2.........................................234 3-POINT LINKAGE 1...............................236 3-POINT LINKAGE 2...............................238 3-POINT LINKAGE 3...............................240 FRONT DIFF.CASE.................................242 FRONT DIFFERENTIAL..............................244 DIFF.GEAR SHAFT.................................246 BEVEL GEAR SHAFT................................248 FRONT AXLE CASE.................................250 FRONT AXLE......................................252 FRONT AXLE SUPPORT..............................254 FRONT WHEEL DRIVE CASE..........................256 FRONT COUNTER SHAFT.............................258 PROPELLER SHAFT.................................260 FRONT WHEEL DRIVE LEVER.........................262 TIE ROD.........................................264 FRONT WHEEL (8.3-20) [OPTION]...................266 FRONT WHEEL (9.5-20) [OPTION]...................268 REAR WHEEL (13.6-28) [OPTION]...................270 REAR WHEEL (14.9-28) [OPTION]...................272 ACCESSORIES AND SERVICE PARTS...................275
