Kubota U30-6 Excavator Workshop Manual – WSM Service Repair PDF

Description

Kubota U30-6 Excavator Workshop Manual – Complete WSM Service & Repair Guide

The Kubota U30-6 Excavator Workshop Manual is the comprehensive WSM published by Kubota Corporation for the U30-6 mini excavator. This Kubota U30-6 service manual covers the full machine — from the D1703-M-E3-BH-11 diesel engine through the hydraulic system, electrical circuits, undercarriage, and the optional crane specification. Whether you are servicing, troubleshooting, or rebuilding the machine, this Kubota U30-6 repair manual provides the procedures, specifications, and torque values required to do the job correctly. The document is organized into seven main sections plus appendices, with detailed illustrations, exploded views, hydraulic circuit diagrams, and electrical schematics throughout.

File Details

• Manual Type: Workshop Manual (WSM)
• Brand: Kubota
• Model: U30-6 Excavator
• Engine: D1703-M-E3-BH-11
• Language: English
• Format: PDF
• Pages: Approximately 399
• Document Code: RY911-24971
• Publication Date: 2020.06
• Revision: Revision 1 (2020/06)

Chapters Covered

• 1. Information — Safety First, Working Precautions, Safety Labels
• 2. General — General Working Instructions, Tightening Torques, General Machine Information, Oil/Fuel/Coolant Specifications

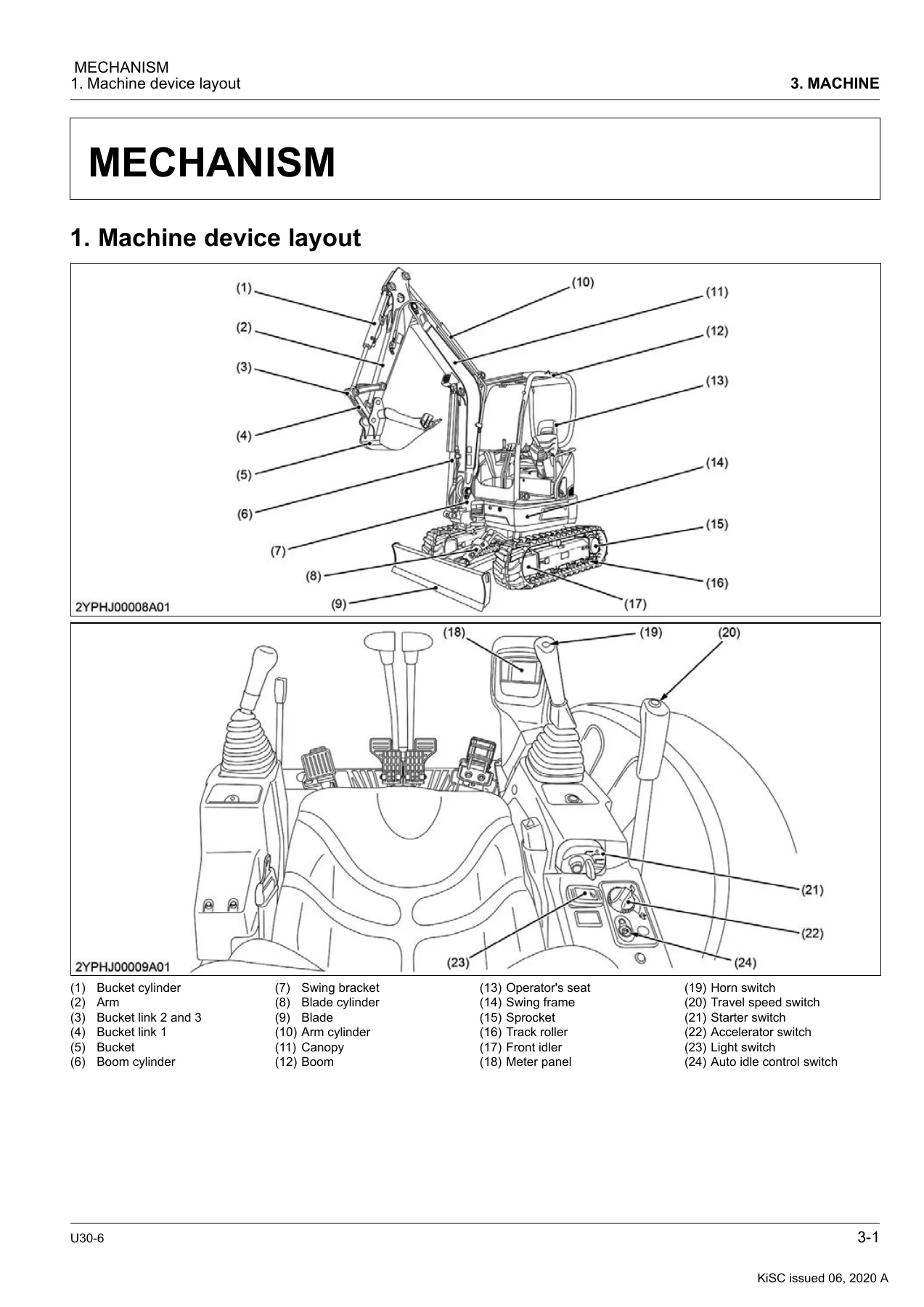

• 3. Machine — Machine Device Layout, Bucket, Arm, Boom, Blade, Steel Track, Rubber Track, Front Idler, Tension Spring, Grease Cylinder, Track Roller, Carrier Roller, Pin/Bushing/Shim
• 4. Engine — Engine Equipment Layout, Engine Specification, Electronic Governor, Engine ECU, Troubleshooting, Compression Pressure Testing, Fuel Tank, Engine Removal & Installation

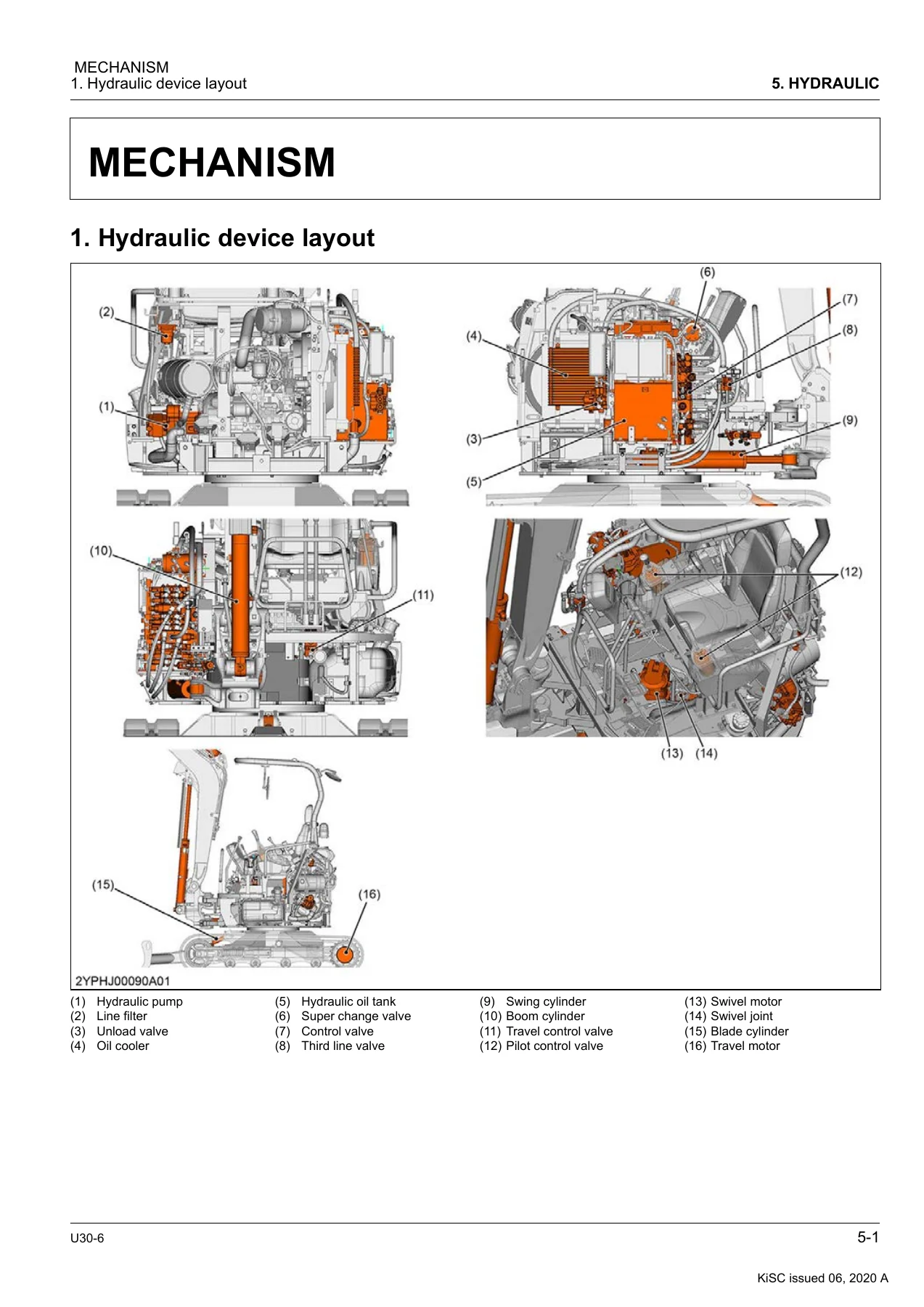

• 5. Hydraulic — Hydraulic Device Layout, Hydraulic Pump, Control Valve, Swivel Motor, Travel Motor, Hydraulic Cylinder, Swivel Joint, Pilot Control Valves, Unload Valve, Multi Valve, Third Line Valve, Hydraulic Hoses
• 6. Electrical System — Electrical Circuit Diagrams, Connector Handling, Electrical Device Layout, Meter Panel, Troubleshooting, Service Dealer Mode, Error Warning Handling
• 7. Crane — Crane Device Layout, Rated Load Table, Crane Hook, Potentiometer, Boom Holding Valve, Arm Holding Valve, Bucket Stop Valve
• Appendices — Hydraulic Circuit Diagrams, Wire Harness, Connector Chart, Electrical Circuit Diagrams

Section 1 opens with safety information for service work, including working precautions, emergency preparation, fire prevention, acid burn prevention, and waste fluid disposal. Section 2 covers general working instructions such as thread seal tape wrapping, O-ring and oil seal replacement, floating seal replacement, circlip and spring pin installation, thread lock application, bolt and nut tightening, hydraulic hose connection, and battery handling. It also includes the periodic check list, recommended lubricants, and general machine specifications. Section 3 details the machine mechanisms — bucket, arm, boom, blade, undercarriage components, and the pin/bushing/shim tables with dimensions. Section 4 covers the engine, including the electronic governor system, proportional solenoid, engine ECU specifications, troubleshooting, compression pressure measurement, and engine removal/installation procedures. Section 5 is the largest section, covering the hydraulic system in depth: the piston pump working principles and horsepower control, control valve function and structure (main relief valve, arm regeneration circuit, boom priority circuit, boom shut off valve, straight traveling circuit, auto-idle signal circuit, overload relief valve), swivel motor, travel motor, hydraulic cylinder, swivel joint, pilot control valves, unload valve, multi valve, third line valve, and hydraulic hose routing. Section 6 covers the electrical system — electrical circuit descriptions, connector diagrams, electrical device layout, fuse and relay layout, meter panel functions, troubleshooting, and service dealer mode. Section 7 covers the crane specification, including rated load tables, crane hook dimensions, potentiometers, boom and arm holding valves, and the bucket stop valve. The appendices contain hydraulic circuit diagrams, wire harness information, connector charts, and full electrical circuit diagrams.

What This Kubota U30-6 Workshop Manual Enables You to Do

This Kubota U30-6 excavator workshop manual gives you the complete factory service information for the machine. You can diagnose hydraulic faults using the troubleshooting tables for the front attachment, swivel, and travel systems. You can measure hydraulic pump flow rate, main relief valve pressure, overload relief valve pressure, swivel motor drain, travel motor drain, and pilot primary and secondary pressures using the specified procedures and values. You can service the engine — measure compression pressure, remove and install the fuel tank, remove and install the engine, and adjust the electronic governor. You can repair the undercarriage — remove and install steel and rubber tracks, disassemble and assemble the front idler, track roller, and carrier roller, and replace the tension spring and grease cylinder. You can service the electrical system using the circuit diagrams, connector charts, and error warning lists. If your U30-6 is equipped with the crane specification, you can service the boom holding valve, arm holding valve, and bucket stop valve, and measure the relief pressures. The manual also includes tightening torques, service specifications, service limitations, and factory specifications for all major components.

Why This Manual Matters

Working on a mini excavator without the correct procedures and specifications can lead to incorrect assembly, premature failure, and safety hazards. The Kubota U30-6 WSM provides the exact torque values, pressure settings, clearances, and adjustment dimensions that Kubota specifies for the machine. The hydraulic circuit diagrams and electrical schematics help you trace faults systematically rather than by guesswork. The exploded views and component illustrations help you identify parts and understand how they assemble. Whether you are a professional technician, a fleet maintenance manager, or an owner who services their own machine, this Kubota U30-6 service repair manual gives you the information you need to complete the job safely, correctly, and efficiently.

Delivery

IMAGES PREVIEW

This Kubota U30-6 workshop manual PDF is available for instant download after purchase. There is no shipping and no waiting for a physical book. You can view it on any device — computer, tablet, or smartphone — and print the pages you need for the workshop. The PDF format allows you to keep the manual on hand wherever you service the machine.
