LD-465, LDT-465, LDS-465 Multifuel Diesel Engine Direct & General Support Maintenance Manual TM 9-2815-210-34-2-2

Description

Direct Support and General Support Overhaul Guide for 465-Series Multifuel Diesel Engines

The LD-465, LDT-465, LDS-465 Multifuel Diesel Engine Direct & General Support Maintenance Manual TM 9-2815-210-34-2-2 serves as the definitive military depot and field maintenance reference for overhauling, reconditioning, and testing the 6-cylinder, water-cooled, fuel-injected multifuel diesel engine family. Prepared jointly by the Departments of the Army and the Air Force under publication numbers TM 9-2815-210-34-2-2 and T.O. 38G1-48-12-2-2 (Volume 2 of 2, Part 2 of 2), this technical publication details teardown evaluation, precision dimension measurements, full engine assembly, and test stand run-in procedures for naturally aspirated and turbocharged variants including models LD-465-1, LD-465-1C, LDT-465-1C, LDS-465-1, LDS-465-1A, and LDS-465-2, along with matching clutches.

File Details

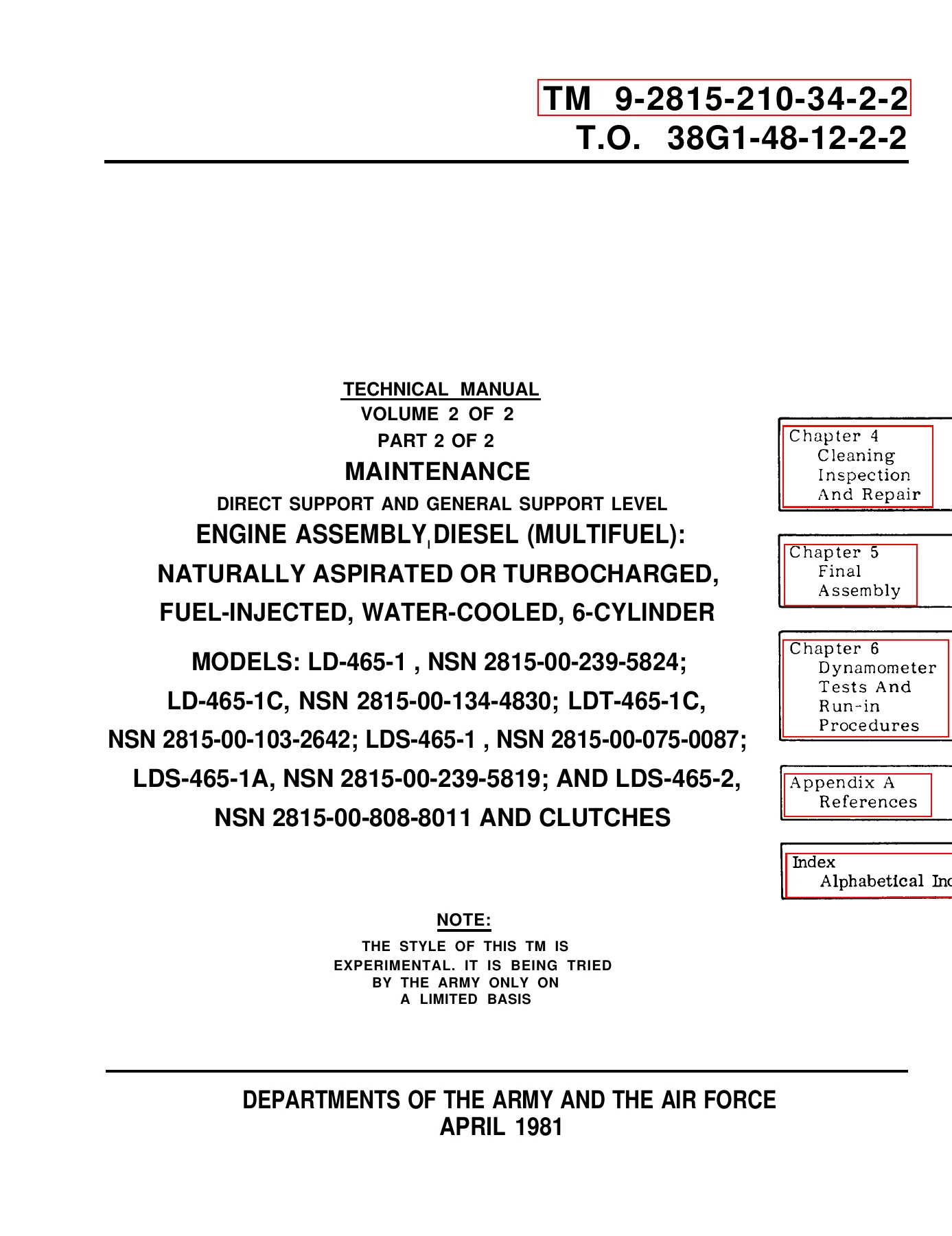

• Document Title: Technical Manual Engine Assembly, Diesel (Multifuel): Naturally Aspirated or Turbocharged, Fuel-Injected, Water-Cooled, 6-Cylinder and Clutches
• Publication Numbers: TM 9-2815-210-34-2-2 / T.O. 38G1-48-12-2-2 (Volume 2 of 2, Part 2 of 2)
• Issuing Authority: Departments of the Army and the Air Force
• Publication Date: 3 April 1981
• Supersedes: TM 9-2815-210-34 (dated 16 June 1978) in conjunction with TM 9-2815-210-34-1 and TM 9-2815-210-34-2-1
• Covered Engine Models: LD-465-1 (NSN 2815-00-239-5824), LD-465-1C (NSN 2815-00-134-4830), LDT-465-1C (NSN 2815-00-103-2642), LDS-465-1 (NSN 2815-00-075-0087), LDS-465-1A (NSN 2815-00-239-5819), LDS-465-2 (NSN 2815-00-808-8011), and Clutches
• Language: English
• Page Count: 972 pages
• Format: Digital PDF (.pdf)

Exhaustive Component Cleaning, Inspection, and Repair Standards

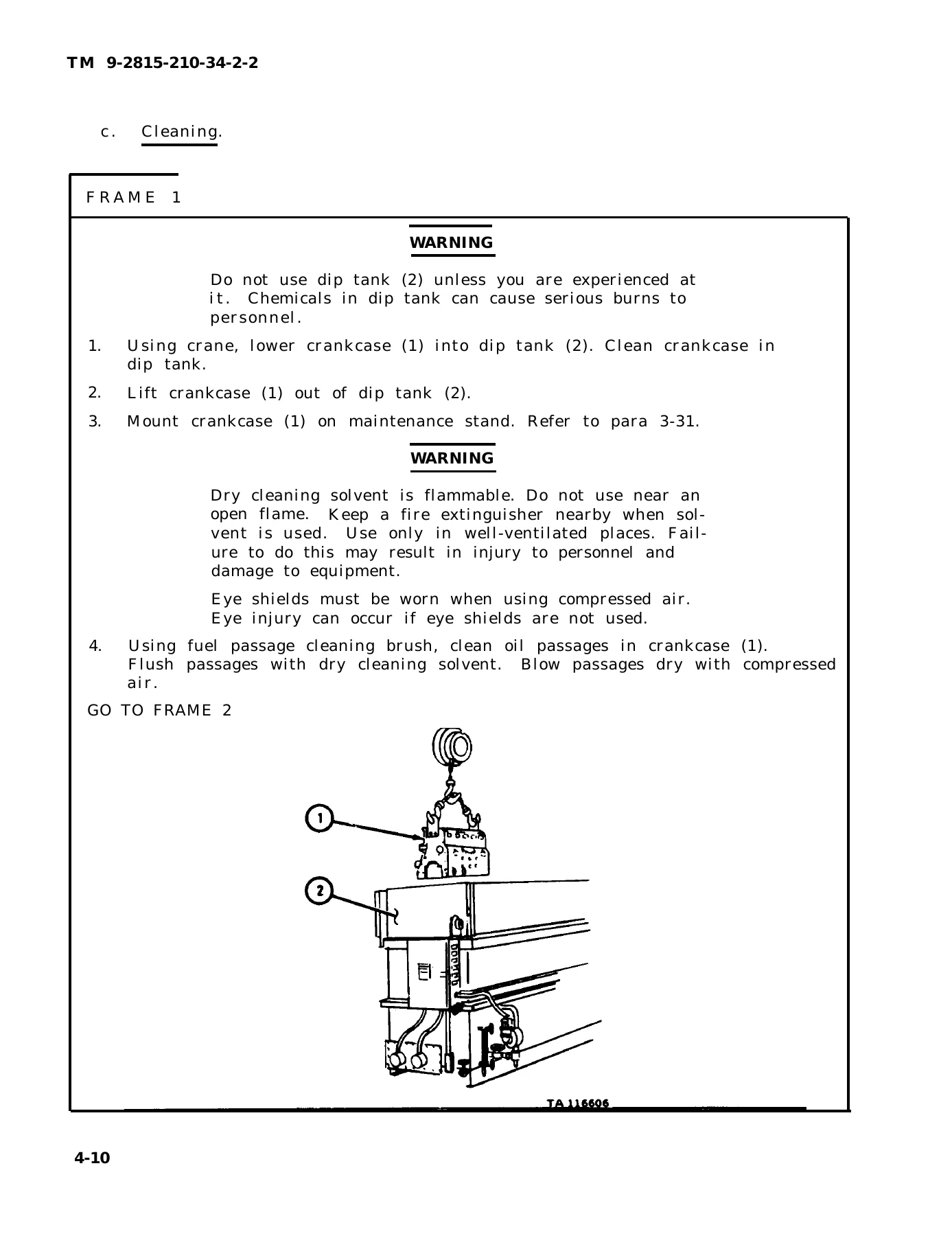

Chapter 4 of this technical manual establishes methodical frame-by-frame procedures to evaluate, clean, salvage, and recondition every major internal and external component of the LD-465, LDT-465, and LDS-465 series diesel engines. Technicians are provided with exhaustive inspection tables that pair new-part manufacturing tolerances with maximum allowable wear limits across critical engine subassemblies:

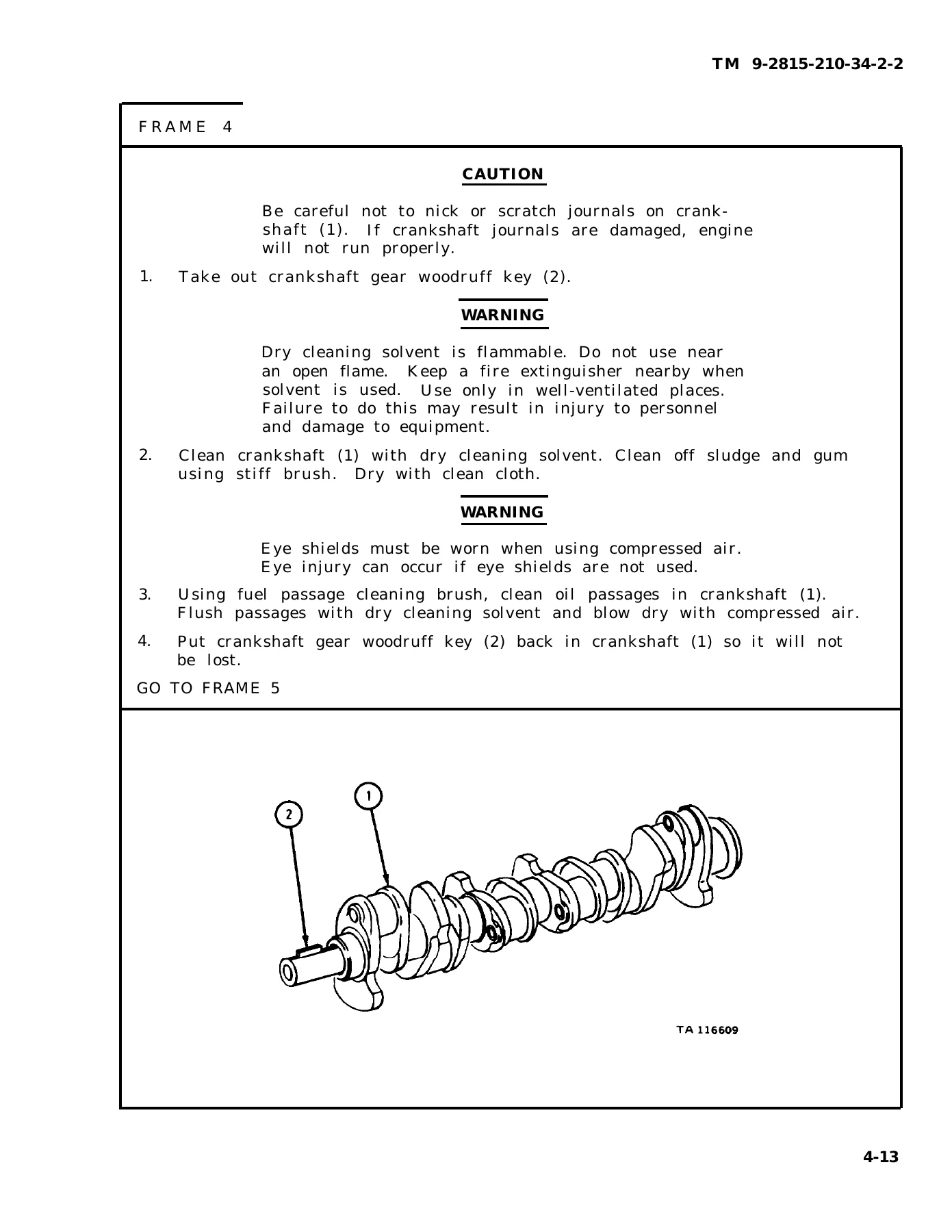

• Crankcase, Crankshaft, and Camshaft: Micrometer wear limits for standard crankshaft journals (early model 3.6200 to 3.6210 in., late model 3.6210 to 3.6220 in.), 0.0100-inch undersize, and 0.0200-inch undersize shafts. Includes journal out-of-round limits (maximum 0.0010 in.), dial indicator total indicated runout checks, main thrust bearing saddle dimensions, camshaft bearing bore diameters, and camshaft lobe wear specifications.
• Cylinder Bores and Sleeves: Procedures for differentiating and sizing ‘Y’ (4.7516 to 4.7520 in.) and ‘Z’ (4.7511 to 4.7515 in.) cylinder block bores and matching cylinder sleeves. Full guidelines for checking sleeve hone cross-hatch patterns, measuring ring travel wear ridges, and setting cylinder sleeve protrusion height between 0.0005 and 0.0050 in. above the deck.
• Pistons and Connecting Rods: Dimensional checks for piston pin bores (1.6251 to 1.6263 in.), ring groove cleaning using wire brushes and #23 drills for oil drain passages, spherical combustion chamber crack limitations (maximum 0.020 in. width, 5/16 in. length), and rod bearing fits.
• Cylinder Heads and Valvetrain: Hydrostatic pressure tank testing at 50 psi in 120°F water to detect internal casting porosity or cracks. Step-by-step resurfacing limits (maximum 0.005 in. total material removal), 45-degree valve seat grinding angles, dry ice shrink installation of standard and 0.0100-inch oversize intake and exhaust valve seat inserts, valve guide reaming (0.4388 to 0.4394 in.), inner/outer valve spring load testing, and valve rotor ball-cycling verification.
• Lubrication System Reconditioning: Complete bench disassembly, clearance checks, and gear inspection for dual-section oil pumps (pressure pump and scavenge pump). Includes pressure relief valve shim calibration to obtain 140 to 225 psi cracking pressure and hot oil flow testing to verify a minimum output of 22 gpm (26 gpm for LDS-465-2) at 3,420 rpm and 110 psi.
• Fuel System and Flame Heater Components: Bench servicing, nozzle pop testing, spray pattern evaluation, and leakage testing for fuel injector nozzle and holder assemblies. Comprehensive overhaul protocols covering uncovered, covered, and side-mounted manifold flame heater ignition systems, fuel pumps, relief valves, and solenoid controls.

Complete Engine Assembly and Torque Procedures

Chapter 5 transitions the rebuilder from piece-part inspection to precision final assembly on standard engine overhaul roll-over stands. The LD-465, LDT-465, LDS-465 Multifuel Diesel Engine Direct & General Support Maintenance Manual TM 9-2815-210-34-2-2 details every sequential step required to assemble bare crankcases into complete, fully dressed powerplants:

• Mounting the cylinder block on maintenance overhaul stands using six universal support arms.
• Installing piston cooling nozzles and setting proper alignment angles for turbocharged and naturally aspirated variants.
• Crankshaft installation, Prussian blue bearing contact verification (requiring 75% minimum surface contact), and two-step main bearing bolt torque sequencing (80 to 90 lb-ft initial, progressing to 115 to 120 lb-ft final).
• Timing gear train alignment, crankshaft dirt and liquid deflector positioning, timing cover installation, and crankshaft vibration damper and pulley mounting.
• Piston and connecting rod insertion with staggered ring gaps, rod cap bolt torquing, and end play measurement.
• Cylinder head gasket positioning, head stud torquing sequences, pushrod installation, and rocker arm shaft assembly alignment.
• Dial indicator alignment verification of flywheel housing face runout and rim out-of-round tolerances.
• Mounting turbocharger oil supply and return lines, exhaust elbows, water pump, intake manifolds, dual fuel filters, and military 24V starter and generator brackets.

Dynamometer Testing, Run-In Schedules, and Power Certification

To ensure field reliability after major maintenance, Chapter 6 provides complete test-cell instructions for mounting, plumbing, instrumenting, and running rebuilt multifuel engines on engine dynamometers. Detailed step-by-step break-in matrices cover both long and short run-in schedules tailored to each specific engine model:

• Pre-Starting Verification: Test stand coolant bleeding, fuel priming, pre-lubrication of turbocharger bearings, and safety checklist completion.
• Step-by-Step Load Schedules: Specific engine speed, torque, and time increments spanning low idle, intermediate speeds, rated power checkpoints, and maximum governed rpm for LD-465-1, LD-465-1C, LDT-465-1C, LDS-465-1, LDS-465-1A, and LDS-465-2.
• Intermediate Inspections: Hot shutdown inspections, crankcase pressure checks, external coolant/oil leakage monitoring, and hot valve lash adjustments.
• Full Load Dynamometer Testing: Verifying horsepower ratings, fuel consumption rates, exhaust smoke color, oil temperature stabilization, and manifold boost pressures under rated brake load.
• Preservation and Shipping: Post-test draining, application of MIL-L-2104 preservative lubricants, sealing intake/exhaust openings, and crating engines into reusable shipping containers.

Chapters Covered

• Chapter 4 — Cleaning, Inspection, and Repair
  • Section I — Scope: Equipment Items Covered and Equipment Items Not Covered
  • Section II — General Cleaning, Inspection, and Repair Procedures
  • Section III — Cleaning, Inspection, and Repair of Engine Components and Accessories
  • Crankcase Assembly, Crankshaft, and Camshaft
  • Pistons, Connecting Rods, and Related Parts
  • Crankshaft Rear Oil Seal Housing
  • Air Compressor Support and Engine Front Plate Assembly
  • Tappet Chamber Cover and Fuel Injector Pump Adapter
  • Oil Pump Idler Gear, Coolant Drain Cock, and Oil Pressure Transmitter
  • Oil Gage Rod, Support Bracket, and Oil Pan
  • Oil Pump Assembly, Oil Pump Tubes, and Flow Testing
  • Oil Pressure Regulator Valve Housing Assembly
  • Cylinder Head Assemblies, Valves, Springs, and Guides
  • Valve Rocker Arm Push Rods, Rocker Arms, and Rocker Shafts
  • Cylinder Head Covers, Tachometer Adapter, and Breather Tubes
  • Crankcase Breather Valve Assembly and Air Pressurization Lines (LDS-465-2)
  • Flywheel Housing, Flywheel Assembly, and Ring Gear
  • Oil Filter Body, Oil Cooler, and Filter Housing
  • Fuel Injection Pump Oil Lines, Fuel Filters, and Hoses
  • Hydraulic Pump and Adapter Assembly
  • Fuel Injector Tube Assemblies, Return Tubes, and Injector Nozzles
  • Thermostat Housing, Water Outlet Manifolds, and Water Pump
  • Intake Manifold, Exhaust Manifold, and Turbocharger Lines
  • Air Compressor Assembly, Pulley, Air Cleaner, and Unloader Valve
  • Generator Mounting Bracket, Adjusting Strap, and Pulley
  • Engine Fan, Idler Pulley, and Drive Belts
  • Clutch and Transmission Drive Plates
  • Intake Manifold Flame Heater Systems (Uncovered, Covered, and Side-Mounted)
  • Timing Gear Cover

  IMAGES PREVIEW







• Chapter 5 — Final Assembly
  • Section I — Scope
  • Section II — Assembly of Engine Assembly
  • Mounting Cylinder Block on Overhaul Stand
  • Camshaft Assembly, Rear Bearing Plug, and Piston Cooling Nozzles
  • Crankshaft Assembly, Main Bearings, and Front Plate
  • Crankshaft Gear, Camshaft Gear, and Timing Alignment
  • Rear Oil Seal Housing, Deflector, and Crankshaft Damper Pulley
  • Pistons, Connecting Rods, and Piston Cooling Nozzle Alignment
  • Oil Pump, Tubes, Oil Pan, and Cylinder Heads
  • Lifting Brackets and Transport Stand Mounting
  • Flywheel Housing Runout Checks, Flywheel, and Clutch Installation
  • Valvetrain, Manifolds, Water Pump, and Thermostat Housing
  • Flame Heater Systems, Air Compressor, and Fuel Injection Pump Installation
  • Turbocharger Mounting, Generators, and Starters
• Chapter 6 — Dynamometer Tests and Run-In Procedures
  • Section I — Scope
  • Section II — Run-In, Tests, and Adjustments
  • Mounting Engine on Test Stand and Connecting Dynamometer
  • Flame Heater Component Operational Tests
  • Basic Engine Run-In Schedules (Long and Short Matrices for All Models)
  • Post-Run-In Inspections and Final Run-In Verification
  • Engine Removal, Preservation, and Shipping Container Packaging
• Appendix A — References
• Alphabetical Index

Together, these technical chapters equip machinists, military mechanics, and heavy-vehicle restorers with unambiguous, illustrated step-by-step overhaul operations. Every section reflects rigorous military standards designed to return heavily worn multifuel assemblies to like-new operational performance.

Professional Capability, Factory Precision, and Instant Digital Access

Working on 465-series multifuel military powerplants requires exact adherence to factory specifications. Because these multifuel engines operate at high compression ratios across diverse fuel types (diesel, jet fuel, and gasoline blends), guessing bearing oil clearances, cylinder sleeve heights, or valve seat angles inevitably causes catastrophic failure, blown head gaskets, or premature bearing seizure. The LD-465, LDT-465, LDS-465 Multifuel Diesel Engine Direct & General Support Maintenance Manual TM 9-2815-210-34-2-2 delivers the authentic military engineering tolerances, machine shop schematics, torque sequences, and test cell procedures required to overhaul, rebuild, and dyno-test your engine with complete professional confidence.

Delivered as an instant high-resolution PDF download immediately upon checkout, this comprehensive 972-page technical manual eliminates shipping wait times and physical book damage. Carry the digital manual directly into the shop on your tablet, view crisp exploded diagrams on your desktop workstation, or print clean working sections for use at the tear-down bench.
