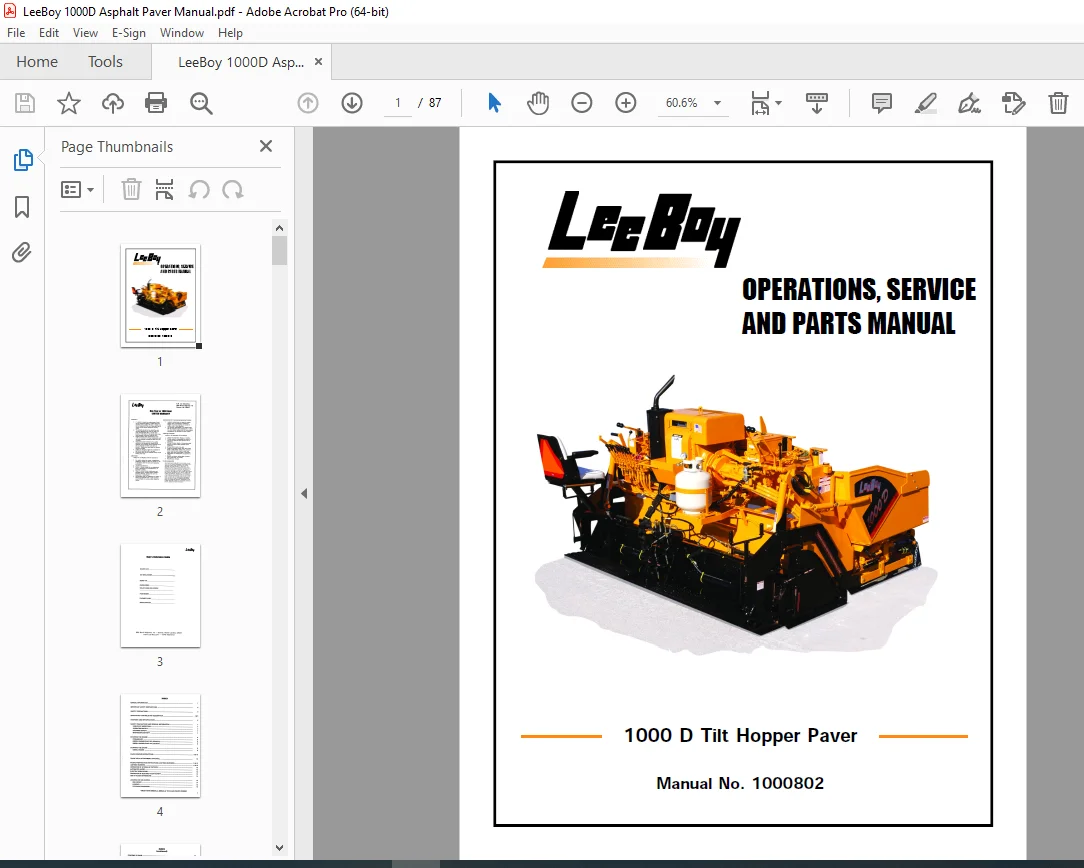

LEEBOY 1000 D Tilt Hopper Paver OPERATIONS, SERVICE & PARTS MANUAL 1000802 PDF DOWNLOAD

Description

LEEBOY 1000 D Tilt Hopper Paver OPERATIONS, SERVICE & PARTS MANUAL 1000802 PDF DOWNLOAD

FILE DETAILS:

LEEBOY 1000 D Tilt Hopper Paver OPERATIONS, SERVICE & PARTS MANUAL 1000802 PDF DOWNLOAD

Language : English
Pages :87
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

LEEBOY 1000 D Tilt Hopper Paver OPERATIONS, SERVICE & PARTS MANUAL 1000802 PDF DOWNLOAD

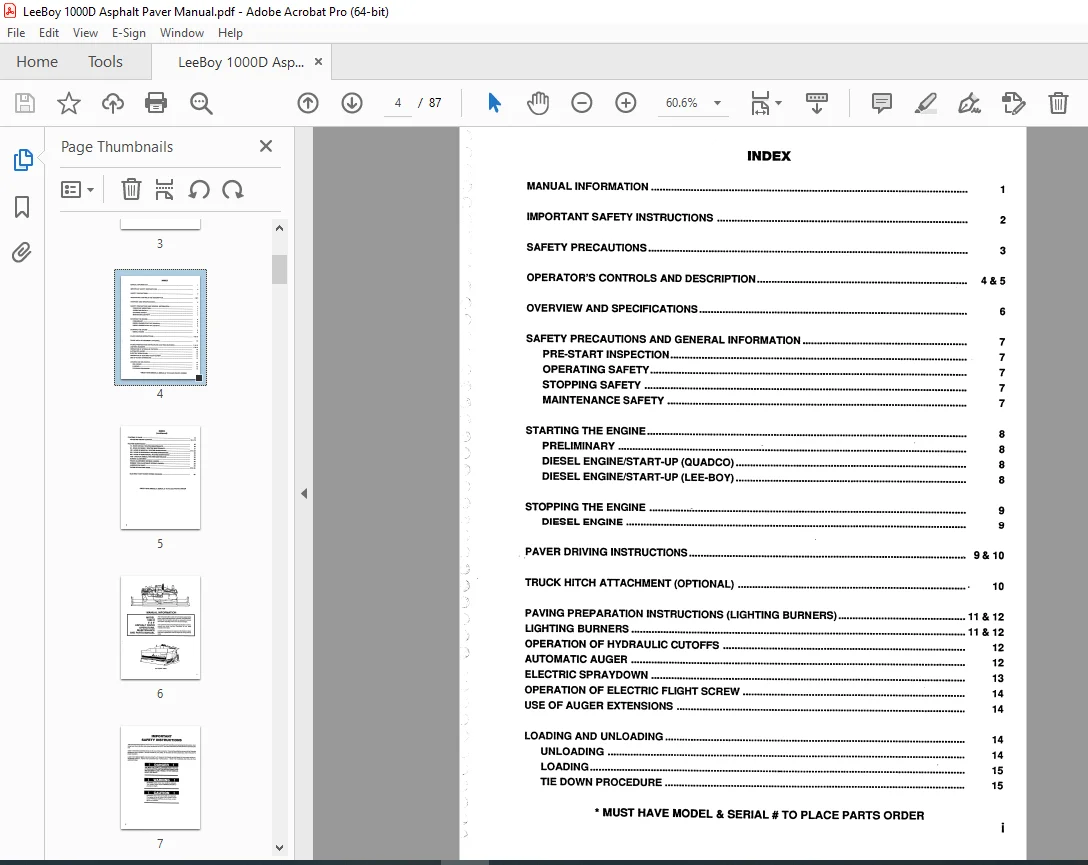

INDEX
MANUAL INFORMATION 1
IMPORTANT SAFETY INSTRUCTIONS 2
SAFETY PRECAUTIONS 3
OPERATOR’S CONTROLS AND DESCRIPTION 4
OVERVIEW AND SPECIFICATIONS 5
SAFETY PRECAUTIONS AND GENERAL INFORMATION 6
PRE-START INSPECTION 7
OPERATING SAFETY 8
MAINTENANCE SAFETY 9
STARTING THE ENGINE 10
PRELIMINARY 11
DIESEL ENGINE/START-UP (QUADCO) 12
DIESEL ENGINE/START-UP (LEE-BOY) 13
STOPPING THE ENGINE 9
DIESEL ENGINE 9
PAVER DRIVING INSTRUCTIONS 9 & 10
TRUCK HITCH A TT A CHM ENT (OPTIONAL) 10
PAVING PREPARATION INSTRUCTIONS (LIGHTING BURNERS) 11 & 12
LIGHTING BURNERS 11 & 12
OPERATION OF HYDRAULIC CUTOFFS 12
AUTOMATIC AUGER 12
ELECTRIC SPRA YDOWN 13
OPERATION OF ELECTRIC FLIGHT SCREW 14
USE OF AU GER EXTENSIONS 14
LOADING AND UNLOADING 14
UNLOADING 14
LOADING 15
TIE DOWN PROCEDURE 15
* MUST HAVE MODEL & SERIAL# TO PLACE PARTS ORDER
INDEX
(continued)
STARTING TO PAVE 16
ADJUSTING CROWN CONTROL 19
ROUTINE MAINTENANCE 20
10 -HOUR OR DAILY ROUTINE MAINTENANCE 20
50 – HOUR OR WEEKLY ROUTINE MAINTENANCE 21
100-HOUR OR MONTHLY ROUTINE MAINTENANCE 21 & 22
250 – HOUR OR QUARTERLY ROUTINE MAINTENANCE 22
500 – HOUR OR SEMI-ANNUAL ROUTINE MAINTENANCE 22
1000 – HOUR OR ANNUAL ROUTINE MAINTENANCE 22
SCREED ADJUSTMENT 22
TRACK ADJUSTMENT (SPRING LOADED) 23
RUBBER TIRE ADJUSTMENT (SPRING LOADED) 23
LUBRICATION CHART 24
TROUBLE SHOOTING GUIDE 25 & 26

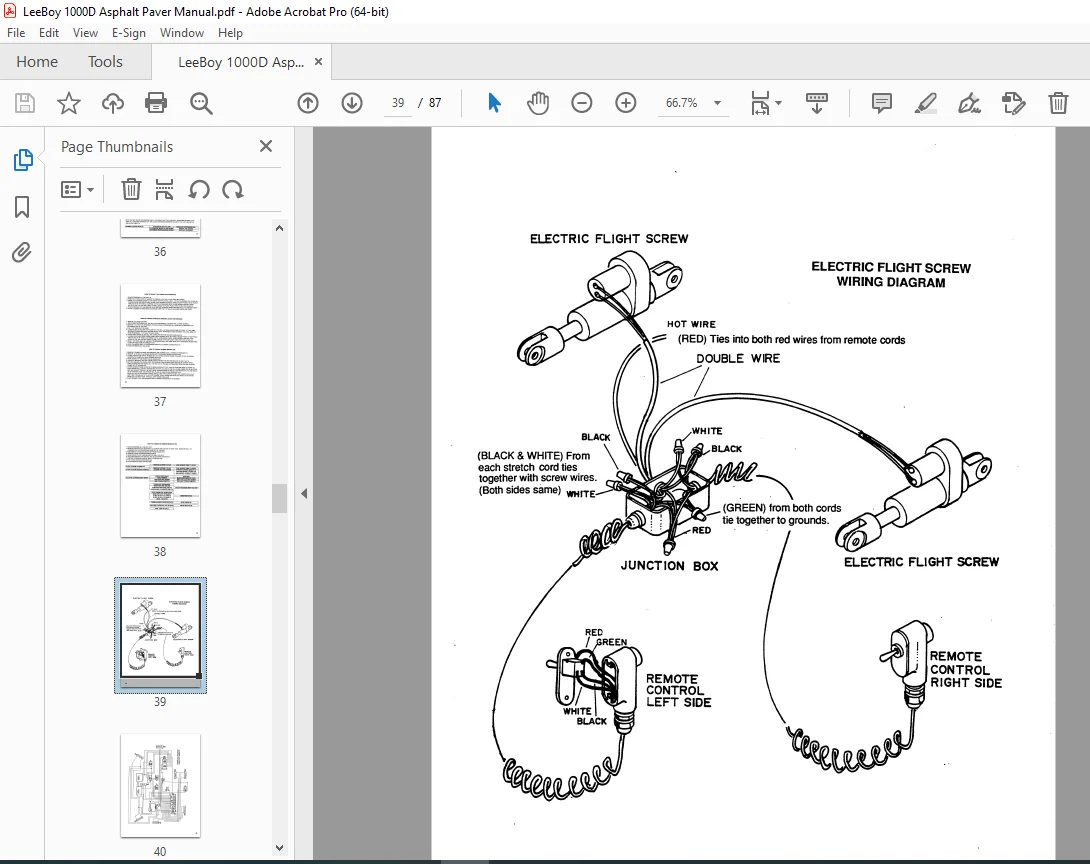

ELECTRIC FLIGHT SCREW WIRING DIAGRAM 29

Questions? Email us: [email protected]

https://vimeo.com/847536987?share=copy

DESCRIPTION:

LEEBOY 1000 D Tilt Hopper Paver OPERATIONS, SERVICE & PARTS MANUAL 1000802 PDF DOWNLOAD

IMPORTANT SAFETY INSTRUCTIONS

• This manual provides important information to familiarize you with safer operating and maintenance procedures. Even though you may be familiar with similar equipment you MUST read and understand this manual before operating this unit.
• Safety is everyone’s business and is one of your primary concerns. Knowing the guidelines covered in the following paragraphs and in Section 1 will help provide for your safety, for the safety of those around you, and for the paver’s proper operation.
• LOOK FOR THESE SYMBOLS WHICH POINT OUT ITEMS OF EXTREME IMPORTANCE.TO YOU AND YOUR COWORKERS SAFETY. READ AND UNDERSTAND THOROUGHLY.
• HEED THE WARNING AND FOLLOW THE INSTRUCTIONS
• ! DANGER ! YOU MUST FOLLOW ALL DANGER SAFETY NOTES. IFYOU DONOTFOLLOWTHE INSTRUCTIONS, YOUR MISTAKE MIGHT UKEL Y RESULT IN VERY SERIOUS INJURY OR DEATH.
• ! WARNING ! WARNING safety notes must ALSO be followed.
• Your mistake might result in.
• SERIOUS INJURY to yourself or others. ! CAUTION ! CAUTION safety notes are ALSO very important.
• They point out to you where your mistakes could cause PHYSICAL HARM to you or others, or damage
