Lg 55lv5500 55lv5500-UA Lcd Tv Service Repair Manual – PDF Download

Description

Lg 55lv5500 55lv5500-UA Lcd Tv Service Repair Manual

FILE DETAILS:

Lg 55lv5500 55lv5500-UA Lcd Tv Service Repair Manual

LANGUAGE:ENGLISH
PAGES:79
DOWNLOADABLE:YES
FILE TYPE:PDF

LG 55LV5500 55LV5500-UA LCD TV SERVICE REPAIR MANUAL – PDF DOWNLOAD:

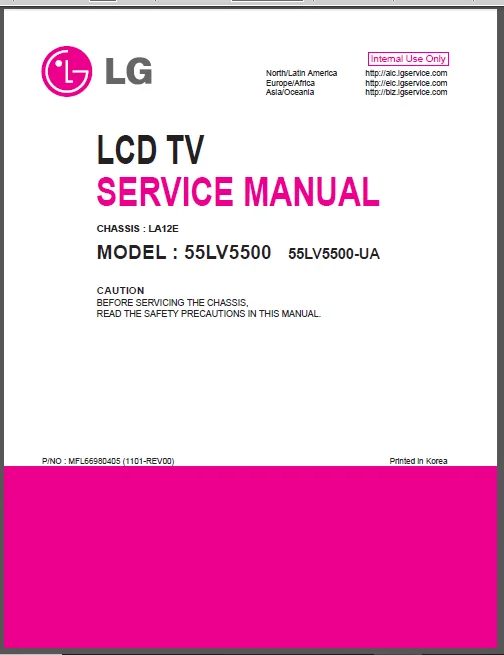

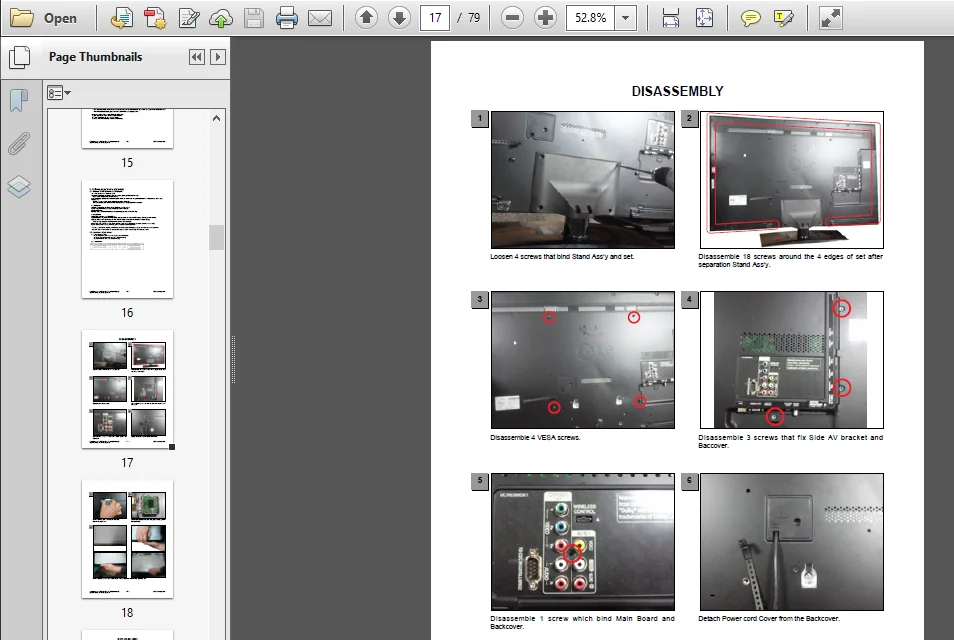

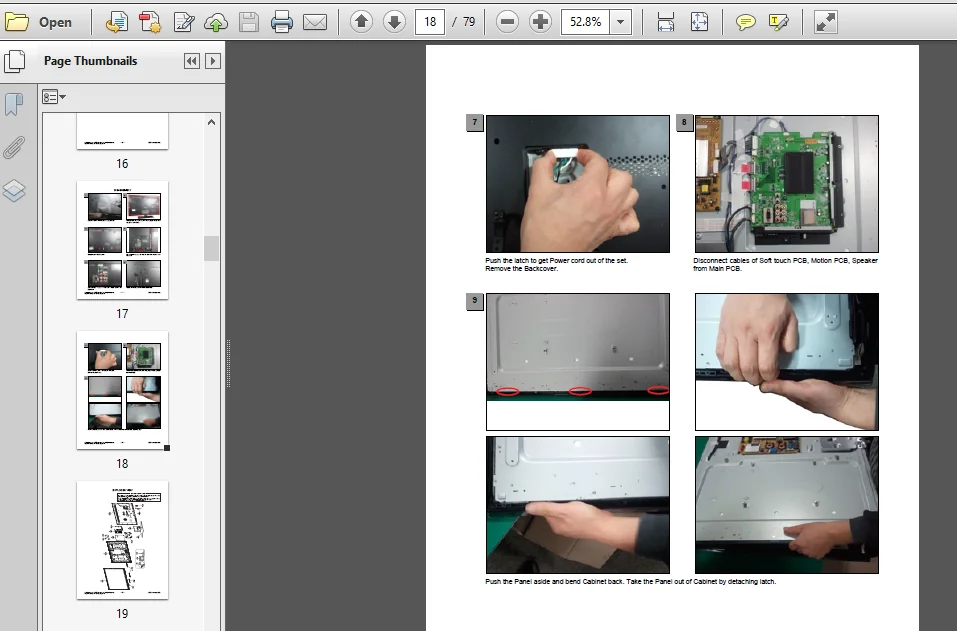

IMAGES PREVIEW OF THE MANUAL:

SAMPLE PAGE FROM THE MANUAL:

Lg 55lv5500 55lv5500-UA Lcd Tv Service Repair Manual
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to theunit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static type solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

TABLE OF CONTENTS:

Lg 55lv5500 55lv5500-UA Lcd Tv Service Repair Manual

CONTENTS
SAFETY PRECAUTIONS
SPECIFICATION
ADJUSTMENT INSTRUCTION
DISASSEMBLY
EXPLODED VIEW
SVC. SHEET

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
