Liebherr CBG 360 36(30)/30(36) LIT Offshore Crane Spare Parts Catalogue – Serial 165407 PDF

Description

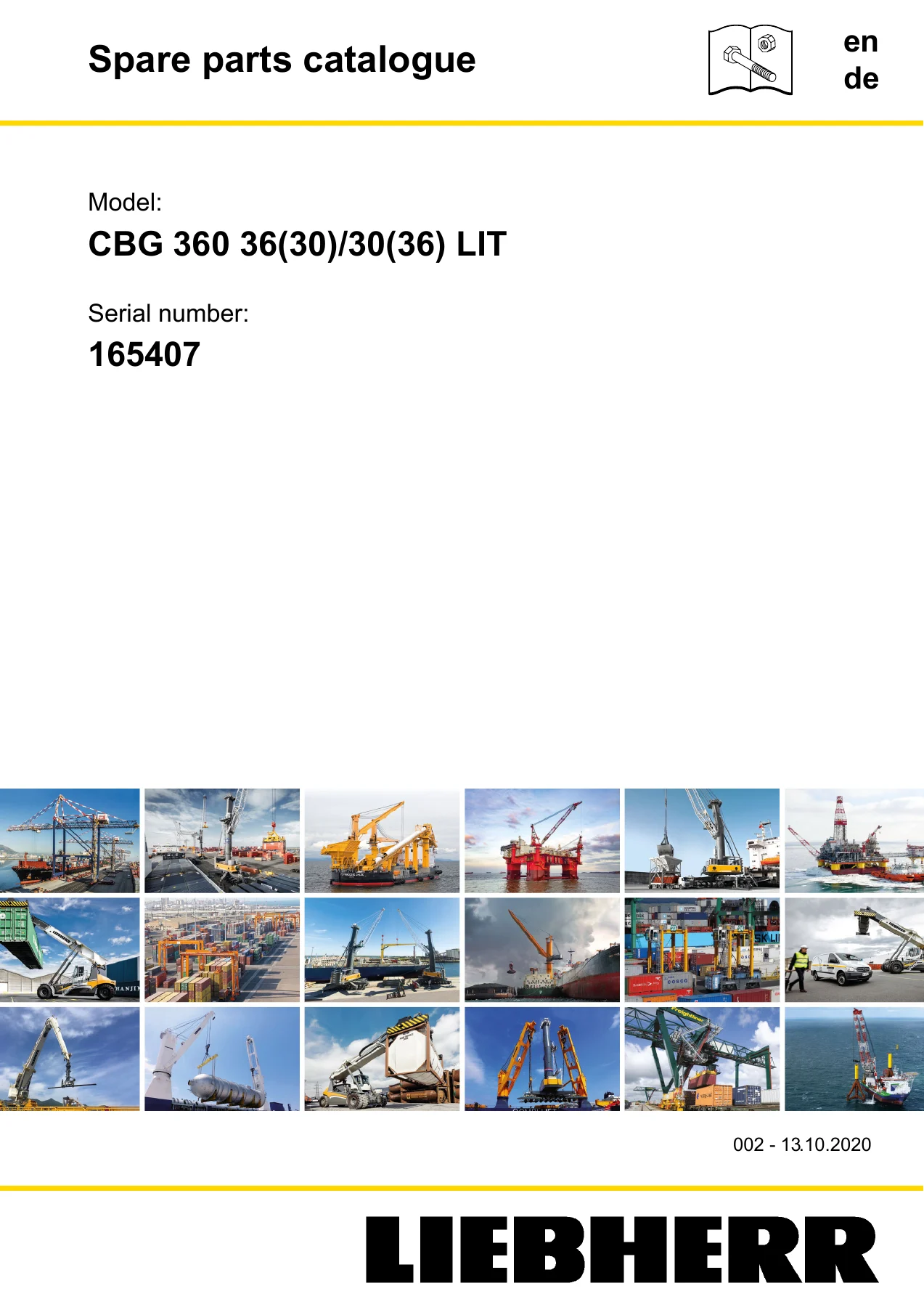

Liebherr CBG 360 36(30)/30(36) LIT Spare Parts Catalogue – Serial 165407

This is the complete illustrated spare parts catalogue issued by Liebherr for the CBG 360 36(30)/30(36) LIT offshore crane, catalogued against machine serial number 165407. Every assembly, component group, hydraulic circuit, hose, electrical module and fastener listed in the document is keyed to the machine’s own serial range, so the part numbers you look up here correspond directly to what was fitted to this crane.

File Details

• Manual type: Spare Parts Catalogue (Ersatzteilkatalog)
• Brand / Manufacturer: Liebherr
• Model: CBG 360 36(30)/30(36) LIT
• Machine serial number: 165407
• Document reference: 165407_ETK_002
• Language: English / German (bilingual column layout)
• File format: PDF
• Page count: Approximately 660 pages
• Printing date shown: 13.10.2020
• Indexes included: Numerical index (Artikel / sheet / assembly / position / quantity) and alphabetical index in both English and German

Chapters Covered

• Modification (Umbau)
• Labelling SWL Arrangement
• Signs / Inscriptions Arrangement / Beschilderung
• BC Top Section CPL
• Lighting BC RFK
• Sump Device (Auffangvorrichtung)
• Slipring Unit Installation
• Lubrication RFK
• BC Add-On (GS Anbau)
• All-Round Platform CPL
• SC CPL – Slewing Column (DRS KPL)
• SC Attachment (DRS Anbau)
• SG Installation
• Clinometer CPL RFK
• Wind Transmitter Installation
• Mounting Aid CPL
• Winch Frame CPL
• Searchlight SC CPL RFK and Warning Light RFK
• Cabin Platform, Cabin Installation, Cabin Customisation EL
• Fire Extinguisher RFK and Air Conditioning Unit CPL RFK
• PA-System CPL RFK
• Transport Means (Transportmittel)
• Drive (Antrieb)
• Switch Cabinet Installation CPL
• Adaptation EL RFK
• Partial Flow Fine Filtering RF
• Uninterruptible Power Supply EL
• Boom CPL (AL KPL)
• Gangway Installation
• Boom Rest St.Const. CPL
• Searchlight Installation Boom
• Mounting Material CPL and Tool CPL
• Assistance System
• Power Management System EL RFK
• Signal Transmission EL RFK
• Clogging Indicator RFK
• Cover Retrofit Kit
• Lug Installation CPL (EZW Einbau)
• Hoisting Gear Assy. CPL
• Winch Cooling RFK
• Ropes (Beseilung)
• Hook Beam CPL
• Main Arm CPL
• Boom Rest CPL and Internal Access CPL
• Control Hardware / Modem RFK / Software
• Hydraulic tubing, hose lists and mounting material
• Slipring Unit Installation and Slipring Unit Pre-Assembly
• Standard Parts Installation and Components

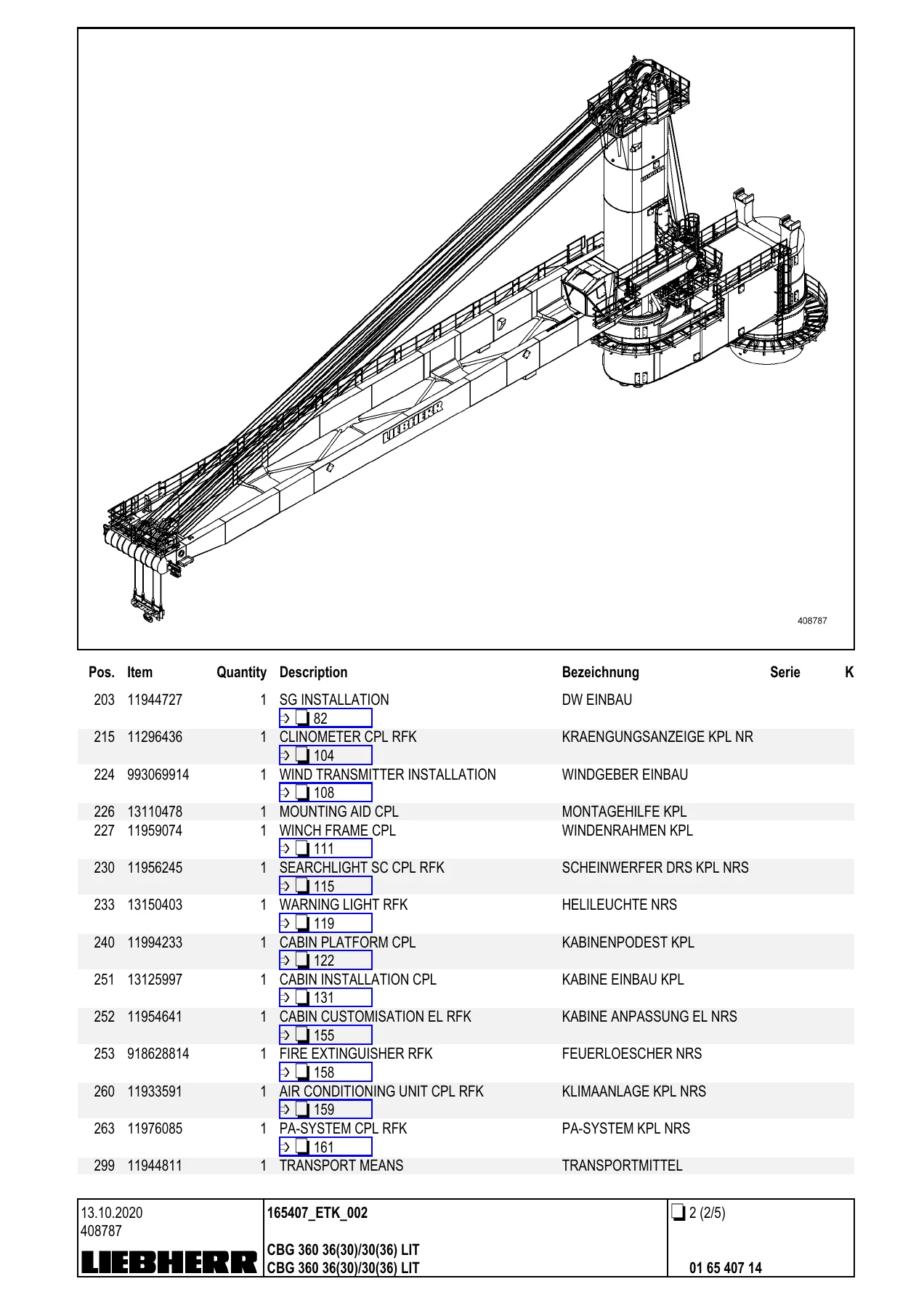

Liebherr organises this CBG 360 catalogue the way a service technician actually works: you start at the assembly listing, identify the assembly, then jump to the corresponding exploded illustration sheet where each position number carries its own part number, quantity, description and serial-series filter. Where an assembly is only valid up to or from a certain machine number, the Serie K column tells you so, preventing wrong-part orders on later builds. Every fastener is itemised too – hex screws, washers, nuts, wedge-lock washers, socket head screws – with ISO/DIN standard references, so you can source locally what Liebherr does not have to supply.

What Makes This CBG 360 Parts Catalogue Practical

Exploded illustrations for every assembly

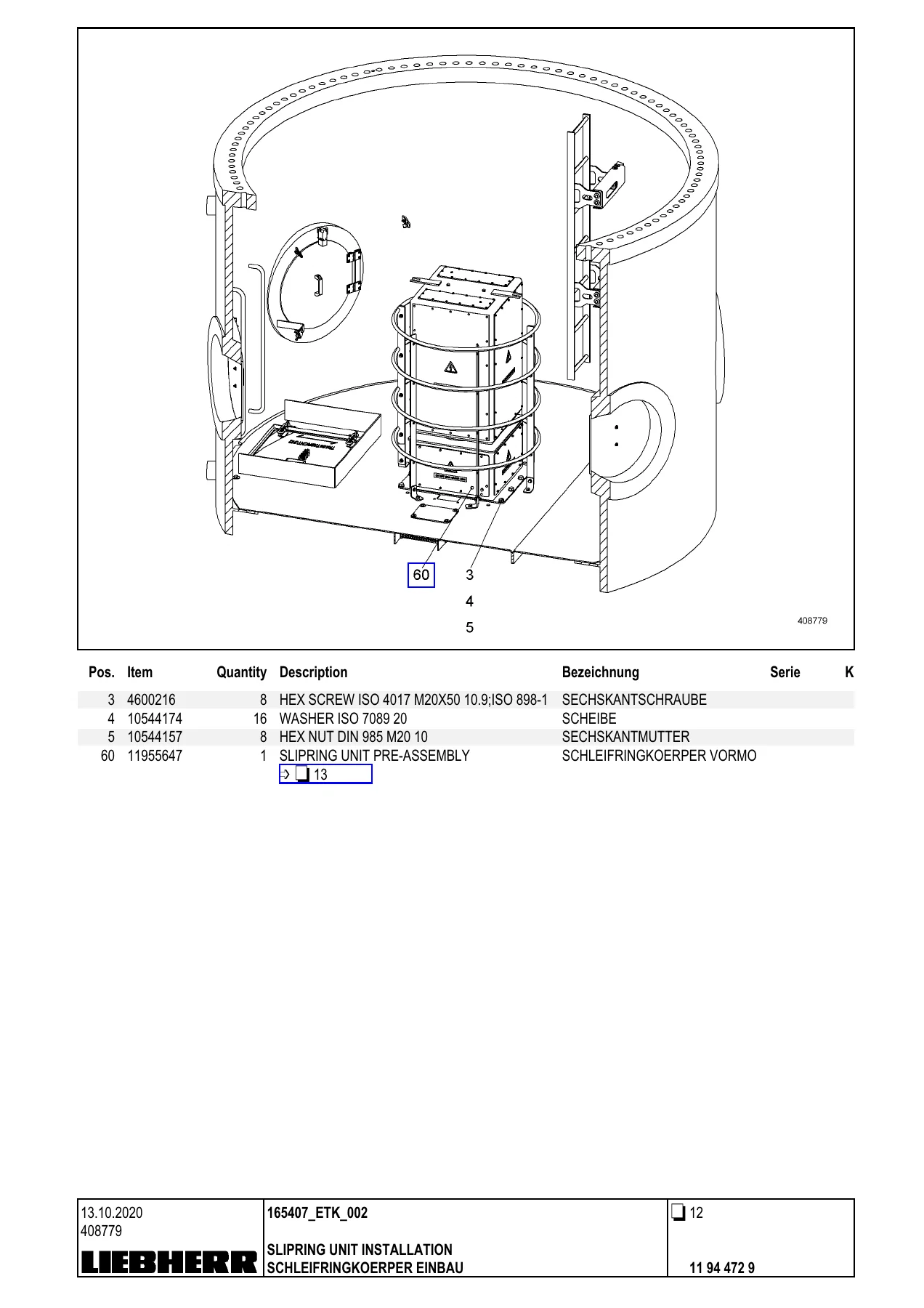

The catalogue opens with three-dimensional crane views and then works its way through the machine in illustrated exploded sheets. The slewing column, boom, main arm, hoisting gear, winch frame, roller blocks, rope guards, hook beam, platforms, railings, ladders, doors and slipring body all get their own illustrated breakdown, so you can see exactly where a position number sits before you order.

Hydraulic and electrical documentation

Beyond the mechanical parts lists, this catalogue carries full hydraulic circuit schematics for the tubing, cooling and lubrication systems, plus hose lists with hose numbers and identification numbers so flex hoses can be ordered correctly. Electrical coverage includes switch cabinet X1 and X2 assemblies, the mounting panels, CAN modules, series terminals, contactors, auxiliary contactors, cable protection switches, LED warning lights, fluorescent light units, wiring lanes, cable ducts and the plug/sleeve contact lists needed to rebuild a loom.

Dual numerical and alphabetical indexes

The last section of the document gives you two ways to reverse-lookup any part. Search by item number and the numerical index sends you straight to the sheet, assembly, position and quantity. Search by part name and the alphabetical index – provided in both English and German – gives you the item number plus every location where it appears. That is what turns a 660-page catalogue into a working tool rather than a shelf ornament.

Serial-number fidelity

Because the catalogue is issued against machine serial 165407 and the Serie K column filters parts by serial range, the part numbers you extract will match this specific CBG 360 36(30)/30(36) LIT build. That removes the guesswork that comes from using a generic crane parts list.

Who This Liebherr CBG 360 Parts Catalogue Is For

It is written for the people responsible for keeping this offshore crane running: crane service engineers, hydraulic technicians, electrical maintenance crews, port and offshore workshop planners, and spare-parts procurement staff who need to raise a purchase order against the correct item number. It is also useful for anyone rebuilding a specific sub-assembly – a winch, a slewing column, a slipring unit, a main arm pivot, a roller block or a hose set – where the exploded view plus the position list is faster than reverse-engineering the assembly on the machine.

Search, Order and Repair with Confidence

With this Liebherr CBG 360 36(30)/30(36) LIT spare parts catalogue for serial 165407 on hand, you can identify a failed component from its position number on an exploded illustration, confirm the quantity and serial-series validity, pull the exact item number, and raise the order without a second trip to the machine. You can also cross-check whether a fastener is a standard ISO/DIN item you already stock or a Liebherr-specific part. Having the correct part number on the first attempt is what keeps offshore cranes out of extended downtime.

IMAGES PREVIEW

Your purchase delivers the complete catalogue as an instant PDF download – no shipping, no waiting. It opens on any laptop, tablet or phone, prints cleanly to A4 or Letter for a workshop binder, and can be kept on the service vessel, in the workshop, or on the technician’s device. Order today and put the correct part numbers for this CBG 360 back in your hands.
