Liebherr D904 D906 D914 D916 D924 D926 Diesel Engine Service Manual – PDF Workshop Repair Guide

Description

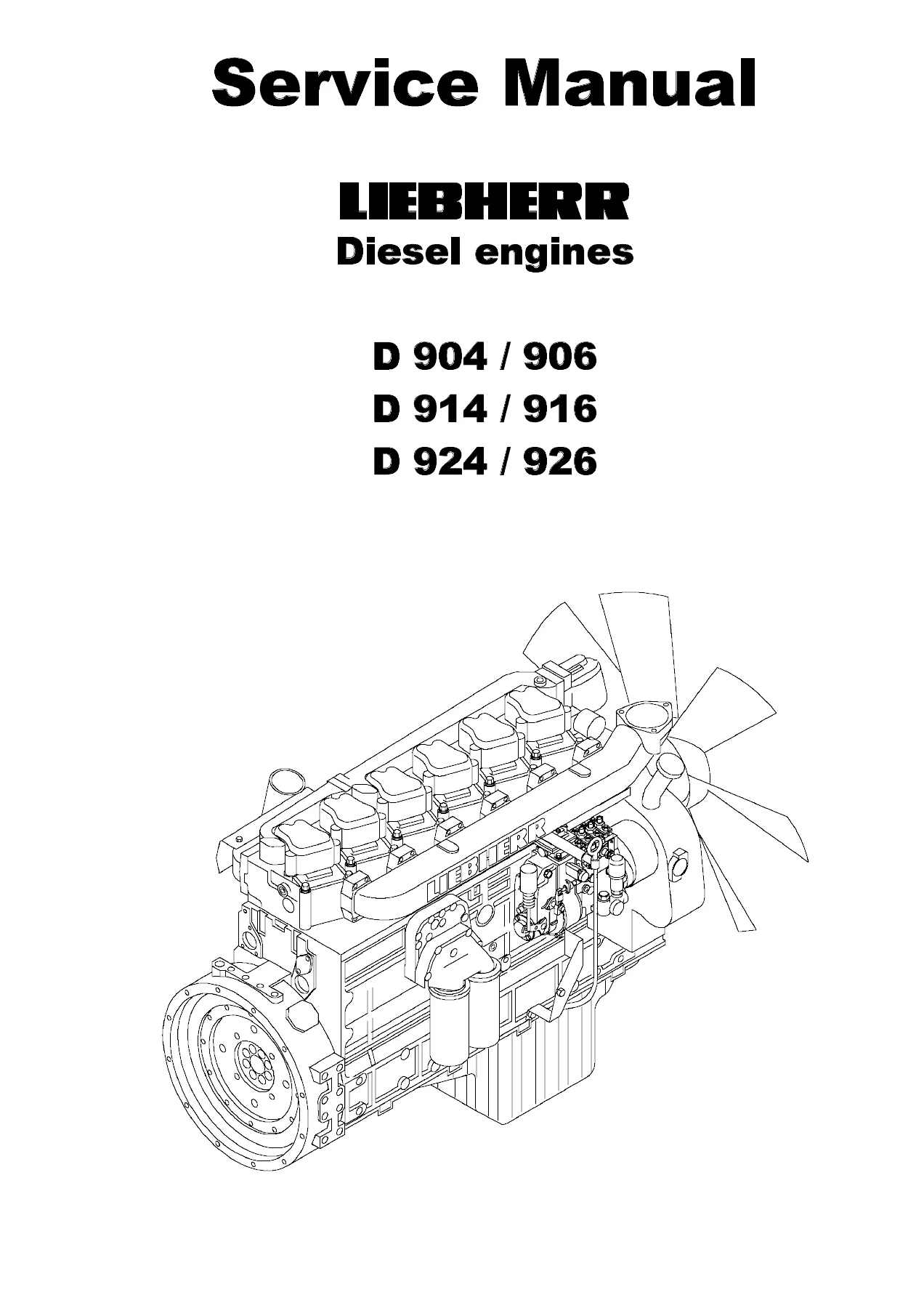

Liebherr D904 D906 D914 D916 D924 D926 Diesel Engine Service Manual

This Liebherr D904 D906 D914 D916 D924 D926 Diesel Engine Service Manual is the comprehensive workshop guide for technicians maintaining and repairing the Liebherr D 904, D 906, D 914, D 916, D 924 and D 926 series water-cooled diesel engines. Published by Liebherr-Machines-Bulle SA, this English-language service manual covers the full range of maintenance, adjustment and repair procedures with technical data and screw tightening torques for these inline 4- and 6-cylinder direct-injection engines.

Whether you are servicing a naturally aspirated D 904 or D 906, a turbocharged D 914 or D 916, or an emission-optimized D 924 T-E or D 926 TI-E, this Liebherr D904 D906 D914 D916 D924 D926 Diesel Engine Service Manual delivers the procedures and specifications needed to carry out the job correctly. Every chapter is written for trained professionals and includes the level of detail required for major overhauls as well as routine adjustments.

File Details

• Manual type: Diesel Engine Service Manual
• Brand: Liebherr
• Models covered: D 904, D 906, D 914, D 916, D 924, D 926
• Engine types: NA, TB, T, TI, T-E, TI-E
• Language: English
• Issue / Edition: 12 / 2003
• Id. No.: 8718458 (English)
• File format: PDF
• Page count: 218 pages

Chapters Covered

The service manual is organised into 40 sections covering every major system and service task:

• Engine illustrations

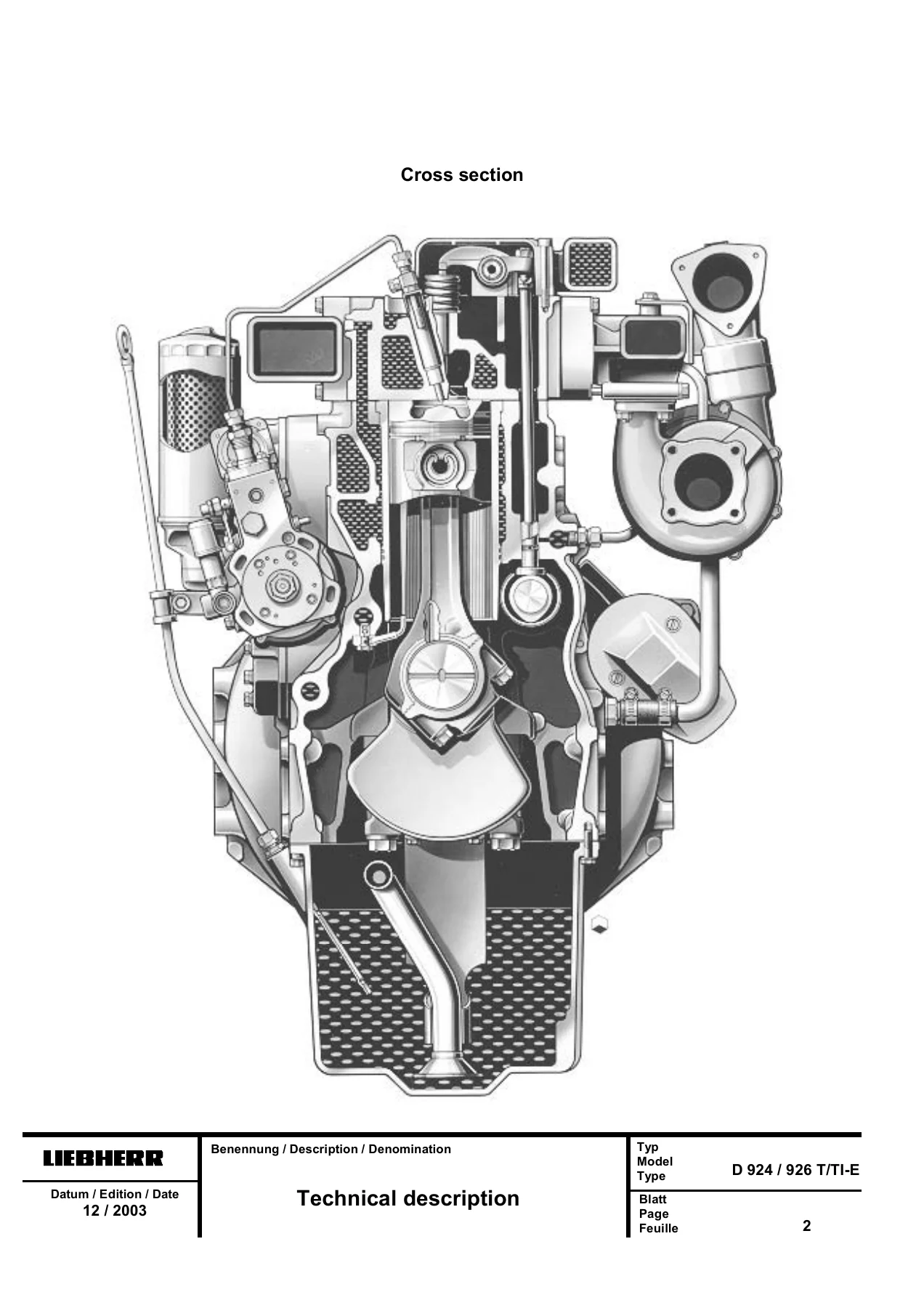

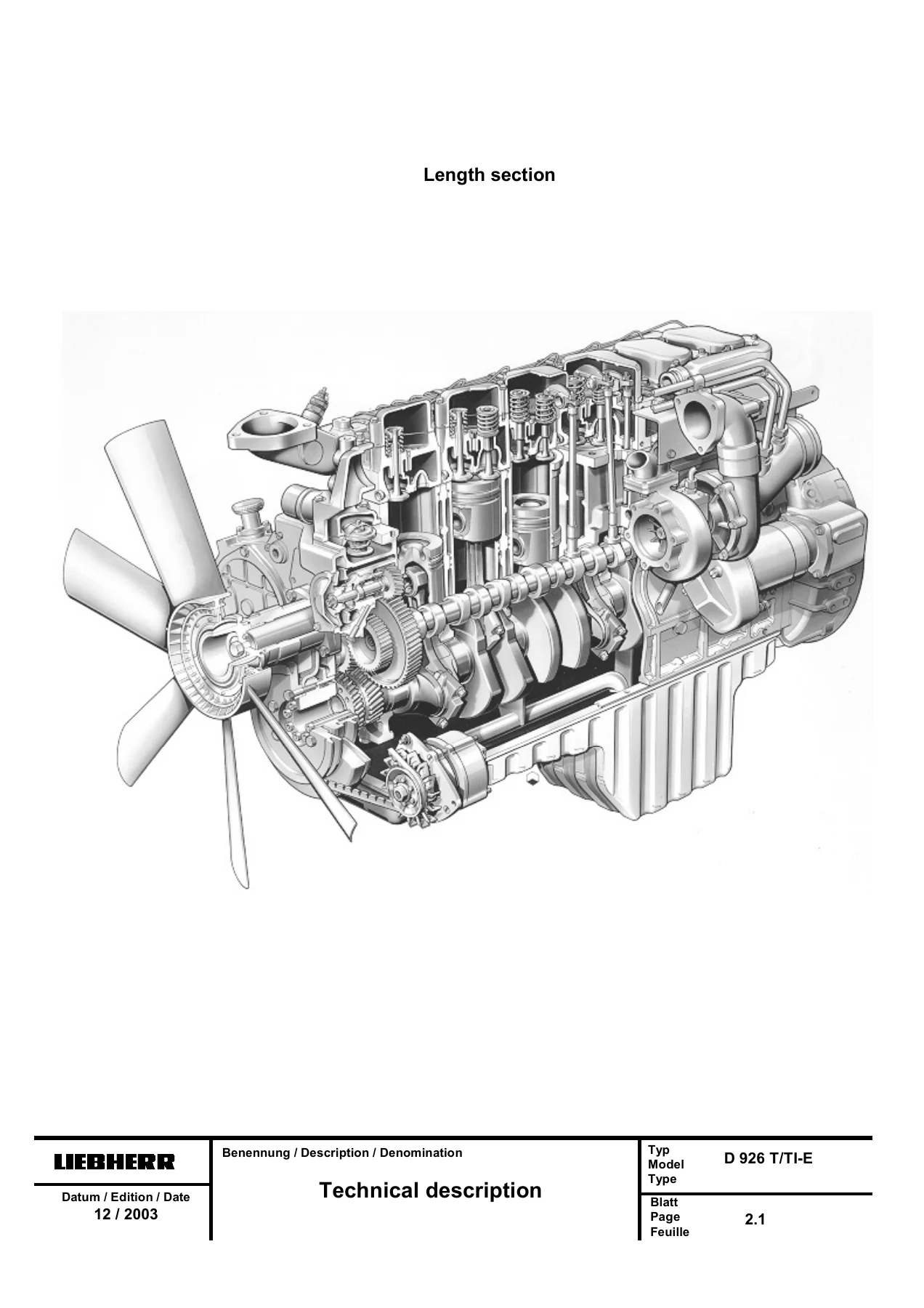

• Technical description
• Engine description, engine data tag, cylinder description, direction of rotation and engine identification number
• Engine data, adjustment values, operating pressures, operating temperatures and fluid quantities
• Torque specifications
• Valve adjustment
• Cylinder head gaskets
• Cylinder head
• Cylinder liner
• Piston and connecting rod
• Check piston clearance
• Crankshaft and bearing
• Camshaft and valve drive
• Lubrication circuit
• Oil pans
• Lube oil pump
• Lube oil filter and oil cooler
• Coolant circuit
• Water filter
• Coolant pump
• Fan drive
• Fuel system
• Fuel pump
• Fuel filter
• Injection pump
• Injection pump drive, adjust begin of delivery
• Fuel injector
• Engine exhaust
• Fan and flywheel side crankshaft seal
• Hydraulic pump auxiliary drive
• Air compressor
• Starter
• Air conditioner compressor and alternator
• Starting aid
• Turbo charger
• Gear drive
• Maintenance and inspection
• Service fluids
• Troubleshooting
• Special tools

This is a factory-issued service manual written specifically for the D 904 through D 926 diesel engine family. It provides the maintenance points, adjustment procedures, repair instructions, technical data and screw tightening torques that technicians need to keep these engines running correctly. The manual includes detailed specifications for compression pressures, injection pressures, lube oil pressures, operating temperatures and fluid capacities across all covered engine variants.

Detailed procedures are given for valve adjustment (including the ZBS engine auxiliary brake system), cylinder head removal and installation with both soft and metallic elastomer gaskets, cylinder liner replacement and protrusion measurement, piston and connecting rod service, crankshaft and bearing inspection, camshaft and valve drive work, and lubrication circuit service. Coolant pump repair is covered across multiple engine number ranges, reflecting the design changes introduced over the production life of these engines. Fuel system chapters cover both in-line and distributor injection pumps, including Bosch A, MW, P and VE pump types, with begin-of-delivery adjustment procedures and the EDC electronic regulation variant.

Additional coverage includes the exhaust turbocharger with axial and radial play measurement data, the flame glow starting aid system, coolant and oil preheating systems, the heating flange, and the various fan drive configurations including gear drive, fan coupling and Visco coupling. The gear drive chapter includes timing marks and gear identification for the timing case and camshaft-driven fan drive arrangements.

Engine Models Covered in Detail

Engine data, adjustment values, operating pressures, temperatures and oil quantities are provided separately for each engine family:

• D 904 / D 906 — bore 115 mm, stroke 135 mm
• D 914 / D 916 — bore 120 mm, stroke 135 mm
• D 924 / D 926 — bore 122 mm, stroke 142 mm
• D 924 T-E / TI-E, D 926 T-E / TI-E — emission-optimized versions with specific adjustment data

Firing orders, compression ratios, nominal RPM ranges, valve play settings, begin-of-delivery values, injection pressures and lubrication pressures are listed for each applicable engine variant.

Torque Specifications and Adjustment Values

A dedicated torque specification chapter lists tightening torques for cylinder head bolts, connecting rod screws, main bearing screws, flywheel screws, timing case screws, crankshaft end screws, camshaft gear screws, injection pump drive components, coolant pump components, fan drive components and exhaust manifold fasteners. Both pretension and final torque values are given where sequential tightening is required. The valve adjustment chapter specifies intake and exhaust valve clearances for cold engines, and the engine data chapters list begin-of-delivery settings in degrees crank angle before top dead center.

Troubleshooting and Service Fluids

The troubleshooting chapter addresses common complaints including hard starting, erratic running, loss of power, black or blue exhaust smoke, abnormal engine knocking, overheating, low lube oil pressure, oil in the cooling system and coolant in the lube oil. Each symptom is paired with possible causes and remedies. The service fluids chapter covers lube oil quality classifications and viscosity selection by ambient temperature, oil change intervals, coolant preparation with corrosion inhibitor and antifreeze, DCA 4 diesel coolant additive concentrations, water filter change intervals, fresh water quality guidelines and approved antifreeze brands. Diesel fuel specifications, cold-weather fuel mixing ratios and approved flow improvers are also included.

Special Tools

A special tools chapter lists the tool descriptions and identification numbers needed for tasks such as compression testing, injector testing, begin-of-delivery adjustment, fuel injector removal, cylinder head and bearing work, piston ring installation, piston clearance measurement, cylinder liner pulling, crankshaft seal installation and V-belt tension testing.

What This Service Manual Enables You to Do

With this Liebherr D904 D906 D914 D916 D924 D926 Diesel Engine Service Manual you can perform scheduled maintenance, diagnose running faults, adjust valves and injection timing, replace cylinder head gaskets and cylinder liners, service pistons and connecting rods, inspect crankshaft and bearings, repair coolant and lube oil pumps, service injection pumps and fuel injectors, overhaul turbochargers, and rebuild the timing gear drive. Correct procedures and accurate specifications are critical on these engines — using the wrong torque, valve clearance, begin-of-delivery setting or cylinder liner protrusion can lead to engine damage, poor performance or premature failure. This manual gives you the figures Liebherr specifies for each variant.

IMAGES PREVIEW

The manual is delivered as an instant PDF download. No shipping, no waiting. Open it on any computer, tablet or smartphone and print the pages you need for the workshop. Keep it on hand for every service job on your D 904, D 906, D 914, D 916, D 924 or D 926 engine.
