Linde E10 E12 E14 E16 E20 E25 Series 1120-01 Spare Parts Catalogue – R10 R12 R14 R16 R20 R25 Electric Forklift Parts Manual PDF

Description

Linde E10, E12, E14, E16, E20 and E25 Spare Parts Catalogue – Series 1120-01

This is the complete Linde spare parts catalogue for the E10, E12, E14, E16, E20 and E25 electric counterbalance forklift trucks, released under series designation 1120-01 with document number 1120 801 00 00 (source 578536603). The same trucks are listed throughout the catalogue under the Linde R-series codes R10, R12, R14, R16, R20 and R25, including the R10N, R12N, R14N, R16N and R20N narrow-chassis variants, the R14G, R16G and R20G G-variant trucks, the R14HD, R16HD and R20HD heavy-duty builds, and the R10B, R12B, R14B and R16B series. Every page is a factory-format parts breakdown, so what you order, what you replace, and what you stock is identified by the same number the Linde parts counter uses.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Linde
• Series: 1120-01
• Document number: 1120 801 00 00
• Source number: 578536603
• Models covered: E10, E12, E14, E16, E20, E25 (also listed as R10, R12, R14, R16, R20, R25 and their N, G, HD, B variants)
• Languages: German, English, French, Italian, Spanish
• Page count: 1,401
• File format: PDF
• Date visible in the catalogue: 28.10.2016

Chapters Covered

• Power Unit: Engine/Motor
• Drive: Transmission
• Chassis Unit
• Steering and Wheels
• Controls
• Electric Equipment
• Hydraulic Unit
• Lift Mast
• Special Equipment
• Miscellaneous

Power Unit: Engine/Motor and Forced Ventilation

The opening chapter of the Linde 1120-01 catalogue is dedicated to the traction motor and its forced-ventilation package, exactly as fitted to the E10 through E25 range. It breaks the motor down into individual serviceable items – housing, armature, laminated stator, grooved ball bearings, shaft seals, snap rings, terminal board, sensor assemblies, plugs, temperature sensors and the transmitter wheel – each on its own line with a quantity and description. Separate exploded drawings cover the standard traction motor and the forced-ventilation standard / DMC variants, plus the support brackets, wire-traction-motor supports, fan assemblies, cooling ducts and the associated socket-head cap screws and washers. For technicians refurbishing a drive motor or chasing a ventilation fault on a truck that has been in service for years, this is where the exact bearing, seal and sensor numbers are recorded.

Drive: Transmission and Gearbox

The drive chapter documents the gearbox assembly and its internal components – housing, bevel wheel set, spur gear, cover assemblies, taper roller bearings, grooved ball bearings, bushings, shims, locking rings, seals and pinion gear. Motor support, motor spacer, spring elements, bearing blocks, clamping piece and traction motor mounting hardware are also listed, along with the brake, steering unit and traction motor coupling points on the drive unit. For any R10 to R25 truck where the transmission is being rebuilt or a noisy bevel set needs replacing, the parts and orientations are all clearly broken out.

Chassis Unit, Upper Chassis and Overhead Guard

The chassis chapter is one of the largest in the catalogue because Linde listed every chassis width and option variant separately. It covers the 1140 mm, 1270 mm, 1470 mm and 1670 mm chassis widths, the plus-options and minus-options builds, R10/R12, R14/R16, R20, R20HD, R25, and the R10N/R12N narrow-truck versions. Pages include the upper chassis assembly, overhead guard assemblies for the standard and options versions, roof panels in polycarbonate and bullet-proof glass, the panelling, covers, brackets, stops, stops with rail bump, bump stops, spring elements, contact springs and the fastening hardware that holds the operator platform together. Wheel guards, side panels, adhesive foils and mounting aids are documented too, so the outer skin of the truck can be rebuilt as accurately as the mechanicals.

Steering and Wheels, Wheels and Tyres, Brakes

This chapter is where the rolling and stopping hardware lives. It includes the steering unit (standard, G-variant and electric steering), electronic module for steering, steering wheel, cover, woodruff key, pinion gear and the steering column fasteners. Drive wheel and tyre pages cover the Vuko 360/296-130 and 360/296-140 solid tyres in 92 Shore D, extra-grip, soft and antistatic (electrically conductive) builds, the wheel screws and the antistatic wiring. Load wheel assemblies are listed for the 285×100 and 350×100 Vulkollan sizes with tapered roller bearings, locking rings and hubcaps. Wheel hub assemblies with their taper roller bearings, slotted nuts, tab washers and seals are documented, and the brake chapter covers the electrical operating brake, the hydraulic operating brake (standard and wide version) and the mechanical operating brake with their brake pipe assemblies, master cylinders, banjo bolts, seal rings and levers. Tyre and wheel pages for the G-variant 18x8x12 1/8, 180/60-10 and 200/50-10 fitments, including non-marking clean variants, are also present.

Controls and Operator’s Console

The controls chapter documents the pedal operation and the operator’s console. Pedal pages cover the bottom plate assemblies for single-pedal and dual-pedal layouts on both 1140 mm and 1270 mm chassis, microswitch, pedal covering, bearings, compression springs, potentiometer, pinion gear and harness assemblies. Console pages cover the armrest assembly, console base cover, gas spring, guide, lever release, safety screen, armrest elbow pad in PVC or fabric, joining plates, wear strips and the full set of socket-head screws and washers. The actuator of pilot valve section lists the various console variants for single-lever or central control lever with or without auxiliary hydraulics and single or dual pedal, plus the joysticks, bellows, handles, horn switch, switch assemblies for auto sideshift centring and auto tilt levelling, ECO switch and adaptor.

Electric Equipment

The electric equipment chapter is extensive because it covers the electric armatures, the central electrical system and controller, the wiring harnesses, the battery accessories and the entire LFM (Linde Forklift Data Management) area. Sections include the central electrical system and controller for the standard and G-variant trucks, the electric and controller for special equipment and for DMC builds, the output module and wiring, the main harness parts 1 and 2, the main harness DMC, the various cable looms, the wiring harnesses for the armrest, for the cold store cab and for the weather protection cab, the flashing beacon / identification light / rotating beacon / working spotlight / Blue Spot harnesses, the danger signal and cable trees, the LFM wiring harnesses, the attachments cold store specification harnesses, the cold store specification harnesses, the lift mast 1500, 1501 and 1502 harnesses, the fastenings harness for the lift mast, the camera system chassis-mounted and fork-mounted harnesses, the camera system lift mast harnesses, the camera system harnesses, the height indicator for 1500, 1501 and 1502, the fan and the data transmission components. Terminal boards, fuses, relays, contactors, electronic modules, sensors, plugs, pin and socket housings, single wire seals and blind plugs are all individually listed.

Hydraulic Unit – Tank, Pumps, Control Valve, Working Hydraulics

The hydraulic unit chapter opens with the hydraulic tank assembly for the 400 A and 600 A power modules, including the oil tank, filter, filter cartridge, breather filter, dipstick and hose lines. Lift pump and motor sections are split into version 1 (14 kW), version 2 (13 kW) and version 3 (14 kW), with full breakdowns of the pump motor, stand, housing, armature, gear, grooved ball bearings, shaft seals, disc springs, terminal board, sensor assemblies and the O-rings and seals. The control valve chapter lists the control valve for Typ 1500, Typ 1501 and Typ 1502 plus DMC variants, with check valves, non-return valves, high-pressure relief valves, throttle valves, solenoid coils, magnet-operated switches and set-of-seals kits. Working hydraulics are documented for the standard mast type 1500 and the triplex mast types 1501 and 1502 (including DMC), with double hose assemblies sized to each specific lift height, hose guides, wear strips, support rollers, junction assemblies, threaded pins, clamps and protective profiles. Tilt cylinders, auxiliary control valves, single and double auxiliary hydraulics for the standard and triplex masts, reach cylinders and the reach cylinder lines are all covered, along with the drive unit and the engine drive unit for DMC trucks.

Lift Mast – Standard, Triplex 1501 and Triplex 1502

The lift mast chapter is the biggest single chapter in the catalogue and is organised by mast type and lift height. It covers the standard mast type 1500, the triplex mast type 1501 and the triplex mast type 1502, with the outer, middle and inner mast assemblies listed for every lift height from the low-end 2930 mm builds up to the 12955 mm HH versions. Leaf chains, chain anchors, chain supports, chain pins, chain rollers, chain connecting links, tensioners, sheet metal holders, support rollers, shim rings, wear strips, guide rails and the entire set of sockets, pins and plates are listed for both the mast chains and the hose routing. Separate sections cover the chain head, leaf chain and fasteners for 1501 and for 1502. Fork carriage pages cover the 1500 standard and triplex carriages and the 1501 and 1502 fork carriage assemblies including the 830 mm and 900 mm breadth versions, cylinder sideshift, tilt cylinder, automatic centring, fork arms and fork extenders in the 800A2, 1250A2 and 1500B2 ranges. Integrated sideshift assemblies for the standard mast type 1500 and for the triplex mast type 1500 are documented with their slide guides, crossmembers, bolts, bushings, locking rings, grooved rings, wiper rings, guide rails, wear strips and joining plates.

Special Equipment and Miscellaneous

The special equipment chapter covers the overhead guard accessories (angles with scanner, supports with panoramic mirror, rear-view mirror, clipboard support, document holder, padholder in A4 portrait and landscape, data terminal plates, handles, protective caps and clamping clips), the load backrest for Typ 1500 and for Typ 1501/1502 in heights from 830 mm through 1800 mm, and the battery stand for two or three batteries with the support assembly, angles, rollers, pipes, rods, grooved ball bearings and locking rings. The miscellaneous chapter collects the plates and labels – nameplates for LMH / Fenwick-Linde, capacity rating plates, Made in Germany labels, warning labels, hook labels, hook-restriction symbols, lift-mast number labels, reverse-steering labels, voltage-supply labels – plus the plates for the joystick and the operating material (spray cans, chain spray, chain spray for cold store, Haftschmierstoff and lithium-base greases for standard and cold store use).

Why This Linde 1120-01 Parts Catalogue Is the Right Reference for Your Truck

Every part line in this catalogue is presented the way Linde’s own parts organisation presents it: the page shows an exploded view with numbered call-outs, and the accompanying table gives the item number, the Linde part number, the quantity per assembly, the description, any replacement part number, and where relevant the remark, validity and truck applicability. That structure matters because the E10 to E25 family covers a lot of ground – short, medium and long chassis, narrow versions, G-variant and HD-variant trucks, cold-store and weather-protection builds, DMC trucks, and lift masts from a little over two metres to almost thirteen metres of lift. Ordering the right part for the exact truck on the shop floor depends on being able to read the applicability column correctly, and this catalogue gives you that column on every page.

Jobs This Linde R10 to R25 Parts Manual Supports

With 1,401 pages of part numbers and exploded views, this spare parts catalogue supports a wide range of work on the E10, E12, E14, E16, E20 and E25 electric trucks. Typical jobs include:

• Rebuilding or resealing a traction motor or pump motor, including bearing, seal and sensor replacement
• Overhauling a gearbox, replacing bevel wheel sets, spur gears, taper roller bearings and locking rings
• Replacing steering unit components, pinion gear, steering wheel and electronic steering module
• Fitting new drive wheels, load wheels, wheel hubs, tyres and antistatic grounding parts
• Servicing the electrical operating brake, the hydraulic operating brake and the mechanical operating brake
• Rebuilding pedal operation, operator’s console, armrest and joystick assemblies
• Replacing wiring harnesses, controllers, output modules, contactors, fuses and relays across the whole electrical system
• Servicing the LFM (Linde Forklift Data Management) system and its wiring
• Refurbishing the hydraulic tank, lift pump, control valve, auxiliary control valve and working hydraulics
• Replacing lift cylinders, reach cylinders, tilt cylinders and the associated seal kits
• Servicing lift masts, leaf chains, chain anchors, hose pulleys, wear strips and guide rails for 1500, 1501 and 1502 masts

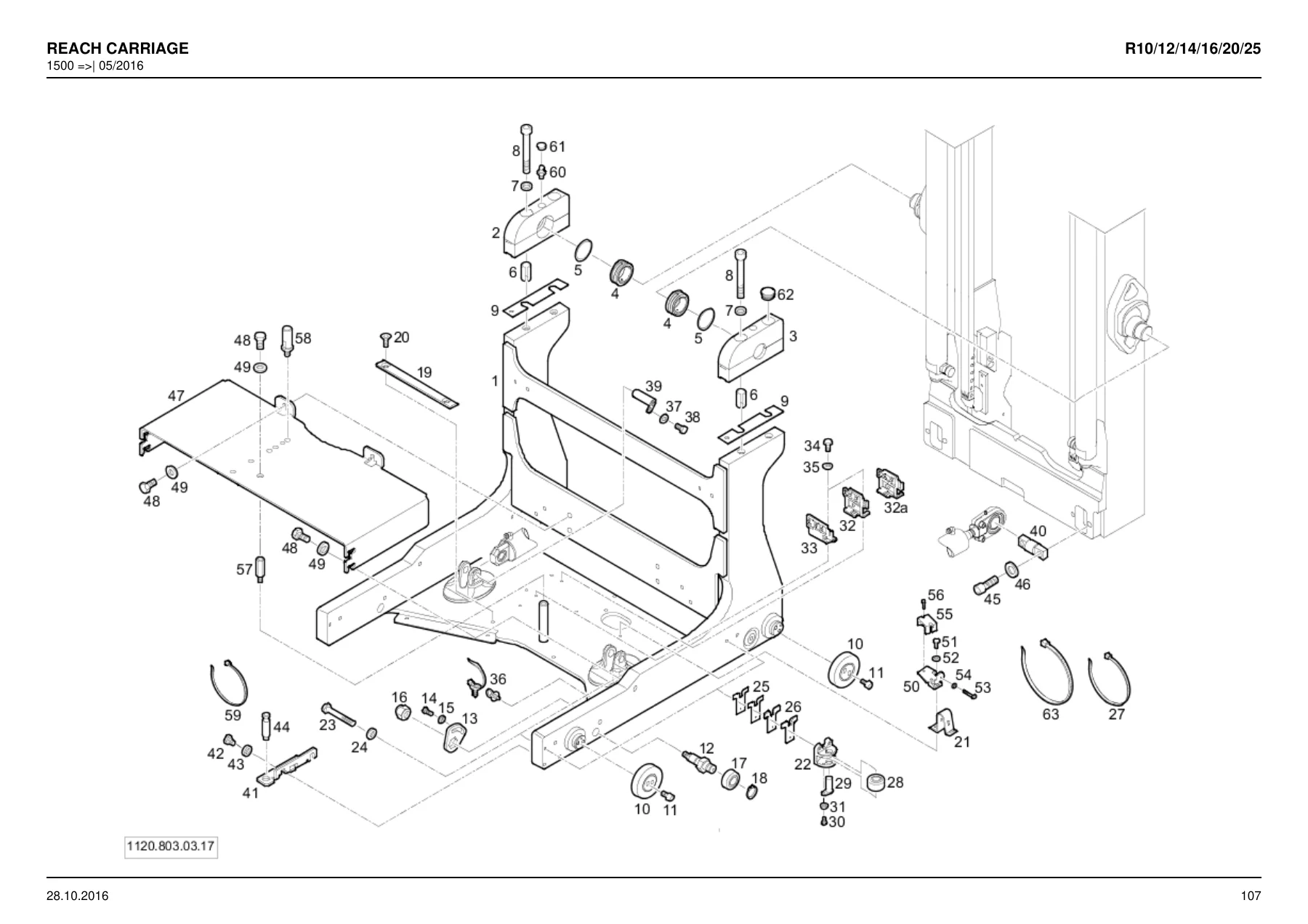

• Rebuilding fork carriages, sideshift, automatic centring, fork arms and fork extenders
• Fitting special equipment such as load backrests, overhead-guard accessories, mirrors, clipboard supports and battery stands
• Identifying and ordering nameplates, capacity plates, warning labels and operating materials

IMAGES PREVIEW

Instant PDF Delivery – No Shipping, No Waiting

This Linde E10 E12 E14 E16 E20 E25 Series 1120-01 spare parts catalogue is delivered as a downloadable PDF the moment your order is confirmed. There is no printed book to ship, no waiting for a courier and no risk of a lost parcel. The file opens on any Windows PC, Mac, tablet or smartphone, and any page can be printed for use at the bench or in the workshop. Whether you are a fleet workshop keeping several R10 to R25 trucks running, an independent forklift engineer servicing Linde electric counterbalance trucks, or a spare-parts buyer matching part numbers to a customer’s VIN or chassis number, having the whole 1120-01 catalogue in one searchable PDF is the fastest way to get the right part number the first time. Download it once and it stays on your device as a permanent reference.
