Linde E50 E60 E70 E80 Series 1279-01 Spare Parts Catalog

The Linde E50 E60 E70 E80 Series 1279-01 Spare Parts Catalog is a complete multilingual parts reference for the Linde electric forklift range covering E50, E60, E70, E80, E80-900 and E80-1100 models. Published under document number 12798010001 and dated 01.02.2016, this 527-page PDF delivers exploded-view illustrations and exact part numbers for every major assembly on these heavy-duty electric counterbalance trucks.

File Details

• Manual Type: Spare Parts Catalog / Parts List
• Brand: Linde Material Handling
• Series: 1279-01
• Models: E50, E60, E70, E80, E80-900, E80-1100
• Document Number: 12798010001
• Date: 01.02.2016
• Languages: German, English, French, Italian, Spanish
• File Format: PDF
• Page Count: 527

Chapters Covered

• Axle Drive Kit AE80-02
• Steering Axle 1604
• Chassis Unit E60/70/80
• Front Console E60/70/80
• Driver’s Cab and Interior
• Driver’s Seat
• Electrical System and Wiring Harnesses
• Lighting and Warning Systems
• Hydraulic Unit
• Control Block VW10-M4
• Cooling System
• Electric Motor
• Tilt Cylinder
• Auxiliary Hydraulics
• Lift Mast Components
• Fork Carriage and Fork Arms
• Load Backrest
• Special Equipment
• Miscellaneous

Axle Drive Kit AE80-02

This opening section covers the complete axle drive assembly for the AE80-02 unit. It includes the traction motor assemblies for both left and right sides, along with the slotted spring pins, socket-head screws, shaft seals, O-rings, service units, screw fittings, cap screws, lubricating nipples, bolts, spherical bearings, locking rings and back-up rings that make up the drive kit. Every part is listed with its Linde part number and quantity required.

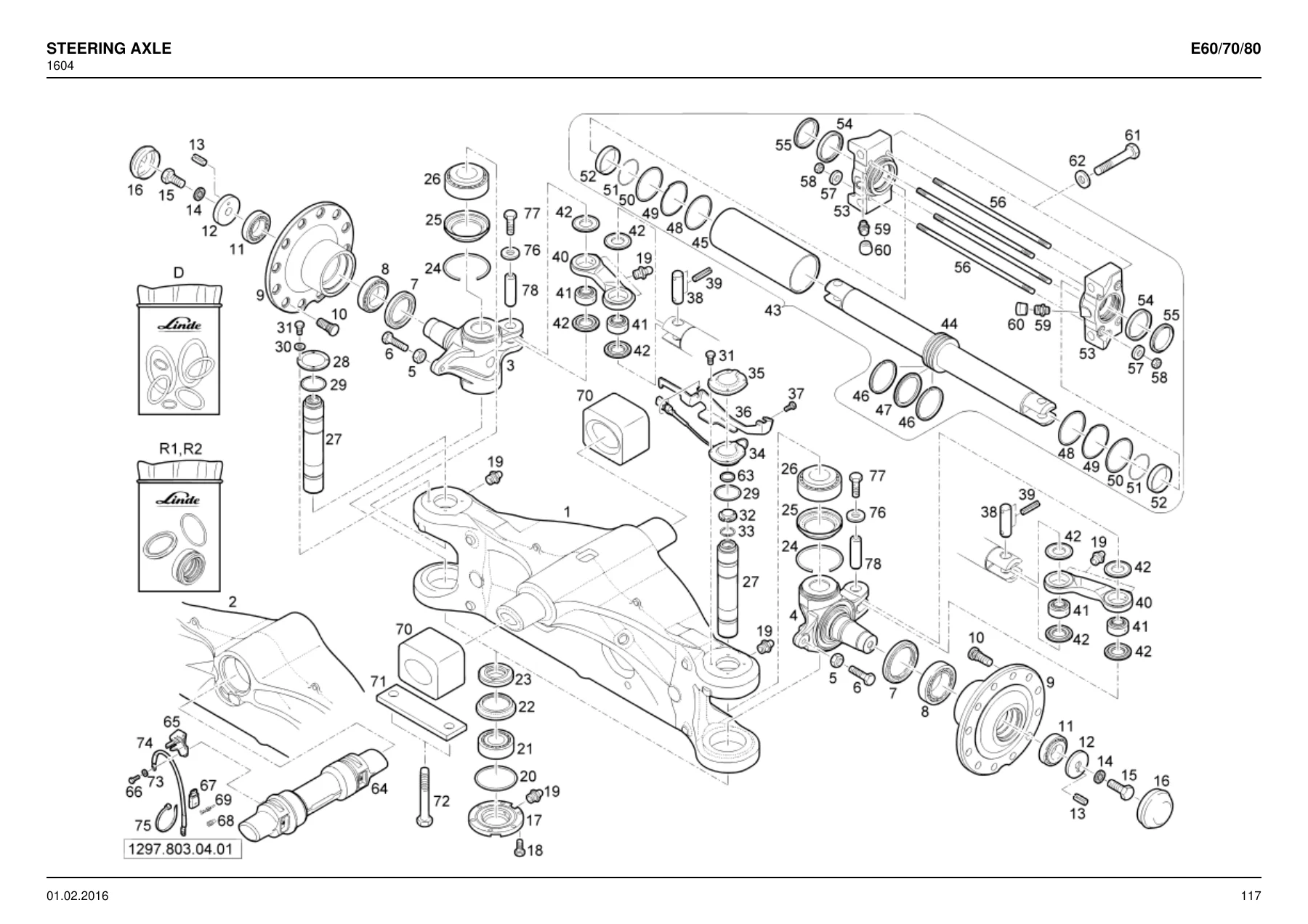

Steering Axle 1604

The steering axle section spans multiple pages and covers the AL80-02 and AL80-02-ALS steering axle variants. It details the axle beam, axle stub, wheel hub assembly, tapered roller bearings, shaft seals, wheel bolts, hexagon nuts, lock washers, hub caps, flanges, lubricating nipples, steering pivot pins, covers, O-rings, washers, hexagon bolts, transmitters, locking rings, sensors, track rod assemblies, tie rods, spherical bearings, seals, cylinder assemblies, piston rods, cylinder pipes, seal rings, support rings, bush guides, guide pieces, grooved rings, wiper rings, threaded rods, pipe unions, quad rings and the sensor assembly with its associated supports, pins, seals and wiring harness. This is the definitive reference for rebuilding or replacing steering axle components on these trucks.

Chassis Unit E60/70/80

This major section covers the chassis and counterweight, overhead guard, battery door, cowlings and covers, covers for the cab, rear panelling, front console and the driver’s seat area including air-suspended and rotating seat mechanisms. It also details the driver’s cab windscreen, roof panes (including safety glass variants), rear window, washer system, rear-view mirror, doors, split doors, heater and radio. The front console section provides parts for the panelling, covers, seals, supports, air distributor, shelf, joining plates, captive nuts and console assemblies. Chassis-related supports, bottom plates, covers, screws, washers, angles, spring elements and edge protections are all catalogued with their specific part numbers.

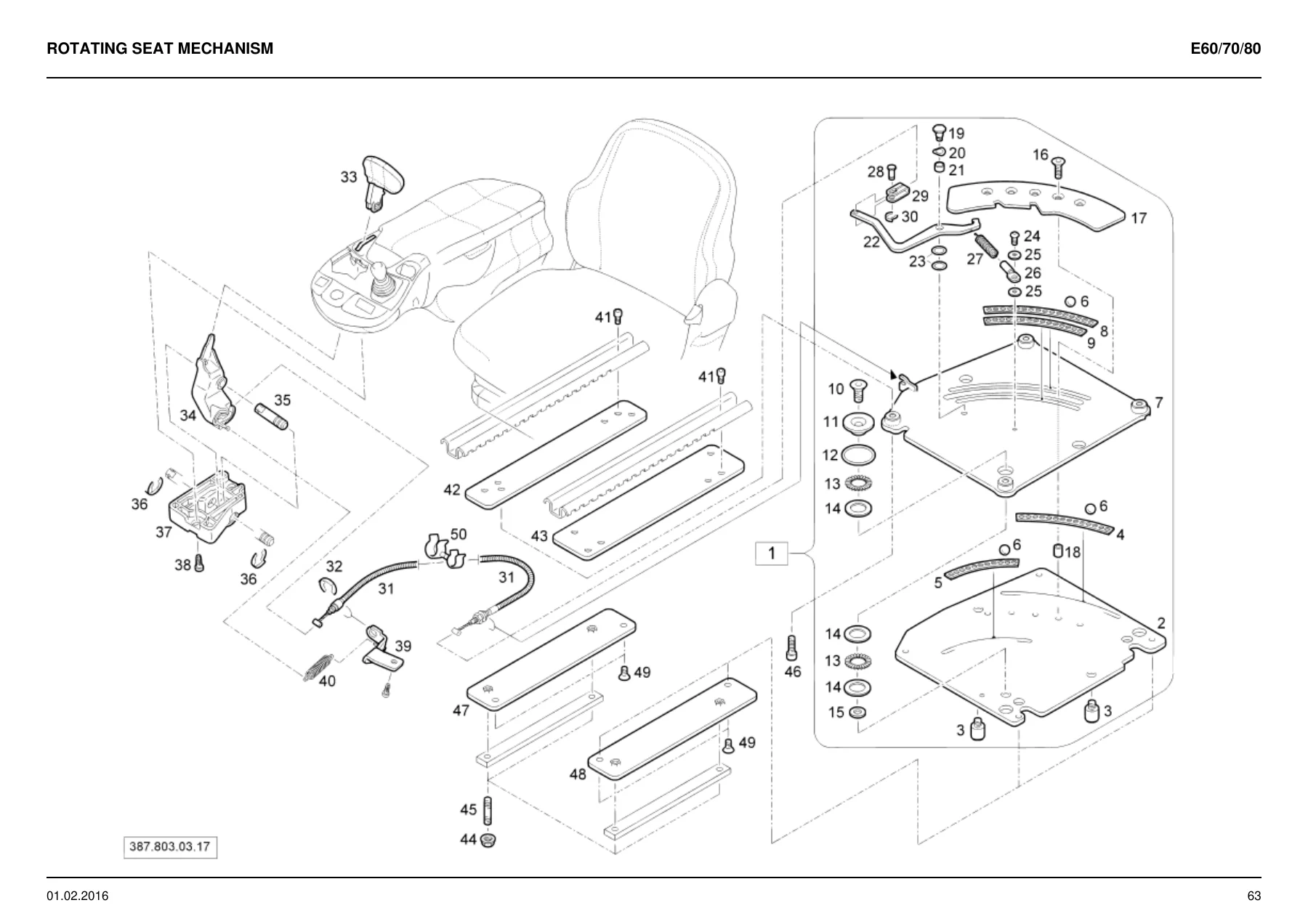

Driver’s Seat and Cab Interior

Dedicated sections list the complete driver’s seat options including Komfort and Superkomfort variants with manual weight adjustment, upholstery choices in fabric and imitation leather, seat heaters, head restraints, supports, compressors and seat belts. The armrest assembly, covering, support assemblies, guide assemblies, rods, angles, tension springs, plates and covers are all individually itemised. Cab interior components such as the windscreen assembly (clear or green glass), profile rubber, spacers, cover sheets, wiper motor, wiper arm, wiper blade, angle, and rear window assembly (clear, green, heatable or heatable/green) with their respective wiper motors, arms and blades are fully documented.

Electrical System and Wiring Harnesses

The electrical section is extensive, covering the main harness with its fuse boxes, blind plugs, single wire seals, contacts, socket housings, cable shoes, faston sleeves, receptacles and insulation sleeves. It also details various cable looms for pressure-less connections, relay circuits, power supply for special attachments, voltage supply, indicator units, steering angle sensors, active ventilation and three-way additional hydraulics. Wiring harnesses for working lamps, lighting, lighting height up, warning functions and windscreen wipers are all broken down with their respective connectors, contacts, seals and housings. Spot lights, truck lighting and warning blinker systems, flash lights, warning lights, danger signals and Blue Spot variants are included with their bulbs, lenses, clamping pieces, supports and angles.

Hydraulic Unit

The hydraulic unit section covers the control valve, accumulator, filter and lines, along with the control block VW10-M4 (BR 1279) for E60 and E70-E80 variants. It includes O-rings, magnet tubus switches, solenoid coils, threaded pins, self-locking nuts, valves, screw plugs, compression springs, balls, valve seats and valve cones. The hydraulic pump, oil tank and lines section details sensors, seal rings, hose lines, hollow screws, banjo bolts, supports, pipe unions, filter assemblies, breather filters, suction filters, gear pumps, washers, socket head screws, hose clips, flanges, screw joints, valves and spring elements. The cooling system section lists supports, angles, water pumps, radiators, temperature sensors, air cooling ducts, sealing profiles, expansion reservoirs, filler caps, axial blowers, covers, side panels, flexible formed hoses, clips and edge protections.

Electric Motor and Tilt Cylinder

The electric motor section covers the lift motor assembly including bearing shields, grooved ball bearings, locking rings, housings, disc springs, threaded pins, wiring harnesses, rotors, transmitters, socket head screws, spring lock washers, hexagon nuts, coach bolts, button head screws, covers, seals, sensors, shaft seals and sealing plugs. The tilt cylinder section details the tilt cylinder assembly, cylinder pipe, hexagon nuts, guide rings, sealing rings, piston assemblies, piston rods, grooved rings, wiper rings, cylinder head assemblies, O-rings, snap rings, rod end bearings, bolts, sheet metal parts, washers, spacer bushes and spherical bearings.

Auxiliary Hydraulics and Lift Mast

Auxiliary hydraulic sections cover hose lines in the vehicle, standard mast type 195, triplex mast version with hose reel type 195, and the bearings for single and double auxiliary hydraulic systems. The lift mast section is comprehensive, covering the standard mast type 195, triplex mast type 195, lift cylinders for standard lift masts, middle cylinders for triplex masts (E60 and E70-E80/E80-900 variants), and external cylinders for triplex lift masts (E60 and E70-E80/E80-900 variants). Fork carriage and fork arms are detailed with support rollers, shim rings, screw plugs, supports, hexagon head bolts, washers, fork arms in various lengths and cross-sections, latch assemblies, levers, slotted spring pins, compression springs, bolts, stops, cylindrical pins and socket head screws.

Special Equipment and Miscellaneous

The special equipment section covers the load backrest in multiple widths, terminal board with supports, covers, lights, union nuts, washers, self-tapping screws, pipes, sealing plugs, clamping pieces and clipboards. Sun blinds include roof and front roll variants with angles, washers and dome nuts. The battery carrier assembly is also listed. Miscellaneous sections cover plates for joystick single lever and cross lever configurations, operating materials such as spray cans, chain spray, lubricating greases and cold store specification lubricants, and the bag for technical documentation.

Why This Linde Parts Catalog Is Essential

Whether you are maintaining a fleet of Linde E50, E60, E70 or E80 electric forklifts, rebuilding a steering axle, replacing a hydraulic pump, or ordering a single seal, this Linde E50 E60 E70 E80 Series 1279-01 spare parts catalog eliminates the guesswork. The exploded-view diagrams let you see exactly how components fit together, while the part number tables give you the precise identifier you need to order the correct replacement. With 527 pages covering every major assembly — from axle drive and steering to hydraulics, electric motor, lift mast, fork carriage and cab interior — this is the most complete parts reference available for these trucks.

Because the catalog is multilingual, with headings and descriptions in German, English, French, Italian and Spanish, it is equally usable across workshops in different regions. The document number 12798010001 and the 01.02.2016 date ensure you are working from a defined, traceable edition that matches the 1279-01 series.
