Linkbelt 130LX – EX Excavator Parts Manual 1015 – PDF DOWNLOAD

Description

Linkbelt 130LX – EX Excavator Parts Manual 1015 – PDF DOWNLOAD

FILE DETAILS:

Linkbelt 130LX – EX Excavator Parts Manual 1015 – PDF DOWNLOAD

Language : English
Pages : 732
Downloadable : Yes
File Type : PDF
Size: 23.2 MB

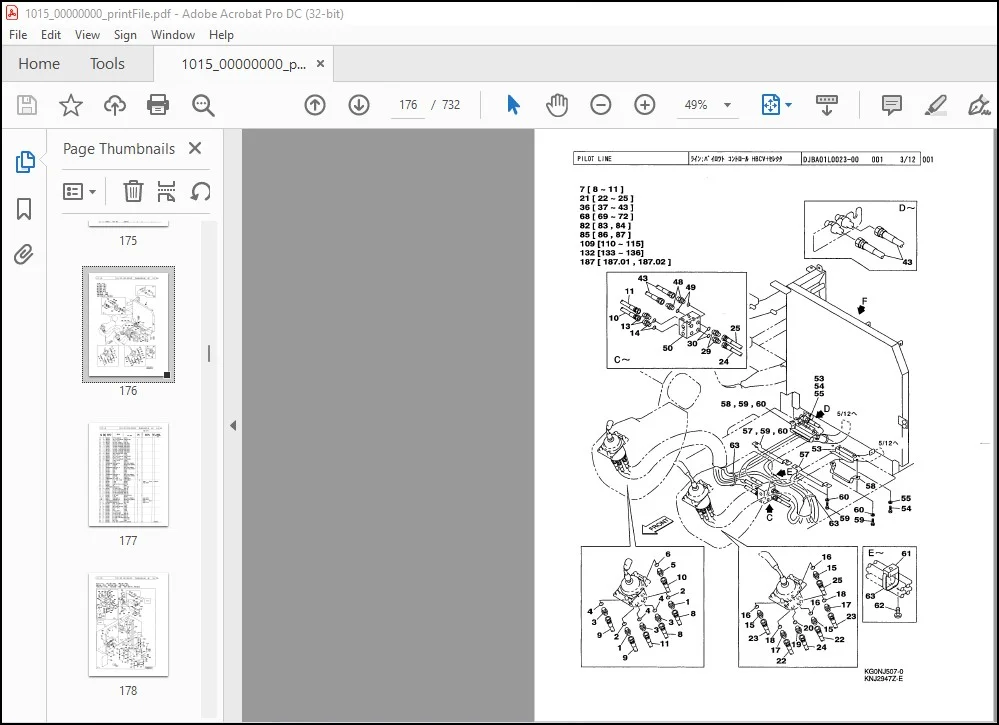

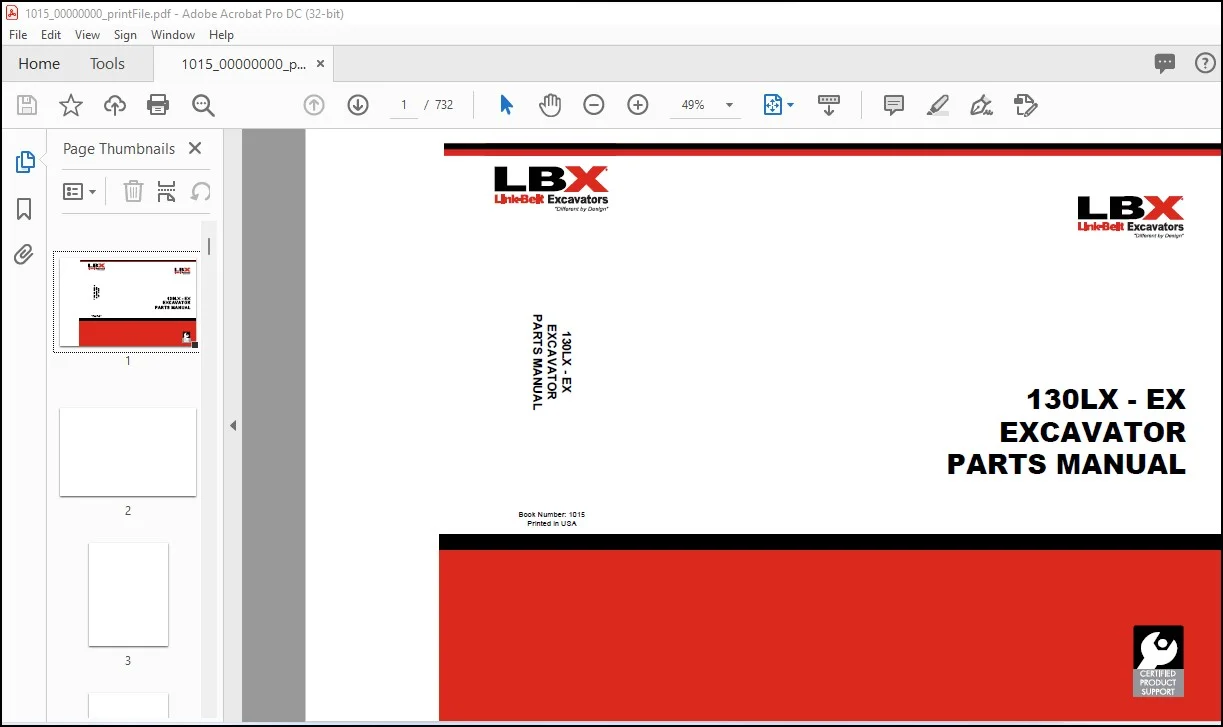

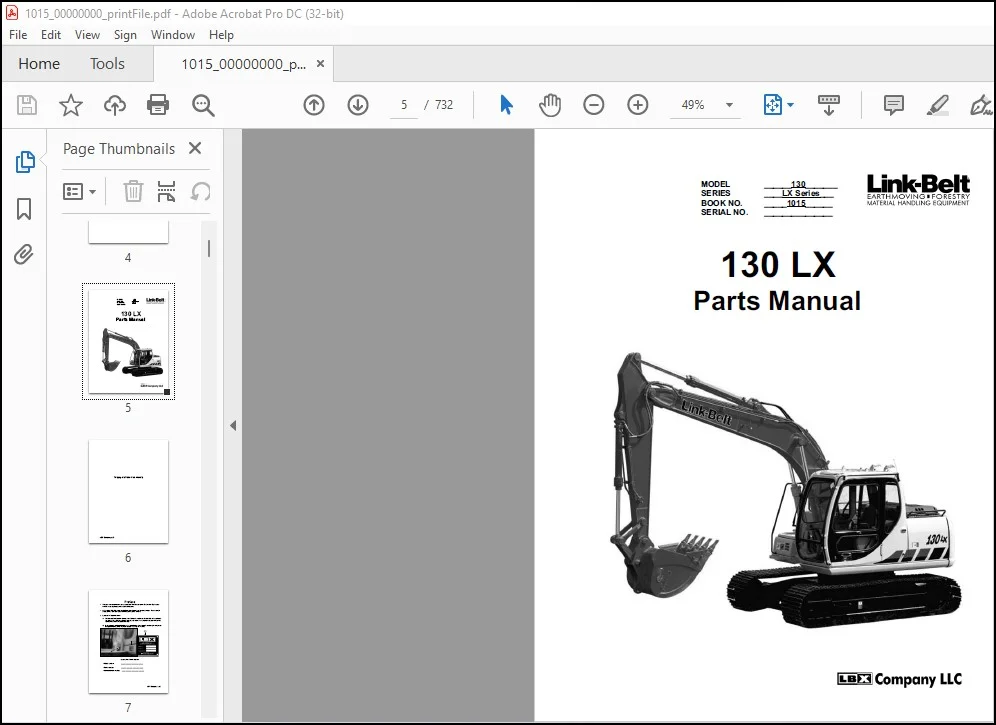

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Linkbelt 130LX – EX Excavator Parts Manual 1015 – PDF DOWNLOAD

LOWERS
GROUSER SHOE 600 DA0207L0005-00 000 130Q3 01102-
GROUSER SHOE 700 DA0209L0006-00 000 OPT 130Q3 01102-
LINK CHAIN SHOE 500 DA0290L0003-00 000 OPT 130Q3 01186-
LINK CHAIN SHOE 500 DA0290L0004-00 000 OPT 130Q3 01102-01185
GROUSER SHOE 500 WITH PAD DA02A4L0001-00 000 OPT 130Q3 01102-
LOWER UNDERCOVER DA0301L0004-00 000 130Q3 01102-
CENTER JOINT DA8901L0007-00 000 130Q3 01102-
RECOIL SPRING DA9401L0007-00 001 130Q3 01102-
TRACTION EQUIPMENT DAA801L0007-00 001 130Q3 01102-
LOWER FRAME DAE901L0018-00 001 130Q3 01102-
TRACTION MOTOR LINE DAK301L0006-00 001 130Q3 01102-
UPPER ROLLER DAN401L0004-00 000 130Q3 01163-
UPPER ROLLER DAN401L0006-00 000 130Q3 01102-01162
TAKE-UP ROLLER DAN701L0007-00 001 130Q3 01102-
LOWER ROLLER DAP201L0006-00 001 130Q3 01102-
SWING FRAMES
COUNTER WEIGHT DB0199L0002-00 001 130Q3 01102-01133
COUNTER WEIGHT DB0199L0027-00 001 130Q3 01134-
UPPER UNDERCOVER DB0201L0014-00 001 130Q3 01102-
TURN TABLE BEARING DB1001L0005-00 002 130Q3 01102-
REVOLVING FRAME DBA201L0045-00 001 130Q3 01102-01162
REVOLVING FRAME DBA201L0053-00 000 130Q3 01163-
REVOLVING SHAFTS & EQUIPMENT
REVOLVING EQUIPMENT DC4501L0015-00 001 130Q3 01102-01177
REVOLVING EQUIPMENT DC4501L0033-00 000 130Q3 01178-
ENGINES
ENGINE (ISUZU) DH0101L0007-00 000 130Q3 01102-01115
ENGINE (ISUZU) DH0101L0017-00 002 130Q3 01116-
MUFFLER (STANDARD) DH0201L0006-00 002 130Q3 01102-
RADIATOR (STANDARD) DH0301L0007-00 002 130Q3 01102-
BATTERY DH0401L0001-00 000 130Q3 01102-
AIR CLEANER (ELEMENT) DH0602L0002-00 001 130Q3 01102-
ENGINE STOP CONTROL DH4201L0002-00 000 130Q3 01102-
FUEL TANK DH8101L0008-00 002 130Q3 01102-
FUEL LINE DHE001L0006-00 001 130Q3 01102-
CONTROL & LINES
DOUBLE ACTING CIRCUIT S/V DJ0205L0002-00 001 OPT 130Q3 01102-
SERVICE VALVE CONTROL DJ5801L0003-00 003 OPT 130Q3 01102-01166
JOYSTICK CONTROL DJ6201L0015-00 001 OPT 130Q3 01167-
JOYSTICK CONTROL DJ6201L0024-00 001 130Q3 01102-
JOYSTICK CONTROL DJ6201L0043-00 000 OPT 130Q3 01167-
DRAIN LINE DJAH01L0008-00 001 130Q3 01102-01162
DRAIN LINE DJAH01L0012-00 000 OPT 130Q3 01102-01162
LBX130-02
Title Parts Page Code OPT Manufacturer’s No
DRAIN LINE DJAH01L0058-00 000 130Q3 01163-
DRAIN LINE DJAH01L0063-00 000 OPT 130Q3 01102-
BUCKET & ARM LINE DJAQ01L0006-00 001 130Q3 01102-
PILOT LINE DJBA01L0020-00 001 OPT 130Q3 01102-
PILOT LINE DJBA01L0021-00 001 130Q3 01102-
PILOT LINE DJBA01L0022-00 001 OPT 130Q3 01102-
PILOT LINE DJBA01L0023-00 001 OPT 130Q3 01102-
PILOT PRESS.& RETURN LINE DJBC01L0022-00 000 130Q3 01102-01162
PILOT PRESS.& RETURN LINE DJBC01L0094-00 000 130Q3 01163-
BOOM LINE DJBV01L0007-00 001 130Q3 01130-
BOOM LINE DJBV01L0011-00 000 130Q3 01102-01129
SUMP TANK DJE701L0010-00 000 130Q3 01102-01162
SUMP TANK DJE701L0024-00 000 130Q3 01163-
RETURN & OIL COOLER LINE DJEE01L0015-00 001 130Q3 01102-
CONTROL VALVE DJG201L0026-00 000 OPT 130Q3 01102-01180
CONTROL VALVE DJG201L0027-00 001 130Q3 01181-
BYPASS FILTER DJGJ01L0006-00 002 130Q3 01102-
FREE SWING LINE DJGX01L0003-00 000 130Q3 01102-
PLUG DJK401L0015-00 000 130Q3 01106-
PLUG DJK401L0016-00 000 OPT 130Q3 01106-
PLUG DJK401L0017-00 000 OPT 130Q3 01106-
PLUG DJK401L0018-00 000 OPT 130Q3 01106-
SINGLE ACTING CIRCUIT DJKX01L0011-00 002 OPT 130Q3 01102-01166
SINGLE ACTING CIRCUIT S/V DJKX01L0035-00 000 OPT 130Q3 01167-
MULTI-PURPOSE-&-3-WAY VALVE DJKZ01L0016-00 001 OPT 130Q3 01102-01166
MULTI-PURPOSE-&-3-WAY VALVE S/V DJKZ01L0046-00 001 OPT 130Q3 01167-
HYDRAULIC PUMP DJL901L0009-00 002 130Q3 01102-01162
HYDRAULIC PUMP DJL901L0037-00 002 130Q3 01163-
FLOOR MAT DJM101L0006-00 001 OPT 130Q3 01167-
FLOOR MAT DJM101L0007-00 001 OPT 130Q3 01102-
PRESSURE LINE DJP801L0006-00 001 130Q3 01102-01162
PRESSURE LINE DJP801L0025-00 001 130Q3 01163-
SUCTION LINE DJW001L0007-00 000 130Q3 01102-01162
SUCTION LINE DJW001L0037-00 000 130Q3 01163-
SWING LINE DJY601L0007-00 002 130Q3 01102-
TRACTION LINE DJY901L0006-00 000 130Q3 01102-
OPERATOR’S CAB & HOUSE
CAB GUARD DN0501L0001-00 000 OPT 130Q3 01102-
CAB FRONT GUARD DN0601L0002-00 001 OPT 130Q3 01102-
CAB FRONT GUARD DN0601L0003-00 000 OPT 130Q3 01102-
COVER DN2001L0001-00 001 OPT 130Q3 01102-
STONE GUARD (FRONT) DN3703L0001-00 002 OPT 130Q3 01102-01162
STONE GUARD (FRONT) DN3703L0002-00 001 OPT 130Q3 01102-01162
OPERATOR’S CAB DN4801L0015-00 000 130Q3 01102-01162
OPERATOR’S CAB DN4801L0044-00 002 130Q3 01163-
REAR STAND DN5501L0001-00 002 130Q3 01102-
HOUSE DN7301L0020-00 001 130Q3 01102-01162
HOUSE DN7301L0116-00 001 130Q3 01163-
CONSOLE BOX DN9901L0008-00 003 130Q3 01102-
DOG CHAIN DNB501L0003-00 000 130Q3 01102-
LBX130-02
Title Parts Page Code OPT Manufacturer’s No
ACCESSORIES & NAME PLATE
PAINTING DP0103L0043-00 002 130Q3 01102-
NAME PLATE (ENGLISH) DP0210L0009-00 001 OPT 130Q3 01102-01166
NAME PLATE (ENGLISH) DP0210L0010-00 000 OPT 130Q3 01167-
NAME PLATE (ENGLISH) DP0210L0015-00 001 OPT 130Q3 01102-
NAME PLATE (ENGLISH) DP0210L0081-00 001 130Q3 01102-
NAME PLATE (LBCE) DP0211L0001-00 000 130Q3 01102-
REAR VIEW MIRROR DP0701L0003-00 130Q3 01102-01166
REAR VIEW MIRROR DP0701L0012-00 001 130Q3 01167-
SPARE PARTS KIT DP5501L0002-00 000 130Q3 01102-
TOOLS DPF001L0003-00 000 130Q3 01102-
ELECTRIC PARTS
AM/FM RADIO HIGH BAND DR0103L0002-00 000 130Q3 01102-
HEATER DR0201L0006-00 001 130Q3 01102-
HEATER DR0201L0007-00 001 130Q3 01102-
AIR CONDITIONER DR0205L0009-00 003 OPT 130Q3 01102-
AIR CONDITIONER DR0205L0010-00 001 OPT 130Q3 01102-
WORKING LIGHT DR1801L0004-00 000 130Q3 01102-01166
WORKING LIGHT DR1801L0009-00 000 130Q3 01167-
WINDOW WASHER DR5001L0005-00 000 130Q3 01102-
CONTROLLER DR9901L0002-00 001 130Q3 01102-01149
CONTROLLER DR9901L0005-00 003 130Q3 01150-
DC-DC CONVERTER DRA801L0001-00 001 OPT 130Q3 01102-01181
DC-DC CONVERTER (12V10A) DRA801L0004-00 000 OPT 130Q3 01182-
DC-DC CONVERTER (12V10A) DRA801L0005-00 000 OPT 130Q3 01182-
SYSTEM MONITOR DRCC01L0005-00 001 130Q3 01102-
ELEC. PARTS & WIRE HARNESS DRJ401L0031-00 003 130Q3 01102-
ELEC. PARTS & WIRE HARNESS DRJ401L0041-00 000 130Q3 01102-01162
ELEC. PARTS & WIRE HARNESS DRJ401L0134-00 001 130Q3 01163-
HORN (ELECTRIC) DRY003L0003-00 000 130Q3 01102-
ATTACHMENTS
ARM (STANDARD) – 8′-2″ (2.5 m) DV0201L0023-00 000 130Q3 01102-
ARM (STANDARD) – 8′-2″ (2.5 m) DV0202L0009-00 000 OPT 130Q3 01102-
ARM (LONG) – 10′-0″ (3.06 m) DV0210L0019-00 001 OPT 130Q3 01102-
ARM (LONG) – 10′-0″ (3.06 m) DV0210L0020-00 001 OPT 130Q3 01102-
BOOM (BACK—HOE) DV0301L0009-00 002 130Q3 01102-
BOOM (BACK—HOE) DV0302L0005-00 002 OPT 130Q3 01102-
BUCKET LINKAGE (STANDARD) DV0401L0011-00 001 130Q3 01102-
BUCKET LINKAGE (BUILD-UP) DV0402L0009-00 001 OPT 130Q3 01102-
OPTION LINE(BAR BASE) – 8′-2″ (2.5 m) DV0601L0003-00 001 OPT 130Q3 01106-
OPTION LINE(BAR BASE) – 10′-0″ (2.5 m) DV0601L0005-00 001 OPT 130Q3 01106-
OPTION LINE(BAR BASE) – THUMB HYD. DV0604L0008-00 000 OPT 130Q3 01106-
ARM CYLINDER LINE – HBCV DV4601L0030-00 000 OPT 130Q3 01114-
ARM CYLINDER LINE DV4601L0034-00 000 130Q3 01102-
ARM CYLINDER LINE DV4601L0036-00 000 OPT 130Q3 01102-
ARM CYLINDER LINE – HBCV DV4601L0038-00 000 OPT 130Q3 01114-
BUCKET CYLINDER LINE – 8′ 2″ (2.5 m) DV5601L0043-00 001 130Q3 01102-
LBX130-02
Title Parts Page Code OPT Manufacturer’s No
BUCKET CYLINDER LINE – 10′ 0″ (3.06 m) DV5601L0044-00 001 OPT 130Q3 01102-
BOOM CYLINDER LINE – HBCV DV6001L0014-00 000 OPT 130Q3 01114-
BOOM CYLINDER LINE DV6001L0016-00 000 130Q3 01102-
LBX130-02
130LX INNER PARTS INDEX
Title Parts Page Code OPT Part No
PUMP;HYD ZAJ010L0005 002 KNJ2742
PUMP;HYD ZAJ010L0016 002 KNJ3021
PUMP;HYD ZAJ010L0048 000 KNJ2900
MOTOR TRAVEL MOTOR & REDUCTION ZAJ121L0002 001 KNA0767
MOTOR ZAJ121L0013 000 KMA1255
MOTOR;SWING ZAJ122L0006 001 KNC0081
MOTOR – SWING ZAJ122L0022 000 KNC0087
CYL;BOOM ZAJ221L0037 001 KNV1615
CYL;BOOM ZAJ221L0038 001 KNV1616
CYL;BOOM ZAJ221L0056 001 KNV1619
CYL;BOOM ZAJ221L0057 001 KNV1620
CYL;ARM ZAJ222L0017 001 KNV1617
CYL;ARM ZAJ222L0030 000 KNV1621
CYL;BUCKET ZAJ223L0018 000 KNV1618
VALVE;CONTROL ZAJ313L0004 001 KNJ2852
VALVE;CONTROL ZAJ313L0009 000 KNJ2832
VALVE;CONTROL ZAJ313L0044 001 KNJ3053
VALVE;SOLENOID ZAJ314L0005 000 KHJ1972
VALVE;REMOTE CONT ZAJ316L0002 001 KRJ5804
VALVE;REMOTE CONT ZAJ316L0003 001 KRJ5864
VALVE;REMOTE CONT ZAJ316L0004 000 KNJ2557
VALVE;CUSHION ZAJ345L0002 001 KHJ1399
VALVE;CUSHION ZAJ345L0015 000 KNJ2902
VALVE;CUSHION ZAJ345L0016 000 KNJ2951
VALVE;HOLDING ZAJ362L0002 000 KHJ1473
VALVE;HOLDING ZAJ362L0003 001 KNV1396
VALVE;HOLDING ZAJ362L0004 001 KNV1397
MANIFOLD ZAJ914L0001 000 KHJ1842
RADIATOR ZAN320L0007 001 KNH0830
MOTOR;SWING 95- 5- 75. 0 001 KNC0058
VALVE;SOLENOID 95- 23- 10. 1 001 KRJ3557
VALVE;SOLENOID 95- 23- 13. 1 001 KHJ0659
VALVE;SELECTOR 95- 27- 6. 0 000 KHJ2184
LBX130-02
130LX Blade Parts Index
Title Parts Page Code OPT Manufacturer’s No
LOWERS
GROUSER SHOE 600 DA0207L0005-00 000 130Q3 01101-
GROUSER SHOE 700 DA0209L0006-00 000 OPT 130Q3 01101-
LINK CHAIN SHOE 500 DA0290L0003-00 000 OPT 130Q3 01189-
LINK CHAIN SHOE 500 DA0290L0004-00 000 OPT 130Q3 01122-01188
GROUSER SHOE 500 WITH PAD DA02A4L0001-00 000 OPT 130Q3 01101-
LOWER UNDERCOVER DA0301L0004-00 000 130Q3 01101-
CENTER JOINT DA8901L0011-00 000 130Q3 01101-
RECOIL SPRING DA9401L0007-00 001 130Q3 01101-
TRACTION EQUIPMENT DAA801L0007-00 001 130Q3 01101-
LOWER FRAME DAE901L0019-00 001 130Q3 01101-
TRACTION MOTOR LINE DAK301L0012-00 001 130Q3 01101-
BLADE LINE DAK901L0003-00 001 130Q3 01101-
UPPER ROLLER DAN401L0004-00 000 130Q3 01163-
UPPER ROLLER DAN401L0006-00 000 130Q3 01101-01162
TAKE-UP ROLLER DAN701L0007-00 001 130Q3 01101-
LOWER ROLLER DAP201L0006-00 001 130Q3 01101-
SWING FRAMES
COUNTER WEIGHT DB0199L0002-00 001 130Q3 01101-01142
COUNTER WEIGHT DB0199L0027-00 001 130Q3 01143-
UPPER UNDERCOVER DB0201L0014-00 001 130Q3 01101-
TURN TABLE BEARING DB1001L0005-00 002 130Q3 01101-
REVOLVING FRAME DBA201L0013-00 000 130Q3 01101-01142
REVOLVING FRAME DBA201L0045-00 001 130Q3 01143-01183
REVOLVING FRAME DBA201L0053-00 000 130Q3 01184-
REVOLVING SHAFTS & EQUIPMENT
REVOLVING EQUIPMENT DC4501L0015-00 001 130Q3 01101-01183
REVOLVING EQUIPMENT DC4501L0033-00 000 130Q3 01184-
ENGINES
ENGINE (ISUZU) DH0101L0007-00 000 130Q3 01101-01121
ENGINE (ISUZU) DH0101L0017-00 002 130Q3 01122-
MUFFLER (STANDARD) DH0201L0006-00 002 130Q3 01101-
RADIATOR (STANDARD) DH0301L0007-00 002 130Q3 01101-
BATTERY DH0401L0001-00 000 130Q3 01101-
AIR CLEANER (ELEMENT) DH0602L0002-00 001 130Q3 01101-
ENGINE STOP CONTROL DH4201L0002-00 000 130Q3 01101-
FUEL TANK DH8101L0008-00 002 130Q3 01101-
FUEL LINE DHE001L0006-00 001 130Q3 01101-
CONTROL & LINES
DOUBLE ACTING CIRCUIT S/V DJ0205L0002-00 001 OPT 130Q3 01122-
SERVICE VALVE CONTROL DJ5801L0003-00 003 OPT 130Q3 01107-01167
JOYSTICK CONTROL DJ6201L0017-00 002 130Q3 01122-
JOYSTICK CONTROL DJ6201L0031-00 001 OPT 130Q3 01122-
JOYSTICK CONTROL DJ6201L0045-00 000 OPT 130Q3 01168-
LBX130BL-02
Title Parts Page Code OPT Manufacturer’s No
BLADE CONTROL DJ9201L0007-00 000 130Q3 01101-
DRAIN LINE DJAH01L0016-00 000 130Q3 01101-01167
DRAIN LINE DJAH01L0017-00 000 OPT 130Q3 01101-01167
DRAIN LINE DJAH01L0064-00 000 130Q3 01168-
DRAIN LINE DJAH01L0065-00 000 OPT 130Q3 01168-
BUCKET & ARM LINE DJAQ01L0006-00 001 130Q3 01101-
PILOT LINE DJBA01L0020-00 001 OPT 130Q3 01101-
PILOT LINE DJBA01L0021-00 001 130Q3 01101-
PILOT LINE DJBA01L0022-00 001 OPT 130Q3 01101-
PILOT LINE DJBA01L0023-00 001 OPT 130Q3 01101-
PILOT PRESS.& RETURN LINE DJBC01L0025-00 000 130Q3 01101-01167
PILOT PRESS.& RETURN LINE DJBC01L0095-00 000 130Q3 01168-
BOOM LINE DJBV01L0007-00 001 130Q3 01133-
BOOM LINE DJBV01L0011-00 000 130Q3 01101-01132
BLADE LINE DJCR01L0006-00 000 130Q3 01101-01167
BLADE LINE DJCR01L0009-00 000 OPT 130Q3 01143-01167
BLADE LINE DJCR01L0012-00 001 130Q3 01168-
BLADE LINE DJCR01L0016-00 000 OPT 130Q3 01168-
SUMP TANK DJE701L0010-00 000 130Q3 01101-01167
SUMP TANK DJE701L0024-00 000 130Q3 01168-
RETURN & OIL COOLER LINE DJEE01L0015-00 001 130Q3 01107-
CONTROL VALVE DJG201L0026-00 000 OPT 130Q3 01101-01183
CONTROL VALVE DJG201L0027-00 001 130Q3 01184-
BYPASS FILTER DJGJ01L0006-00 002 130Q3 01101-
FREE SWING LINE DJGX01L0003-00 000 130Q3 01101-
PLUG DJK401L0001-00 000 130Q3 01101-01106
PLUG DJK401L0002-00 001 OPT 130Q3 01101-01106
PLUG DJK401L0068-00 000 OPT 130Q3 01122-
PLUG DJK401L0069-00 000 130Q3 01107-
PLUG DJK401L0070-00 000 OPT 130Q3 01167-
PLUG DJK401L0071-00 000 OPT 130Q3 01167-
SINGLE ACTING CIRCUIT DJKX01L0008-00 001 OPT 130Q3 01101-01106
SINGLE ACTING CIRCUIT DJKX01L0011-00 002 OPT 130Q3 01107-01167
SINGLE ACTING CIRCUIT S/V DJKX01L0035-00 000 OPT 130Q3 01168-
MULTI-PURPOSE-&-3-WAY VALVE DJKZ01L0013-00 001 OPT 130Q3 01101-01106
MULTI-PURPOSE-&-3-WAY VALVE DJKZ01L0016-00 001 OPT 130Q3 01107-01167
MULTI-PURPOSE-&-3-WAY VALVE S/V DJKZ01L0046-00 001 OPT 130Q3 01168-
HYDRAULIC PUMP DJL901L0013-00 000 130Q3 01101-01167
HYDRAULIC PUMP DJL901L0042-00 001 130Q3 01168-
FLOOR MAT DJM101L0018-00 000 OPT 130Q3 01168-
FLOOR MAT DJM101L0019-00 000 OPT 130Q3 01107-01167
PRESSURE LINE DJP801L0006-00 001 130Q3 01101-01162
PRESSURE LINE DJP801L0025-00 001 130Q3 01163-
SUCTION LINE DJW001L0014-00 000 130Q3 01101-01167
SUCTION LINE DJW001L0044-00 001 130Q3 01168-
SWING LINE DJY601L0007-00 002 130Q3 01101-
TRACTION LINE DJY901L0006-00 000 130Q3 01101-
OPERATOR’S CAB & HOUSE
CAB GUARD DN0501L0001-00 000 OPT 130Q3 01101-
CAB FRONT GUARD DN0601L0002-00 001 OPT 130Q3 01101-
LBX130BL-02
Title Parts Page Code OPT Manufacturer’s No
CAB FRONT GUARD DN0601L0003-00 000 OPT 130Q3 01101-
COVER DN2001L0001-00 001 OPT 130Q3 01101-
STONE GUARD (FRONT) DN3703L0001-00 002 OPT 130Q3 01101-01167
STONE GUARD (FRONT) DN3703L0002-00 001 OPT 130Q3 01101-01167
OPERATOR’S CAB DN4801L0015-00 000 130Q3 01101-01167
OPERATOR’S CAB DN4801L0044-00 002 130Q3 01168-
REAR STAND DN5501L0001-00 002 130Q3 01101-
HOUSE DN7301L0022-00 000 130Q3 01101-01167
HOUSE DN7301L0117-00 000 130Q3 01168-
CONSOLE BOX DN9901L0008-00 003 130Q3 01101-
DOG CHAIN DNB501L0003-00 000 130Q3 01101-
ACCESSORIES & NAME PLATE
PAINTING DP0103L0046-00 002 130Q3 01101-
NAME PLATE (ENGLISH) DP0210L0012-00 000 130Q3 01101-
NAME PLATE (ENGLISH) DP0210L0013-00 000 OPT 130Q3 01101-01167
NAME PLATE (ENGLISH) DP0210L0014-00 001 130Q3 01101-
NAME PLATE (ENGLISH) DP0210L0015-00 001 OPT 130Q3 01101-
NAME PLATE (ENGLISH) DP0210L0081-00 000 130Q3 01101-
REAR VIEW MIRROR DP0701L0003-00 001 130Q3 01101-01167
REAR VIEW MIRROR DP0701L0012-00 001 130Q3 01168-
SPARE PARTS KIT DP5501L0002-00 000 130Q3 01101-
TOOLS DPF001L0003-00 000 130Q3 01101-
ELECTRIC PARTS
AM/FM RADIO HIGH BAND DR0103L0002-00 000 130Q3 01101-
HEATER DR0201L0006-00 001 130Q3 01101-
HEATER DR0201L0007-00 001 130Q3 01101-
AIR CONDITIONER DR0205L0009-00 003 OPT 130Q3 01101-
AIR CONDITIONER DR0205L0010-00 001 OPT 130Q3 01101-
WORKING LIGHT DR1801L0004-00 000 130Q3 01101-01167
WORKING LIGHT DR1801L0009-00 000 130Q3 01168-
WINDOW WASHER DR5001L0005-00 000 130Q3 01101-
CONTROLLER DR9901L0002-00 001 130Q3 01101-01167
CONTROLLER DR9901L0005-00 003 130Q3 01168-
DC-DC CONVERTER DRA801L0001-00 001 OPT 130Q3 01101-01183
DC-DC CONVERTER (12V10A) DRA801L0004-00 000 OPT 130Q3 01184-
DC-DC CONVERTER (12V10A) DRA801L0005-00 000 OPT 130Q3 01184-
SYSTEM MONITOR DRCC01L0005-00 001 130Q3 01101-
ELEC. PARTS & WIRE HARNESS DRJ401L0031-00 003 130Q3 01101-
ELEC. PARTS & WIRE HARNESS DRJ401L0041-00 000 130Q3 01101-01162
ELEC. PARTS & WIRE HARNESS DRJ401L0134-00 001 130Q3 01163-
HORN (ELECTRIC) DRY003L0003-00 000 130Q3 01101-
ATTACHMENTS
ARM (STANDARD) – 8′ 2″ (2.5 m) DV0201L0023-00 000 130Q3 01101-
ARM (STANDARD) – 8′ 2″ (2.5 m) DV0202L0009-00 000 OPT 130Q3 01101-
ARM (LONG) – 10′ 0″ (3.06 m) DV0210L0019-00 001 OPT 130Q3 01101-
ARM (LONG) – 10′ 0″ (3.06 m) DV0210L0020-00 001 OPT 130Q3 01101-
BOOM (BACK—HOE) DV0301L0009-00 002 130Q3 01101-
BOOM (BACK—HOE) DV0302L0005-00 002 OPT 130Q3 01101-
LBX130BL-02
Title Parts Page Code OPT Manufacturer’s No
BUCKET LINKAGE (STANDARD) DV0401L0011-00 001 130Q3 01101-
BUCKET LINKAGE (BUILD-UP) DV0402L0009-00 001 OPT 130Q3 01101-
OPTION LINE(BAR BASE) – 8′-2″ (2.5 m) DV0601L0003-00 001 OPT 130Q3 01107-
OPTION LINE(BAR BASE) – 10′-0″ (2.5 m) DV0601L0005-00 001 OPT 130Q3 01107-
OPTION LINE(BAR BASE) – 8′-2″ (2.5 m) DV0601L0021-00 000 OPT 130Q3 01101-01106
OPTION LINE(BAR BASE) – 10′-0″ (2.5 m) DV0601L0022-00 000 OPT 130Q3 01101-01106
BLADE DV4201L0008-00 000 130Q3 01101-
ARM CYLINDER LINE – HBCV DV4601L0030-00 000 OPT 130Q3 01114-
ARM CYLINDER LINE DV4601L0034-00 000 130Q3 01101-
ARM CYLINDER LINE DV4601L0036-00 000 OPT 130Q3 01101-
ARM CYLINDER LINE – HBCV DV4601L0038-00 000 OPT 130Q3 01114-
BUCKET CYLINDER LINE – 8′ 2″ (2.5 m) DV5601L0043-00 001 130Q3 01101-
BUCKET CYLINDER LINE – 10′ 0″ (3.06 m) DV5601L0044-00 001 OPT 130Q3 01101-
BOOM CYLINDER LINE – HBCV DV6001L0014-00 000 OPT 130Q3 01114-
BOOM CYLINDER LINE DV6001L0016-00 000 130Q3 01101-
BLADE CYLINDER LINE DV6201L0009-00 000 130Q3 01101-
CLAMP DV9901L0001-00 000 OPT 130Q3 01101-01106
LBX130BL-02
130LX BLADE INNER PARTS INDEX
Title Parts Page Code OPT Part No
PUMP;HYD ZAJ010L0023 001 KNJ3023
PUMP;HYD ZAJ010L0037 002 KNJ2977
MOTOR TRAVEL MOTOR & REDUCTION ZAJ121L0002 001 KNA0767
MOTOR ZAJ121L0013 000 KMA1255
MOTOR;SWING ZAJ122L0006 001 KNC0081
MOTOR – SWING ZAJ122L0022 000 KNC0087
CYL;BOOM ZAJ221L0037 001 KNV1615
CYL;BOOM ZAJ221L0038 001 KNV1616
CYL;BOOM ZAJ221L0056 001 KNV1619
CYL;BOOM ZAJ221L0057 001 KNV1620
CYL;ARM ZAJ222L0017 001 KNV1617
CYL;ARM ZAJ222L0030 000 KNV1621
CYL;BUCKET ZAJ223L0018 000 KNV1618
CYL;BLADE ZAJ241L0003 000 KNV1219
CYL;BLADE ZAJ241L0004 000 KNV1220
VALVE;CONTROL ZAJ313L0004 001 KNJ2852
VALVE;CONTROL ZAJ313L0009 000 KNJ2832
VALVE;CONTROL ZAJ313L0044 001 KNJ3053
VALVE;SOLENOID ZAJ314L0005 000 KHJ1972
VALVE;REMOTE CONT ZAJ316L0002 001 KRJ5804
VALVE;REMOTE CONT ZAJ316L0003 001 KRJ5864
VALVE;REMOTE CONT ZAJ316L0004 000 KNJ2557
VALVE;REMOTE CONT ZAJ316L0011 001 KHJ1725
VALVE;CUSHION ZAJ345L0002 001 KHJ1399
VALVE;CUSHION ZAJ345L0015 000 KNJ2902
VALVE;CUSHION ZAJ345L0016 000 KNJ2951
VALVE;BLADE CONTROL ZAJ361L0001 001 KRJ5560
VALVE;HOLDING ZAJ362L0002 000 KHJ1473
VALVE;HOLDING ZAJ362L0003 001 KNV1396
VALVE;HOLDING ZAJ362L0004 001 KNV1397
MANIFOLD ZAJ914L0001 000 KHJ1842
RADIATOR ZAN320L0007 001 KNH0830
MOTOR;SWING 95- 5- 75. 0 001 KNC0058
VALVE;SOLENOID 95- 23- 10. 1 001 KRJ3557
VALVE;SOLENOID 95- 23- 13. 1 001 KHJ0659
VALVE;SELECTOR 95- 27- 6. 0 000 KHJ2184

DESCRIPTION:

Linkbelt 130LX – EX Excavator Parts Manual 1015 – PDF DOWNLOAD

Preface:

This parts manual contains the service parts used in the LX excavators. Refer to the “Engine parts
manual” issued separately for the engine service parts.

Only genuine “Link–Belt” parts and lubricants are recommended for service needs. The use of high
quality genuine “Link–Belt” parts maintains your machine warranty.
I. Excavator Identification”
A. Find the serial number plate located at the front of the machine on the right side of the operator’s
cab platform (1). Write the following in the spaces below: The model number, serial number and
manufacturer’s number of your excavator.
B. In the event the serial number plate is not readable, the manufacturer’s number (2) is stamped on
the upper revolving frame which can be used to identify the machine.

How to order parts:

A. When placing a parts order, always supply your authorized LBX Link–Belt distributor with the
model number, serial number, manufacturer’s number of your excavator, and the part number
and quantity of parts you are ordering.
B. Illustrations in this manual are not necessarily an exact representation of the parts actual position
or shape.
C. Reference to the left or right side of the machine in this manual refers to the position when the
operator is sitting in the seat and facing forward with the undercarriage drive sprockets facing
towards the rear.
D. The parts or part numbers described in this manual may be changed (including option parts), or
deleted, without any prior notice.

Customer Support: [email protected]

https://vimeo.com/768883774

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
