Manitou 1100 SERIES K1101-K1135 3 STAGE MAST Parts Manual – PDF DOWNLOAD
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Manitou 1100 SERIES K1101-K1135 3 STAGE MAST Parts Manual – PDF DOWNLOAD
S/N: 20137 & ABOVE
CATALOG R48
GENERAL INFORMATION :
- The purpose of this catalog is to provide illustrations for identifying and ordering Mast components/parts. Because of the multitude of Mast Models and components utilized, the illustrations provide a general description and therefore may not show the exact shape or detail of the components/parts represented. The Mast parts are identified by an Item Number on the illustration or picture page.
- Find the Item Number for the part desired, then locate that Item Number under the ”Items” column following the illustration. The Part Number will be located directly to the right of the Item Number. Also provided is a part Description, Quantity of parts required and the mast Model number. Most important when ordering parts, is providing the correct serial number as assigned to the mast at the factory. Keep accurate records of all modifications or improvements made to the mast after manufacture. (All Mast modifications must be authorized by K–D Manitou, Inc.) Notify the Parts Dept. of any changes that may affect your parts order.
TABLE OF CONTENTS:
Manitou 1100 SERIES K1101-K1135 3 STAGE MAST Parts Manual – PDF DOWNLOAD

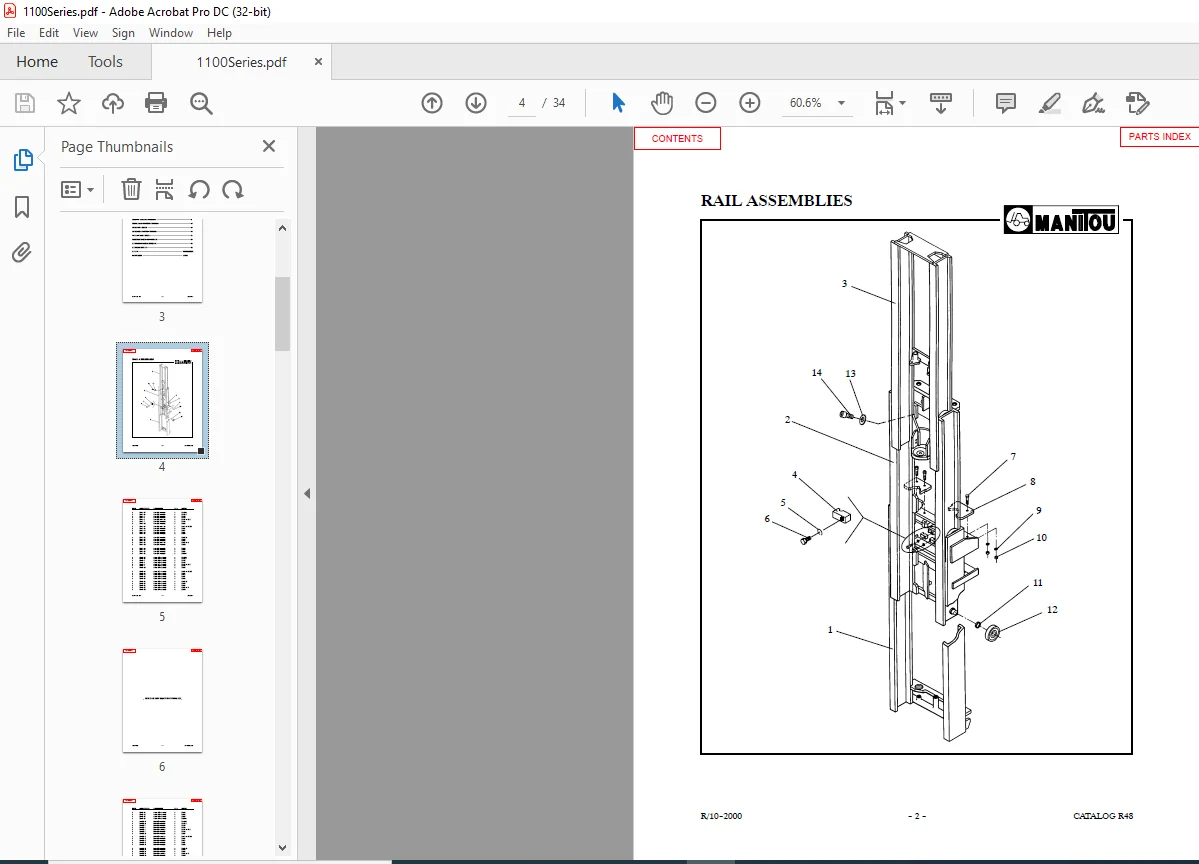

RAIL ASSEMBLIES 2

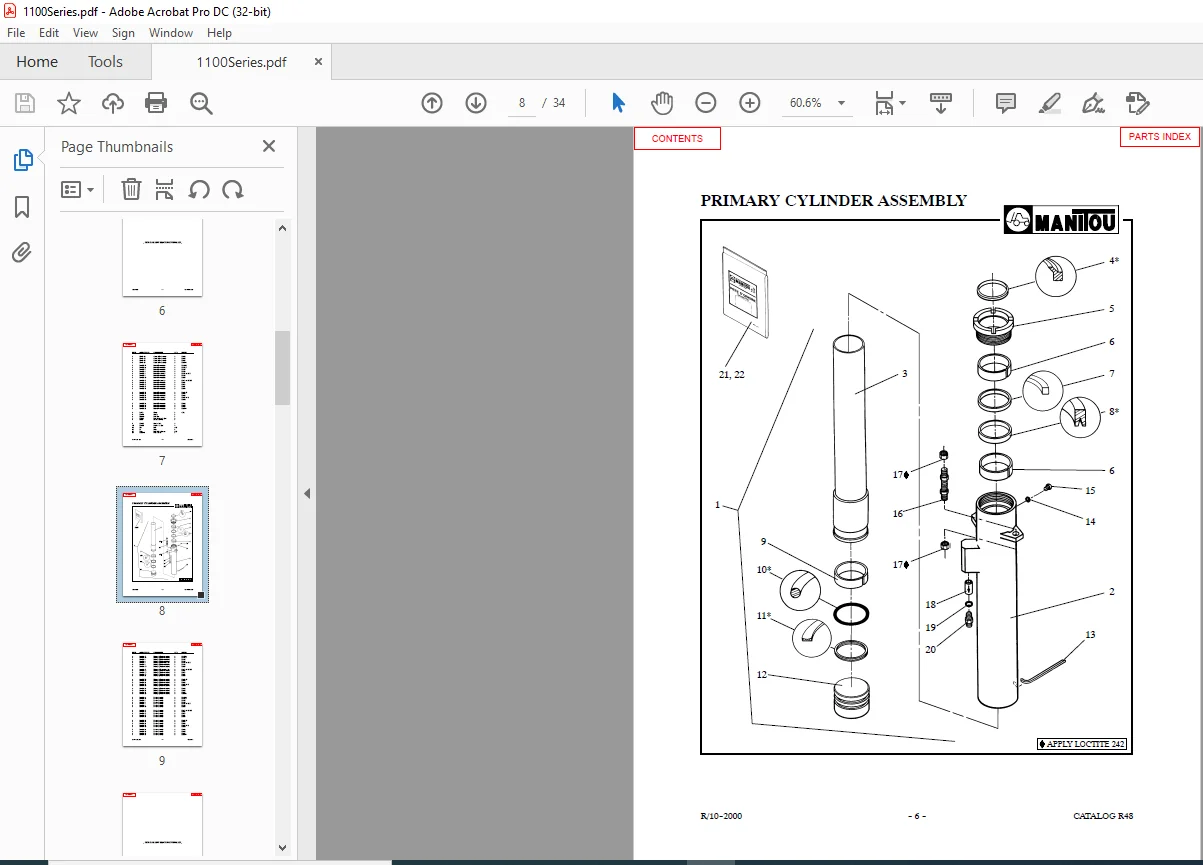

PRIMARY CYLINDER ASSEMBLY 6
SECONDARY CYLINDER ASSEMBLY 10
CHAIN ASSEMBLIES 16
HYDRAULIC SYSTEM ASSEMBLY 20
CARRIAGE ASSEMBLIES 24
SIDE SHIFT CARRIAGE ASSEMBLY 26
HOSE KIT ASSEMBLY, INTERNAL 28
HOSE REEL KIT, RH 30
DECALS SUPPLEMENT
PARTS INDEX INDEX
