Manitou MLT 630 634 731 MT 732 932 B-E2 Parts Catalogue CD547845

Description

Manitou MLT 630 634 731 MT 732 932 Series B-E2 Parts Catalogue CD547845

This illustrated parts catalogue covers the Manitou MLT 630, MLT 634, MLT 731, MT 732, and MT 932 Series B-E2 machines. Published under reference CD547845, it provides exploded-view diagrams and complete parts listings for every major assembly on these telehandlers. The catalogue is multilingual, with part descriptions given in English, French, German, Spanish, and Italian, making it usable across regions.

File Details

• Manual Type: Illustrated Parts Catalogue
• Brand: Manitou

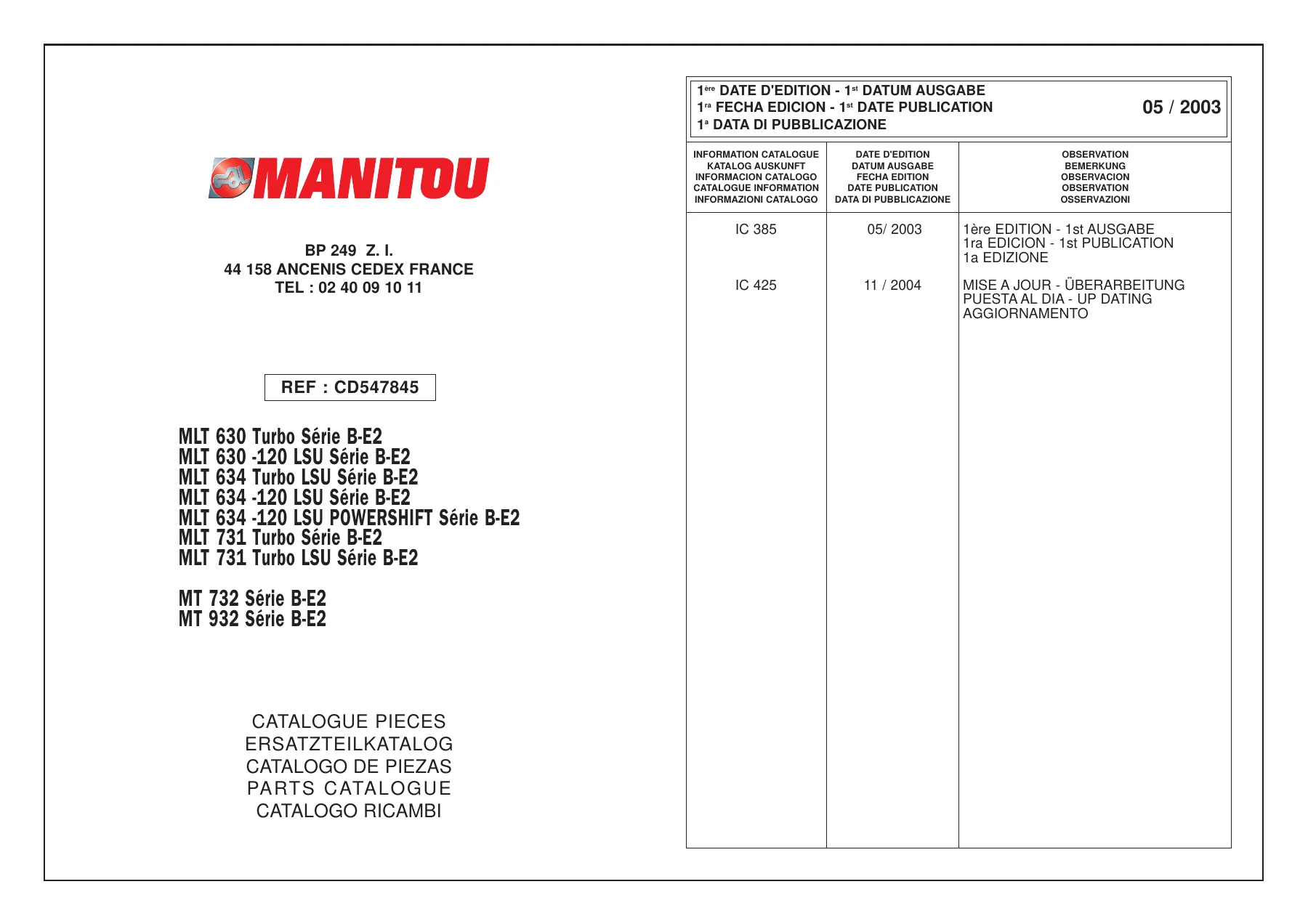

• Models Covered: MLT 630 Turbo S.B, MLT 630-120 LSU S.B, MLT 634 Turbo LSU S.B, MLT 634-120 LSU S.B, MLT 634-120 LSU Powershift S.B, MLT 731 Turbo S.B, MLT 731 Turbo LSU S.B, MT 732 S.B, MT 932 S.B
• Document Reference: CD547845
• Edition: First edition 05/2003, updated 2004 (IC 38505/20031, IC 42511/2004)
• Language: Multilingual (English, French, German, Spanish, Italian)
• File Format: PDF
• Page Count: Over 1,100 pages

Chapters Covered

• Filters and Belts
• Wheels
• Engine Adaptation
• Fuel Circuit
• Jib
• Chassis and Counterweight
• Handbrake
• Brake Circuit
• Pedals and Linkage
• Seat
• Cab Adaptation
• Cab Details
• Body
• Hydraulic Circuits (Main, Lifting, Steering, Compensation, Jib, Telescope)
• Distributors
• Cylinders
• Engine
• Gear Box
• Angle Return
• Cardan Couplings
• Front Axle
• Rear Axle
• Electrical Circuit
• Adhesives
• Greasing

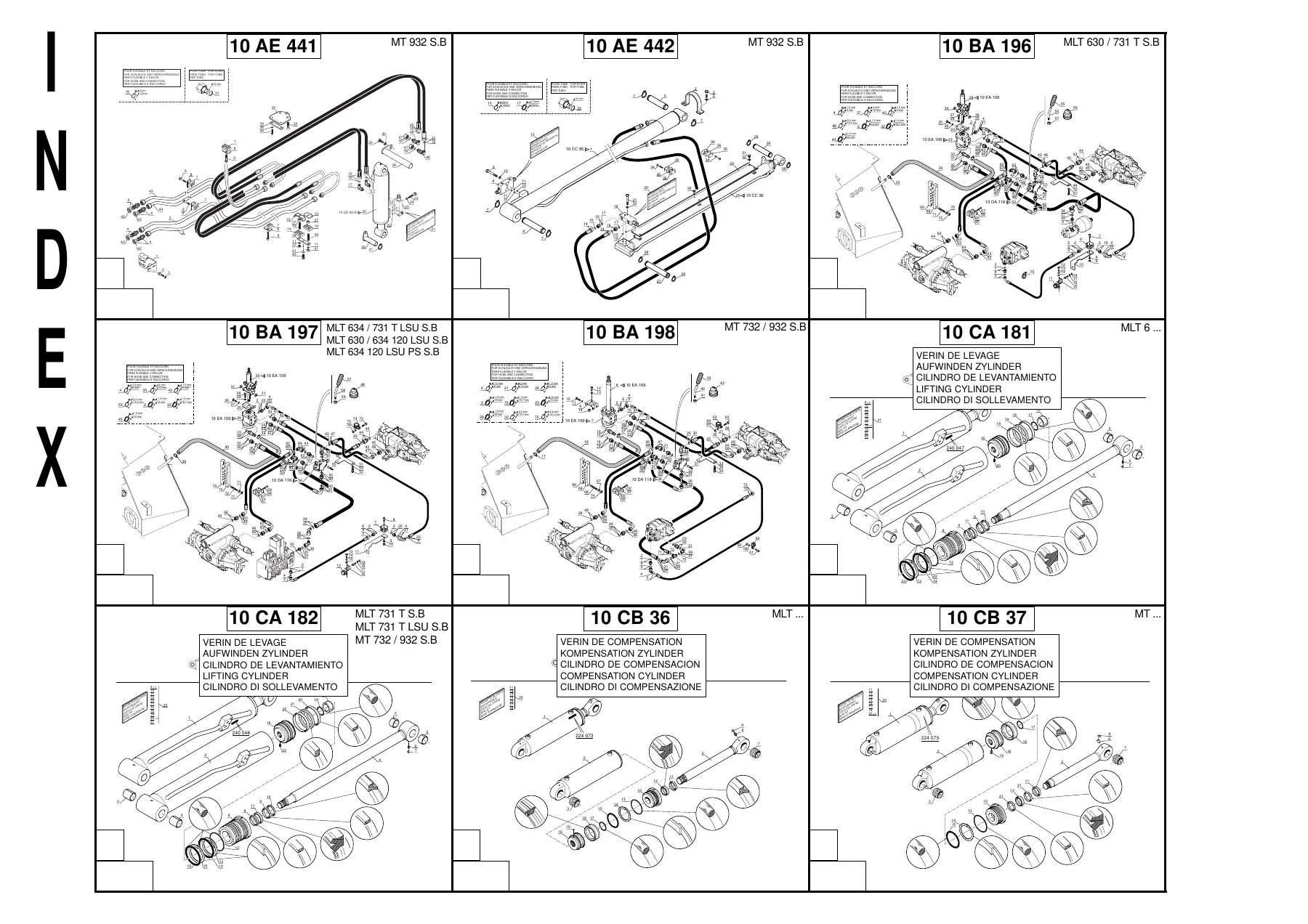

What sets this parts catalogue apart is the sheer depth of coverage. Each assembly is broken down into exploded views with numbered callouts that map directly to detailed parts tables. You get the exact part numbers, quantities, and descriptions needed to identify and order the right component. The hydraulic section alone spans dozens of pages covering main circuits, lifting, steering, compensation, and telescope systems for every model in the range. The engine sections cover the 1104C.44 RE 81372, 1104C.44T RG 81374, and 1104C.44TA RJ 81376 variants, with separate breakdowns for the cylinder block, pistons, connecting rods, crankshaft, cylinder head, timing gear, oil pump, water pump, turbocharger, and more. Transmission coverage includes the 16025 and 16273 gear boxes with complete internal component diagrams.

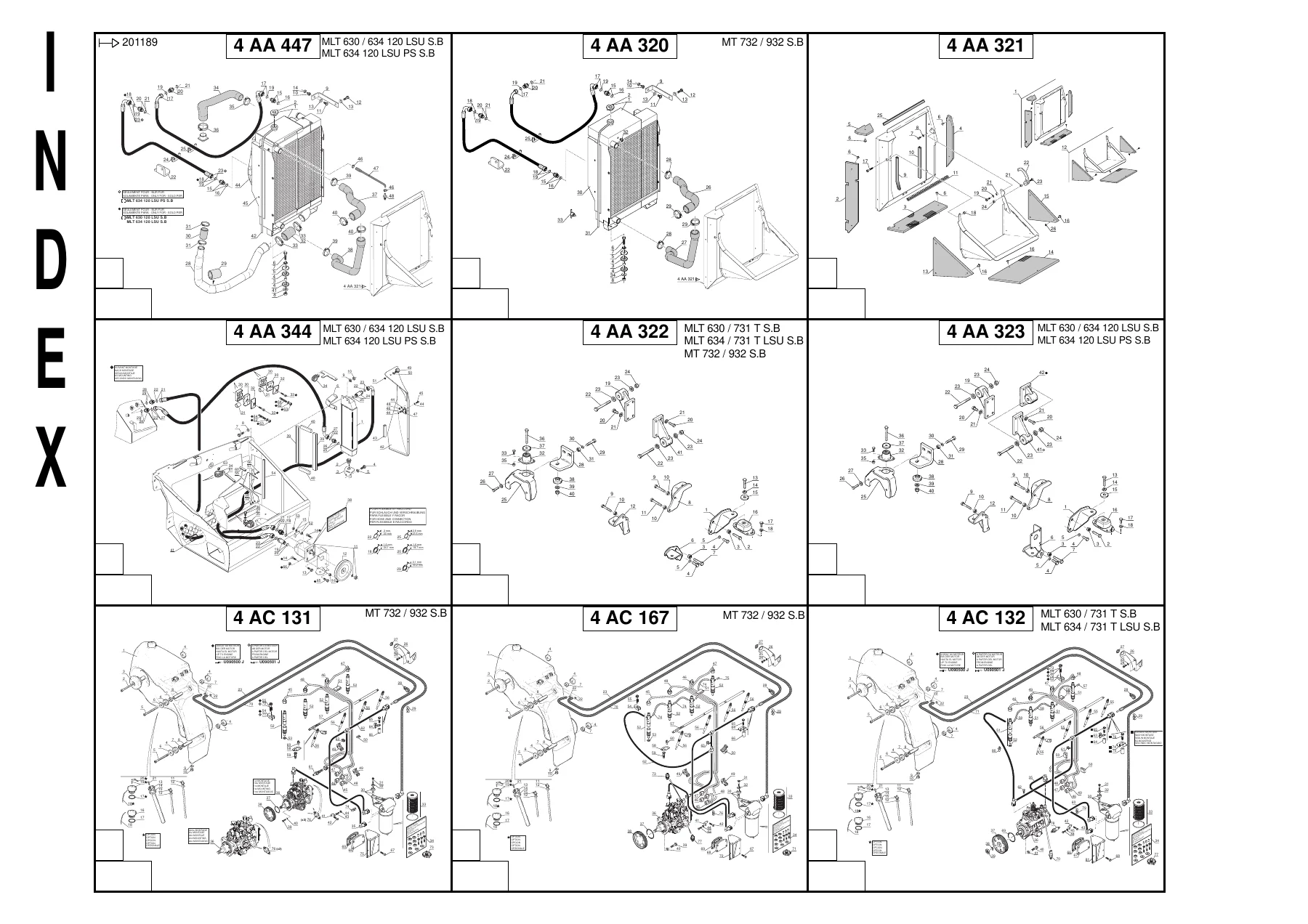

Beyond the mechanical assemblies, the catalogue documents the electrical system with fuse and relay layouts, wiring harnesses, sensors, and switches. The cab section covers adaptation, soundproofing, glazing, doors, and interior fittings. The axle sections break down the 212/424, 212/425, 212/426, and 212/427 axle variants with differentials, reduction gears, brakes, and steering components. This level of detail means you can trace any part from the exploded view to its exact part number without guesswork.

Why This Parts Catalogue Matters

When you are repairing or maintaining a Manitou telehandler, ordering the wrong part costs time and money. This catalogue eliminates that risk by giving you the factory part numbers and diagrams that match your specific machine. The model-specific callouts and serial number references throughout the document help you confirm you are looking at the right variant, whether you have an early B-E2 series machine or a later production unit.

IMAGES PREVIEW

Instant PDF Delivery

The catalogue is delivered as an instant PDF download after payment. No shipping, no waiting. You can access it on any device, search across the document, and print the pages you need for the workshop. Whether you are a fleet mechanic, an independent technician, or an owner maintaining your own machine, having this level of parts detail on hand makes every repair job faster and more accurate.
