Manitou Mustang 2200R, 2200R EU & 2200R X-Series Skid Steer Parts Manual PDF – 50950174 Rev. G

Description

Manitou Mustang 2200R / 2200R (EU) / 2200R X-Series Skid-Steer Loader Parts Manual

This is the complete Manitou Mustang 2200R series parts manual covering the 2200R, 2200R (EU) and 2200R X-Series skid-steer loaders. Published under document number 50950174 Rev. G 03/19, this 248-page PDF gives you the full illustrated parts breakdown for every major assembly on the machine, from the chassis weldment and lift arm to the hydrostatic drive motors, hydraulic control valves, HVAC housing and electrical harnesses. Every entry lists the reference number, part number, description and required quantity exactly as printed in the original factory parts book, so you can order the right component the first time.

File Details

• Manual Type: Parts Manual
• Brand: Manitou / Mustang
• Models Covered: 2200R, 2200R (EU), 2200R X-Series
• Language: English
• Page Count: 248
• File Format: PDF
• Document Number: 50950174
• Revision: Rev. G
• Date: 03/19

Chapters Covered

• Section A: Main Loader Component
• Section B: Hydraulic Components and HVAC/Heater Housings
• Section C: Kits and Accessories
• Section D: Schematics

Section A: Main Loader Component

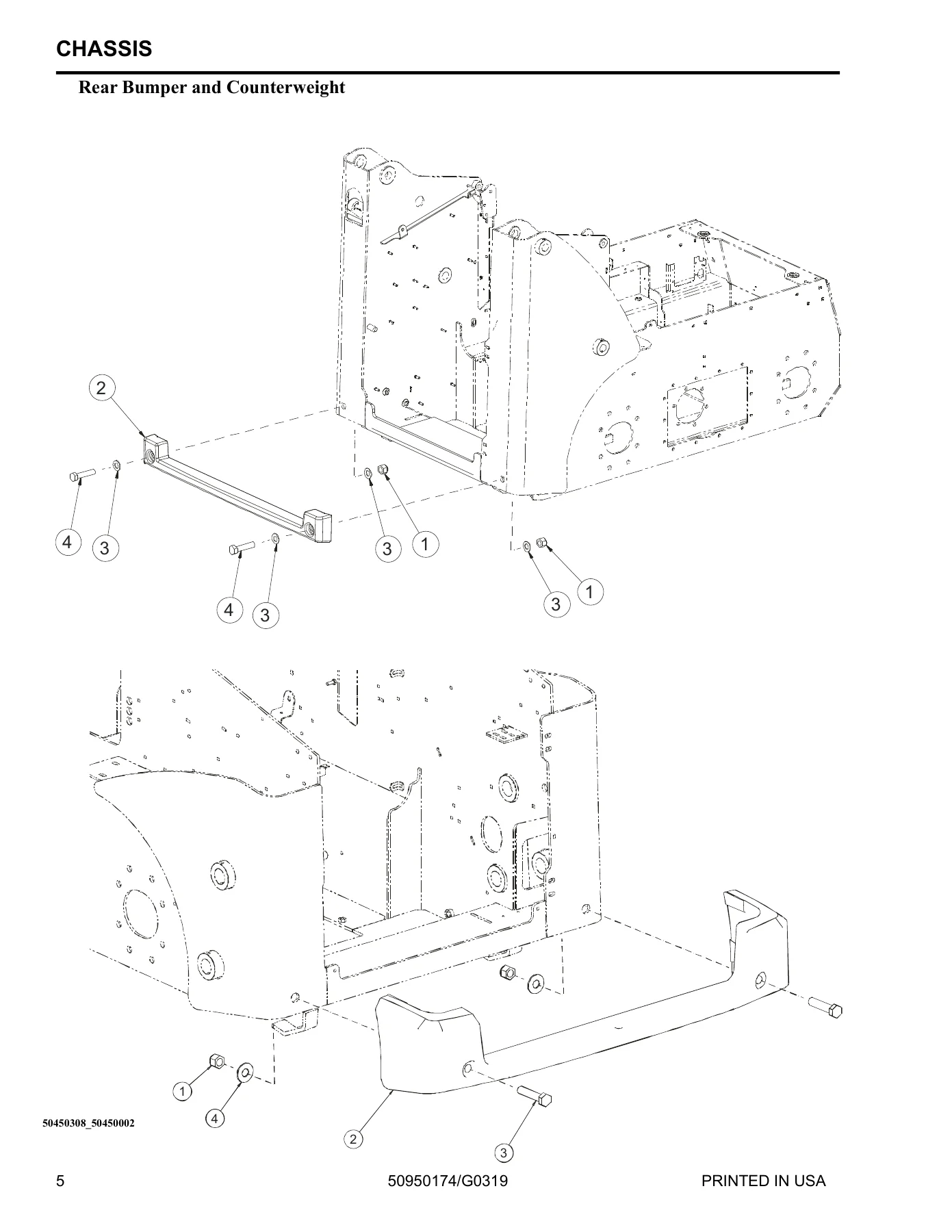

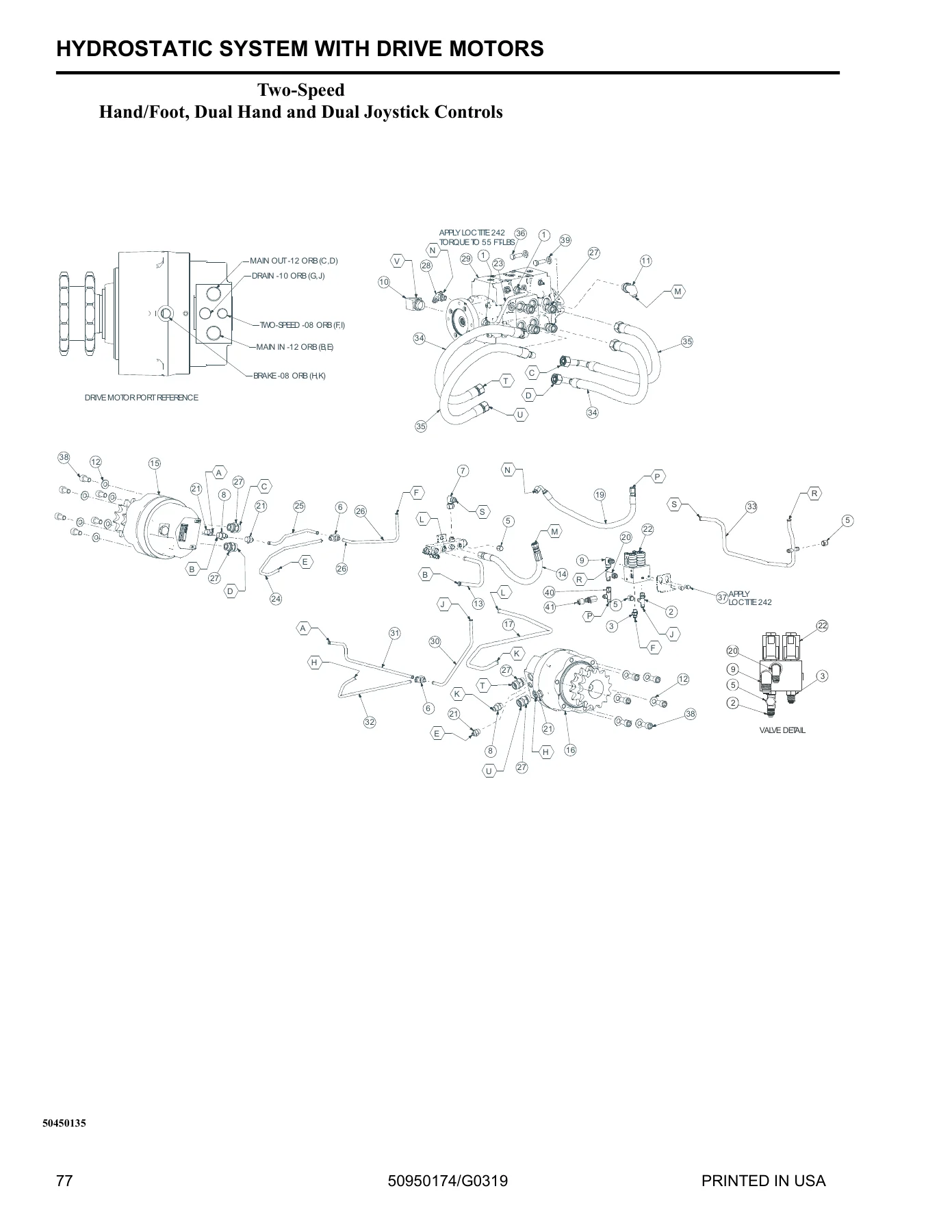

The largest section of the manual, covering the structural and mechanical assemblies of the 2200R loader. It opens with the chassis (including Power-A-Tach) and walks through the HVAC and heater-only systems, grille and engine cover, ROPS/FOPS structure and interior, restraint bar, seat and seat belt options, lift arm, attachment bracket, wheel drives, engine, air cleaner and exhaust, radiator and cooler, hydrostatic system with drive motors, chassis and lift-arm hydraulics, wheel-drive and lift/tilt controls, engine controls, and the complete electrical system broken out by subsystem: chassis, ROPS/FOPS, lights, engine, control and the 14-pin auxiliary connector. The section also includes the four-point lift, sound suppression panels, brake release, tire and wheel assemblies, and the full decal placement chapter with photographed locations.

Section B: Hydraulic Components and HVAC/Heater Housings

Dedicated to the hydraulic and climate-control assemblies that bolt onto the machine. It contains the lift cylinder, tilt cylinder, drive motors with parking brake, tandem pumps, single and double gear pumps, self-leveling valve, solenoid valves for lift/tilt and for brake/joystick supply/brake release, main control valves, Hydraglide ride control manifold valve, condenser, heater housing, HVAC housing assembly and foot valve. Each assembly is shown in exploded view with its own internal service parts, seal kits and torque references where applicable.

Section C: Kits and Accessories

A compact kit section that lists the factory accessory and attachment packages available for the 2200R platform. It includes the AM/FM radio kit, Bluetooth radio kit, rear camera kit, 3-point restraint systems in 2 in and 3 in seat belt widths, engine block heater kit, cab door kit, side window kit, seat belt and seat kits, backup alarm kits for the EU and X-Series, dual flasher kit, impact-resistant door kit, four-point lift kit, rear wiper kit, Power-A-Tach kit and completing kit, cab heater kit, electric attachment control kit, single-point lift kit, pre-cleaner kit, sub-zero crankcase ventilation kit, wide fender kit and the warning lamp kit. Kit contents are itemized so you can replace individual components without buying the whole package.

Section D: Schematics

The schematic chapter provides the full electrical and hydraulic circuit diagrams for the 2200R family. Electrical schematics cover the HVAC system, the heater/defroster, the 14-pin auxiliary connector, the engine harness, the chassis harness and the ROPS/FOPS harness. The hydrostatic and hydraulic schematics are supplied in three control configurations: Hand/Foot, Dual Joystick and Dual Hand. The section also includes the O-ring table and the coupling and adapter torque table, with the general torque specifications table located on the inside back cover.

How This Parts Manual Is Organized

Every assembly page follows the standard factory layout: an exploded illustration with numbered callouts that link directly to a parts list on the adjacent page. The parts list gives you the reference number, the part number, a full description and the quantity required. Where a part has been superseded, the manual notes the replacement part number and the serial number break so you can match the correct version to your machine. Footnotes flag service-only items, kits that include multiple components, and parts that are not sold separately. This is the same structure used by the dealer parts counter, which makes it straightforward to look up a single bolt or rebuild a complete hydraulic cylinder.

Serial Number Coverage

The manual is organized around several serial number ranges, including 174441 and before, 174442 and up, 174709 and up plus 174696-701, 175365 and before, 175366 and up, 175507 and before, 175508 and up, and 175546 / 175547 for the All-Tach assembly. These breaks are important when ordering parts because Manitou changed components across the production run. Check your machine’s serial number decal on the left rear riser before ordering, and use the break notes in the parts list to confirm the correct part number for your loader.

Who This Manual Is For

This parts manual is written for the mechanic, fleet technician, service manager or owner-operator who maintains a Manitou Mustang 2200R, 2200R (EU) or 2200R X-Series skid-steer loader. Whether you are rebuilding a lift cylinder, replacing a hydraulic hose, sourcing a new drive motor, ordering a seat belt kit or tracking down a wiring harness connector, the illustrated parts breakdown gives you the exact part number, the quantity and the assembly context so you can order with confidence. It is equally useful for rebuilding a machine that has been sitting, restoring a loader to working condition, or keeping a fleet running with correct replacement parts.

Why Buy the PDF Parts Manual

Having the illustrated parts breakdown on hand turns a parts search into a five-minute task. Instead of guessing at part numbers or waiting on hold with a dealer, you can identify the exact component, confirm the quantity you need and order it the same day. The exploded views also make reassembly easier because you can see how every bracket, shim, seal and fastener fits together before you take the machine apart. The schematics help you trace electrical and hydraulic faults, and the torque tables give you the correct values for couplings, adapters and standard fasteners. This is the kind of reference that pays for itself the first time you avoid ordering the wrong part.

IMAGES PREVIEW

Instant PDF Delivery

Your download is available immediately after checkout. The file is a standard PDF that opens on any computer, tablet or smartphone, and you can print the pages you need for the shop and keep the digital copy on your device for quick reference. There is no shipping, no waiting and no physical book to lose. Buy the Manitou Mustang 2200R series parts manual today and have the full factory parts reference in your hands before the next job starts.
