Manitowoc Crane 14000 Part Manual 605743 PDF
$34.95
The Manitowoc Crane 14000 Part Manual (605743) is a downloadable PDF providing crucial details on authentic replacement components. Essential for efficient maintenance and repairs of the specified crane model.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Manitowoc Crane 14000 Part Manual 605743 – PDF DOWNLOAD
The Manitowoc Crane 14000 Part Manual (605743) is a downloadable PDF providing crucial details on authentic replacement components. Essential for efficient maintenance and repairs of the specified crane model.
FILE DETAILS:
Manitowoc Crane 14000 Part Manual 605743 – PDF DOWNLOAD
Language : English
Pages : 840
Downloadable : Yes
File Type : PDF
Contact us: [email protected]

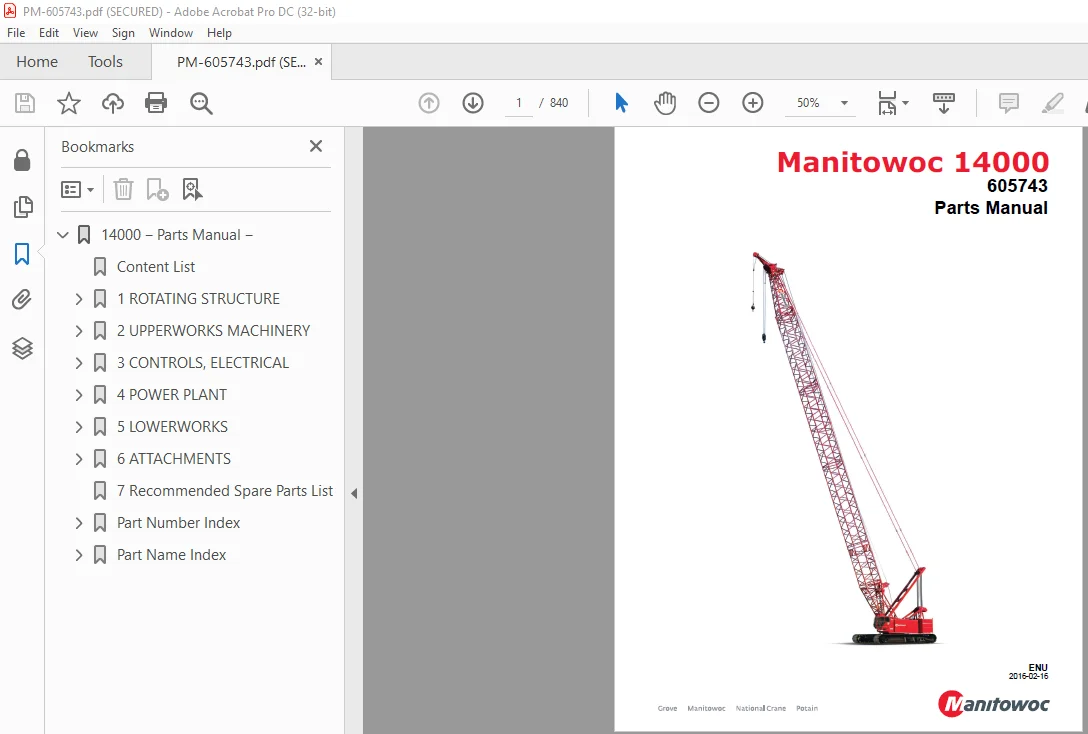

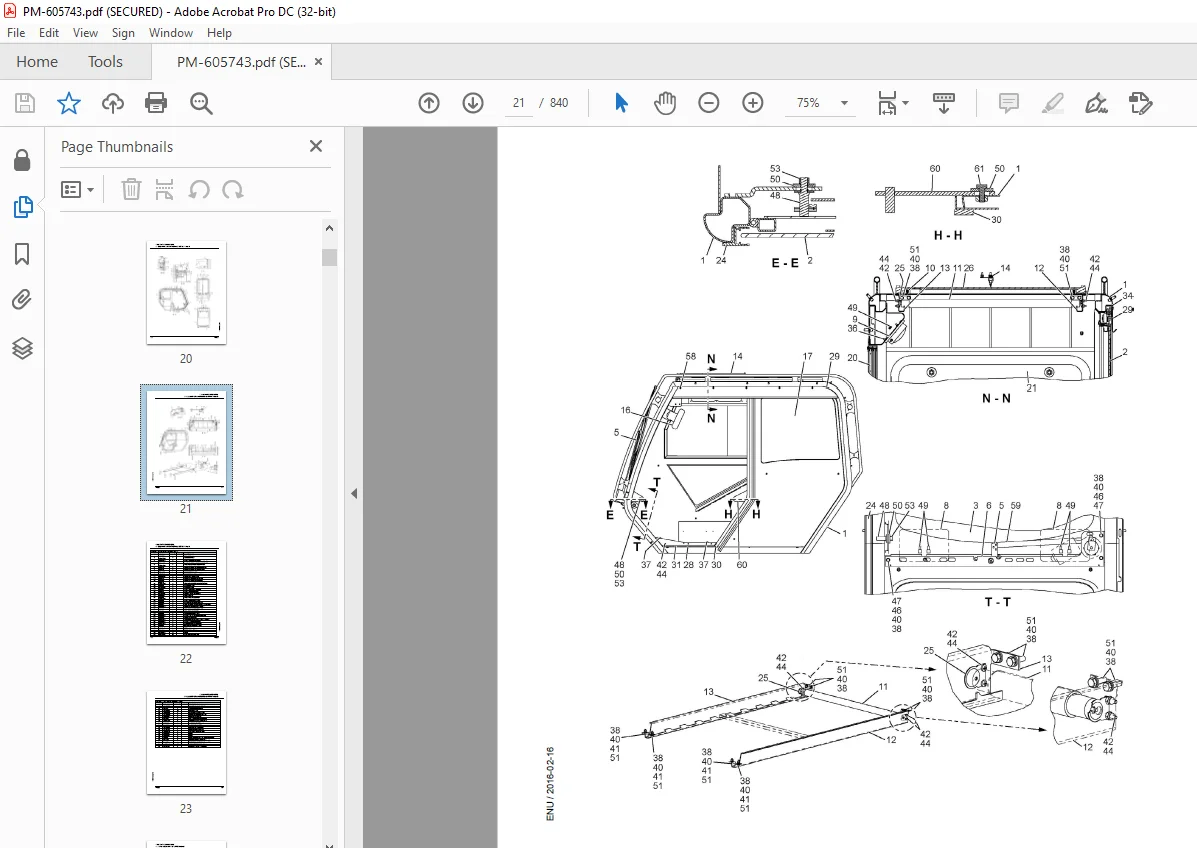

IMAGES PREVIEW OF THE MANUAL:

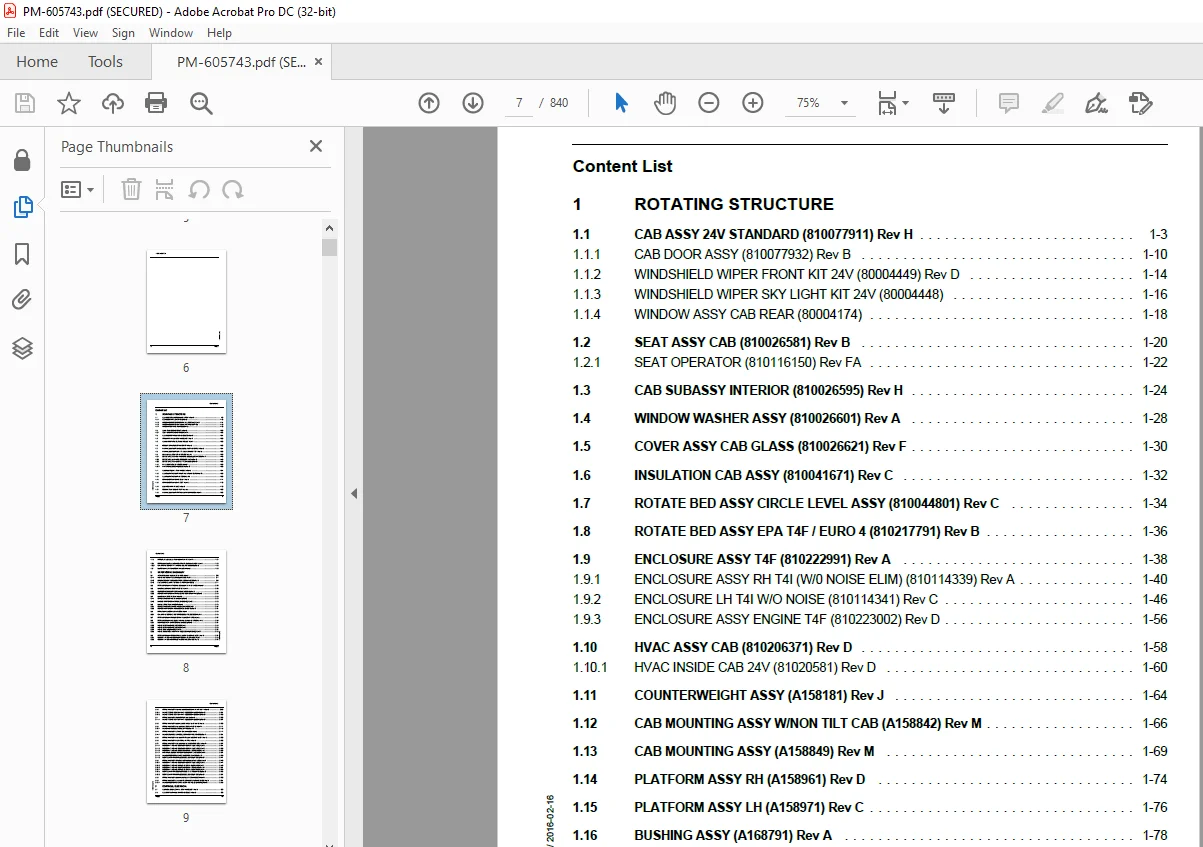

TABLE OF CONTENTS:
Manitowoc Crane 14000 Part Manual 605743 – PDF DOWNLOAD
Front Matter
| Section | Description | Page |
|---|---|---|
| — | 14000 ‒ Parts Manual | 1 |
| — | Content List | 7 |
1. Rotating Structure
| Section | Description | Page |
|---|---|---|
| 1 | ROTATING STRUCTURE | 15 |
| 1.1 | CAB ASSY 24V STANDARD (810077911) Rev H | 17 |
| 1.1.1 | CAB DOOR ASSY (810077932) Rev B | 24 |
| 1.1.2 | WINDSHIELD WIPER FRONT KIT 24V (80004449) Rev D | 28 |
| 1.1.3 | WINDSHIELD WIPER SKY LIGHT KIT 24V (80004448) | 30 |
| 1.1.4 | WINDOW ASSY CAB REAR (80004174) | 32 |
| 1.2 | SEAT ASSY CAB (810026581) Rev B | 34 |
| 1.2.1 | SEAT OPERATOR (810116150) Rev FA | 36 |
| 1.3 | CAB SUBASSY INTERIOR (810026595) Rev H | 38 |
| 1.4 | WINDOW WASHER ASSY (810026601) Rev A | 42 |
| 1.5 | COVER ASSY CAB GLASS (810026621) Rev F | 44 |
| 1.6 | INSULATION CAB ASSY (810041671) Rev C | 46 |
| 1.7 | ROTATE BED ASSY CIRCLE LEVEL ASSY (810044801) Rev C | 48 |
| 1.8 | ROTATE BED ASSY EPA T4F / EURO 4 (810217791) Rev B | 50 |
| 1.9 | ENCLOSURE ASSY T4F (810222991) Rev A | 52 |
| 1.9.1 | ENCLOSURE ASSY RH T4I (W/0 NOISE ELIM) (810114339) Rev A | 54 |
| — | PANEL ENCL ASSY (810004710) Rev A | 56 |
| — | PANEL ENCL ASSY (A085560) Rev D | 58 |
| 1.9.2 | ENCLOSURE LH T4I W/O NOISE (810114341) Rev C | 60 |
| — | PANEL ENCL ASSY (810025150) Rev B | 62 |
| — | PANEL ENCL ASSY (A085500) Rev D | 64 |
| — | PANEL ENCL ASSY (A085550) Rev E | 66 |
| — | PANEL ENCL ASSY (A179670) Rev D | 68 |
| 1.9.3 | ENCLOSURE ASSY ENGINE T4F (810223002) Rev D | 70 |
| 1.10 | HVAC ASSY CAB (810206371) Rev D | 72 |
| 1.10.1 | HVAC INSIDE CAB 24V (81020581) Rev D | 74 |
| 1.11 | COUNTERWEIGHT ASSY (A158181) Rev J | 78 |
| 1.12 | CAB MOUNTING ASSY W/NON TILT CAB (A158842) Rev M | 80 |
| 1.13 | CAB MOUNTING ASSY (A158849) Rev M | 83 |
| 1.14 | PLATFORM ASSY RH (A158961) Rev D | 88 |
| 1.15 | PLATFORM ASSY LH (A158971) Rev C | 90 |
| 1.16 | BUSHING ASSY (A168791) Rev A | 92 |
| 1.17 | MIRROR ASSY CAB (A171371) Rev B | 94 |
| 1.18 | ROTATE BED ASSY PIN INSTALLATION (A180031) Rev A | 96 |
| 1.19 | NAMEPLATE & DECAL ASSY (EN) (A180141) Rev FA | 98 |
| 1.20 | PINPULLER ASSY BOOM HINGE PINS W/GUARD (A190921) Rev C | 100 |
| 1.20.1 | CYL HYD 4 0 BORE X 17 STROKE DBL ACT (3856070) Rev B | 102 |
| 1.21 | BEAM ASSY CWT ALIGNMENT (A196989) Rev B | 104 |
2. Upperworks Machinery
| Section | Description | Page |
|---|---|---|
| 2 | UPPERWORKS MACHINERY | 106 |
| 2.1 | TANK HYD ASSY TIER 3/4 (810114941) Rev C | 108 |
| 2.1.1 | VALVE BUTTERFLY CODE61-80 (A164280) Rev B | 112 |
| 2.1.2 | BREATHER VENT TANK H20 VAPOR 35CFM (A164380) Rev B | 114 |
| 2.1.3 | FILTER HYD RETURN TO TANK -40 PORTS (A179080) | 116 |
| 2.2 | PIPING HYD ASSY FAN DRIVE & COOLER T3/T4 (810203392) Rev D | 118 |
| 2.3 | DRUM BOOM HOIST ASSY (A158131) Rev H | 124 |
| 2.3.1 | GEAR BOX PLANETARY BOOM HOIST (4652110) Rev B | 126 |
| — | BRAKE ASSY (2721510) | 130 |
| — | SEAL KIT GEARBOX (4652115) | 132 |
| — | BRAKE STACK/SEAL KIT (2721515) | 136 |
| 2.3.2 | MOTOR HYD PISTON VARI W/L2 & SPD SENSOR (A171460) Rev B | 138 |
| — | VALVE, SOLENOID (24V) (9632220674) | 142 |
| 2.4 | DRUM ASSY MAIN (A158901) Rev W | 144 |
| 2.4.1 | DRIVE PLANETARY HOIST (A165450) Rev E | 148 |
| — | KIT, GEARBOX SEAL (9527200061) | 150 |
| — | KIT, BRAKE (9527200052) | 152 |
| 2.4.2 | HYD MOTOR PISTON VARIABLE (810016100) Rev C | 154 |
| — | VALVE, SOLENOID (24V) (9632220674) | 158 |
| 2.5 | DRIVE SWING ASSY (A158941) Rev E | 160 |
| 2.5.1 | DRIVE PLANETARY SWING 140 96:1 (A165400) Rev B | 162 |
| 2.5.2 | MOTOR HYD PISTON FIXED 55 CC/REV (A165770) Rev D | 166 |
| 2.6 | PAWL ASSY BOOM HOIST (A159001) Rev F | 168 |
| 2.6.1 | CYL HYD 1 5 BORE X2 375 STROKE DBL ACT (3855980) Rev FA | 170 |
| 2.7 | PIPING HYD ASSY POWER PLANT SUCTION (A164708) Rev E | 172 |
| 2.8 | PIPING HYD ASSY ROT BED F/R HOIST & TRVL (A164758) Rev AG | 175 |
| 2.8.1 | MANIFOLD ASSY SWING CIRCUIT (A195549) Rev D | 186 |
| 2.8.2 | VALVE LOOP FLUSHING (7034760) Rev A | 188 |
| 2.8.3 | VALVE LOOP FLUSHING (7034950) Rev C | 190 |
| 2.8.4 | VALVE SHUTTLE (7041300) Rev FA | 192 |
| 2.8.5 | VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D | 194 |
| 2.9 | PIPING HYD ASSY PWR PLANT RETURN TO TANK (A165551) Rev W | 196 |
| 2.9.1 | Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C | 200 |
| 2.9.2 | Q DSCN FITTING HYD NIPPLE -12 ORB X-12 (3754400) Rev C | 202 |
| 2.10 | PIPING HYD ASSY ROTATE BED ACCESSORY SYS (A166111) Rev D | 204 |
| 2.10.1 | VALVE SOLENOID 3 POS 4 WAY SIZE D03 24V (A025410) Rev C | 206 |
| 2.10.2 | VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D | 208 |
| 2.11 | PIPING HYD ASSY W/DRUM #3 (A166112) Rev D | 210 |
| 2.11.1 | VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D | 212 |
| 2.12 | PIPING HYD ASSY LESS CAB RAISING CYL (A166115) Rev D | 214 |
| 2.13 | PIPING HYD ASSY ROT BED LIVE MAST (A169191) Rev N | 216 |
| 2.13.1 | VALVE HYD SUN DBL C-BAL (7041130) Rev FA | 220 |
| 2.14 | PIPING HYD ASSY GANTRY CYLS (A169291) Rev L | 222 |
| 2.14.1 | VALVE COUNTERBALANCE 3,600 PSI SETTING (A042970) Rev A | 226 |
| 2.15 | PIPING HYD ASSY ROT BED PINPULLER BOOM (A169301) Rev C | 228 |
| 2.16 | PIPING HYD ASSY HOIST PAWL (A174001) Rev A | 230 |
| 2.17 | PIPING HYD ASSY ROT BED ROUTE TO BOOM (A185251) Rev W | 232 |
| 2.17.1 | Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C | 236 |
| 2.17.2 | Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C | 238 |
| 2.17.3 | Q DSCN FITTING HYD COUPL -20 ORB X -16 (3759510) Rev FA | 240 |
| 2.17.4 | HYD VALVE SELECT DS-100HP 06SAE PORT (7034800) Rev FA | 242 |
| 2.17.5 | VALVE DIRECTIONAL CNTRL SELECTOR (A113480) Rev D | 244 |
| 2.17.6 | Q DISCON FITTING NIPPLE 20 CODE 62 X 20 (A175240) Rev D | 246 |
| 2.18 | PIPING HYD ASSY W/AUX DRUM PREP/EQUIP (A185252) Rev W | 248 |
| 2.18.1 | Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C | 252 |
| 2.18.2 | Q DSCN FITTING HYD NIPPLE -12 ORB X-12 (3754400) Rev C | 254 |
| 2.18.3 | Q DSCN FITTING HYD COUPL -20 ORB X -16 (3759510) Rev FA | 256 |
| 2.18.4 | Q DSCN FITTING HYD NIPPLE -16 ORB X-20 (3759520) Rev FA | 258 |
| 2.18.5 | Q DISCON FITTING COUPLER CODE 62 20 X 20 (A175230) Rev D | 260 |
| 2.18.6 | Q DISCON FITTING NIPPLE 20 CODE 62 X 20 (A175240) Rev D | 262 |
| 2.19 | PIPING HYD ASSY LESS FREEFALL DRUMS (A185255) Rev W | 264 |
| 2.20 | PIPING HYD ASSY CARBODY W/CARBODY JACKS (A186283) Rev D | 266 |
| 2.20.1 | VALVE DIRECTIONAL CNTRL 6SECT W/O RELIEF (A165750) Rev C | 270 |
3. Controls, Electrical
| Section | Description | Page |
|---|---|---|
| 3 | CONTROLS, ELECTRICAL | 272 |
| 3.1 | CONSOLE CAB CONTROL ASSY (810026551) Rev D | 274 |
| 3.2 | CAB ASSY CONTROL WIRING (810026561) Rev G | 277 |
| 3.3 | ELEC CAB ASSY NORTH AMER STANDARD (810026567) Rev G | 280 |
| 3.4 | ELEC CAB ASSY LESS FREEFALL DRUMS (810026569) Rev G | 282 |
| 3.5 | CONSOLE FRONT ASSY LESS RADIO (810026653) Rev J | 284 |
| 3.6 | CONSOLE CNTRL ASSY OVERHEAD (810026662) Rev B | 286 |
| 3.7 | CONSOLE CONTROL ASSY REAR (810026881) Rev D | 288 |
| 3.8 | PEDAL FOOT ASSY CAB (810032381) Rev F | 290 |
| 3.8.1 | PEDAL FOOT ASSY THROTTLE CONTROL (A020191) Rev FA | 292 |
| 3.9 | PEDAL FOOT ASSY CAB (810032385) Rev F | 294 |
| 3.10 | ESI ROTATING BED WIRING (810165081) Rev D | 296 |
| 3.10.1 | SENSOR ASSY MAST FLANGE (A111262) Rev FA | 302 |
| 3.10.2 | BOOM STOP ASSY AUTOMATIC FOR #76 BOOM (A174331) Rev C | 304 |
| — | SWITCH ASSY BOOM TOP (810102319) Rev FA | 306 |
| 3.10.3 | SWITCH ASSY SET UP REMOTE W36 (810179150) Rev FA | 310 |
| 3.11 | ELEC CONTROL ASSY LESS BAIL LIMITS (810165084) Rev D | 312 |
| 3.12 | ELEC CONTROL ASSY LESS CAB TILT (810165086) Rev D | 314 |
| 3.13 | ELEC CONTROL ASSY WITH AUTO LUBE (810165087) Rev D | 316 |
| 3.14 | ELEC CONTROL ASSY LESS RIGGING WINCH (81016508B) Rev D | 318 |
| 3.15 | ELEC CNTRL ASSY BOOM WIRING & LIMITS (A162201) Rev R | 320 |
| 3.15.1 | SWITCH ASSY BLOCK UP LIMIT (1957499) Rev C | 324 |
| — | LEVER ASSY (1770804) Rev C | 326 |
| 3.15.2 | CONTROLLER ASSY BOOM TOP (A168882) Rev F | 328 |
| — | CONTROLLER BOOM & JIB TOP SUBASSY (A168903) Rev F | 330 |
| 3.15.3 | CLAMP CABLE ASSY (A182331) Rev A | 332 |
| 3.16 | ELEC CONTROL ASSY UPPER BOOM POINT (A162202) Rev R | 334 |
| 3.16.1 | SWITCH ASSY BLOCK UP LIMIT (1957499) Rev C | 336 |
| — | LEVER ASSY (1770804) Rev C | 338 |
| 3.17 | CONSOLE RH ASSY (A162801) Rev H | 340 |
| 3.17.1 | CONTROLLER JOYSTICK SINGLE AXIS W/INDICT (810087540) Rev B | 342 |
| 3.17.2 | JOYSTICK SINGLE AXIS (A024670) Rev C | 344 |
| 3.17.3 | CONTROLLER JOYSTICK SINGLE AXIS W/INDICT (810087550) Rev B | 346 |
| 3.18 | CONSOLE RH ASSY SWITCH FOR T4 PWR PLT (A162809) Rev H | 348 |
| 3.19 | CONSOLE LH ASSY (A162901) Rev E | 350 |
| 3.19.1 | CONTROLLER DUAL AXIS JOYSTICK W/ROT IND (810087530) Rev A | 352 |
| 3.19.2 | CONTROLLER JOYSTICK SINGLE AXIS FRICTION (A024680) Rev B | 354 |
4. Power Plant
| Section | Description | Page |
|---|---|---|
| 4 | POWER PLANT | 356 |
| 4.1 | POWER PLANT ASSY 340 HP QSL9 T4F (810217801) Rev D | 358 |
| 4.1.1 | CLEANER AIR ASSY (810079471) Rev C | 360 |
| 4.1.2 | BATTERY ASSY QSL9 T3 T4I T4F (810247801) Rev A | 362 |
| 4.1.3 | PIPING FUEL ASSY (810237361) Rev B | 364 |
| 4.1.4 | AIR CONDITIONER & HEATER ASSY QSL 340HP (810136971) Rev L | 366 |
| — | KIT AIR CONDITIONING (810138840) Rev D | 370 |
| — | KIT AIR COND ENGINE QSL 24 V (810205730) Rev B | 372 |
| 4.1.5 | EXHAUST ASSY DEF SYSTEM INSTL QSL9 T4F (810203551) Rev E | 374 |
| — | TANK FUEL ASSY 10 GAL DEF (810219330) Rev C | 376 |
| 4.1.6 | EXHAUST ASSY COOLANT LINESINSTL QSL9T4F (810203561) Rev E | 378 |
| — | MANIFOLD ASSY DEF COOLANT (810219310) Rev A | 380 |
| 4.1.7 | EXHAUST ASSY 340HP QSL T4F (810203571) Rev D | 382 |
| — | FILTER ASSY DOC HORIZ SISO QSL T4F (81022524) Rev A | 384 |
| 4.1.8 | POWER PLANT ASSY QSL9T4F ENG/PUMP DRIVE (810217811) Rev A | 386 |
| — | DRIVE PUMP ASSY FREEFALL (810127022) Rev H | 388 |
| — | CLUTCH RELEASE ASSY (810130911) Rev C | 476 |
| — | ENGINE 340 HP QSL9 T4F (810193350) Rev C | 478 |
| — | CLUTCH ASSY W/HOUSING AND GREASE PIPING (A097351) Rev FA | 480 |
| 4.1.9 | COOLER ASSY 340 HP QSL9 T4F (810217821) Rev A | 486 |
| — | PANEL ENCL ASSY (810118482) Rev B | 492 |
| — | COOLER ASSY QSL9 T4F 2434 157 0000 (810217830) Rev B | 494 |
| 4.1.10 | ESI 24VDC ENG WIRING T4F (810223101) Rev D | 506 |
| — | BOX JUNCTION AFTERTREATMENT (810241640) Rev B | 510 |
| — | BOX JUNCTION ASSY GRID HEATER (A011147) Rev FA | 512 |
| 4.2 | CLUTCH ASSY W/HOUSING AND GREASE PIPING (A097352) Rev FA | 514 |
| 4.3 | POWER PLANT ASSY LESS FREEFALL (810217812) Rev A | 516 |
| 4.4 | TANK FUEL ASSY (A158871) Rev E | 518 |
| 4.4.1 | TANK FUEL ASSY AS PURCHASED (A166012) Rev F | 520 |
| — | FILLER FUEL ASSY VENTED W/10 MICR FIL (810182880) Rev D | 522 |
5. Lowerworks
| Section | Description | Page |
|---|---|---|
| 5 | LOWERWORKS | 524 |
| 5.1 | CARBODY ASSY (A158172) Rev J | 526 |
| 5.1.1 | CRAWLER ASSY (A159076) Rev N | 528 |
| — | ROLLER INTERMEDIATE CRAWLER (1965944) Rev FA | 534 |
| — | CYLINDER HYD CRAWLER ADJUSTMENT (3856530) | 536 |
| — | PUMP HYD HAND PUMP (A041430) | 538 |
| — | DRIVE CRAWLER ASSY (810182731) Rev B | 540 |
| 5.1.2 | PINPULLER ASSY CARBODY-CRAWLER (A159111) Rev B | 560 |
| — | CYL HYD 4 0 BORE X 21STROKE DBL ACT (3856470) Rev FA | 562 |
| 5.1.3 | PIPING HYD ASSY CARBODY W/NO BRAKE USH (A186281) Rev D | 564 |
| 5.1.4 | JOINT ROTATING UNION MOUNTING ASSY (810095071) Rev A | 572 |
| — | JOINT ROTATING UNION SWVL W/WEAR BANDS (810090270) Rev B | 574 |
| 5.1.5 | MOUNT MOTOR ASSY TRAVEL DRIVE (810195541) Rev B | 576 |
| — | BRAKE TRAVEL (2721420) Rev FA | 578 |
| — | MOTOR HYD PISTON VARIABLE 160 CC (810000090) Rev FA | 584 |
| 5.2 | CRAWLER ASSY HANDLING CHAINS (A159073) Rev N | 590 |
| 5.3 | CWT ASSY CARBODY-STANDARD PAINT (A159131) Rev B | 592 |
| 5.4 | OUTRIGGER CARBODY ASSY (A159151) Rev F | 594 |
| 5.4.1 | OUTRIGGER PAD SUB-ASSEMBLY (1754551) Rev FA | 596 |
| 5.4.2 | CYL HYD 42 00 STROKE DOUBLE ACTING (810017760) Rev FA | 598 |
| — | KIT, SEAL (90001207) | 600 |
| 5.5 | GREASE PIPING ASSY CRAWLERS (A159178) Rev G | 602 |
| 5.5.1 | KIT AUTO LUBE CRAWLERS (A181230) Rev D | 606 |
| — | PUMP GREASE ELEC 24 VDC/2 0A (A121370) Rev C | 608 |
| — | VALVE ASSY 6 BANK (A067160) Rev B | 610 |
| — | VALVE ASSY 14 BANK 125 NPTF (A182430) | 612 |
| 5.6 | GREASE PIPING ASSY TURNTABLE BEARING (A159181) Rev G | 614 |
6. Attachments
| Section | Description | Page |
|---|---|---|
| 6 | ATTACHMENTS | 616 |
| 6.1 | UPPER BOOM POINT ASSY (1704191) Rev L | 618 |
| 6.1.1 | SHEAVE ASSY 30 DIA 1 125 ROPE (1712501) Rev F | 620 |
| 6.1.2 | SOCKET/WEDGE ASSY 1 00 (6462460) Rev C | 622 |
| 6.2 | DECAL DANGER BOOM SECTIONS (1759161) Rev FA | 624 |
| 6.3 | HOOK & WT BALL 15 TON 1150# 1WIRE ROPE (2182140) Rev FA | 626 |
| 6.3.1 | SOCKET/WEDGE ASSY 1 00 (6462460) Rev C | 628 |
| 6.4 | BLOCK 100 TON 1 125 ROPE W/3-30 SHEAV (2370990) Rev FA | 630 |
| 6.5 | CATWALK ASSY 12 0 M #76 INSERT (810166781) Rev B | 632 |
| 6.6 | CATWALK ASSY 9M #76 TOP (810166792) Rev B | 634 |
| 6.7 | CATWALK ASSY 5 5M #76 INSERT (810166801) Rev B | 636 |
| 6.8 | PLATFORM CATWALK ASSY (810166822) Rev B | 638 |
| 6.9 | CAT WALK ASSY 6M #76 INSERT (810169492) Rev B | 640 |
| 6.10 | MAST RAISING ASSY LIVE MAST (A158141) Rev F | 642 |
| 6.10.1 | MAST LIVE ASSY (A158151) Rev E | 644 |
| — | SHEAVE ASSY 20 DIA 1ROPE W/BEARING (1957089) Rev FA | 648 |
| — | STRAP ASSY (A163874) Rev A | 650 |
| 6.10.2 | CYL HYD 4 00 BORE X 53 00 STROKE (A161360) Rev D | 652 |
| — | KIT, SEAL (9372221086) | 654 |
| 6.11 | BUTT 5 5 M #76 ASSY (A161071) Rev J | 656 |
| 6.11.1 | GUIDE WIRE ROPE ASSY BOOM BUTT (A165971) Rev D | 658 |
| — | SHEAVE WIRE ROPE ASSY 1 0 26MM X 27OD (A167374) Rev C | 660 |
| 6.11.2 | BOOM STOP ASSY (A178671) Rev B | 662 |
| 6.11.3 | BOOM ANGLE INDICATOR ASSEMBLY (1687791) Rev FA | 664 |
| 6.12 | TOP ASSY #76, 9 00M (A161113) Rev G | 666 |
| 6.12.1 | GUIDE WIRE ROPE ASSY (A166319) Rev F | 668 |
| — | SHEAVE ASSY 27 00 1 125 (1767996) Rev D | 670 |
| 6.12.2 | BOOM POINT LOWER ASSY BOOM #76 (A166409) Rev H | 672 |
| — | SOCKET/WEDGE ASSY 1 00 (6462460) Rev C | 674 |
| — | SHEAVE ASSY 30 DIA FOR 1 00ROPE CAST (81033848) Rev A | 676 |
| 6.13 | INSERT 12 0 M #76 ASSY (A161153) Rev B | 678 |
| 6.14 | INSERT 6 0 M #76 ASSY (A161173) Rev B | 680 |
| 6.15 | INSERT 12 0 M #76 ASSY W/BACKSTAY LUG (A161233) Rev B | 682 |
| 6.16 | INSERT 5 50 M ASSY #76 W/AUX SHEAVES (A161693) Rev C | 684 |
| 6.17 | SIGN BOOM MANITOWOC 790 X 3070 (810088299) Rev G | 686 |
| 6.18 | INSERT 3 0 M #76 ASSY (A166043) Rev B | 688 |
| 6.19 | GUIDE WIRE ROPE ASSY W/1 LINE OVR LWR PT (A166312) Rev F | 690 |
| 6.20 | BOOM POINT LOWER ASSY #76 W/(2) SHEAVES (A166402) Rev H | 692 |
| 6.20.1 | SHEAVE ASSY 30 DIA FOR 1 00ROPE CAST (81033848) Rev A | 694 |
| 6.21 | BOOM ASSY #76 LADDER STORAGE (A179621) Rev A | 696 |
| 6.22 | ANEMOMETER ASSY INDICATOR (A181259) Rev H | 698 |
| 6.22.1 | SENSOR WIND SPEED (A044140) Rev FA | 700 |
| 6.22.2 | CONTROLLER ASSY WIND SPEED (A180590) Rev E | 702 |
| 6.23 | GANTRY ASSY (A197881) Rev C | 704 |
| 6.23.1 | LINK PENDANT W/290037 BUSHING (1766244) Rev B | 710 |
| 6.23.2 | SOCKET/WEDGE ASSY 7/8 (6462450) Rev A | 712 |
| 6.23.3 | BACKHITCH ASSY (A160601) Rev E | 714 |
| — | BACKHITCH PINPULLER ASSY (A161841) Rev A | 716 |
| 6.23.4 | LINK ASSY CWT HANDLING RH (A161624) Rev A | 722 |
| 6.23.5 | LINK ASSY CWT HANDLING LH (A161674) Rev A | 724 |
| 6.23.6 | ROLLER ASSY (A192001) Rev B | 726 |
| 6.23.7 | ROLLER ASSY (A192861) Rev A | 728 |
| 6.23.8 | ROLLER ASSY (A192881) Rev A | 730 |
| 6.23.9 | CYL HYD ASSY (A197951) Rev B | 732 |
| — | CYL HYD 8 0 BORE X 42 0 STROKE (A194990) Rev E | 734 |
| 6.24 | BLOCK 30 TON 1 0 ROPE (A184840) Rev B | 738 |
7. Recommended Spare Parts List
| Section | Description | Page |
|---|---|---|
| 7 | Recommended Spare Parts List | 740 |
| — | Part Number Index | 741 |
S.M
