Manitowoc Traditional Crane 4000 Parts Manual SN 46175 – PDF DOWNLOAD
$26.95
The Manitowoc Traditional Crane 4000 Parts Manual (SN 46175) is a detailed PDF guide for assembly, maintenance, and troubleshooting. Download for easy access to essential information, ensuring efficient management of the specified crane model.
Description
Manitowoc Traditional Crane 4000 Parts Manual SN 46175 – PDF DOWNLOAD
The Manitowoc Traditional Crane 4000 Parts Manual (SN 46175) is a detailed PDF guide for assembly, maintenance, and troubleshooting. Download for easy access to essential information, ensuring efficient management of the specified crane model.
FILE DETAILS:
Manitowoc Traditional Crane 4000 Parts Manual SN 46175 – PDF DOWNLOAD
Language : English
Pages : 386
Downloadable : Yes
File Type : PDF

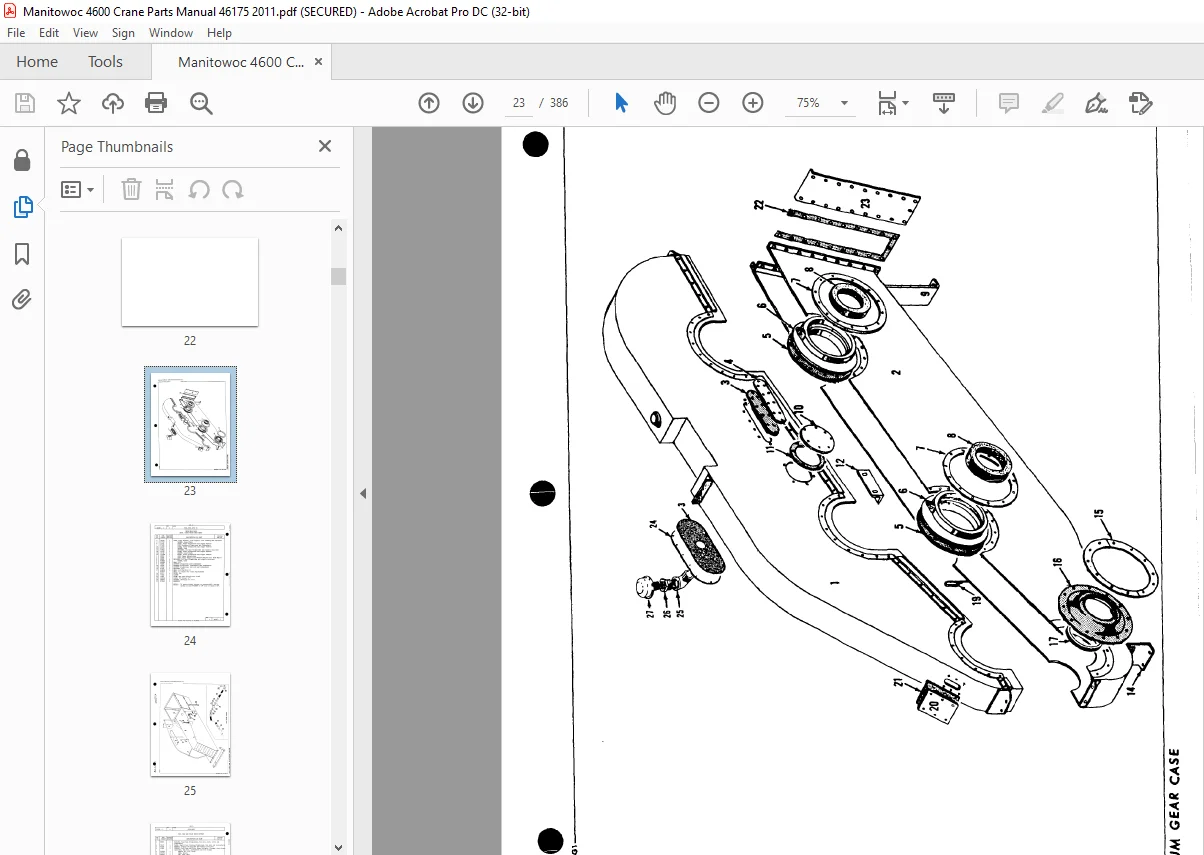

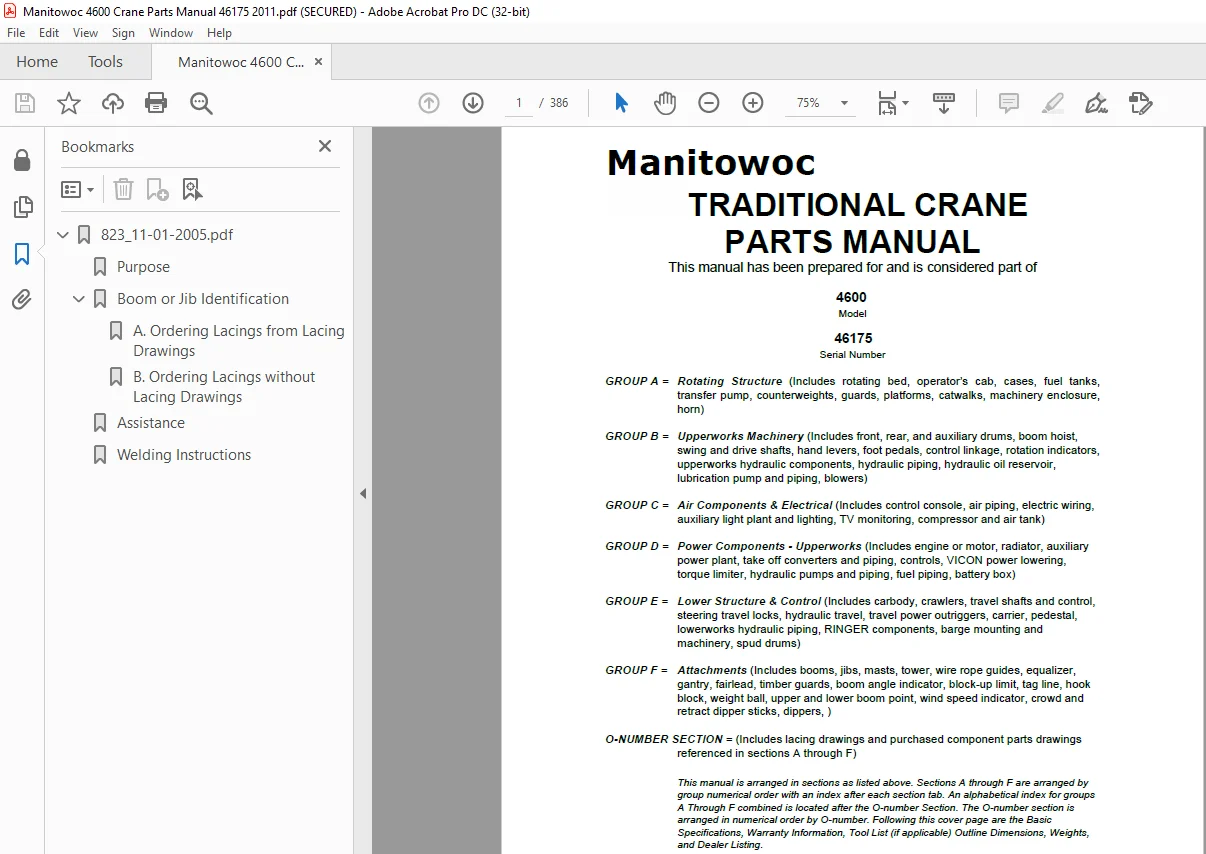

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Manitowoc Traditional Crane 4000 Parts Manual SN 46175 – PDF DOWNLOAD
GROUP A = Rotating Structure (Includes rotating bed, operator’s cab, cases, fuel tanks,
transfer pump, counterweights, guards, platforms, catwalks, machinery enclosure,
horn)
GROUP B = Upperworks Machinery (Includes front, rear, and auxiliary drums, boom hoist,
swing and drive shafts, hand levers, foot pedals, control linkage, rotation indicators,
upperworks hydraulic components, hydraulic piping, hydraulic oil reservoir,
lubrication pump and piping, blowers)
GROUP C = Air Components & Electrical (Includes control console, air piping, electric wiring,
auxiliary light plant and lighting, TV monitoring, compressor and air tank)
GROUP D = Power Components – Upperworks (Includes engine or motor, radiator, auxiliary
power plant, take off converters and piping, controls, VICON power lowering,
torque limiter, hydraulic pumps and piping, fuel piping, battery box)
GROUP E = Lower Structure & Control (Includes carbody, crawlers, travel shafts and control,
steering travel locks, hydraulic travel, travel power outriggers, carrier, pedestal,
lowerworks hydraulic piping, RINGER components, barge mounting and
machinery, spud drums)
GROUP F = Attachments (Includes booms, jibs, masts, tower, wire rope guides, equalizer,
gantry, fairlead, timber guards, boom angle indicator, block-up limit, tag line, hook
block, weight ball, upper and lower boom point, wind speed indicator, crowd and
retract dipper sticks, dippers, )
O-NUMBER SECTION = (Includes lacing drawings and purchased component parts drawings
referenced in sections A through F)
S.M 3/24
