Massey Ferguson 3000 & 3100 Series Workshop Service Manual

This professional-grade workshop service manual is an essential resource for anyone maintaining, repairing, or overhauling Massey Ferguson 3000 and 3100 Series tractors. Whether you are a seasoned dealer technician or a hands-on owner, this manual provides the exact procedures, specifications, and technical data required to keep these robust machines operating at peak efficiency. From splitting the tractor to perform major drivetrain repairs, to diagnosing the air conditioning system, this guide covers it in exhaustive detail.

File Details

• Manual Type: Workshop Service Manual
• Brand: Massey Ferguson
• Models Covered: 3050, 3060, 3065, 3070, 3080, 3095, 3115/20, 3125/40
• Engine Types: Perkins A 4.236, A 4.248 S, C 4.236, A T 4.236, A 6.354, 41006-6 HR, 1006-6LR, 1006-6T
• Language: English
• Format: PDF

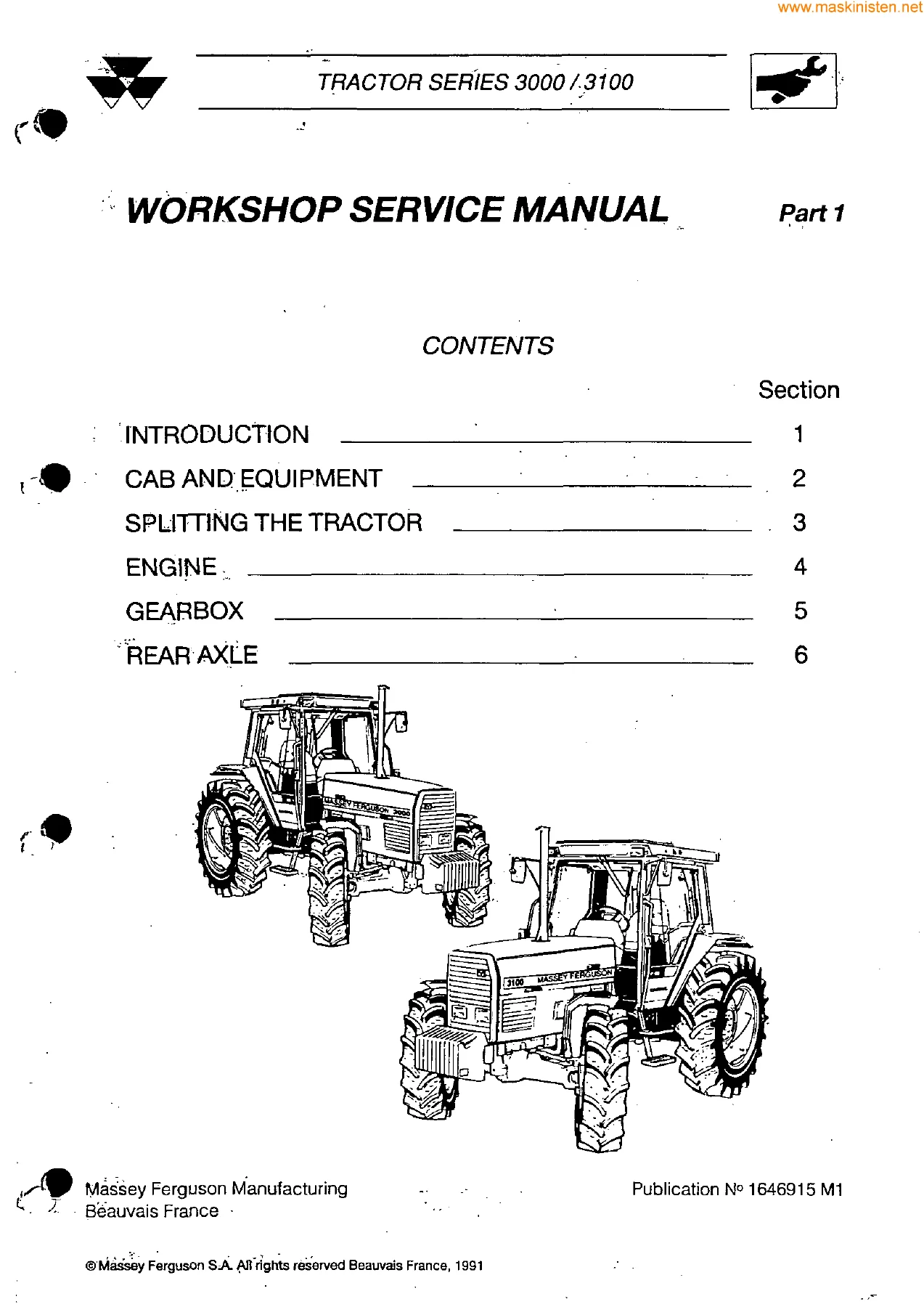

Chapters Covered

• Introduction
• Cab and Equipment
• Splitting the Tractor
• Engine
• Gearbox
• Rear Axle

Introduction and General Specifications

The opening section sets the foundation for all maintenance tasks, detailing the safe and correct use of the manual. It includes comprehensive engine specifications, fuel system and air cleaner data, electrical system voltages, and cooling system operation parameters. You will find exact chassis dimensions, mounting points, and vital capacity charts for fuel, cooling systems, engine sump, and transmission. The section also provides essential safety precautions, practical advice for handling heavy components, and a complete conversion table for pressure, torque, length, weight, and capacity units. Crucially, it details the correct application of sealants and standard tightening torques for both metric and inch fasteners.

Cab and Air Conditioning Systems

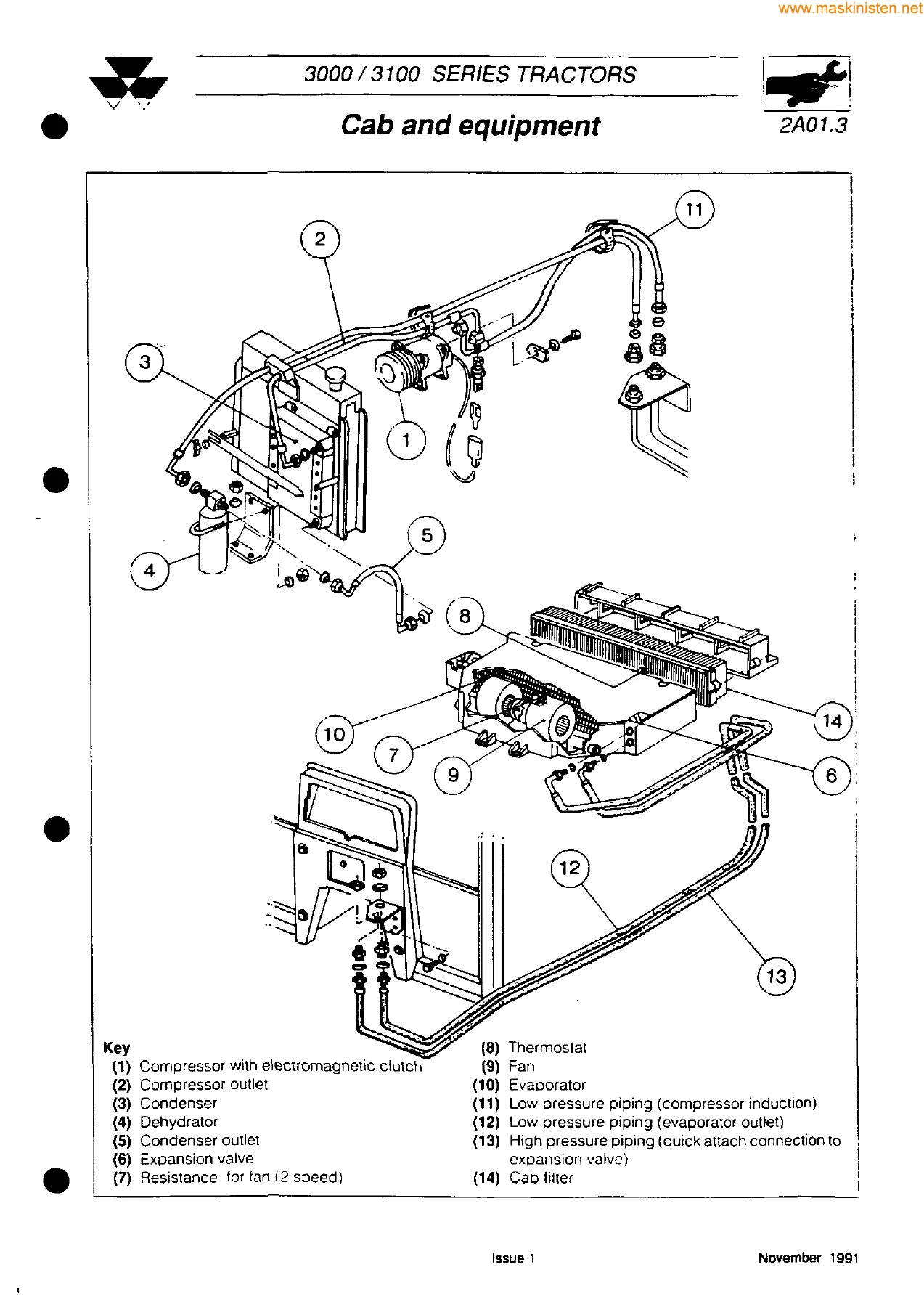

This section thoroughly addresses the environmental controls within the cab. It breaks down the cooling cycle principles, from the compressor and condenser to the evaporator and expansion valve. Detailed fault diagnosis tables help you identify issues by reading high and low pressure gauge values. You will find procedures for discharging, evacuating, and recharging the system with Freon R12, including exact pressure and capacity specifications. Additionally, it provides instructions for replacing the seal on the cab door window.

Splitting the Tractor Procedures

One of the most critical operations for major repairs is covered in exhaustive detail. The manual outlines the exact steps to split the tractor at three main junction points: between the engine and the gearbox (differentiated for Speedshift 3000, Speedshift 3100, Dynashift 3000, and Dynashift 3100), between the gearbox and the rear axle, and between the front frame and the engine. These procedures include disconnecting electrical harnesses, hydraulic lines, and mounting hardware in the correct order to ensure safety and prevent component damage.

Engine, Adaptor Plates, and Viscostatic Fan

While directing you to specialized Perkins engine manuals for internal repairs, this section provides crucial main specifications for the various 4-cylinder and 6-cylinder engines used across the range. It covers the removal and reassembly of the engine adaptor plate for both 3000 and 3100 tractors, along with a detailed explanation of the Eaton viscous coupling used on the cooling fan, ensuring you understand how the thermostatic spring and valve regulate the silicone fluid to maintain optimal engine temperatures.

Gearbox and Transmission Overhaul

This is the most extensive chapter, dedicated to the complex transmission systems. It provides step-by-step procedures for both the Speedshift and Dynashift gearboxes. You will find complete disassembly, inspection, and reassembly instructions for the push-type clutch (3000) and the pull-type clutch (3100), including the hydraulic slave cylinder and release bearing. Detailed diagrams and procedures cover the input unit, reverse shuttle, A/B range gears, mainshaft, layshaft, output shaft, and creeper gears. It includes precise shimming methods (J1 through J5) for setting bearing preloads and end plays, along with the necessary torque values to ensure a flawless gearbox rebuild.

Unlock the Full Potential of Your Massey Ferguson

Having the right information at your fingertips is the difference between a successful repair and costly downtime. This Massey Ferguson 3000 and 3100 Series Workshop Service Manual provides the exact technical specifications, step-by-step disassembly sequences, and reassembly procedures—complete with detailed exploded-view illustrations—that you need to tackle everything from a clutch replacement to a complete transmission overhaul. By following the manufacturer’s prescribed procedures and torque values, you can ensure your tractor is repaired correctly the first time, minimizing the risk of premature component failure.
