Ab Fahrgestell-Nr.
As from chassis No.                                      31106767-
A partir du chassis No. D 700 C              311 09044
Desde chasis No.                                           331110001
Dal telaio No.
Publication No. 2 977901 M3

GENERAL EXPLANATIONS ABOUT THE SPARE PARTS CATALOGUE:

Those spare parts which carry a “+” in the column “Bild-Nr. ” are not depicted.
“B” in front the figure number means : recommended for storing.
On principle exchange parts are identified by the Suffix “T” in the MF-No.
Remarks in the column “Bemerkung” : N = new part, U = not valid, substituded by the part listed under the
next number.
Additional parts carry a figure index number, like: 1 a, 1 b, lc.
Indented printing of the text indicates that the parts in question are components of the preceding underlined
assembly group.
Any parts of the standard equipment – Groups 1 to 14 – which are substituted when an extra equipment is mounted,
(Group 15) have been marked in the column “Bemerkung” and carry a foot-note.
Illustrations of spare parts are not binding in respect of the actual design of the individual parts.
The index of supply numbers of this catalogue contains all supply numbers, listed in numerical serial order. On
the right hand side of the supply numbers are the numbers of the page and the illustration under which the supply
number will be found in the catalogue.
The terms: left, right, front and rear, are to be understood as seen when looking in driving direction from driver’s
seat.
YOU WILL RECEIVE
your spare parts speedily and correctly provided you observe the following points :
1. All orders should be given on our order forms, provided no punched-card orders are made.
2. Order parts for building machines, exchange parts, exchange engines, always on separate order-sheets.
3. A typewriter should be used for ordering.
4. If there is a doubt, leave the supply number out, quote the number of the table and the illustration instead, in addition to engine number and chassis number.
5. The orders are handled using the punched card method basing on the supply numbers. Therefore, the terming of the part may serve only as an auxiliary hint to find the correct supply-number in case of doubt.
6. Give shipping instructions. If no instructions have been stated, we will forward the goods at our own discretion, without liability.
7. State your complete address, the next port, railway station or airport.

TABLE OF CONTENTS:

Massey Ferguson D700C Crawler Dozer Book Manual – PDF DOWNLOAD

1-1/1 ENGINE , ENGINE SUSPENSION 3
14 CRANKCASE
Cover of timing housing, Oil sump, Flywheel housing, 5-7
Gasket set, Flywheel housing 74
1/3 CRANK DRIVE
Pistons, Connecting rods, Crank shaft, Flywheel 9
1/4 CYLINDER HEAD
Rockers, Valves, Cylinder head cover 11
Gasket set, Cylinder head 114
INJECTION SYSTEM
Injection pump, Injection tubes, Injection nozzle 13
1/6 INJECTION PUMP DRIVE 15
1/7 ENGINE CONTROL
Camshaft, Tappets, Breather filter 17
lA – 14 not reserved
1/10 ENGINE LUBRICATION
Oil pump, Oil pipes 19
Oil filter, Oil pressure switch 21
1/11 WATERPUMP , FAN
Waterpump, V-belt, Fan carrier
Pressure fan, Carrier of tensioning rollers 23-25
Gasket set, waterpump 254
COOLING CONTROL
Thermostat, Transmitter for tele-thermometer 27
1/13 AIR FILTER SYSTEM
Air filter, Maintenance indicator 29-29/4
Ether-Starting system 31
1/14 EXHAUST SYSTEM
Muffler, Stand pipe 33
2 COOLING SYSTEM
Radiator 35-37
Heat exchanger 39-41
Hydraulic-oil radiator, Pipings 43
3 – 4 not reserved
5 FUEL SYSTEM
/Fuel filter 45-452
Fuel tank, Fuel lines 47
011
INDEX 3311(2)
Group Subject Page
6 TRANSMISSION
Pipings, Transmission 49-51
Converter transmission 53-55
Torque converter, Housing 57
Drive shaft, Universal joint shaft 59
Pumps, Pi pings 61
Torque converter (Components) 63
Power shift transmission, Pressure regulator 65-69
Control valve 71
Reverse-gear, 1st, end, 3rd gear, Clutch shafts 73-77
Drive shaft, Reverse shaft -79
Gear shift assembly, Operation 81-83
Steering, Brake 85
7 STEERING SYSTEM
Steering clutch, Pipings, filter 87-91
Steering control valve 93-95
8 FINAL DRIVE
Final drive, Pipings, 97
Final drive housing, Cone transmission 99-1 01
Side transmission 103
9 TRACK ASSEMBLY
Track assembly, Dozer 105-1 07
Track roller protection 109
Idler 111
Track rollers 113
Support rollers 115
Tracks 117
10 FRAME
Engine frame 119
Towing device 121-123
11 SUPERSTRUCTURE
Drivers platform 125
Radiator protector, Engine hood, Side plates, 127
Cabin, Roof, Doors, 129-135
Safety cabin, Roof, Doors 136-143
Driver’s seat, Execution I 143/2
Driver’s seat, Execution II 145-147
Heater 149-151
12 ELECTRICAL EQUIPMENT
Starter, Alternator 153
Wiper system 153A -153/4
Headlamps, Vehicles without cabin 155
Headlamps, Vehicle with cabin 157
Headlamps, Vehicle with ROPS cabin 1574
Control panel, Instruments, Sound horn, Fuel level indicator 159-1 61
Cover for instruments 163
Battery case, Battery 165
Electric wiring 167
Wiring diagram 169-171
012
INDEX 3311 (2)
Group Subject Page
13 TOOLING ANS ACCESSORIES
Tools 173-175
Decals, Plates 177-187
Lubrication – and steering pump 61/2
Gear shift and converter pump 61/4
14 HYDRAULIC SYSTEM
Hydraulic pumps 189
Pipings-Swivel shield 191
Pipings-Tilt shield 193-195
Oil tank 197
Hydraulic system – Swivel shield 199-201
Hydraulic system – Tilt shield 203-205
Safety valve 207
2-way control valve 209-211
3-way control valve 213-215
Operation of Swivel shield 217
Operation of Tilt shield 219
15 APPLIANCES
Thrust frame – Swivel shield 221
Bracing, Swivel shield 223
Thrust frame – Tilt shield 225
Swivel shield 227
Tilt shield 229
Lift cylinder carrier, Swivel- and Tilt shield 231
Lift cylinder, Swivel – and Tilt appliance 233
Tilt cylinder 235
Rear ripper 237-2374
Rear ripper – Pipings 239
Rear ripper – Lift cylinder 241
Gasket- and Repair kits 243

MASSEY FERGUSON D700C CRAWLER DOZER BOOK MANUAL – PDF DOWNLOAD:

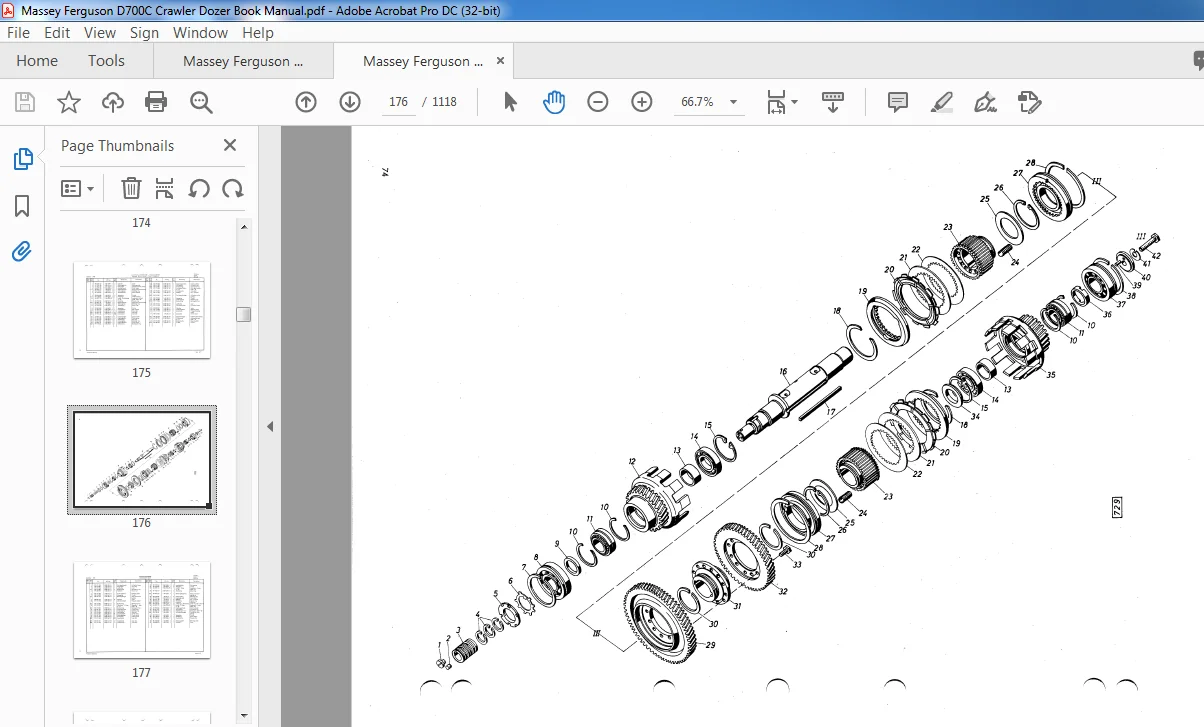

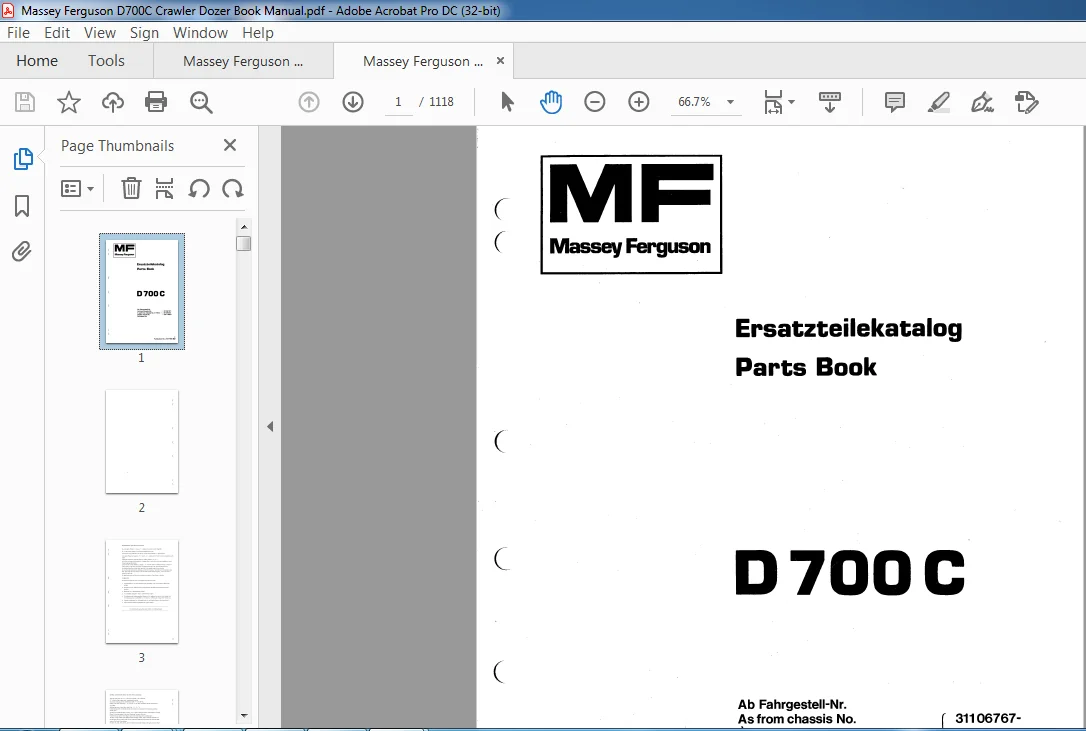

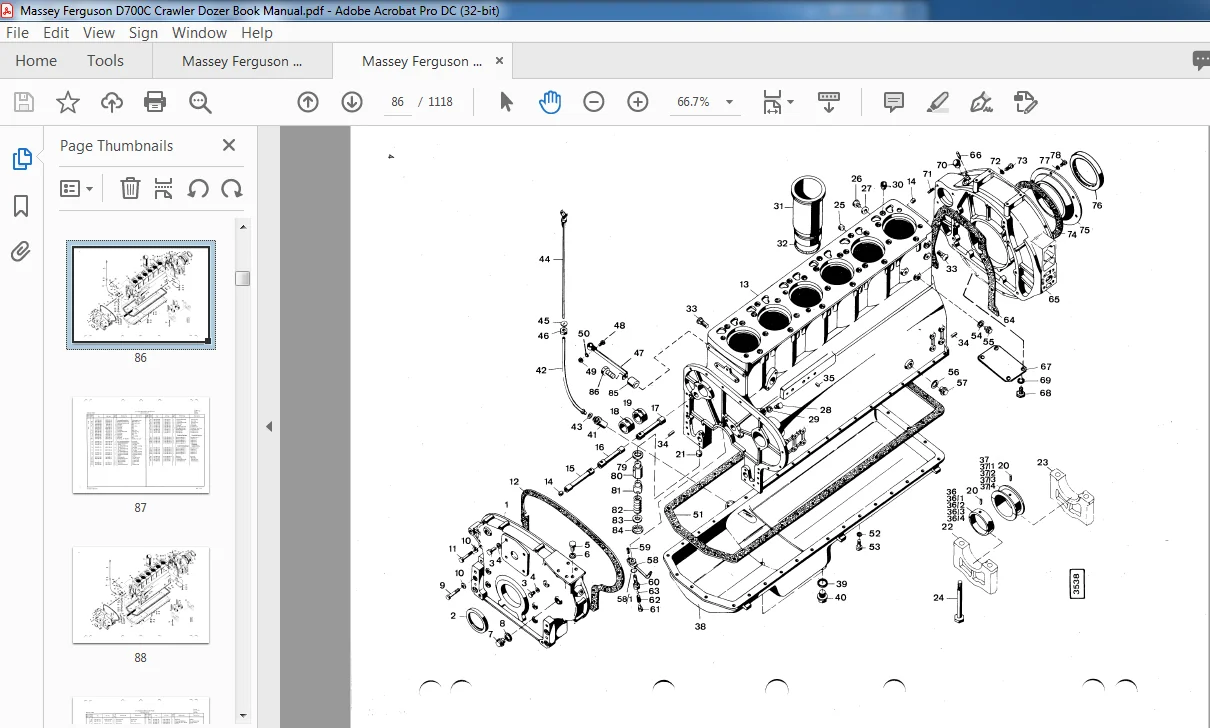

IMAGES PREVIEW OF THE MANUAL:
