Massey Ferguson MF 590 Tractor Parts Catalog 1637065 – Full Illustrated Parts Manual PDF

Description

Massey Ferguson MF 590 Tractor Parts Catalog 1637065

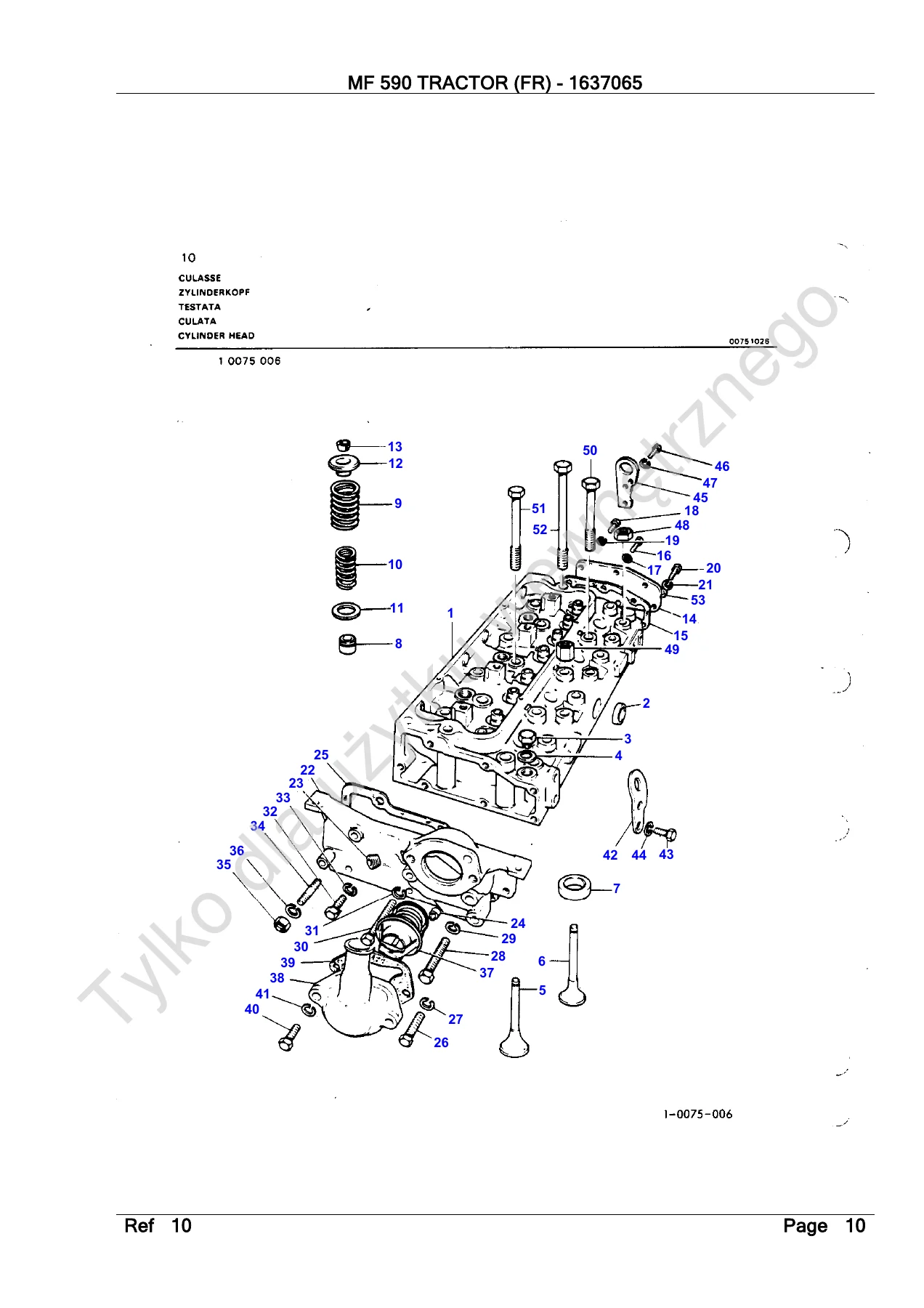

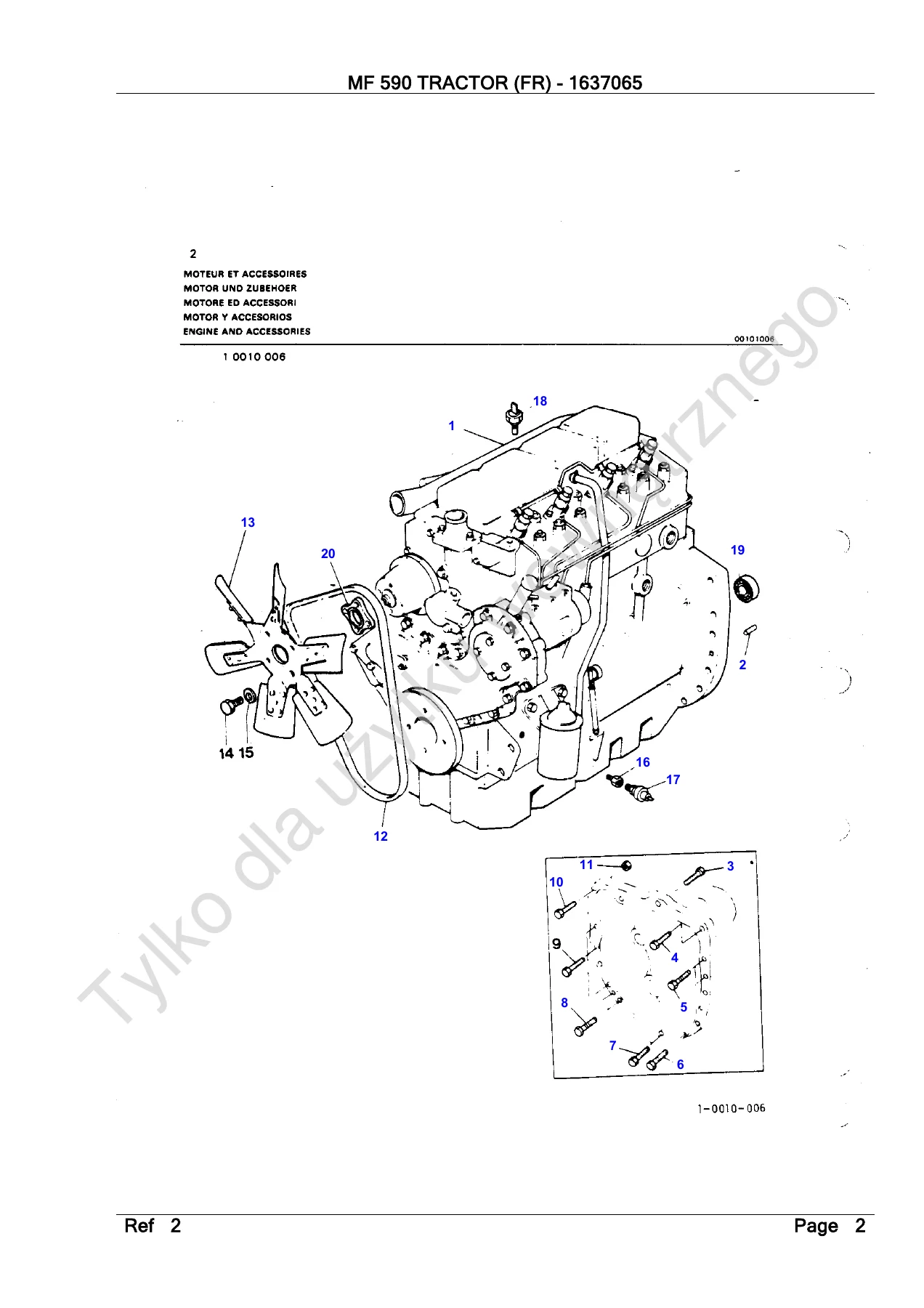

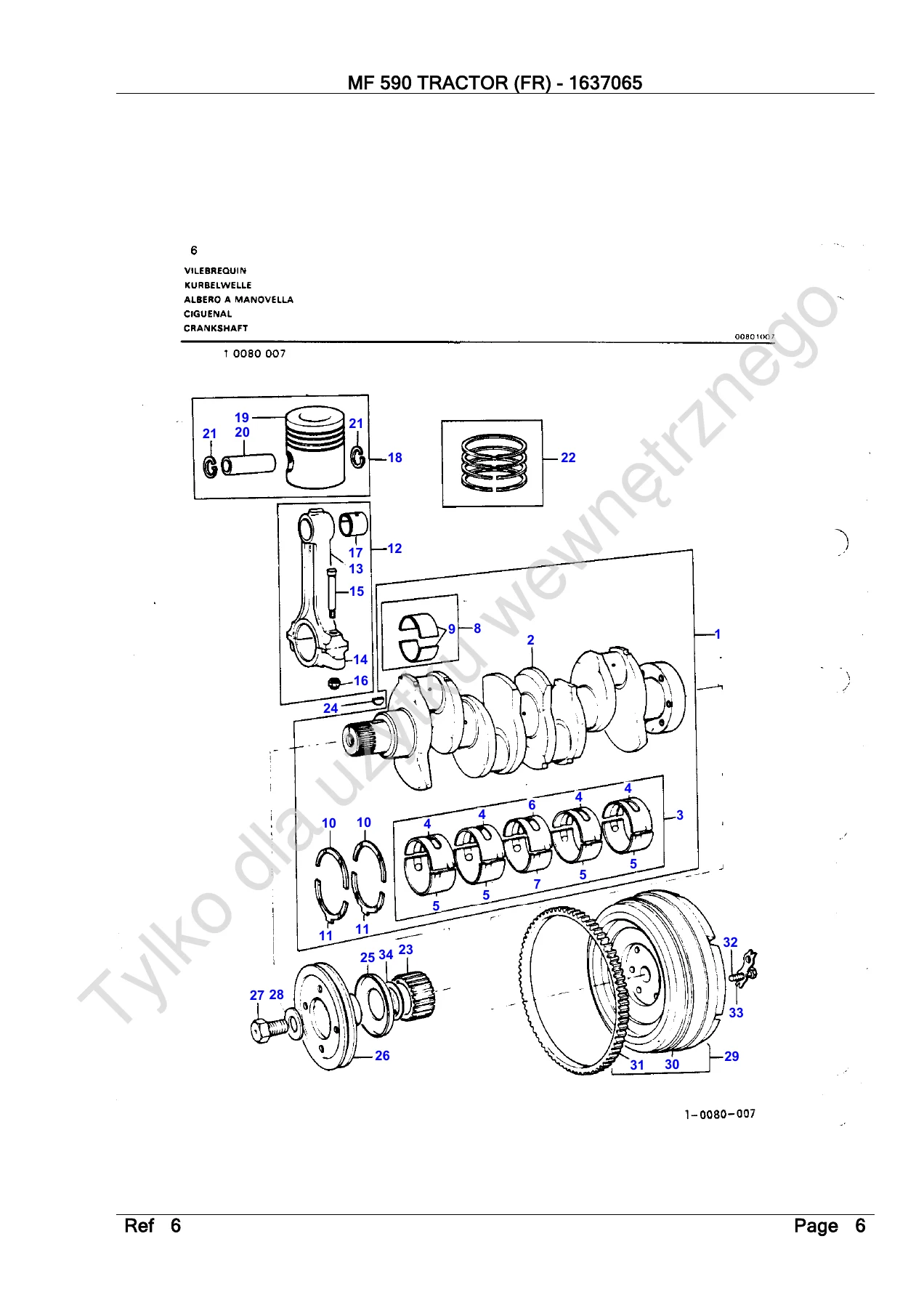

The Massey Ferguson MF 590 Tractor Parts Catalog 1637065 is the illustrated parts breakdown for the MF 590 (FR) tractor, covering every major assembly on the machine. The document is organised into numbered sections, each built around an exploded view drawing with item callouts keyed directly to a parts table on the facing page. Across 558 pages of diagrams and listings, it gives owners, workshops and parts counters a single reference for identifying component numbers on the A4 248 engine, the 8-speed synchromesh, 8-speed constant mesh, Multipower and 12-speed transmissions, the rear axle and differential, disc brakes, hydrostatic steering, the hydraulic lift and the cab.

File Details

• Manual type: Illustrated parts catalog
• Brand: Massey Ferguson
• Model: MF 590 Tractor (FR)
• Document number: 1637065
• Languages: English, French, German, Italian, Spanish
• Pages: 558
• File format: PDF

Chapters Covered

• Engine and accessories
• Cylinder block
• Crankshaft
• Cylinder head
• Cylinder head cover
• Air induction
• Exhaust manifold
• Timing gear
• Balancer unit
• Lubricating oil sump
• Lubricating oil filter
• Water pump
• Fuel lift pump
• Fuel injection equipment
• Alternator positioner
• Joints and gaskets
• Electrical equipment
• Alternator (Motorola, Lucas)
• Starter (Paris Rhone, Lucas)
• Road speed limiting device
• Cooling system
• Fuel tank and attachments
• Fuel filters and pipes
• Fuel filter
• Air filter
• Exhaust system
• Hand and foot throttle controls
• Single clutch
• Dual clutch
• Clutch pedal and linkage
• Transmission housing
• 8-speed synchromesh transmission
• 8-speed constant mesh transmission
• Epicyclic unit
• Multipower transmission
• 12-speed transmission
• PTO drive mechanism
• IPTO clutch and valves
• PTO control
• Rear axle spacer
• Rear axle housing
• Rear axle differential
• Rear axle differential lock mechanism
• Disc brakes
• Brake cylinder
• Hydraulic brake control and cover
• Brake pedals and linkage
• Brakes countershaft
• Trailer brake linkage and valve
• Handbrake
• Rear wheels and variable track wheel
• Front wheels
• Front axle (heavy duty, CAT II, CAT III)
• Axle support and wheel hub
• Hydrostatic steering, Orbitrol unit and safety valve
• Steering hydraulic lines and steering cylinder
• Steering linkage and steering arm
• Hydraulic pump drive and dual pump
• Hydraulic pump strainer, oscillator valve and pressure control valve
• Oil cooler and filter
• Hydraulic lift cover
• Draft and position controls
• Quadrant support and response controls
• Lift arms and lift cylinders
• Top links, lower links and levelling box
• Swinging drawbar and hitches
• Stabilizers
• Back bone hydraulic lift
• Front hitch
• Sheet metal hood
• Tractor cab, windows and cab door
• Windscreen wiper and washer
• Seat assemblies
• Cab insulation, heater and ventilation
• Instrument panel, panel wiring and transfers
• Lighting equipment
• Transfer gear box and transmission shaft
• Front axle housing and final drive

The catalog is arranged so that each illustration and its matching table sit together: you find the assembly you need, read the item number off the drawing, then look up the part number, quantity and any note about which serial range or transmission variant the part applies to. That structure makes the Massey Ferguson MF 590 Tractor Parts Catalog 1637065 as useful for a parts counter chasing a single seal as it is for a workshop planning a full rebuild of the rear axle, the Multipower transmission or the hydraulic lift circuit.

What This Parts Catalog Helps You Identify

Because the MF 590 was built with several transmission options, two clutch configurations, two alternator suppliers, several hydraulic pump variants and multiple front-axle ratings, the catalog separates those variants inside each section rather than treating the tractor as a single fixed specification. Notes such as Up to Serial or Engine Number and From Serial or Engine Number appear throughout the tables, so a buyer can match a part to the exact machine rather than to the nearest generic equivalent. The same applies to regional differences – the catalog carries separate entries for French, German and UK builds wherever components differ, and the injection equipment section splits standard injection, road speed limiting device and road speed internal stop variants.

Every assembly group is drawn with enough detail to show how the parts fit together – the shims, circlips, thrust washers, spacers, seals and retaining plates that sit between the major castings and are the most common source of ordering errors. That is what turns a parts number into a correctly identified part rather than an approximation.

Why Using the Exact Part Number Matters

Ordering by description alone on a tractor of this age is how wrong bearings, wrong seals and wrong gear pinions end up on the bench. The illustrated diagrams in the Massey Ferguson MF 590 Tractor Parts Catalog 1637065 show the correct relationship between adjacent components so the part you order is the part that fits. It removes the guesswork from jobs like rebuilding a brake cylinder, replacing a synchro ring, sourcing a replacement hydraulic pump body, matching a cab window glass to a specific door configuration, or identifying the correct lift arm and cylinder for the machine’s serial range.

IMAGES PREVIEW

Instant PDF Delivery

The Massey Ferguson MF 590 Tractor Parts Catalog 1637065 is supplied as a PDF download that arrives immediately after checkout – no shipping, no waiting for a printed book, and no limit on how many times you open it. Keep it on a workshop laptop, a tablet on the bench or a phone in the yard, and print the pages you need for the job in front of you. Whether you are rebuilding the A4 248 engine, chasing a leak in the hydraulic lift circuit, replacing a brake caliper or simply tracking down the right part number for a cab hinge or a stabiliser bracket, this catalog puts the correct reference in your hands straight away.
