Massey Ferguson MF 8670 Dyna-VT Tractor Parts Catalog 3906212M6

Description

Massey Ferguson MF 8670 Dyna-VT Tractor Parts Catalog 3906212M6

This is the illustrated parts catalog for the Massey Ferguson MF 8670 Dyna-VT tractor, published under catalog reference 3906212M6 and dated 06/10. It is a full parts breakdown: every illustrated page pairs an exploded assembly drawing with a numbered parts list carrying the part number, quantity required and description in five languages. It is the reference to use when you need to identify a component, confirm the exact part number before ordering, or see how an assembly goes back together.

File Details

• Manual type: Illustrated parts catalog
• Brand: Massey Ferguson
• Model: MF 8670 Dyna-VT
• Catalog number: 3906212M6
• Issue / date: (0) 06/10
• Languages: English, French, German, Italian, Spanish
• Pages: 733
• File format: PDF

Chapters Covered

• General Information, Symbols and Group Index
• Recommended Stocking Parts and Marketing Key Parts Index
• Changes After Previous Publication Index
• Numerical Part Number Index
• Dealer Stocking List

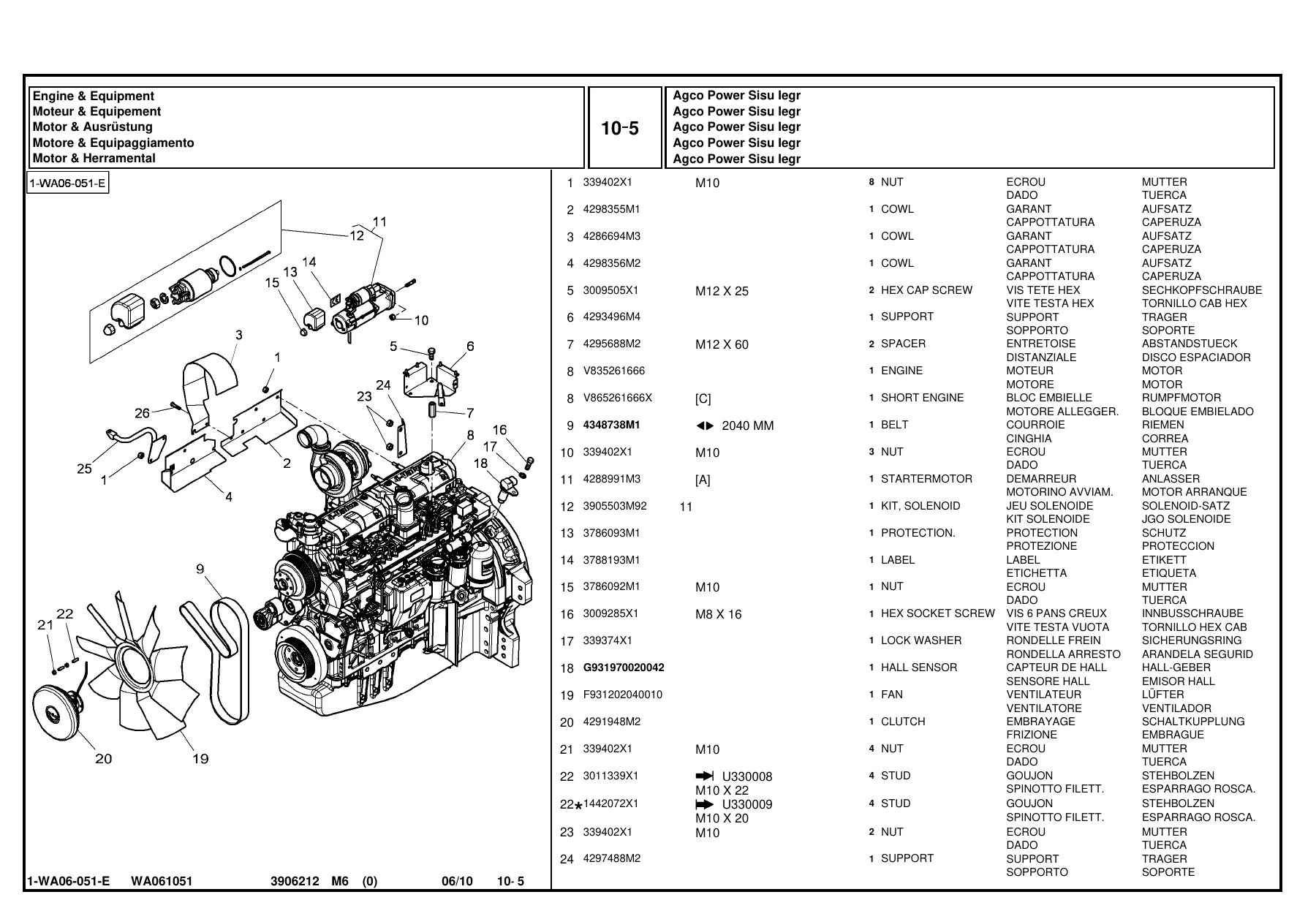

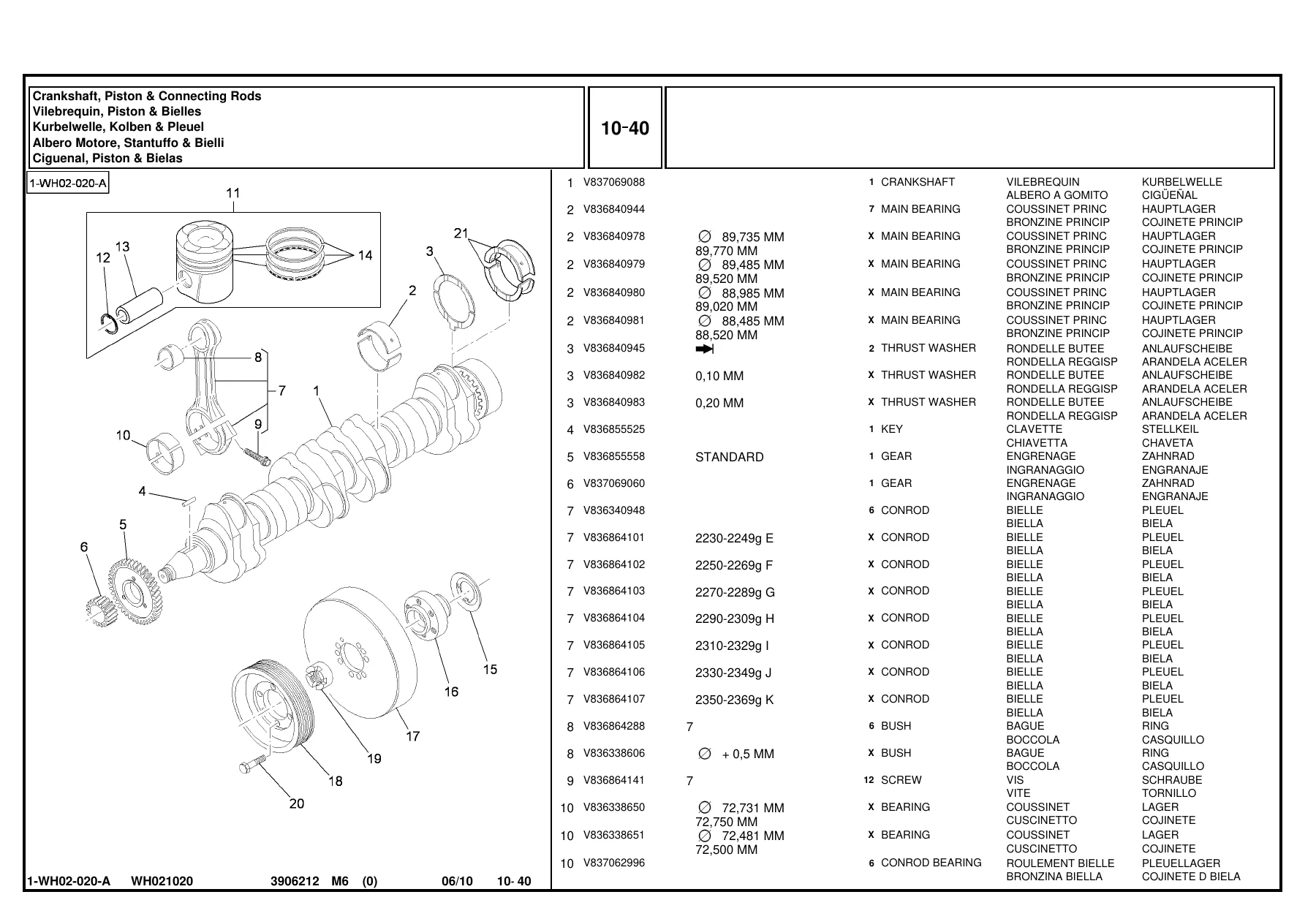

• Engine & Equipment — cylinder block, timing gear housing, crankshaft, pistons and bielas, valve mechanism and camshaft, cylinder head and cover, oil sump, lubricating oil cooler and filter, water pump
• Engine & Equipment — injection system, low pressure fuel system, air induction and exhaust, turbocharger pipes, vertical exhaust on the side, fuel tank and attachments, fuel pipes
• Engine & Equipment — pollution control, engine block heater, air compressor, throttle controls
• Clutch
• Transmission — housing, gear box, inner housing, planetary drive, pump shaft, accumulator shaft
• Transmission — hydraulic pump, hydraulique motor, duct plate, adjusting device, group gear shifting, transmission control, control armrest, module fingertip for distributor
• Rear Axle — handbrake, wheel shaft housing, oil level indicator, differential, bevel drive
• Rear Axle — inner final drive gear, rear axle housings, disc brakes, lift arms, angle sensor
• Linkage — lift cylinders and feeding, levelling box, top link (hook, ball and toggle ends), lower bars, tube and shoe stabilizers, automatic stabilizers
• Linkage — swinging drawbar, hitch, automatic hitch with remote control, front linkage, quick coupler, hydraulic
• PTO Drive Mechanism — independent PTO clutch, flange and bridle, cylinder, pipes, front PTO and IPTO clutch
• Front Axle — weight frame and tow pin, belly weight, bracket, differential lock mechanism, guard and transmission shaft, clutch, hydraulic pump, housing, differential and final drive
• Hydraulic — steering wheel and telescopic column, steering pump, steering hydraulic lines
• Hydraulic — front suspension and cab suspension hydraulic lines, brake pedals, brake valve, brakes high pressure, trailer braking (hydraulic, pneumatic and hydraulic/pneumatic variants)
• Hydraulic — gear box lubrication, oil cooler, auxiliary hydraulics, auxiliary distributors installation, auxiliary distributor, hydraulic lift valve, hydraulic coupling, male coupler, oil recovery
• Electrical Equipment & Instrument Panel — instrument panel and instruments, side console switches, engine harness, plate relay and fuse holder, roof harness, auto-guide, pillar harness, Isobus harness, trailer electric socket
• Electronic Equipment — console, auxiliary distributors harness, sensors, radar, control box harness and cab controls, transmission main harness
• Body — grille, hood, hood frame, tool box, footstep, emblems, speed charts, safety decals, literature
• Tractor Cab — cab mountings and Optiride / Optiride Plus suspension, doors, glass, rear window mechanism, roof, air hatchway and heating hatchway, cladding, air conditioner and heater, cab filter, seat and seat belt, mirrors
• Lighting — front and rear lighting equipment, work lights, rotating light, traffic warning
• Wheels — front and rear wheel hubs, rims, wheel weights and wheel wedges

Because the whole machine is broken down group by group, the catalog works equally well as an assembly guide and as an ordering tool. Each illustration shows the components in their fitted relationship, and the matching list gives the part number and the quantity used in that assembly or sub-assembly — so a gasket, shim, O-ring or bolt is not just named but tied to the exact place it belongs.

Recommended Stocking Parts and Dealer Stocking List

The catalog opens with a Recommended Stocking Parts index and a Marketing Key Parts index. These mark the fast-moving service items — filters, belts, fuses, relays, sensors, switches, seals, bulbs, thermostats and solenoids — with a Qty column showing how many are used in each fitting. A dedicated Dealer Stocking List section repeats those part numbers in a quick-reference layout, which is useful when you are building a stock order or working out which consumables to keep on the shelf.

How the Part Numbers Are Marked

Part numbers carry identification marks explained at the front of the book: numbers that qualify as both recommended stocking parts and marketing key parts, numbers that are recommended stocking parts only, numbers that are marketing key parts only, and plain part numbers without a specific mark. An asterisk in the illustration reference column flags a change since the previous publication, and the assembly reference column tells you when an item is also a component of a larger assembly shown on another page. Quantities are the quantity required for the application illustrated — where a shim, washer or similar item is used as required, the quantity column shows an X.

Numerical Index for Fast Lookup

At the back of the catalog a Numerical Part Number Index lists part numbers in order with the page reference where each one appears. If you already hold a part number — from a label, an old invoice or a worn component — you can go straight to the correct illustration page instead of working through the group index first.
