Massey Ferguson MF8650 Tractor Parts Catalog Manual – PDF Download (3906210)

Description

Massey Ferguson MF8650 Tractor Parts Catalog (3906210)

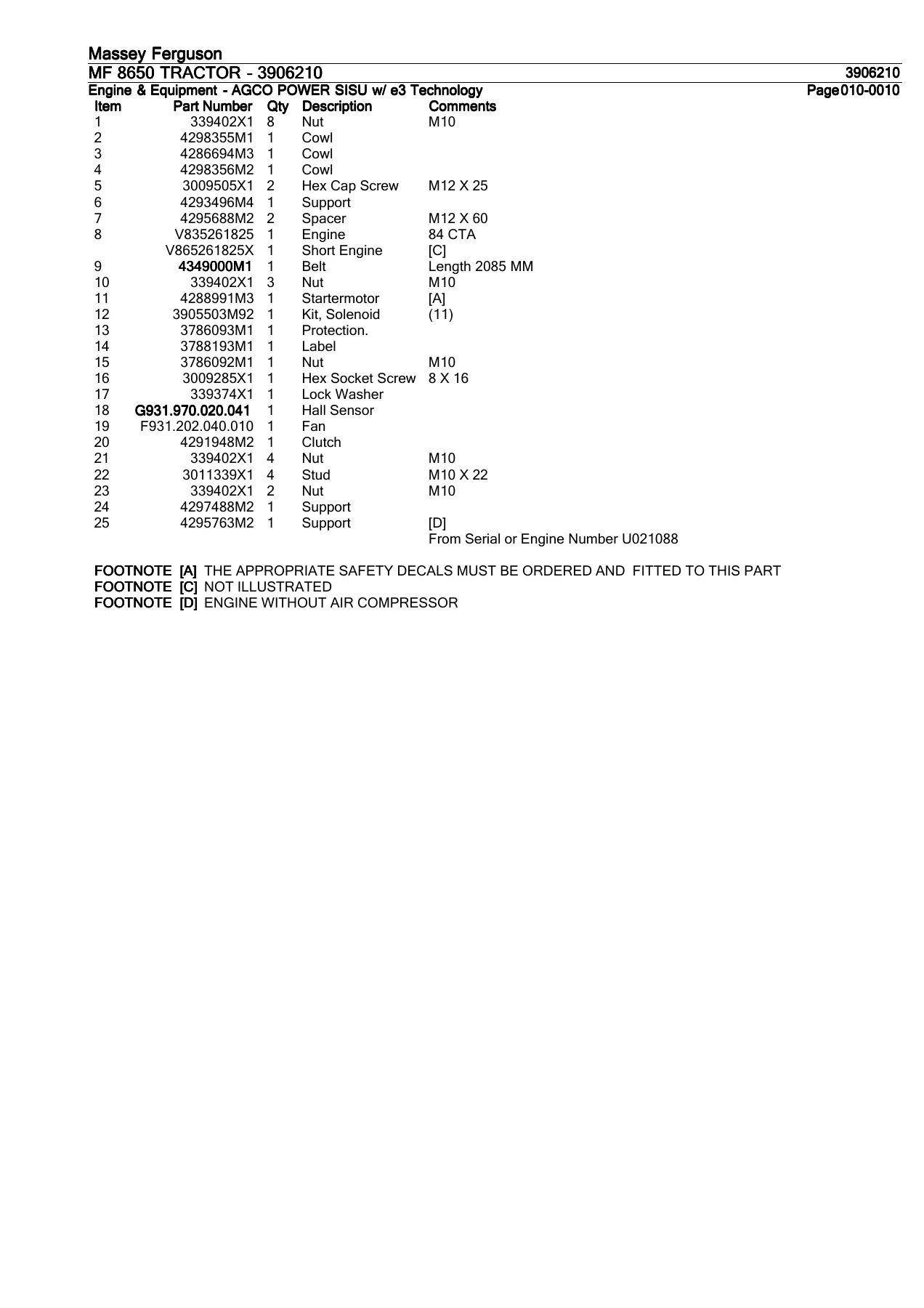

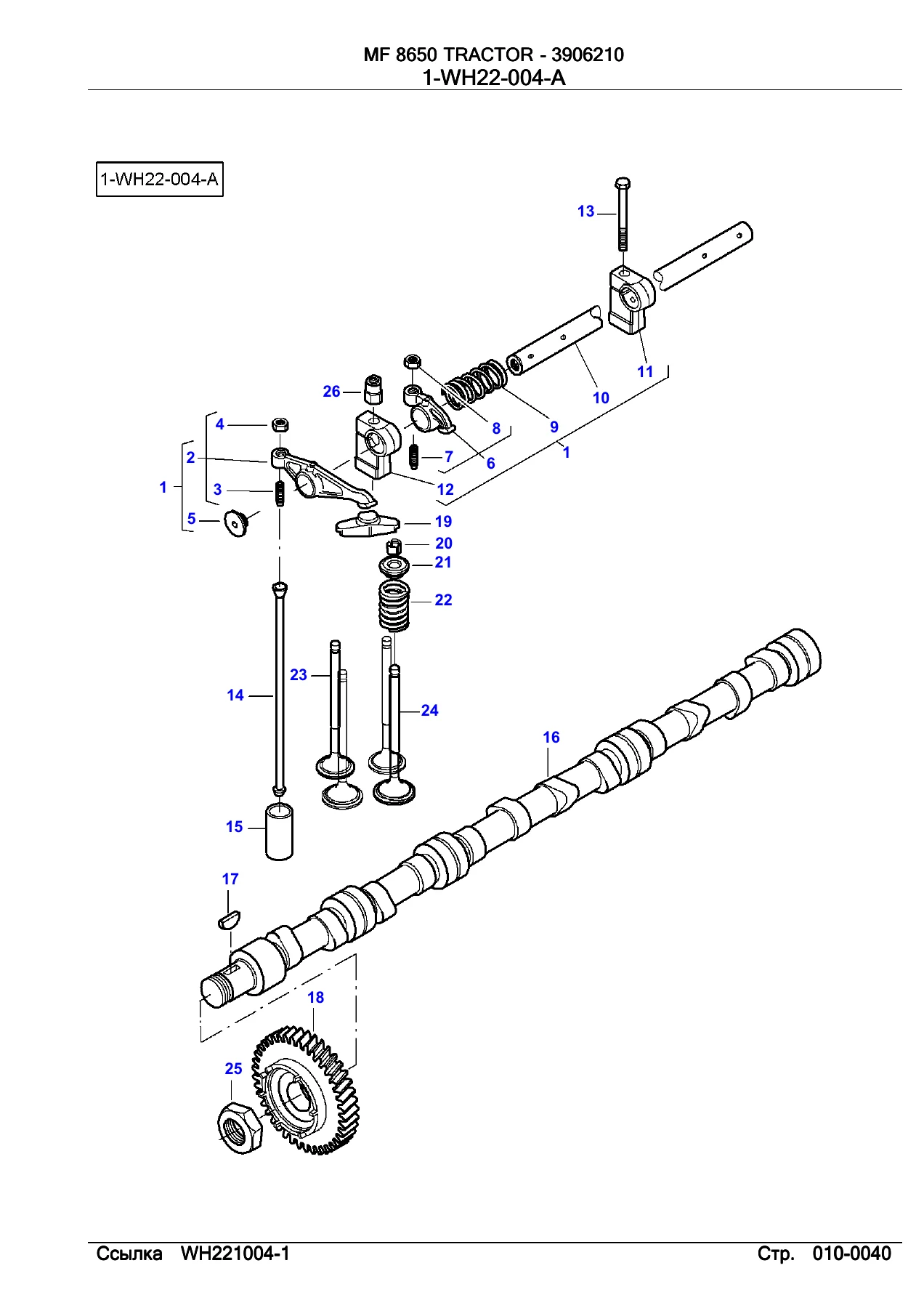

This Massey Ferguson MF8650 tractor parts catalog is the full 826-page illustrated parts manual for document number 3906210, covering the MF8650 from the engine block to the cab trim. Every section pairs a numbered exploded-view diagram with a matching item, part number, quantity and description table, which is exactly how Massey Ferguson dealers price and order parts for this tractor. If you’re maintaining an MF8650 and need to identify a bracket, sensor, seal or bearing by its correct part number, this parts catalog is built for that job.

File Details

• Manual type: Illustrated Parts Catalog
• Brand / Model: Massey Ferguson MF8650
• Document number: 3906210
• Language: English
• Page count: 826 pages
• File format: PDF

Chapters Covered

The MF8650 parts catalog is organized into the following major sections, each broken down further by sub-assembly and, where the tractor was built with running changes, by serial or engine number break:

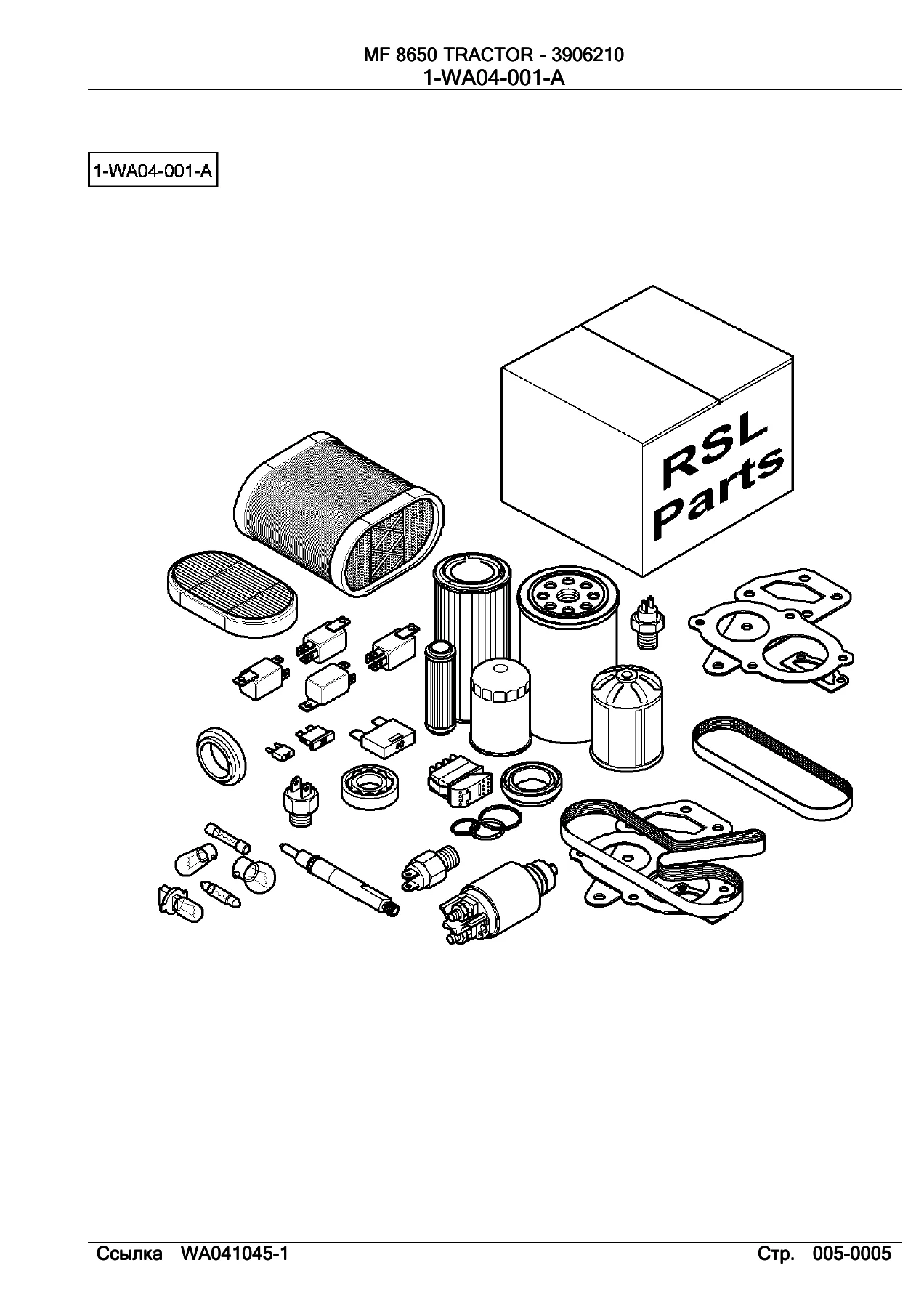

IMAGES PREVIEW

• Engine & Equipment – AGCO POWER SISU IEGR and AGCO POWER SISU w/ e3 Technology engine variants, cylinder block, crankshaft, pistons and connecting rods, timing gear housing, valve mechanism and camshaft, cylinder head and cover, oil sump, lubricating oil cooler and filter, water pump, alternator and bracket, injection system, low pressure fuel system, air induction and exhaust, turbocharger pipes, air compressor, electronic engine management, engine parts and repair kits, engine gaskets sets, cab heating system engine-side, heater engine block, tank assembly, additional tank, cooling system, air conditioned installation, air cooler, dry air filter, vertical exhaust, pollution control, and throttle controls
• Clutch – flywheel and flywheel housing, clutch control
• Transmission – transmission housing, inner housing, planetary drive, pump shaft, accumulator shaft, duct plate, adjusting device, hydraulic pump, hydraulique motor, bevel drive, transmission control including emergency control drive line and range, control armrest, module fingertip for distributor with electrodynamique control
• Rear Axle – wheel shaft housing, oil level indicator, differential, disc brakes, rear axle housings and inner final drive gear, lift arms
• Linkage – lift cylinders and feeding, levelling box, top link with hook end and ball end, top link lock, sensing pin, lower bar with hook and toggle, tube and automatic stabilizers, shoe stabilizers, swinging drawbar in ISO, SAE and heavy-duty configurations, swinging drawbar support, hitch in ISO standard and quick-coupler forms, automatic hitch with remote control, long hay ladder, loader frame and hydraulic loader circuits
• Pto Drive Mechanism – independent power take off clutch (pre- and post-903/7001), power take off 1000/1000E/540 variants, engine PTO cylinder, flange/bridle, and pipes
• Front Axle – weight frame and tow pin, belly weight, hydraulic pump, hydraulic valve block, 4-wheel-drive bracket, differential lock mechanism, 4WD clutch, 4WD housing for fixed and suspended front axle, 4WD differential, 4WD final drive including Auto-Guide sensor variants
• Hydraulic – steering wheel and telescopic column, lighting power shuttle drive, steering pump with AUTOGUIDE variants, steering hydraulic lines, cab suspension hydraulic lines, brake pedals, brakes high pressure pipes and fittings for multiple trailer-braking configurations, trailer brake pneumatic feeding and pneumatic braking at 50 km/h, hydraulic brake assembly across serial breaks, pump drive, lube oil pump filter, feed pump system comfort, hydraulic circuit transmission, hydraulic valve block pressure filter and solenoid valve, hydraulic valve block hydraulic lines, oil cooler and auxiliary hydraulics oil cooler, auxiliary hydraulics with and without trailer braking and with front loader, auxiliary distributors installation in multiple configurations, auxiliary distributor with 4/5/6 distributors electrodynamique, hydraulic lift valve with and without front lift, hydraulic coupling and male coupler, oil recovery for 4 and 5-6 distributor setups
• Electrical Equipment & Instrument Panel – instrument panel and instruments, side console switches, external controls on rear fenders, engine harness for both engine variants, instrument panel harness and armrest harness, plate relay and fuse holder with decals, roof harness for manual and automatic air conditioning, pillar harness with ISOBUS, auto-guide harness, rear lighting harness, trailer electric socket for Europe and USA, field lights harness
• Electronic Equipment – electronic lift console, auxiliary distributors harness for 4/5/6 distributor setups with and without front quick couplers, aboard computer variants, auto-guide, plate lighting equipment, radar, electronic equipment sensors, angle sensor, cab suspension harness/control box, control box harness and cab controls, transmission main harness including Datatronic 3
• Body – sheet metal grille, hood and hood frame, tool box, footstep, emblems, decals-safety including a United States version, speed charts, literature
• Tractor Cab – cab mountings with Optiride and Optiride Plus suspension, doors left and right, rear window mechanism, roof, air hatchway, heating hatchway with Auto-Guide option, tractor cab cladding and dressing roof with and without hatch, instrument panel cladding, fenders with and without extension, cab insulation, windscreen wiper, additional tank, radio installation, electrical plug and cigar lighter (EEC and SAE), internal and external mirrors, electric control rear mirror, seat and secondary seat variants including air-pressure seats, seat belt, canopy
• Lighting – front and rear lighting equipment including Handold and United States variants, working light including xenon standard roof, traffic warning, rotating light
• Rims & Wheels Weights – rear wheels fixing by cone and wheel hub assemblies, wheel weights, wheel wedges across a serial number break

Taken together, this structure gives a technician a complete cross-reference for the whole MF8650 platform: every bracket, sensor, hose, gasket and fastener on the tractor is tied to an illustration and a Massey Ferguson part number, including the running changes AGCO introduced across engine types, serial number breaks and regional/optional equipment.

Why This MF8650 Parts Catalog Matters

Because the MF8650 was built with two engine families (AGCO POWER SISU IEGR and SISU w/ e3 Technology) and several mid-production changes to the differential, front axle, engine PTO and hydraulic brake assembly, ordering the wrong part number on this tractor is easy without the correct catalog page. This parts catalog lets you confirm the exact revision fitted to your machine using the serial and engine number breakpoints printed against each part, then order or cross-reference the correct component the first time.

Get Your MF8650 Parts Catalog Instantly

This Massey Ferguson MF8650 parts catalog covers everything from the engine block, transmission and axles through to the hydraulics, electrical harnesses, cab and lighting — the same 826-page reference used at the parts counter. Having the correct part numbers on hand means fewer returned parts, less guesswork at the dealer, and faster turnaround on repairs and rebuilds. This is a digital PDF download: there’s no shipping and no waiting. It’s delivered instantly after purchase, works on any computer, tablet or phone, and can be printed or zoomed in on to read every exploded-view callout clearly.
