Massey Ferguson SA MF 700 Series 709 711 712 713 715 Spreader Operator Manual – PDF DOWNLOAD

Description

Massey Ferguson SA MF 700 Series 709 711 712 713 715 Spreader Operator Manual – PDF DOWNLOAD

DESCRIPTION:

Massey Ferguson SA MF 700 Series 709 711 712 713 715 Spreader Operator Manual – PDF DOWNLOAD

Operator·s Manual
Planter Spreader
MF 700 Series
Versions М J V
Models
MF 709 R 711 – 712 – 713 ? 715

INTRODUCTION:

We а ге pleased you have acquired опе of AGCO do Brasil’s line products. This manual has Ье е п intended to inform you about the correct procedures to Ье adopted during operation, adjustments and maintenance of Planter Spreader MF 700 Series, models MF 709 – 711 – 712 – 713 – 715 М / V where: ln М Series we have the pantograph line of seeds; ln V Series (VM) we have the implement with planting VariaЫe Rate system. The implement has Ье е п designed and manufactured to provide maximum performance, economy, versatility, duraЬility and ease of operation in а wide range of working conditions. The implement has instant action joint wheel, which ensures contact with the ground and constant movement of the transmissions. The wheels са п Ье freely moved along the chassis, aiming to оЫа iп а wider range of spacing as possiЫe, the whole being incorporated to the ratchets, cylinder, support and rocker arm.

• Tires with low compression characteristics, avoiding damages to the soil. Ant-i slippage геа г platform and totally protected transmissions Ьу chains, providing safety in the operation. Fertilizer and seed polyethylene reservoirs, assuring duraЬility and resistance to corrosion. The fertilizer reservoirs а ге floating, which facilitates cleaning and maintenance. Fertilizer distribution is carried out with accuracy feeders, with permanent lubrication. Mismatched fertilizer lines with 20″ trim knife (optional 22 “) , assuring the straw flow, work and planting speed, which са п Ье assemЫed with trenchers ог douЫe discs.
• Depth limiter for the fertilizer lines (optional) assure uniformity of depth to which the fertilizer is deposited оп the ground. Seed lines, mismatched, with the pantograph system provided wide articulation course, following the soil roughness, keeping а constant rake angle. AssemЫed with 17″ douЫe discs and side limiters to it, with height adjustment and opening. The seeds distribution is performed Ьу the alveolar discs. “V” compressors with pressure, angle, and opening adjustment, our flat compressors with pressure adjustment, adapting to each planting situation. Set of seed depth limiters and compactors availaЫe in many models for all planting conditions.
• Lateral depth to seed douЫe disc limiter set (optional) keeps the depth at which the seed is planted. The disarm-arm trencher and line marker systems (optional) а ге technologies which ensure greater speed and quality in planting. The implement version VariaЫe Rate, planting technology with programmed variation, through agronomic maps ог manual for fertilizers and seeds dosage, and а ISOBUS terminal. Ву touching the screen, the dosage changes, it allows changing the dosages, which а ге commanded Ьу hydraulic valves and motors.
• For а пу further explanation ог technical ргоЫе m, please contact your AGCO do Brasil Authorized Dealer, which together with the Technical Support Department will ensure the efficient operation of your implement, whatever the event. lt is important to read the information оп the rating plate affixed to the implement’s structure.

TABLE OF CONTENTS:

Massey Ferguson SA MF 700 Series 709 711 712 713 715 Spreader Operator Manual – PDF DOWNLOAD

PRESENTATION 4
1 • SAFEТY PRACTICES 6
1 1 – General Recommendations 6
1 2 -The implement 7
1 3 – Safety notes used throughout this Manual 7
1 4 – Notes to the operator 7
1 5 -Follow а safety program 7
1 6- Preparing for а safety operation 8
1 7 – Safe Operation 8
1 8 -Parts and lubricants storage 11
2 • AGCO ENVIRONMENTAL POLICY 12
2 1 – Main guidelines 12
2 2-ISO 1 4000 12
2 3 -Environmental Management System 12
2 4- Environmental issues 13
2 5 -Recommendations to customers and users of AGCO do Brasil’s implements 13
2 6- CONAMA Resolution 1 4
3 • TECHNICAL SPECIFICATIONS 16
3 1 -Weight, Capacity and Spacing 17
3 2- Measures 18
3 3 -lmplement’s ldentification 19
4 • RULES FOR А GOOD PLANTING 20
5 • ADJUSTMENT AND OPERATION 21
5 1 -Engagement and disengagement of the implement to the tractor 21
5 1 1- Leveling 22
5 1 2 -Disengagement 22
5 1 3 – Shifting 23
5 2 – Chassis 23
5 3 -Wheels 2 3
5 4- Transmission 24
5 5 -Fertilizer Distribution 2 5
5 5 1 – Fertilizer distribution regulation 2 6
5 5 2- Fertilizer distribution practical test 2 6
5 6- Fertilizer lines 27
5 6 1 -Trim Knife 27
5 6 2 -Trencher 2 8
5 6 3 -Disarm-arm trencher 2 8
5 6 4 -DouЫe Disc 29
5 6 5 – Fertilizer Limiter 30
5 7 – Seed Line 3 0
5 7 1 -Line with Lateral Depth Limiter (Optional) 3 0
5 7 2 -Limitation of seed depth and soil compaction 32
5 7 3 -Rail cleaning and groove covering 3 4
5 8 – Seed Distribution 3 4
5 8 1 – Selection and Types of Discs and Rollers 3 5
5 8 2 – Seed distribution regulation 3 6
5 8 3 – Seed Distribution Practical Test 3 6
5 8 4 – Alveolar Disc Replacement 3 6
5 9 -Line Marker 37
5 9 1 -Line Marker Adjustment 37
5 9 2 -Line Marker Arm Length Adjustment 3 9
5 9 3 -Disc Operation Angle Adjustment 3 9
5 1 О -Hydraulic System 40
5 10 1 -Hydraulic system depressurization 40
5 10 2 -Hydraulic system locking 40
5 10 3 – Cylinder Shims 40
5 11 -VariaЫe Rate System 41
5 11 1 – Components 41
OPERATOR’S MANUAL
3
5 11 2 – lnstallation of С 3 000 44
5 11 2 1 – lnstallation with clamp 45
5 11 2 2 – lnstallation with adhesive 45
5 11 2 3 -Terminal С3000 Overview 46
5 11 2 4- Navigation in the Main Screen 47
5 11 2 5 – lnitial Environment 47
6 – MAINTENANCE 49
6 1 – Spacing Replacement 49
6 2 -Lubrication 52
6 2 1 -Lubrication Points and lnterval 52
6 2 2 -Lubricant 53
6 3 – General Retightening 53
6 4 Tire Pressure 54
6 5 -Chain Tension 54
6 6- Ratchet System Adjustment 54
6 7 – Cylinder Shims 54
6 8 -Fertilizer reservoir maintenance 55
6 9 -Feeder Thread ldentification 56
6 10-Hydraulic Hoses 56
7 – TROUBLES AND SOLUTIONS 57
8 • STORAGE RECOMMENDATIONS 58
9 · WARRANТY GENERAL INSTRUCТIONS 59
9 1 – Certificate of Technical Delivery 59
9 2 ltems to Ье performed in the Technical Delivery: 60
9 3 Pre-Delivery Overhaul 60
9 4- Warranty Cancellation 61
Annex 1 – Fertilizer Distribution Chart 63
Annex 2 – Seed Distribution Charts 65
Annex 3 – ТаЫе of spacing between lines 69

Contact us: [email protected]

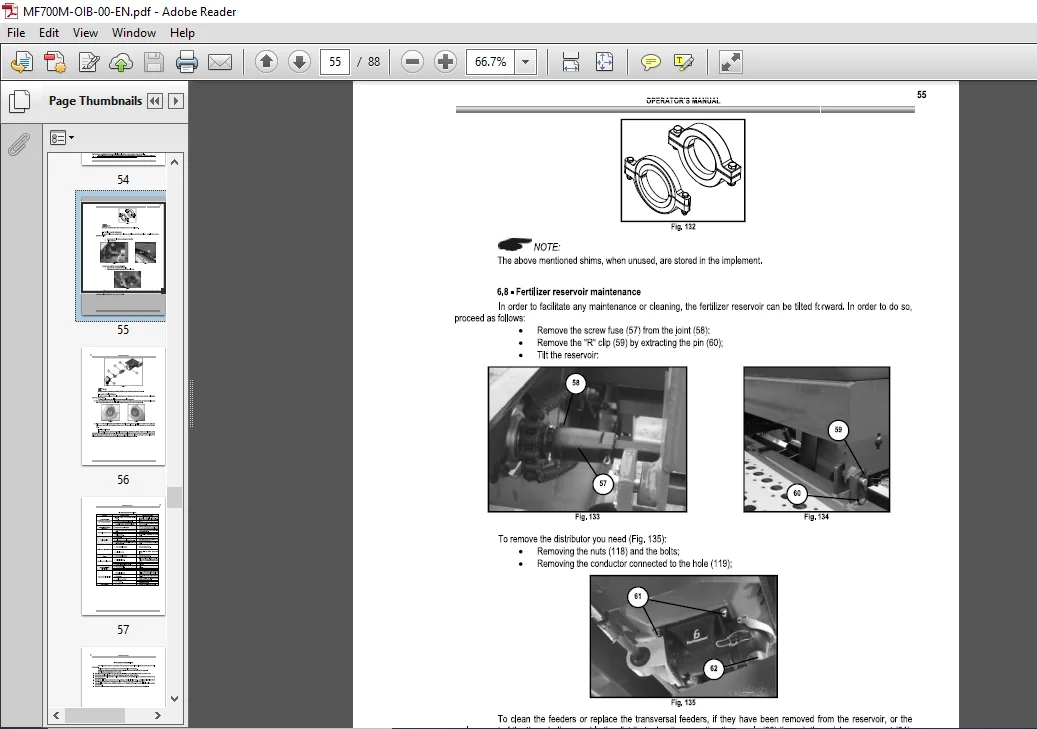

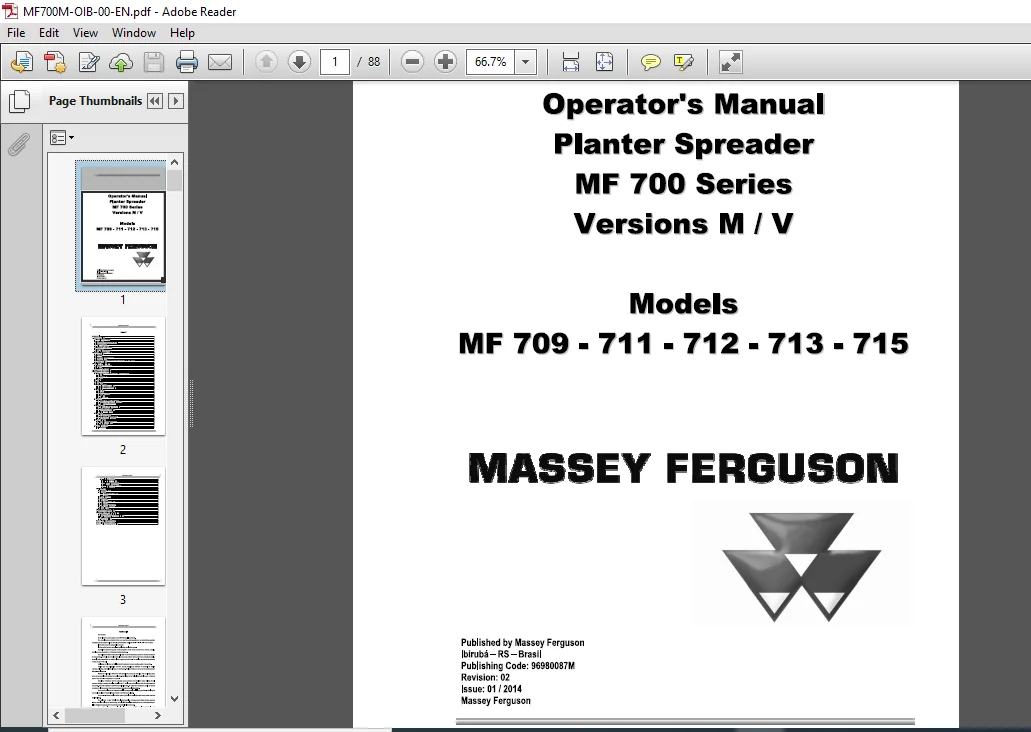

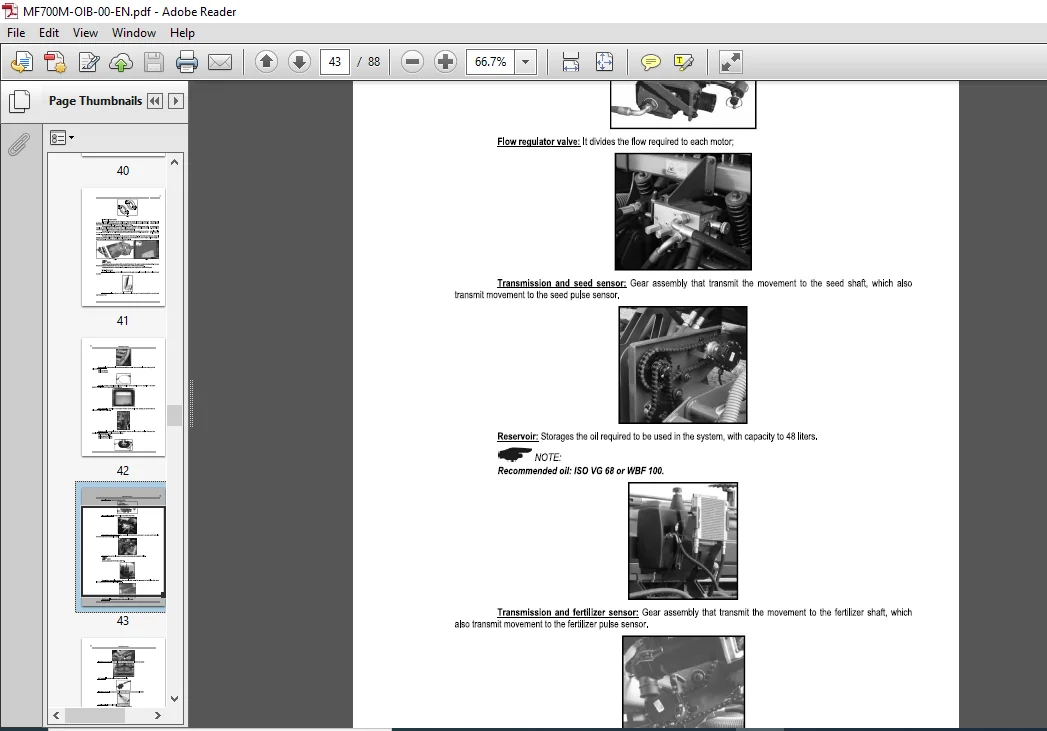

IMAGES PREVIEW OF THE MANUAL:
