McHale FUSION 3 PLUS Baler Wrapper Parts Manual CLT00546 – PDF DOWNLOAD

Description

McHale FUSION 3 PLUS Baler Wrapper Parts Manual CLT00546 – PDF DOWNLOAD

FILE DETAILS:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual CLT00546 – PDF DOWNLOAD

Language : English
Pages : 163
Downloadable : Yes
File Type : PDF

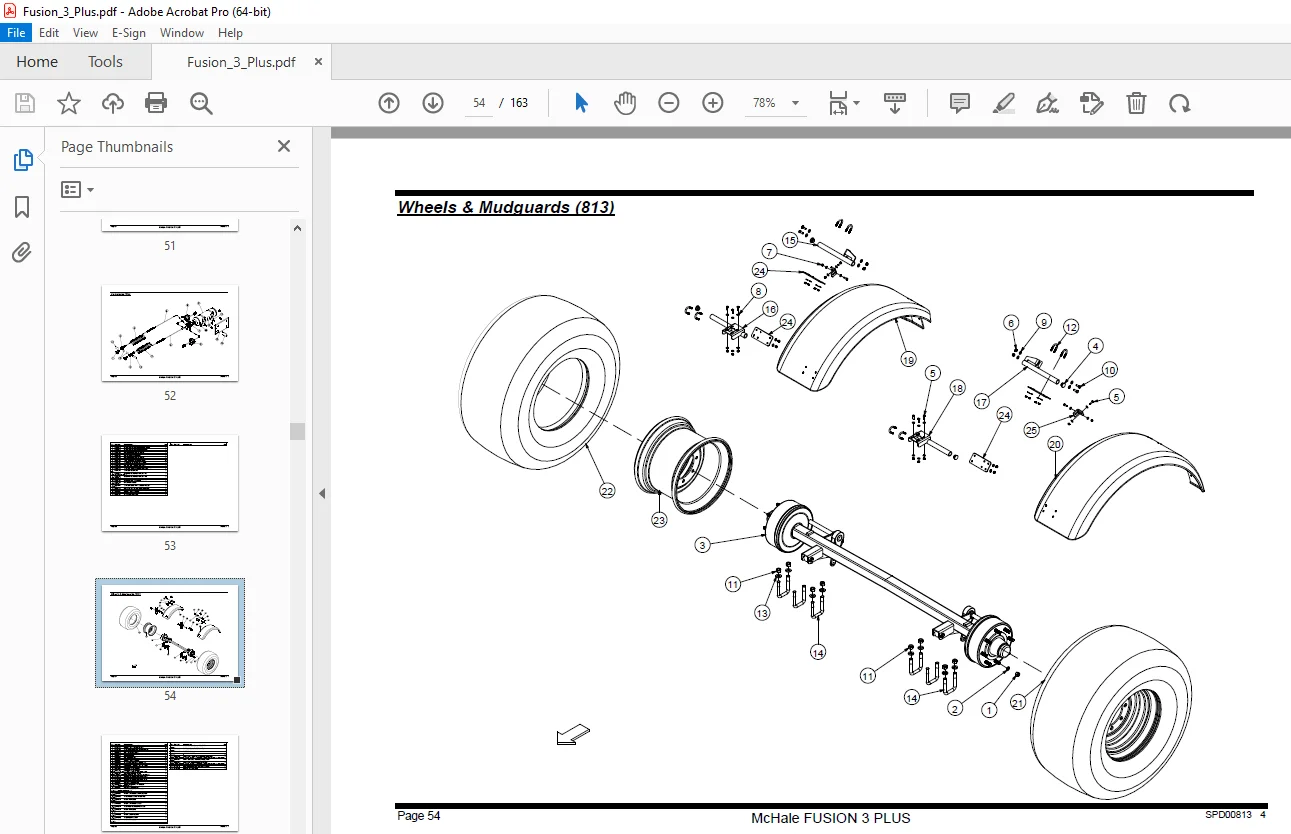

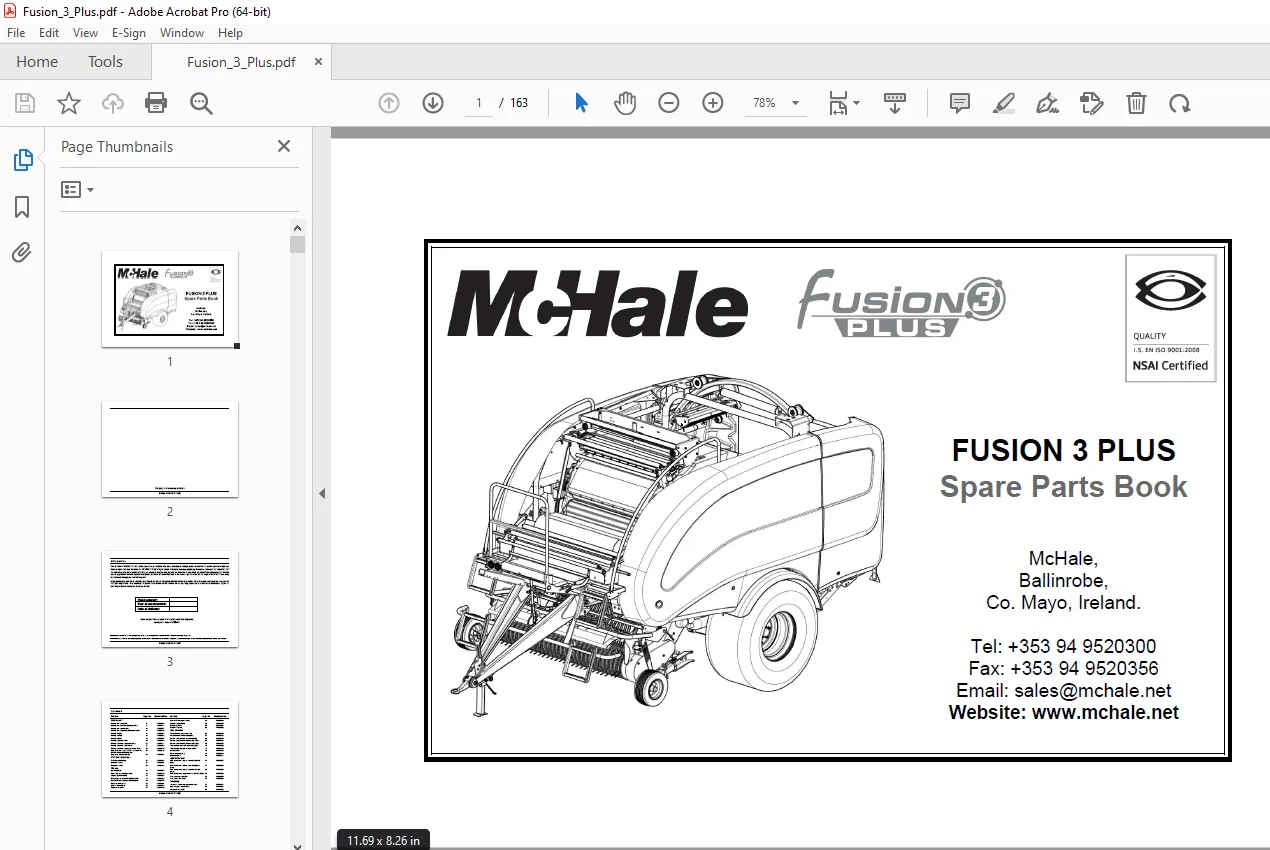

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual CLT00546 – PDF DOWNLOAD

Pick-up unit
Pick-up reel shaft (805) 6 SPD00805
Pick-up reel shaft flex [Camless] (977) 8 SPD00977
Pick-up reel chassis (804) 10 SPD00804
Pick-up reel chassis flex [Camless] (978) 12 SPD00978
Pick-up 3 (824) 14 SPD00824
Pick-up 4 (896) 16 SPD00896
Pick-up 5 (897) 18 SPD00897
Pick-up drop floor (393) 20 SPD00393
Pick-up drop floor suspension (971) 22 SPD00971
Pick-up drop floor select (803) 24 SPD00803
Pick-up drop floor suspension select (976) 26 SPD00976
Crop roller [On Fusion-F5-V6 from Serial No
655681-706661-800616] (775)
28 SPD00775
Crop roller [Camless] (966) 30 SPD00966
PTO shaft & Gearbox
PTO shaft [PWE580] 32 SPD00699
Gearbox 1 (831) 34 SPD00831
Gearbox 2 (490) 36 SPD00490
Chassis
Drawbar (952) 38 SPD00952
Screw jack & Handbrake (812) 40 SPD00812
Steps & platform (806) 42 SPD00806
Chassis [Up to Serial No 662265] (808) 44 SPD00808
Chassis [From Serial No 662266] (979) 46 SPD00979
Axle Hyd-brake (941) 48 SPD00941
Axle Air-brake (942) 50 SPD00942
Air brake kit (818) 52 SPD00818
Wheels & Mudguards (813) 54 SPD00813
Chains & Belts (943) 56 SPD00943
Panels LH (807) 58 SPD00807
Panels RH (833) 60 SPD00833
Bale chamber
Front chamber [Idle side] (506) 62 SPD00506
Front chamber [Drive side] (507) 64 SPD00507
Bottom chamber door [Idle side] (503) 66 SPD00503
Bottom chamber door [Drive side] 1 (504) 68 SPD00504
Bottom chamber door [Drive side] 2 (505) 70 SPD00505
Top chamber door NRF [Idle side] (830) 72 SPD00830
Top chamber door [Drive side] (509) 74 SPD00509
Rollers (510) 76 SPD00510
Roller locations (513) 78 SPD00513
Bearings (517) 80 SPD00517
NRF Netter unit
NRF Netter unit 1 [Up to Serial No 659743]
(827)
82 SPD00827
NRF Netter unit 1 [From Serial No 659744]
(973)
84 SPD00973
NRF Netter unit 2 [Up to Serial No 657406]
(828)
86 SPD00828
NRF Netter unit 2 [from Serial No 657407] (893) 88 SPD00893
Film gathering unit (826) 90 SPD00826
Film stretch unit (825) 92 SPD00825
Wrapping
Transfer & Front wrapping rollers (524) 94 SPD00524
Rear wrapping cradle (954) 96 SPD00954
Dispenser ring (980) 98 SPD00980
McHale FUSION 3 PLUS
Section Page No Document No Section Page No Document No
Dispenser ring brake (981) 100 SPD00981
Dispenser 1 (529) 102 SPD00529
Dispenser 2 (530) 104 SPD00530
Cut & Hold LH (814) 106 SPD00814
Cut & Hold RH (532) 108 SPD00532
Side tip [Up to Serial No 657660] (557) 110 SPD00557
Side tip [On Fusion 3 from Serial No 657661]
(894)
112 SPD00894
Hydraulic & Electrical
Hydraulic layout Fusion 3 Plus [Up to Serial No
659743] (835)
114 SPD00835
Hydraulic layout Fusion 3 Plus [From Serial No
659744] (975)
116 SPD00975
Hydraulic valve main control CVA00406 (937) 118 SPD00937
Hyd valve knives & floor CVA00351 [On Fusion
from S-No 654556 & F560 from S-No 705595]
(702)
120 SPD00702
Hydraulic valve knives & floor [Selectable]
CVA00345 (701)
122 SPD00701
Hydraulic valve rotation & tip CVA00157 [On
Fusion 3 Plus up to Serial No 659743] (543)
124 SPD00543
Hydraulic valve rotation & tip CVA00416
[Fusion 3 Plus from Serial No 659744 & Vario
from 900118] (970)
126 SPD00970
Hydraulic valve chamber door CVA00239 [Used
on Fusion 3 Plus up to Serial No 659743] (822)
128 SPD00822
Hydraulic valve chamber door CVA00428 [Used
on Fusion 3 Plus from Serial No 659744] (974)
130 SPD00974
Hydraulic rams chamber door (884) 132 SPD00884
Hydraulic rams pick-up reel CRA00186 (182) 134 SPD00182
Hydraulic rams cut & hold CRA00074 (549) 136 SPD00549
Hydraulic rams bale cradle CRA00558 (551) 138 SPD00551
Oil & Grease systems 1 (552) 140 SPD00552
Oil & Grease fittings (553) 142 SPD00553
Oil & Grease systems 3 (554) 144 SPD00554
Oil & Grease systems 4 (555) 146 SPD00555
Oil & Grease systems 5 (556) 148 SPD00556
Electrical control [Up to Serial No 659743] (918) 150 SPD00918
Electrical control [From Serial No 659744] (968) 152 SPD00968
Electrical lighting kit [On Fusion 3 up to S No
659431 & Fusion Vario up to S No 900095]
(816)
154 SPD00816
Electrical lighting kit [On Fusion 3 from S-No
659432 & Fusion Vario from S-No 900096]
(950)
156 SPD00950
Decals
Decals 1 (819) 158 SPD00819
Decals 2 (834) 160 SPD00834
Decals 3 (821) 162 SPD00821

DESCRIPTION:

McHale FUSION 3 PLUS Baler Wrapper Parts Manual CLT00546 – PDF DOWNLOAD

Introduction :

The McHale FUSION 3 PLUS which you have purchased has been developed through years of constant research and development. Given proper care and attention the FUSION 3 PLUS will give years of reliable and dependable performance.

• However it is important that the operators manual is read and fully understood to achieve this, before the machine is operated. As part of this philosophy it is vital to use only genuine McHale replacement parts, as these are manufactured to the same high standard as the original machine.
• These may be obtained through your McHale dealer. If any part of this manual is not fully understood, please contact your McHale dealer who will be able to answer any questions or queries that you might have.

S.V 11/24
