DESCRIPTION

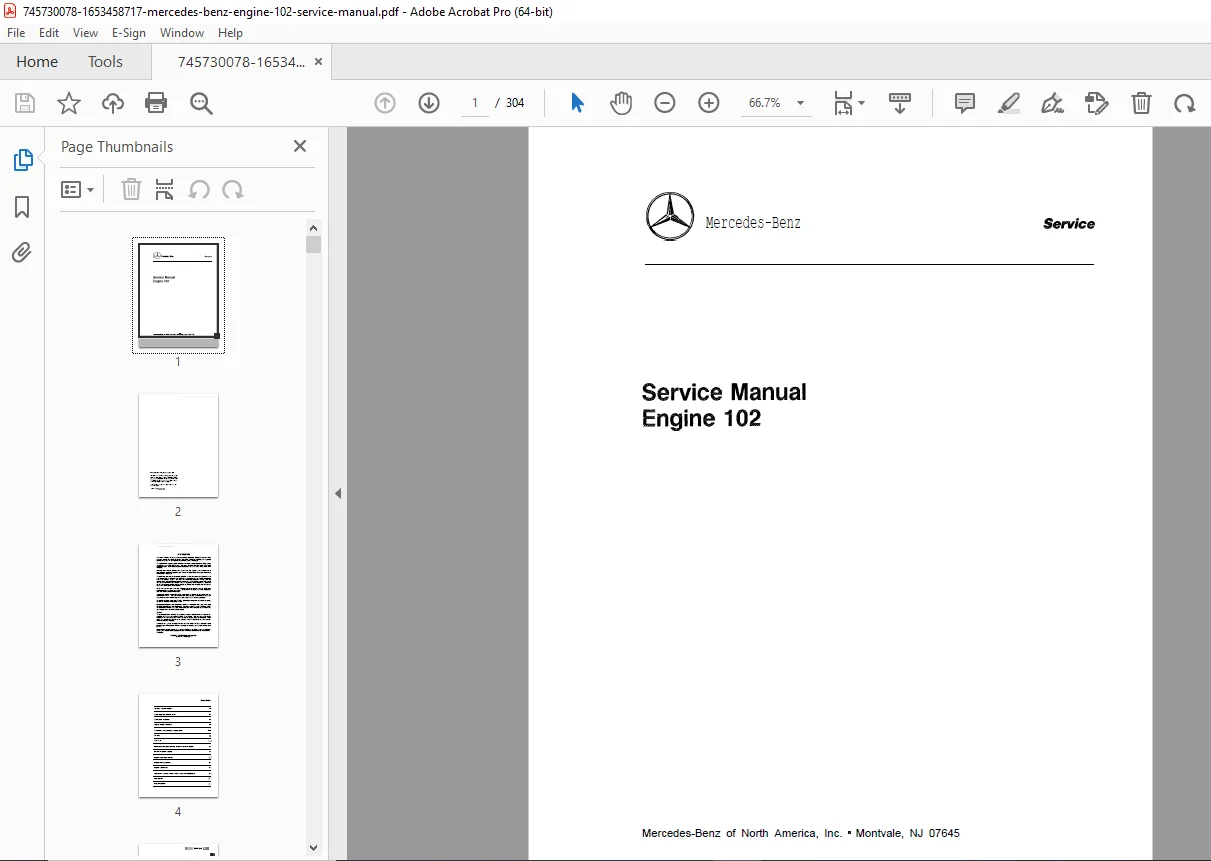

Official Mercedes-Benz Engine 102 Service Manual

This is the official comprehensive service manual (Part Number S-2347-93A) published by Mercedes-Benz of North America, Inc. for the Engine 102 series. Designed for trained Mercedes-Benz service technicians and serious automotive enthusiasts, this manual provides complete factory-authorized technical documentation for maintenance, repair, and overhaul of the 2.3-liter 4-cylinder engine used in Mercedes-Benz 190E models.

Engine Models Covered:

• Engine 102.961 – Used in 190E 2.3 (1984 model year)
• Engine 102.985 – Used in 190E 2.3 (1985-1993 model years)

Vehicle Applications:

• Model 201.024 – 190E 2.3 (1984-1986)
• Model 201.028 – 190E 2.3 (1987-1993)

Engine Specifications:

• Type: 4-stroke spark ignition, inline 4-cylinder
• Displacement: 2299cc (2.3 liters)
• Bore x Stroke: 95.5mm x 80.25mm
• Compression Ratio: 8.0:1 (early), 9.0:1 (later), 10.0:1 (some variants)
• Cylinder Arrangement: Inline, 15° inclination
• Firing Order: 1-3-4-2
• Fuel System: CIS-E (Continuous Injection System – Electronic) with airflow sensor
• Valvetrain: SOHC (Single Overhead Camshaft), 2 valves per cylinder
• Power Output: 84-97 kW (113-130 hp) depending on variant
• Maximum Torque: 181-198 Nm at 3500 rpm
• Redline: 5700-6200 rpm depending on variant

Complete Manual Contents:

GROUP 00: GENERAL, TECHNICAL DATA

Instructions for Use of Service Manual:

• Complete service manual coverage requirements
• Four-manual system explanation (Engine, Chassis/Body, Climate Control, Electrical)
• Vehicle identification by chassis and engine numbers
• Location of specific repair instructions
• Mercedes-Benz Component Group System organization
• Job index navigation system
• Metric unit specifications
• Special tool identification
• Part number reference system

Special Instructions and Symbols:

• Warning: Personal injury risk indicators
• Caution: Equipment or vehicle damage warnings
• Note: Helpful procedural information
• Installation Note: Detailed assembly guidance

Engine and Vehicle Identification:

• Complete model year and chassis number cross-reference
• Engine variant identification (102.961 vs 102.985)
• Sales designation correlation
• VIN location diagrams for Model 201
• Certification tag locations
• Emission control tag information
• California version identification
• Vacuum line routing diagrams

Technical Data:

• Complete engine specifications for all variants
• Compression pressure test data
• Maximum speed specifications (rpm)
• Power output curves (SAE net)
• Torque specifications and curves
• Crankshaft bearing specifications
• Valve arrangement and timing data
• Cooling system specifications
• Lubrication system details
• Air filtration specifications
• Filling capacities (oil, coolant)

GROUP 01: CRANKCASE AND CYLINDER HEAD

Overview:

• Engine variants, model applications, output, and compression ratios
• Engine compartment access procedures (Model 201)

Diagnostic Procedures:

• Compression Pressure Testing:
  • Test data with engine at normal operating temperature
  • Compression values for different compression ratios (E=7.2 to E=10.0)
  • Limit values and new engine specifications
  • Permissible cylinder-to-cylinder variation
  • Special tool requirements (001 589 76 21 00 compression recorder)
  • High-voltage ignition system safety warnings (EZL system)

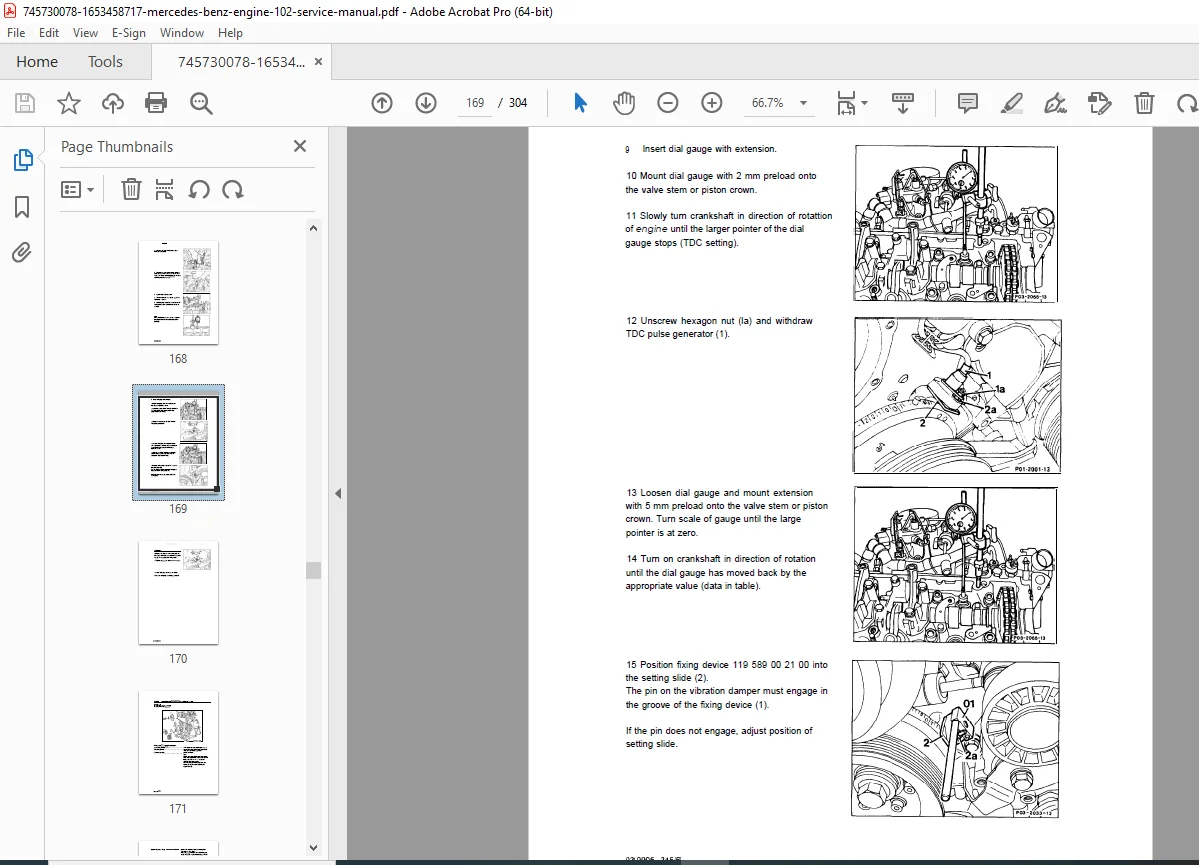

  • Step-by-step testing procedures with photos
  • Fuel pump relay disconnection procedures
• Cylinder Leaktightness Testing:
  • Total pressure loss specifications (max 25%)
  • Valve and cylinder head gasket leakage limits (max 10%)
  • Piston and ring leakage limits (max 20%)
  • Commercial cylinder leaktightness tester usage
  • Calibration procedures
  • TDC positioning procedures for each cylinder
  • Firing order testing sequence (1-3-4-2)
  • Leak detection methodology (intake, exhaust, oil filler, coolant)

Crankcase and Cylinder Head Service:

• Removal and installation procedures
• Disassembly sequences with detailed photographs
• Inspection criteria and wear limits
• Cleaning and preparation procedures
• Gasket replacement procedures
• Cylinder head resurfacing specifications
• Valve guide replacement
• Valve seat machining
• Cylinder bore measurement and honing
• Piston and ring fitting procedures
• Torque specifications for all fasteners

GROUP 03: CRANKSHAFT ASSEMBLY

Crankshaft Service:

• Front crankshaft radial seal replacement (Job 03-324)
• Rear crankshaft seal replacement
• Crankshaft removal and installation
• Main bearing inspection and replacement
• Bearing clearance measurement procedures
• Crankshaft journal measurement
• Crankshaft grinding specifications
• Connecting rod bearing service
• Connecting rod small end bushing replacement
• Piston and connecting rod assembly
• Balancing procedures and specifications

Special Tools:

• Crankshaft holding fixtures
• Bearing installation tools
• Seal installation drivers
• Measurement equipment specifications

GROUP 05: ENGINE TIMING, VALVETRAIN

Camshaft and Valvetrain:

• Single overhead camshaft (SOHC) service procedures
• Camshaft removal and installation
• Camshaft bearing inspection
• Cam lobe measurement and wear limits
• Valve clearance adjustment procedures
• Hydraulic valve lifter service (if equipped)
• Valve spring testing and replacement
• Valve seal replacement
• Rocker arm inspection and service
• Timing chain/belt service procedures
• Timing marks and alignment procedures
• Tensioner adjustment and replacement

GROUP 07.3: CONTINUOUS FUEL INJECTION SYSTEM (CIS-E)

Fuel Injection System Service:

• CIS-E System Overview:
  • Mechanically/electronically controlled continuous injection
  • Airflow sensor operation
  • Fuel distributor function
  • Injection valve service
  • Cold start system
  • Warm-up regulator

Diagnostic Procedures:

• Fuel pressure testing
• Airflow sensor testing
• Fuel distributor testing
• Injection valve testing and cleaning
• Cold start valve testing
• Warm-up regulator adjustment
• Control pressure specifications
• System pressure specifications

Component Replacement:

• Airflow sensor plate replacement
• Fuel distributor overhaul
• Injection valve replacement
• Fuel pressure regulator replacement
• Cold start valve replacement
• Warm-up regulator replacement

GROUP 09: AIR FILTER

Air Filtration System:

• Air filter housing removal and installation (Jobs 09-400, 09-410)
• Filter element replacement procedures
• Housing cleaning and inspection
• Intake air temperature sensor service
• Air mass meter service (on applicable models)
• Ductwork inspection and replacement

GROUP 14: BELT DRIVE

Accessory Belt Drive:

• V-belt or serpentine belt service
• Belt tension specifications and adjustment
• Pulley alignment checking
• Vibration damper inspection
• Crankshaft pulley service
• Alternator pulley service
• Water pump pulley service
• Power steering pump pulley service
• Air conditioning compressor pulley service

GROUP 14: INTAKE AND EXHAUST MANIFOLDS, EMISSION CONTROL SYSTEM

Intake System:

• Intake manifold removal and installation
• Manifold gasket replacement
• Throttle body service
• Idle speed control valve service
• Vacuum line routing and identification

Exhaust System:

• Exhaust manifold removal and installation
• Manifold gasket replacement
• Exhaust manifold inspection for cracks

Emission Control Systems:

• Catalytic converter service
• Oxygen sensor replacement
• EGR system service (if equipped)
• Evaporative emission control system
• PCV system service
• Air injection system service (if equipped)
• Emission control tag information
• Vacuum line routing diagrams

GROUP 15: ELECTRICAL SYSTEM, ENGINE

Engine Electrical Components:

• Ignition System (EZL – Electronic Ignition):
  • High-voltage safety warnings
  • Ignition coil testing and replacement
  • Ignition distributor service
  • Pickup sensor testing
  • Spark plug specification and replacement
  • Ignition cable testing and replacement
  • Ignition timing procedures
  • Control module diagnostics
• Starting System:
  • Starter motor removal and installation
  • Starter motor testing
  • Starter solenoid testing
  • Starting circuit diagnostics
• Charging System:
  • Alternator testing procedures
  • Alternator removal and installation
  • Voltage regulator testing
  • Battery testing and service
  • Charging system output testing
• Engine Sensors:
  • Temperature sensors
  • Oil pressure sensor
  • Knock sensor (if equipped)
  • Throttle position sensor
  • Idle speed control sensor
  • Oxygen sensor

GROUP 20: ENGINE LUBRICATION SYSTEM

Oil System Service:

• Oil pump removal and installation
• Oil pump pressure testing
• Oil pump clearance measurement
• Oil filter housing service
• Oil pressure relief valve testing
• Oil pan removal and installation
• Oil pan gasket replacement
• Oil pickup tube cleaning
• Oil cooler service (if equipped)
• Lubrication system pressure specifications
• Oil capacity and grade specifications
• Oil change procedures

GROUP 22: ENGINE COOLING SYSTEM

Cooling System Service:

• Water Pump:
  • Removal and installation procedures
  • Impeller inspection
  • Seal replacement
  • Bearing inspection
• Thermostat:
  • Testing procedures
  • Replacement procedures
  • Temperature specifications
  • Bypass line operation
• Radiator:
  • Removal and installation
  • Pressure testing
  • Leak repair
  • Cleaning procedures
• Cooling Fan:
  • Electromagnetic clutch testing
  • Fan blade inspection
  • Clutch replacement
  • Motor testing (electric fan models)
• Hoses and Connections:
  • Hose routing diagrams
  • Clamp specifications
  • Replacement procedures
• Coolant:
  • Capacity specifications
  • Antifreeze concentration
  • Draining and filling procedures
  • System bleeding procedures

GROUP 30: ENGINE SUSPENSION

Engine Mounting System:

• Engine mount inspection
• Mount replacement procedures
• Hydraulic mount service (if equipped)
• Torque strut service
• Transmission mount service
• Alignment procedures

GROUP 30: ACCELERATOR CONTROL, CRUISE CONTROL, ELECTRONIC ACCELERATOR

Throttle Control Systems:

• Accelerator cable adjustment
• Cable replacement procedures
• Throttle linkage service
• Cruise control system diagnostics
• Cruise control component replacement
• Electronic accelerator system service (later models)

GROUP 30: FUEL SYSTEM

Fuel Delivery:

• Fuel tank service
• Fuel pump replacement
• Fuel filter replacement
• Fuel line routing
• Fuel pressure specifications
• Fuel pump relay diagnostics
• Fuel accumulator service

GROUP 30: EXHAUST SYSTEM

Exhaust Components:

• Exhaust pipe replacement
• Muffler replacement
• Catalytic converter replacement
• Exhaust hanger service
• Exhaust system alignment
• Leak detection procedures

Special Features Throughout Manual:

Comprehensive Torque Specifications:

• Cylinder head bolts (sequence and values)
• Main bearing cap bolts
• Connecting rod bolts
• Crankshaft pulley bolt
• Flywheel bolts
• Oil pan bolts
• Intake and exhaust manifold bolts
• Spark plugs
• All critical fasteners

Special Tool Identification:

• Mercedes-Benz special tool part numbers
• Tool descriptions and applications
• Alternative commercial tool recommendations
• Tool usage illustrations

Detailed Photographs and Illustrations:

• Component location photos
• Disassembly sequence photos
• Assembly reference illustrations
• Exploded view diagrams
• Connector and wiring identification
• Measurement procedures

Installation Notes and Cautions:

• Critical assembly sequences
• Torque angle specifications
• One-time use fasteners
• Gasket orientation
• Seal installation directions
• Fluid specifications

File Details:

• Manual Title: Mercedes-Benz Service Manual, Engine 102
• Part Number: S-2347-93A
• Publisher: Mercedes-Benz of North America, Inc., Montvale, NJ
• Publication Year: 1993
• Engine Covered: 102.961, 102.985 (2.3L 4-cylinder)
• Vehicle Applications: 190E 2.3 (Model 201.024, 201.028)
• Model Years: 1984-1993
• PDF Quality: High-resolution professional factory documentation
• Total Pages: 304 pages
• Language: English
• File Format: Searchable PDF with detailed photographs and technical diagrams
• Organization: Mercedes-Benz Component Group System

Why This Manual is Essential for Mercedes-Benz Service:

This service manual is the complete factory-authorized resource for anyone maintaining or repairing Mercedes-Benz Engine 102 powerplants. Whether you’re a professional Mercedes-Benz technician at an authorized dealership, an independent import specialist, or a dedicated Mercedes-Benz owner performing your own maintenance, this manual provides the authoritative technical documentation required for proper service, diagnostic accuracy, and long-term reliability.

Download immediately and gain instant access to 304 pages of factory-approved service procedures, complete technical specifications, detailed component photographs, torque values, special tool identification, and step-by-step repair instructions that will ensure your Engine 102 receives proper maintenance according to Mercedes-Benz engineering standards. Master the CIS-E fuel injection system, SOHC valvetrain, and all engine systems with this comprehensive factory service manual!
