MG ZS System Information Manual 2017 – Complete Workshop Repair & Service PDF

Description

MG ZS System Information Manual 2017 – Your Complete Technical Reference

The MG ZS System Information Manual is the definitive technical resource for the 2017 MG ZS, delivering comprehensive coverage of every major vehicle system. Published by SAIC Motor Passenger Vehicle Co. in July 2017, this manual provides the specifications, system layouts, component descriptions, and operating procedures needed to understand, diagnose, maintain, and repair the MG ZS across both engine variants and both transmission options. Whether you are a professional technician, a workshop owner, or a dedicated owner performing your own service, this MG ZS workshop manual gives you the same level of technical depth used by the manufacturer.

File Details

• Manual Type: System Information Manual
• Brand: MG (SAIC Motor Passenger Vehicle Co.)
• Model: MG ZS
• Language: English
• Page Count: Approximately 398 pages
• File Format: PDF
• Publication Date: July 2017
• Coverage: 1.0T and 1.5L engines, 6AT and 5MT transmissions

Chapters Covered

• Specifications Parameter
• Engine Mechanical System – 1.5L
• Engine Cooling System
• Engine Control System – 1.0T
• Engine Control System – 1.5L
• Engine Fuel & Management System
• Engine Electrical System – 1.0T
• Engine Electrical System – 1.5L
• Engine Manifold & Exhaust System – 1.0T
• Engine Manifold & Exhaust System – 1.5L
• Shift Lock Control – 6AT
• Shift Lock Control – 5MT
• Automatic Transmission – 6AT
• Manual Transmission – 5MT
• Clutch – 5MT
• HVAC System
• HVAC System – MTC
• HVAC System – ETC
• Steering System
• Wheel Alignment
• Front Suspension
• Rear Suspension
• Brake
• Park Brake
• Brake Module
• Driveline/Axle
• Mirrors
• Wipers and Washer
• Lighting
• Lamps
• Door Window Regulator
• Body Control Module
• Horn
• Vehicle Access
• Alarm System
• Seat Belts
• Supplementary Restraint Systems
• Park Assistant System
• Entertainment and Navigation
• Displays and Gages
• Battery – 12V

Engine Systems – 1.0T and 1.5L

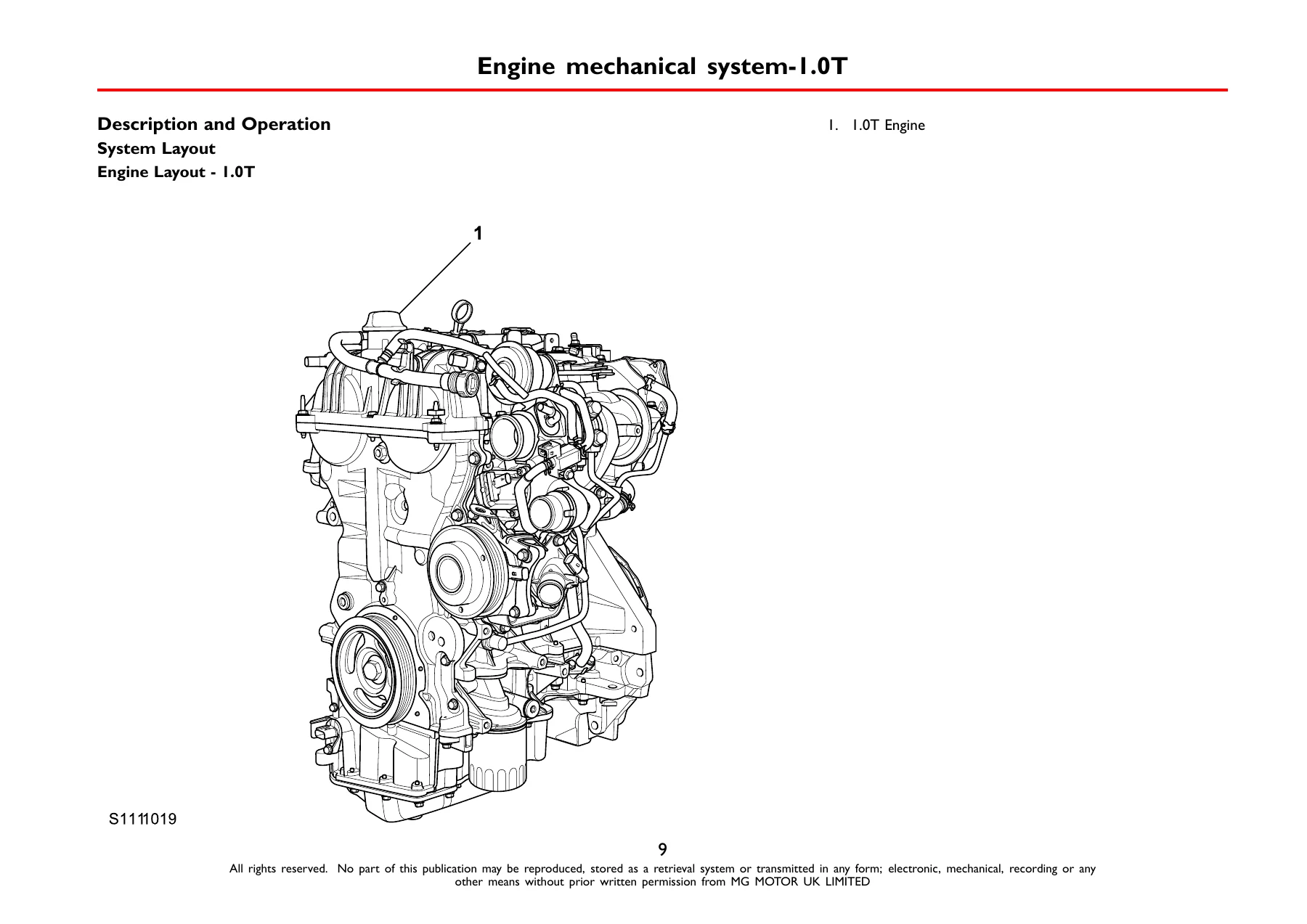

The engine sections of this MG ZS repair manual are split between the 1.0T three-cylinder turbocharged gasoline engine and the 1.5L four-cylinder DVCT engine. For the 1.0T, the manual covers the aluminum cylinder block with pre-cast iron liners, the forged steel crankshaft with four main bearings and thrust washer on the upper main bearing shell 3, the aluminum cylinder head with hydraulic tappets and double overhead assembled camshafts, and the high-pressure common rail direct injection system operating at up to 20 MPa. Detailed specifications include the 74 mm cylinder bore, 77.4 mm stroke, 0.999 L displacement, 10.5 compression ratio, 92 kW at 5200 rpm rated power, and 170 Nm torque from 2000 to 4000 rpm. The 1.5L section covers the cast iron HT250 cylinder block with honed cylinder bores, the fractured connecting rod with 143.7 mm centre distance, the full-floating piston pin design, and the variable intake and exhaust cam timing system. Engine control chapters for both variants provide the BOSCH MED17 and ME17 ECM pinout tables, sensor descriptions, actuator operations, and diagnostic information. The cooling system chapter details the electronic thermostat, expansion tank, coolant pump drive ratio, and fan control strategy, while the fuel and management section explains the returnless fuel system, high-pressure fuel pump, fuel rail pressure sensor, and evaporative emission system.

Transmission and Driveline

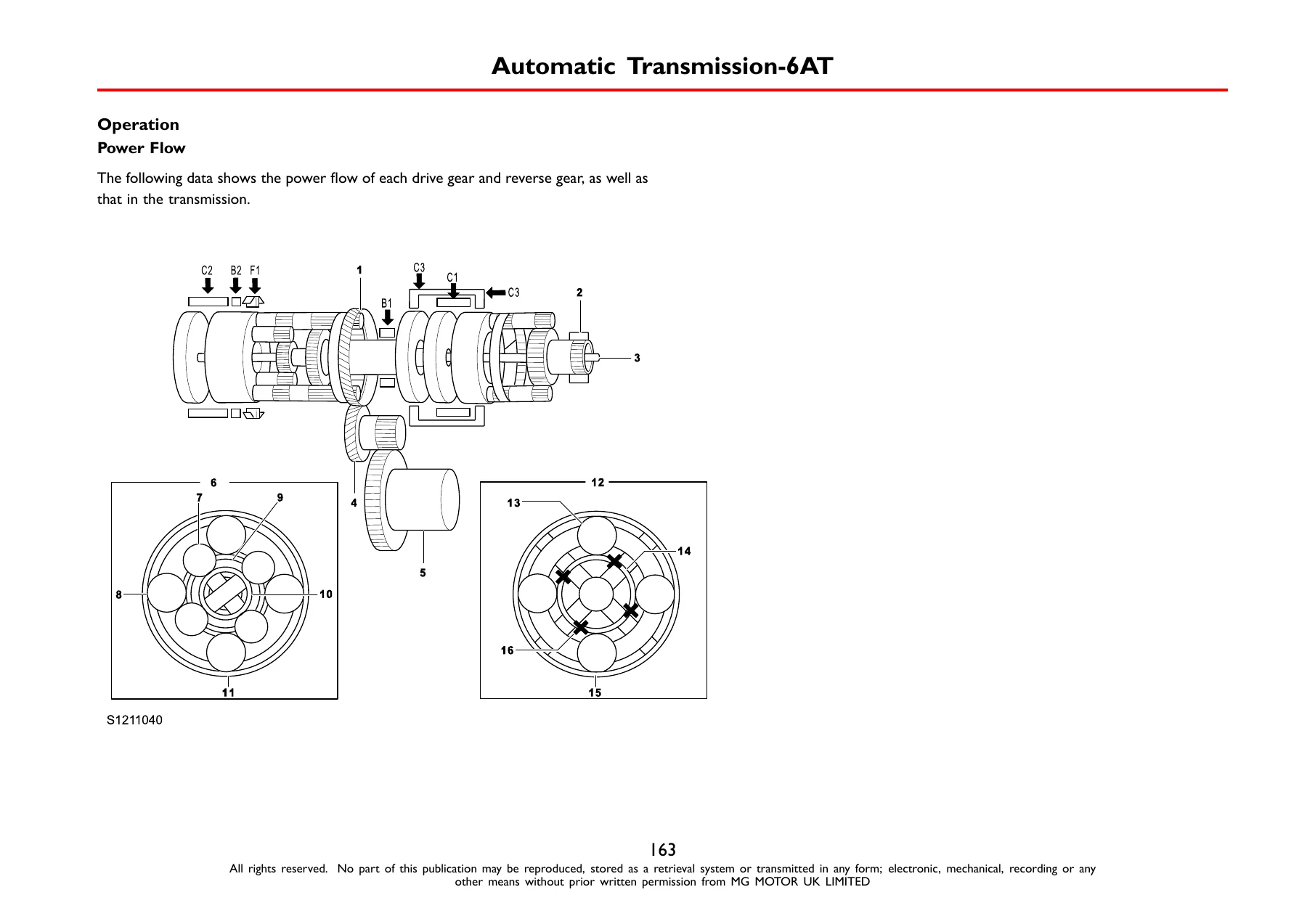

The MG ZS transmission manual covers both the AISIN F21-160 six-speed automatic transmission and the five-speed manual transmission in exceptional detail. For the 6AT, you get the complete gear ratio table, clutch and brake application charts, solenoid valve operation and current-pressure graphs, hydraulic control system diagrams, power flow illustrations for every gear from 1st through 6th and reverse, and the adaptive learning procedure with ATF temperature requirements. The TCM control functions, fail-safe strategies, and shift lock control are all documented. For the 5MT, the manual provides the gear ratios, synchronizer assembly details, shift fork and selector mechanism operation, reverse gear protection logic, differential assembly, and complete disassembly and reassembly procedures with exploded views. The clutch chapter covers the dry single-disc hydraulic clutch system, including the master cylinder, slave cylinder, release mechanism, clutch switch operation, and the driven plate and pressure plate specifications. The driveline and axle chapter details the drive shaft assemblies with tripod and constant velocity joints.

Chassis, Suspension, Steering and Brakes

Chassis coverage in this MG ZS service manual begins with the column electric power steering system, including the EPS control module pinout, torque steering angle sensor operation, and steering gear assembly layout. Wheel alignment specifications are given for front and rear camber, kingpin caster, kingpin inclination, and toe-in, with detailed explanations of camber, caster, scrub radius, thrust angle, and torque steering. The front suspension chapter covers the McPherson strut design, L-shaped lower swing arms, front horizontal stabilizer bar with 22 mm diameter, coil spring specifications, and the front subframe construction. Rear suspension coverage includes the H torsional member, coil spring data with 338.3 mm free height, and rear shock absorber assembly. Brake system chapters provide the front and rear disc specifications, minimum thickness values, brake pad wear limits, hydraulic system layout with diagonal split, vacuum booster operation, brake master cylinder construction, and the ABS/SCS modulator with hydraulic control unit schematic. The park brake chapter explains the cable-operated system with automatic adjustment and warning switch operation.

HVAC, Body, Lighting and Electrical Systems

The HVAC section covers both the manual temperature control (MTC) and electronic temperature control (ETC) systems, including refrigerant capacities for R1234yf, compressor specifications for both engine variants, expansion valve operation, evaporator temperature sensor logic, and A/C pressure switch thresholds. Body systems include the power window regulator with anti-pinch and one-button control functions, window self-learning procedures, and heat protection strategies. The body control module chapter provides the complete pinout tables for all connectors, load management modes including production, transportation, and normal modes, sleep and wake-up conditions, and diagnostic capabilities. Lighting and lamps chapters document the exterior lighting system including headlamp assemblies, tail lamps, rear combination lamps, fog lamps, daytime running lamps, and the automatic lamp control function. The vehicle access and alarm system chapters explain the remote key operation, central locking, anti-theft zones, error lock alarm, auto relock, auto lock and unlock functions, and the immobiliser system with LF anti-theft coil. Supplementary restraint system coverage includes airbag modules, side impact sensors, front impact sensors, seat belt pretensioners, and the SRS ECU pinout. The park assistant system chapter documents the rear ultrasonic sensors, detection range from 300 mm to 1200 mm, alarm level table, and rear camera operation. Entertainment and navigation coverage includes the low, medium, and high configuration mainframes with connector pinout tables. The displays and gages chapter covers the instrument pack, warning lamps, trip computer functions, and information centre settings.

Why This MG ZS System Information Manual Matters

Having the correct technical information is the difference between a repair done right and a repair that causes further damage. This MG ZS PDF manual gives you the exact torque values, clearances, service limits, and adjustment procedures that the manufacturer specifies. The system layouts and control diagrams help you understand how components interact, making diagnosis faster and more accurate. The component pinout tables for the ECM, TCM, BCM, SRS ECU, and other modules allow you to test circuits methodically rather than guessing. Whether you are replacing a timing chain on the 1.0T, performing adaptive learning on the 6AT, diagnosing an ABS fault, or repairing the HVAC system, this manual provides the authoritative reference you need.

IMAGES PREVIEW

Instant PDF Delivery – No Shipping, No Waiting

This MG ZS System Information Manual 2017 is delivered as an instant PDF download immediately after payment. There is no shipping, no waiting for a physical book to arrive, and no customs delays. The PDF format works on any device – laptop, desktop, tablet, or smartphone – and you can print individual pages or entire sections for use in the workshop. Keep it on your computer for quick reference, or print the sections you need for a specific job. With approximately 398 pages of comprehensive technical coverage for the 2017 MG ZS, this manual is an essential addition to any workshop or owner’s technical library.
