Mindray BS-430 Chemistry Analyzer Service Manual PDF
Original price was: $120.00.$18.95Current price is: $18.95.
Ensure accurate clinical diagnostics with the official Mindray BS-430 Service Manual. This comprehensive guide for biomedical engineers covers ISE module calibration, fluidic system maintenance, and Mindray BS-430 troubleshooting. Includes detailed error code lists (e.g., C07037 Reagent), hydraulic schematics, and PCB replacement procedures. Instant PDF download.
Description
Mindray BS-430 Chemistry Analyzer Service Manual Repair & Maintenance PDF DOWNLOAD
Description:
The Official Technical Resource for Mindray BS-430 Maintenance
Maximize the uptime and precision of your laboratory’s chemistry analyzer with the complete Mindray BS-430 Service Manual. Issued by Mindray Bio-Medical Electronics, this factory PDF provides the in-depth technical procedures required to install, maintain, and repair the BS-430 system.
Whether you are resolving a “Reagent Exhausted” error, rebuilding the sample probe, or performing a scheduled ISE module calibration, this manual delivers the manufacturer-approved protocols and schematics needed for compliance and performance.
Manual Features & Critical Technical Sections:
This manual is professionally organized into specific engineering categories for rapid troubleshooting:
Hardware & System Overview

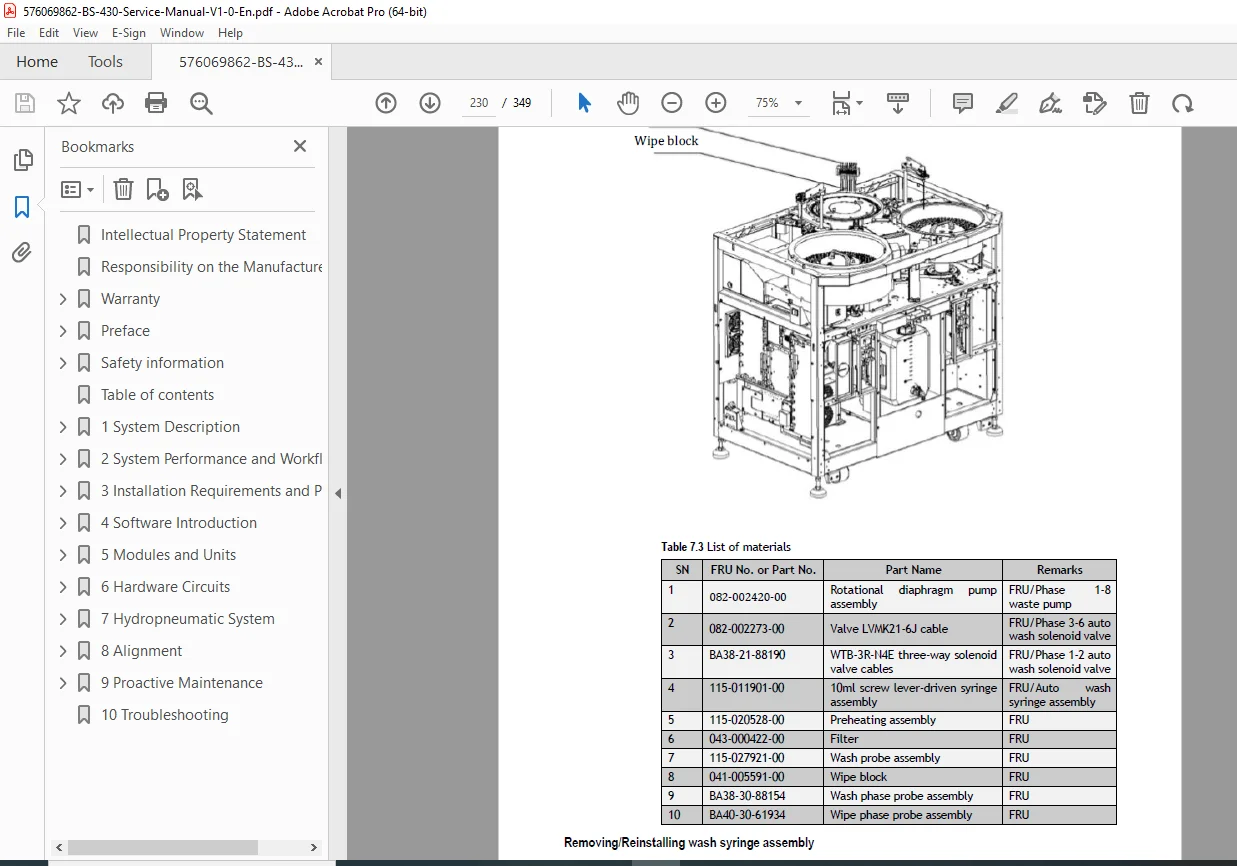

System Structure: Detailed layout of the Reaction Disk, Sample Disk, and Reagent Disk assemblies.
Optical System: Photometric unit specifications and light source replacement.
ISE Module: Maintenance of the Ion Selective Electrode unit, including electrode replacement and tubing checks.
Fluidic & Hydraulic Systems
Hydraulic Schematics: Complete flow diagrams for the wash station, reagent needles, and sample probes.
Pumps & Syringes: Procedures for servicing the syringe modules and vacuum pumps.
Fluid Path Cleaning: Protocols for unclogging probes and cleaning the reaction cuvettes.
Electronics & PCBs
Board Replacement: Safe removal and installation of the Main Control Board, Drive Board, and Power Supply Unit (PSU).
Wiring Diagrams: Interconnection maps for tracking signal loss between modules.
Sensors: Adjusting and testing the liquid level detection (LLD) and collision protection sensors.
Troubleshooting & Error Codes
Error Code Dictionary: Extensive list of alarm codes (e.g., C07037, C07041) with causes and solutions.
Reagent & Calibration Errors: Fixes for expired calibration factors and reagent bottle serial number mismatches.
Mechanical Failures: Diagnosing vertical and horizontal movement errors in the probe arms.
Alignment & Calibration
Mechanical Alignment: Adjusting the probe positions relative to the cuvettes and wash wells.
Optic Calibration: Gain adjustment procedures for the photometric system.
Product Details:

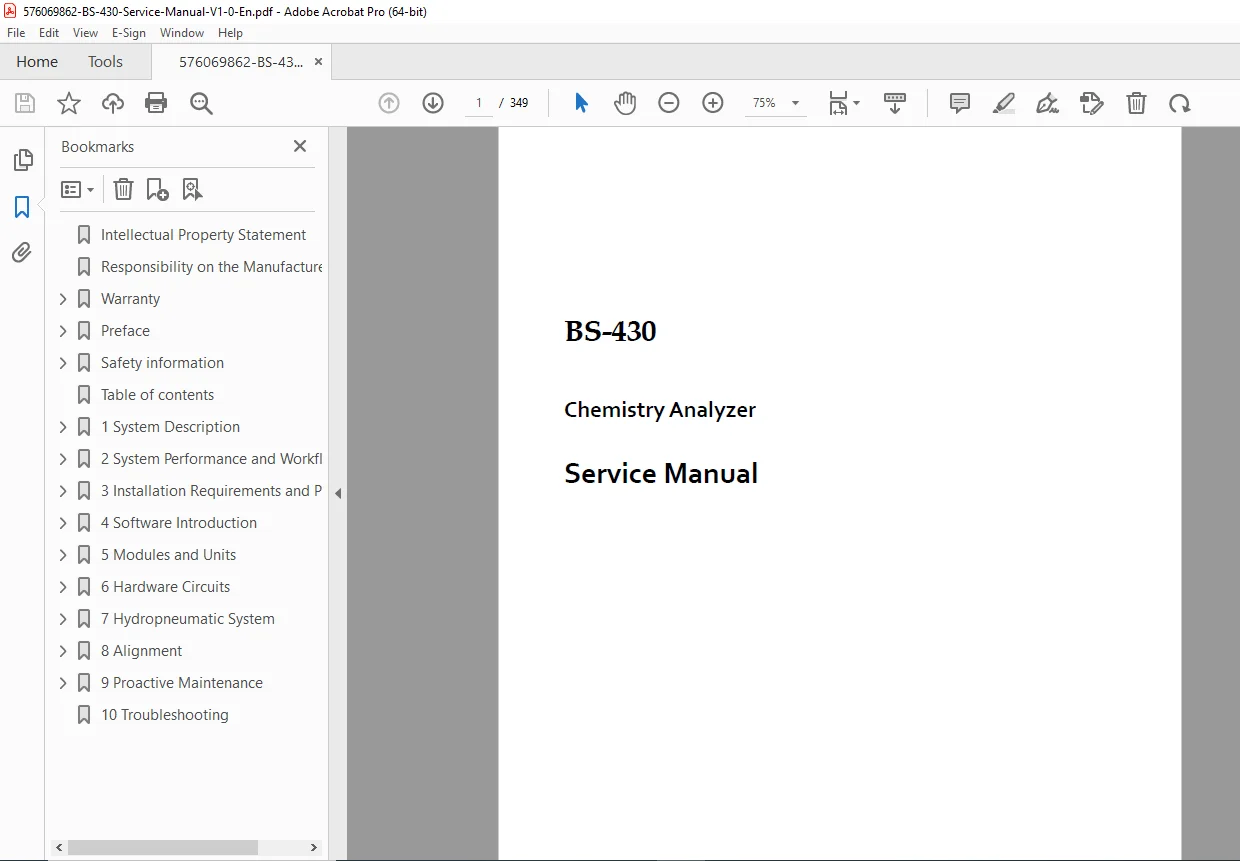

Manual Name: Mindray BS-430 Chemistry Analyzer Service Manual
Models Covered: Mindray BS-430
Version: V1.0 (English)
Date: February 2020
Manufacturer: Shenzhen Mindray Bio-Medical Electronics Co., Ltd.
File Type: High-Quality PDF (Text Searchable, Printable, Diagrams)
- Pages: 349
Keep Your Lab Running Smoothly! A stalled analyzer delays patient results. Download the Mindray BS-430 Service Manual now to access the expert fluidic diagrams and error code fixes you need to restore your system to peak clinical performance immediately.
