Mindray TE7 Touchscreen Ultrasound System Service Manual – PDF
Original price was: $75.00.$27.95Current price is: $27.95.
Comprehensive service manual for the Mindray TE7 Portable Touchscreen Ultrasound System, detailing installation, disassembly, software upgrade, preventive maintenance, diagnostics, troubleshooting, and calibration procedures. Includes full wiring diagrams, spare parts list, test routines, and specifications for B, M, Doppler, and imaging subsystems
Description
Mindray TE7 Touchscreen Ultrasound System Service Manual – PDF
Manual Specs
Chapters Overview
Introduction & Scope – Overview, intended users (biomedical engineers), safety standards (IEC 60601-1, 60601-1-2, 60601-2-37).
System Overview –
Architecture of TE7 ultrasound platform.
Modules: imaging unit, control panel, probe ports, battery pack, fan, and power subsystem.
Probe interface: convex, linear, phased, endocavity, and TEE probes.
System performance parameters and imaging functions (B-mode, M-mode, Color, PW/CW Doppler, 3D).
Installation & Setup – Site requirements, transport precautions, connecting peripherals (ECG, footswitch, printer, network).
Disassembly Procedures – Illustrated teardown with numbered steps: removing battery, back cover, fan, mainboard, power board, and LCD. Includes torque data for screws and connectors.
Software & Upgrade –
TE7 firmware upgrade procedure (USB or network).
Configuration backup and restoration via service mode.
Probe firmware and license activation.
Functional Tests –
System initialization test, display and touch panel test, USB/HDMI verification.
Probe ID recognition, channel tests, acoustic power checks, grayscale calibration.
Troubleshooting –
Flowcharts for “No Power,” “No Image,” “Fan Failure,” “Boot Failure,” and “Probe Error.”
Board-level replacement guide.
Preventive Maintenance –
Inspection intervals (daily, quarterly, annual).
Cleaning/disinfection standards.
Cooling system check, fan cleaning, and acoustic calibration.
Appendices –
Wiring diagrams (CPU board, IO board, PSU).
Error codes and diagnostic indicators.
Part numbers for all replaceable components.
Specifications: input voltage, max power, image resolution, acoustic output limits.

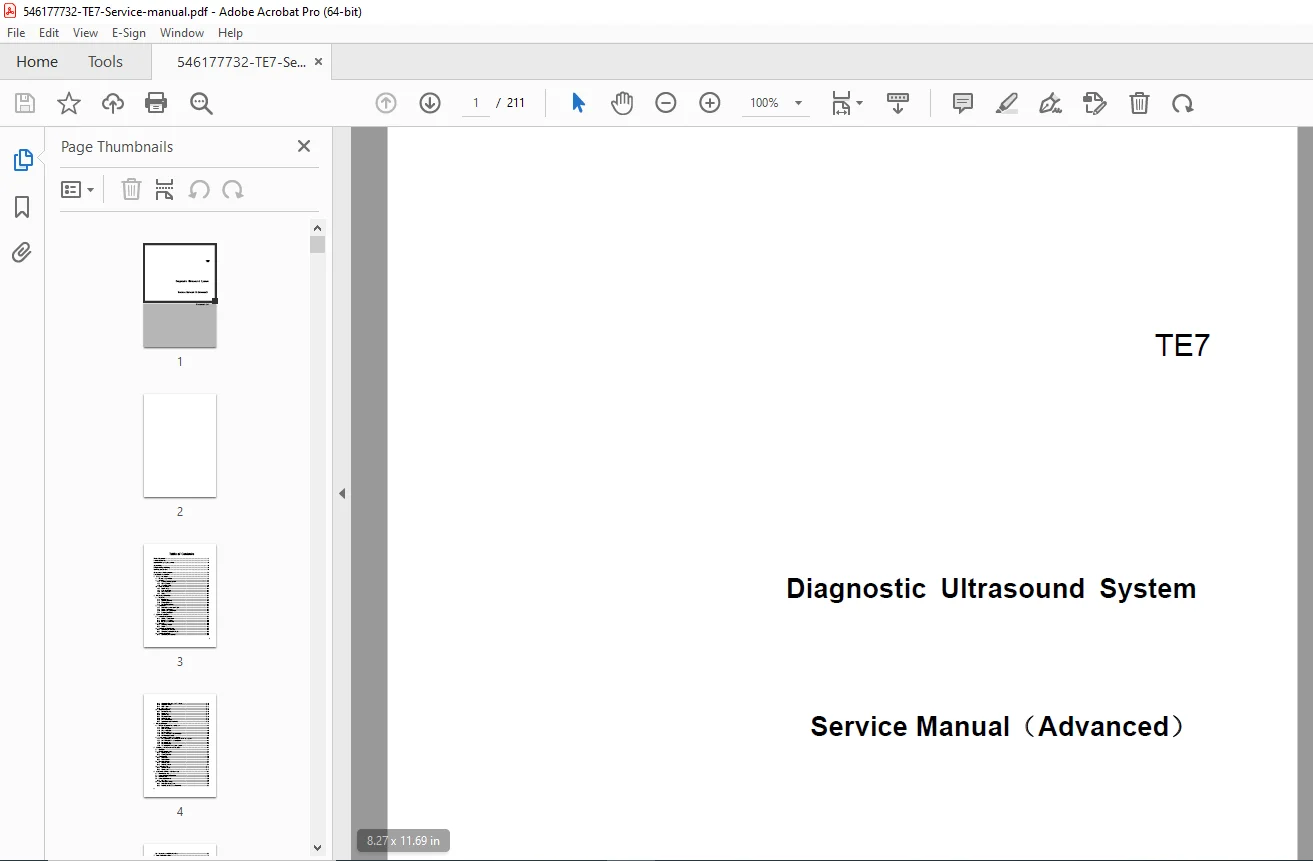

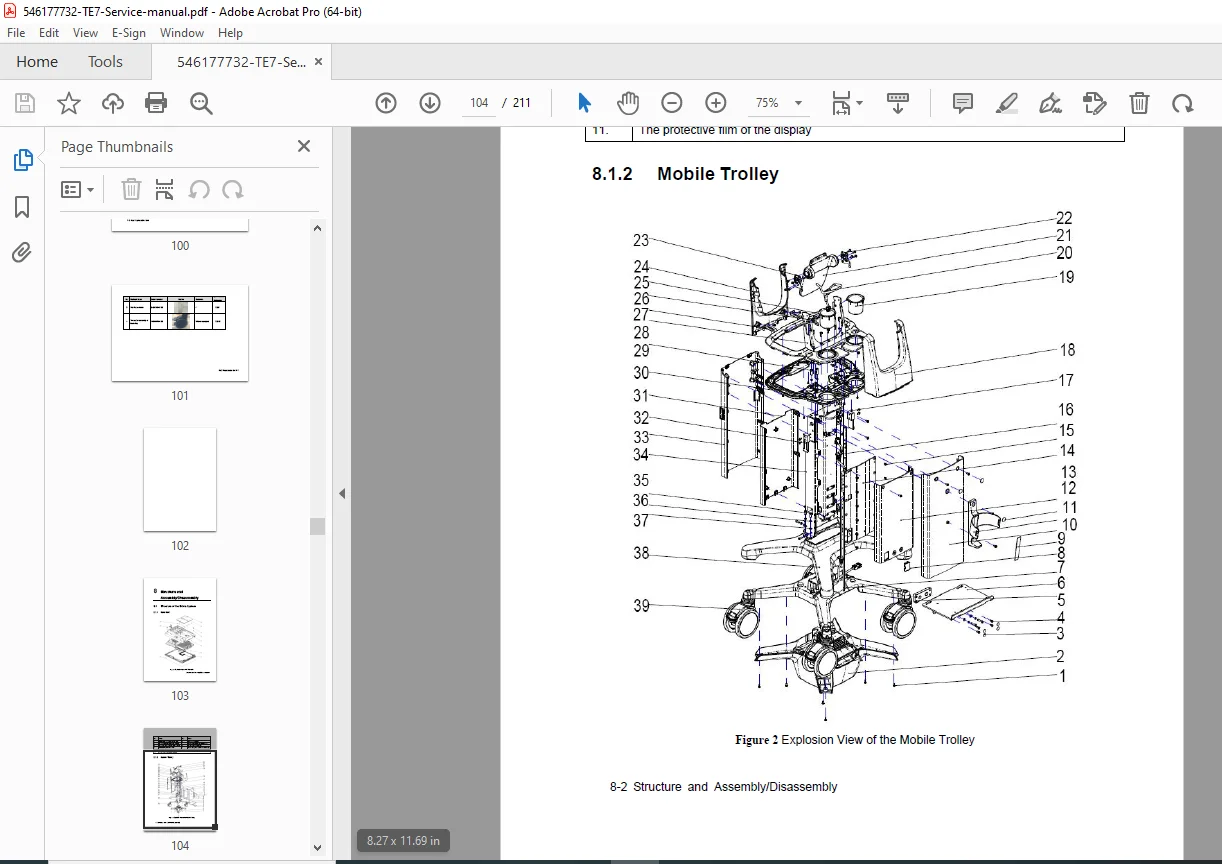

546177732-TE7-Service-manual
Key Technical Highlights
| Parameter | Specification |
|---|---|
| System Type | Touchscreen Portable Ultrasound |
| Display | 15” LED multi-touch capacitive screen |
| Imaging Modes | B, M, Color, Power, PW/CW Doppler, Dual, Triplex |
| Frequency Range | 1–15 MHz (probe dependent) |
| Dynamic Range | 200 dB |
| Storage | 500 GB SSD, USB export, DICOM 3.0 |
| Probes Supported | Convex, Linear, Phased, Endocavity, TEE |
| Power Input | 100–240 V AC, 50/60 Hz |
| Battery | 14.8 V Li-ion; operation >1 hour |
| Dimensions / Weight | ~42 × 52 × 11 cm / ~7.5 kg |
| Safety | Class I, Type BF applied part |
| Standards | IEC 60601-1, -1-2, -2-37, ISO 14971 |
Who Should Use This Manual
Authorized Mindray service engineers and biomedical technicians performing diagnostics, firmware updates, or hardware maintenance on the TE7 ultrasound unit.
File Details
Manual name: TE7 Ultrasound System Service Manual
Manufacturer: Shenzhen Mindray Bio-Medical Electronics Co., Ltd.
Version / Revision: R5 – March 2020
Manual type: OEM Factory Service Manual
Language: English
PDF Quality: High-resolution, searchable original
No. of Pages: ~211
