Mitsubishi Forklift FD70NH FD80NH FD100NH Trucks Service Manual – PDF DOWNLOAD
FILE DETAILS:
Mitsubishi Forklift FD70NH FD80NH FD100NH Trucks Service Manual – PDF DOWNLOAD
Size: 21.2 MB
Pages :427
Format: PDF
Language: English
Brand: Mitsubishi
DESCRIPTION:
Mitsubishi Forklift FD70NH FD80NH FD100NH Trucks Service Manual – PDF DOWNLOAD
For use with A-6BG1QC02, A-6BG1QC09 Engine Service Manuals.
Serial No : 99709-22100
FD70NH 30E-00001-09999
FD80NH 30F-00001-09999
FD100NH 30G-00001-09999
GENERAL REPAIR INSTRUCTIONS:
1. Before performing any service operation with the engine mounted, disconnect the grounding cable from the battery. This will reduce the chance of cable damage and burning due to short circuiting.
2. Always use the proper tool or tools for the job at hand. Where specified, use the specially designed tool or tools.
3. Use genuine parts referring ENGINE PARTS CATALOGUE for engines surely.
4. Never reuse cotter pins, gaskets, O-rings, lock washers, and self locking nuts. Discard them as you remove them. Replace them with new ones.
5. Always keep disassembled parts neatly in groups. This will ensure a smooth reassembly operation. It is especially important to keep fastening parts separate. These parts vary in hardness and design, depending on their installation position.
6. All parts should be carefully cleaned before inspection or reassembly. Oil ports and other openings should be cleaned with compressed air to make sure that they are completely free of obstructions.
7. Rotating and sliding part surfaces should be lubricated with oil or grease before reassembly.
8. If necessary, use a sealer on gaskets to prevent leakage.
9. Nut and bolt torque specifications should be carefully followed.
10. Always release the air pressure from any machine-mounted air tank(s) before dismounting the engine or disconnecting pipes and hoses. To not do so is extremely dangerous.
11. Always check and recheck you work. No service operation is complete until you have done this. 12. Information contained in the ”Main Data and Specifications” of the Workshop Manual and the Instruction Book may differ. In this case, the information contained in the Instruction Book should be considered applicable.
NOTES ON THE FORMAT OF THIS MANUAL:
This Workshop Manual is applicable to the A-6BG1 of industrial diesel engine. Unless otherwise specified, these engines have common parts and components as well as data and specifications.
1. Find the applicable section by referring to the table of Contents at the beginning of the Manual.
2. Common technical data such as general maintenance items, service specifications, and tightening torques are included in the ”General Information” section.
3. Each section is divided into sub-sections dealing with disassembly, inspection and repair, and reassembly. The section ENGINE ASSEMBLY is an exception. This part is divided into three sections to facilitates quick indexing.
4. When the same servicing operation is applicable to several different units, the manual will direct you to the appropriate page.
5. For the sake of brevity, self-explanatory removal and installation procedures are omitted. More complex procedures are covered in detail.

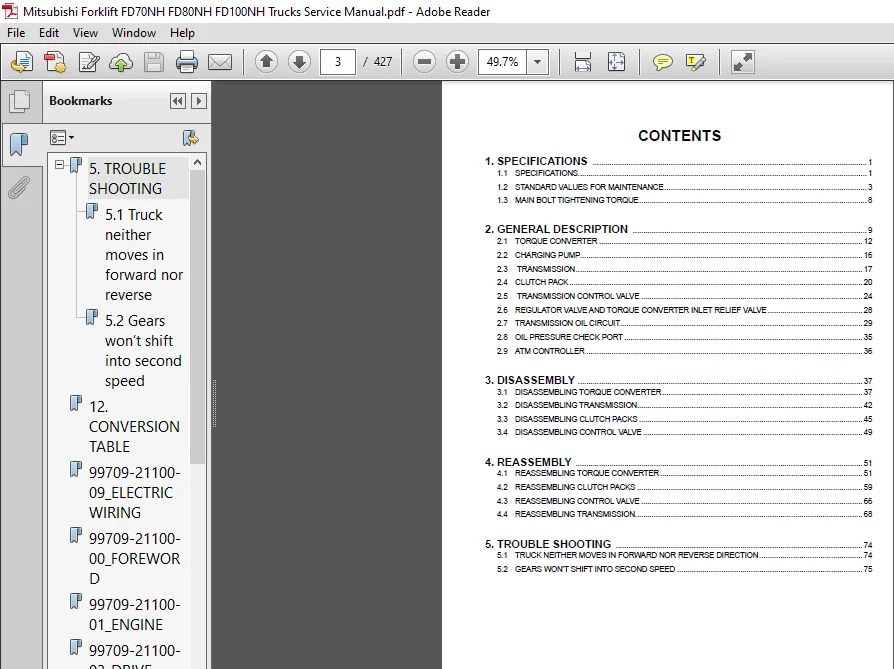

TABLE OF CONTENTS:
Mitsubishi Forklift FD70NH FD80NH FD100NH Trucks Service Manual – PDF DOWNLOAD
1 SPECIFICATIONS 1
11 SPECIFICATIONS 1
12 STANDARD VALUES FOR MAINTENANCE 3
13 MAIN BOLT TIGHTENING TORQUE 8
2 GENERAL DESCRIPTION 9
21 TORQUE CONVERTER 12
22 CHARGING PUMP 16
23 TRANSMISSION 17
24 CLUTCH PACK 20
25 TRANSMISSION CONTROL VALVE 24
26 REGULATOR VALVE AND TORQUE CONVERTER INLET RELIEF VALVE 28
27 TRANSMISSION OIL CIRCUIT 29
28 OIL PRESSURE CHECK PORT 35
29 ATM CONTROLLER 36
3 DISASSEMBLY 37
31 DISASSEMBLING TORQUE CONVERTER 37
32 DISASSEMBLING TRANSMISSION 42
33 DISASSEMBLING CLUTCH PACKS 45
34 DISASSEMBLING CONTROL VALVE 49
4 REASSEMBLY 51
41 REASSEMBLING TORQUE CONVERTER 51
42 REASSEMBLING CLUTCH PACKS 59
43 REASSEMBLING CONTROL VALVE 66
44 REASSEMBLING TRANSMISSION 68
5 TROUBLE SHOOTING 74
51 Truck neither moves in forward nor reverse direction 74
52 GEARS WON’T SHIFT INTO SECOND SPEED 75
MITSUBISHI FORKLIFT FD70NH FD80NH FD100NH TRUCKS SERVICE MANUAL – PDF DOWNLOAD:

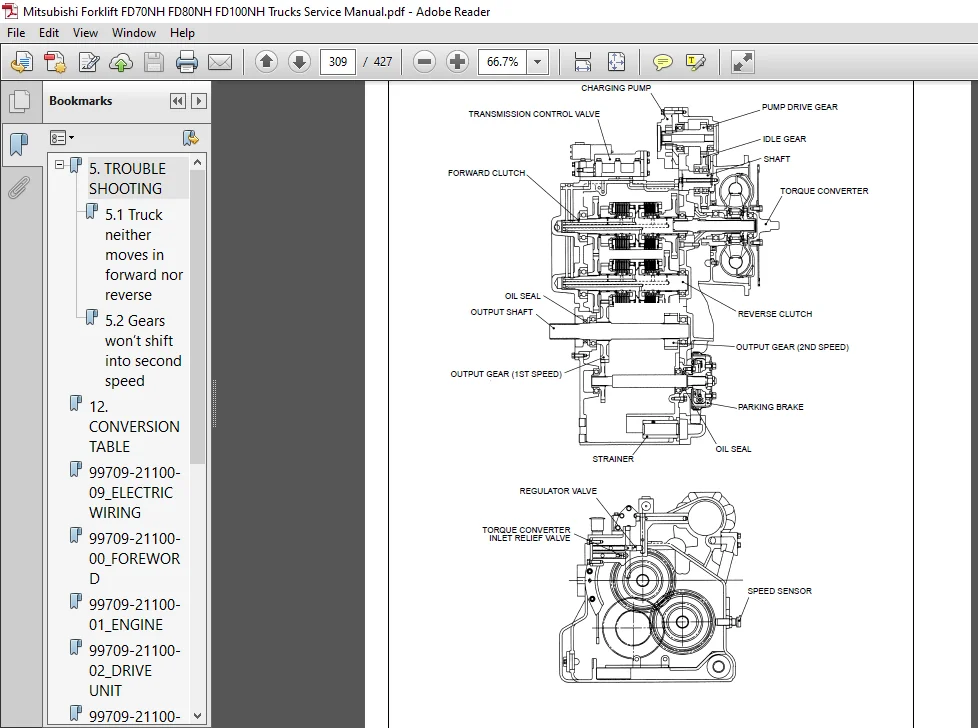

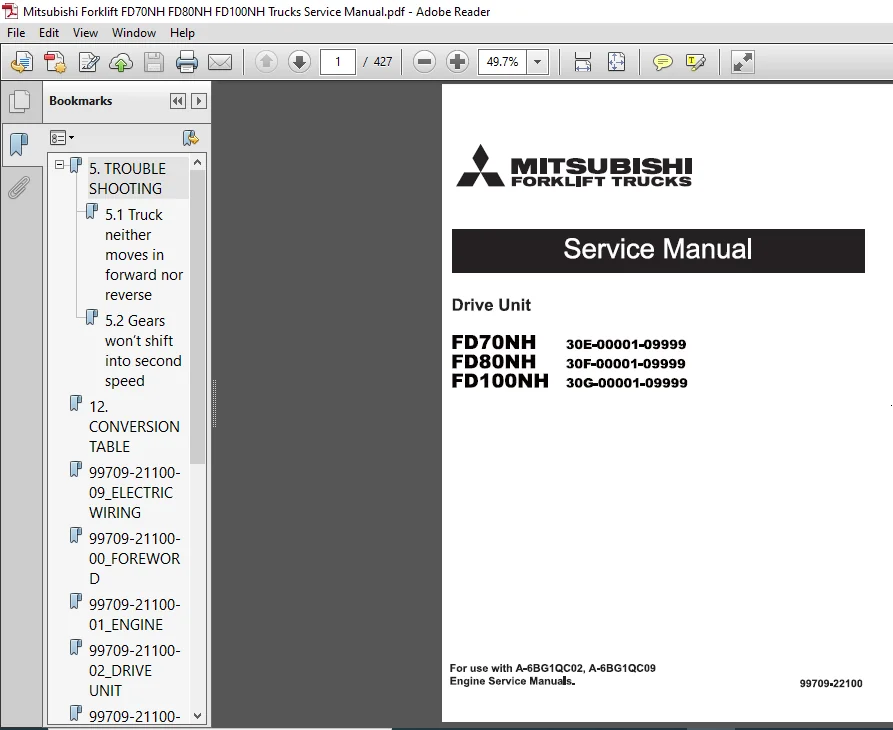

IMAGES PREVIEW OF THE MANUAL:
